High Speed Permanent Magnet Motors For Fan and Blower

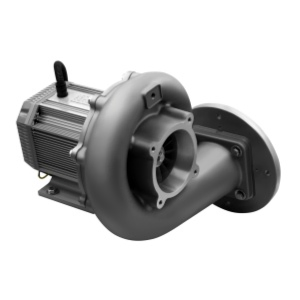

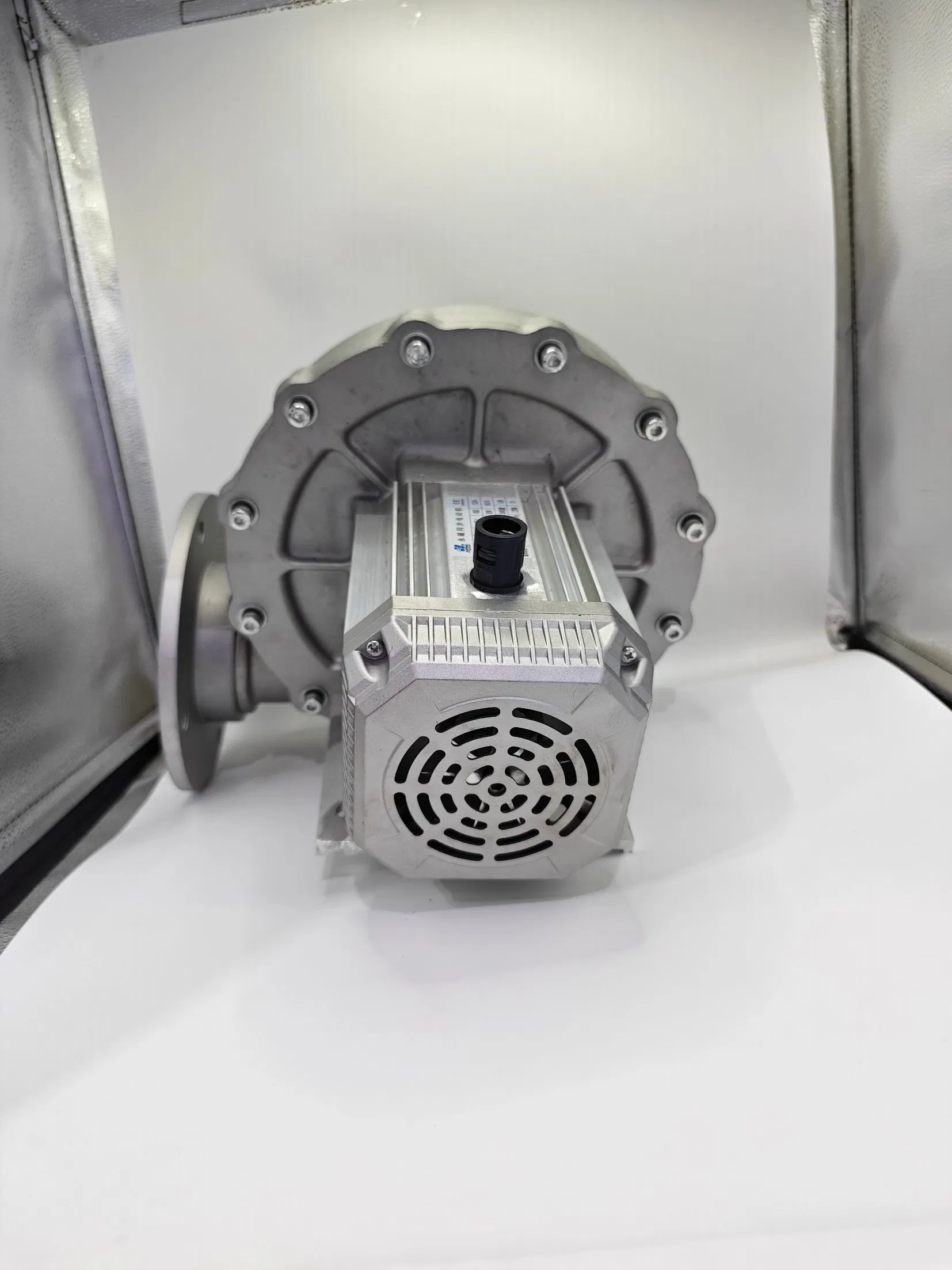

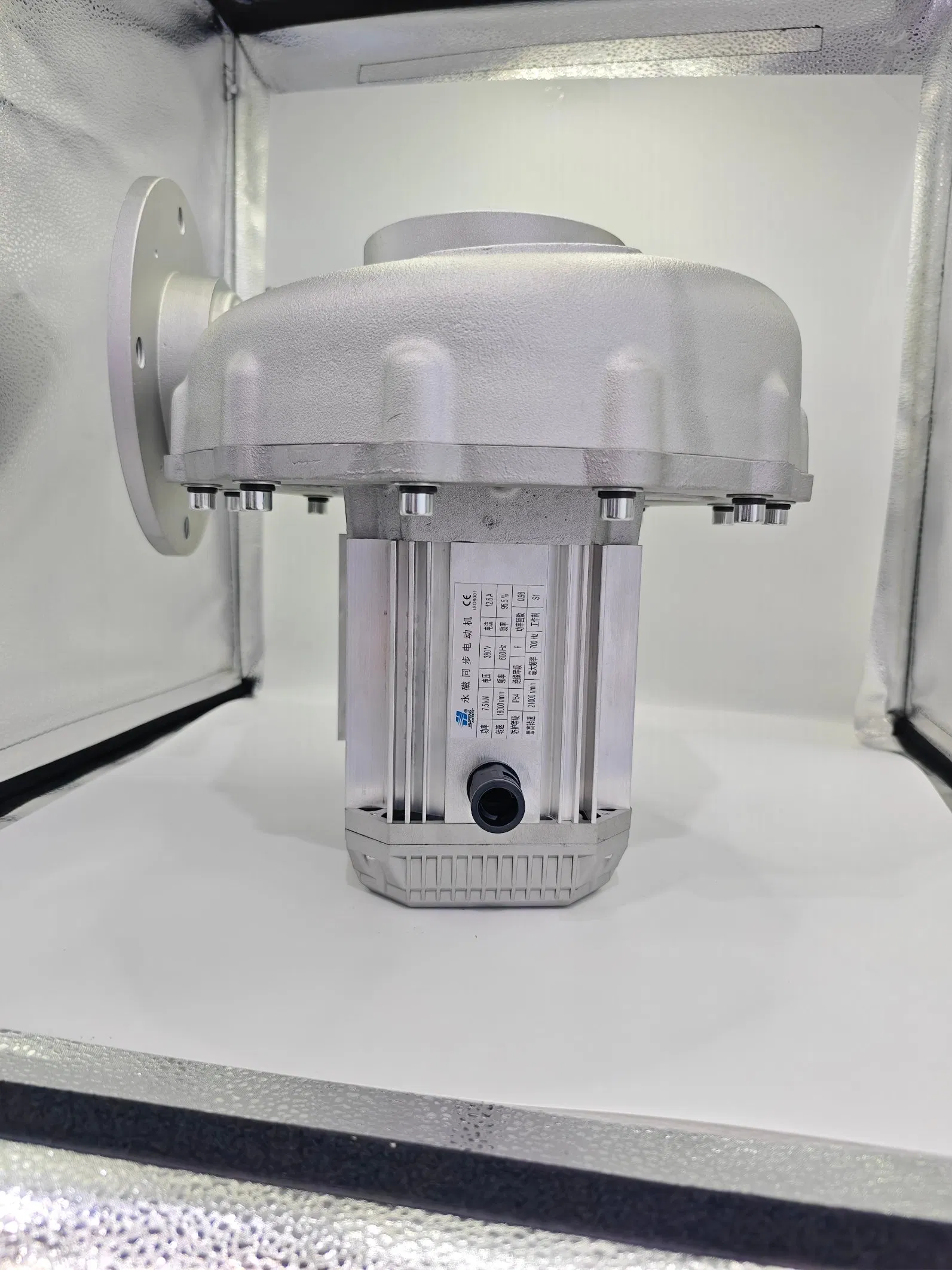

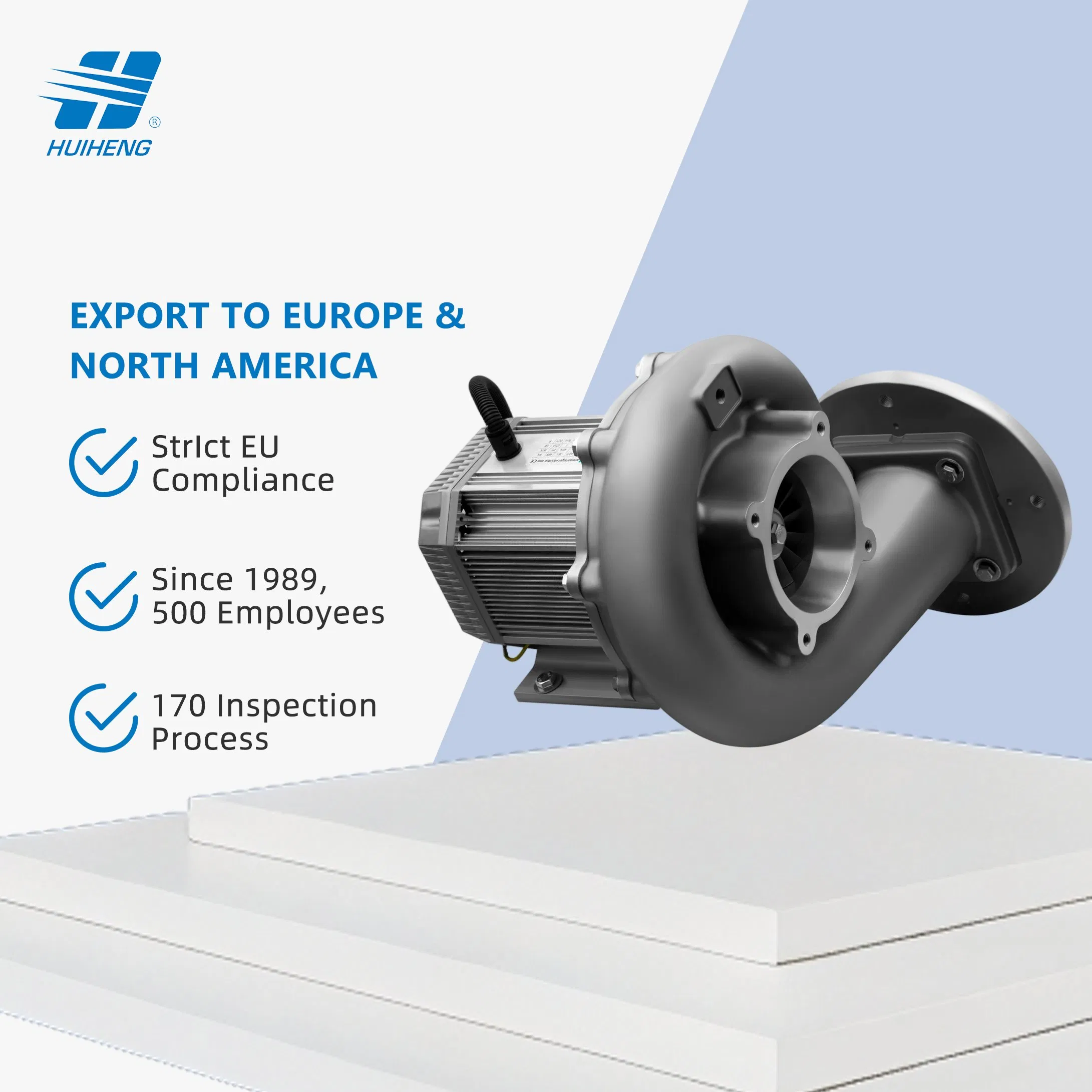

This totally enclosed non-ventilated (TENV) three-phase variable speed permanent magnet motor is engineered for high-speed operation in harsh, dusty, or moisture-laden environments. Operating on 240V AC with variable frequency drive (VFD) control, it delivers a power range of 5.5kW to 22kW at speeds from 15,000 to 18,000 RPM, providing exceptional torque density and IE4/IE5 efficiency for direct-drive fan and blower systems.
| Model | Rated Output | Voltage | Current | Speed | Efficiency | Torque | |
|---|---|---|---|---|---|---|---|
| HP | KW | V | A | r/min | % | N.m | |
| HCF130-0.75 | 1 | 0.75 | 400 | 1.4 | 19500 | 93.5 | 0.4 |
| HCF130-2.2 | 3 | 2.2 | 400 | 4.1 | 19500 | 94.6 | 1.1 |
| HCF150-4.0 | 5.5 | 4 | 400 | 7.5 | 18900 | 94 | 2 |
| HCF150-9.0 | 12 | 9 | 400 | 16.8 | 18900 | 94.2 | 4.5 |
| HCF160-15 | 20 | 15 | 400 | 29.3 | 17400 | 94.5 | 8.2 |
| HCF160-30 | 40 | 30 | 400 | 56 | 17400 | 95.5 | 16.5 |

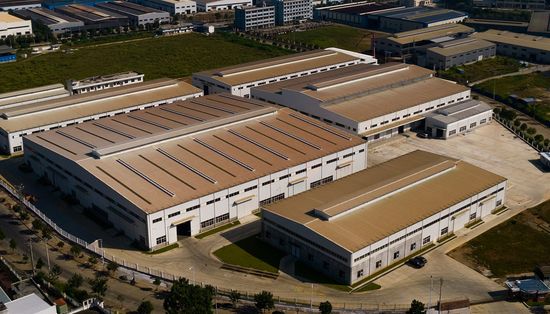

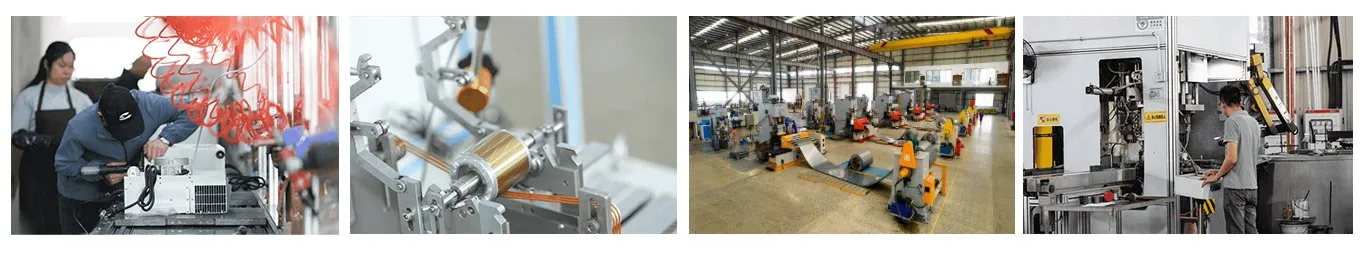

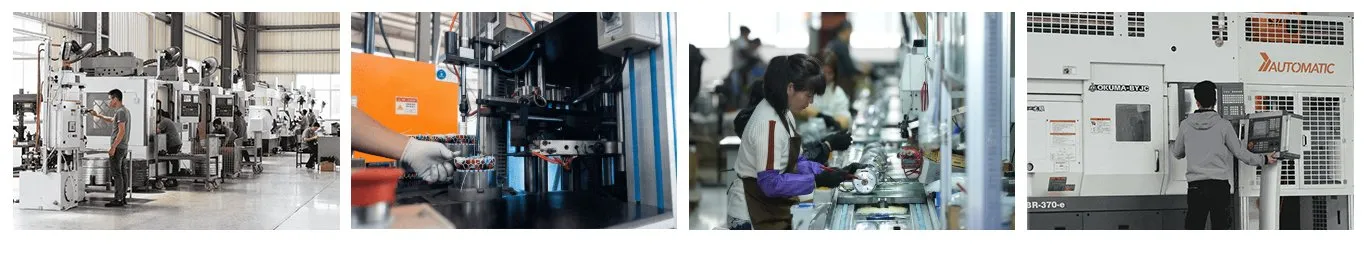

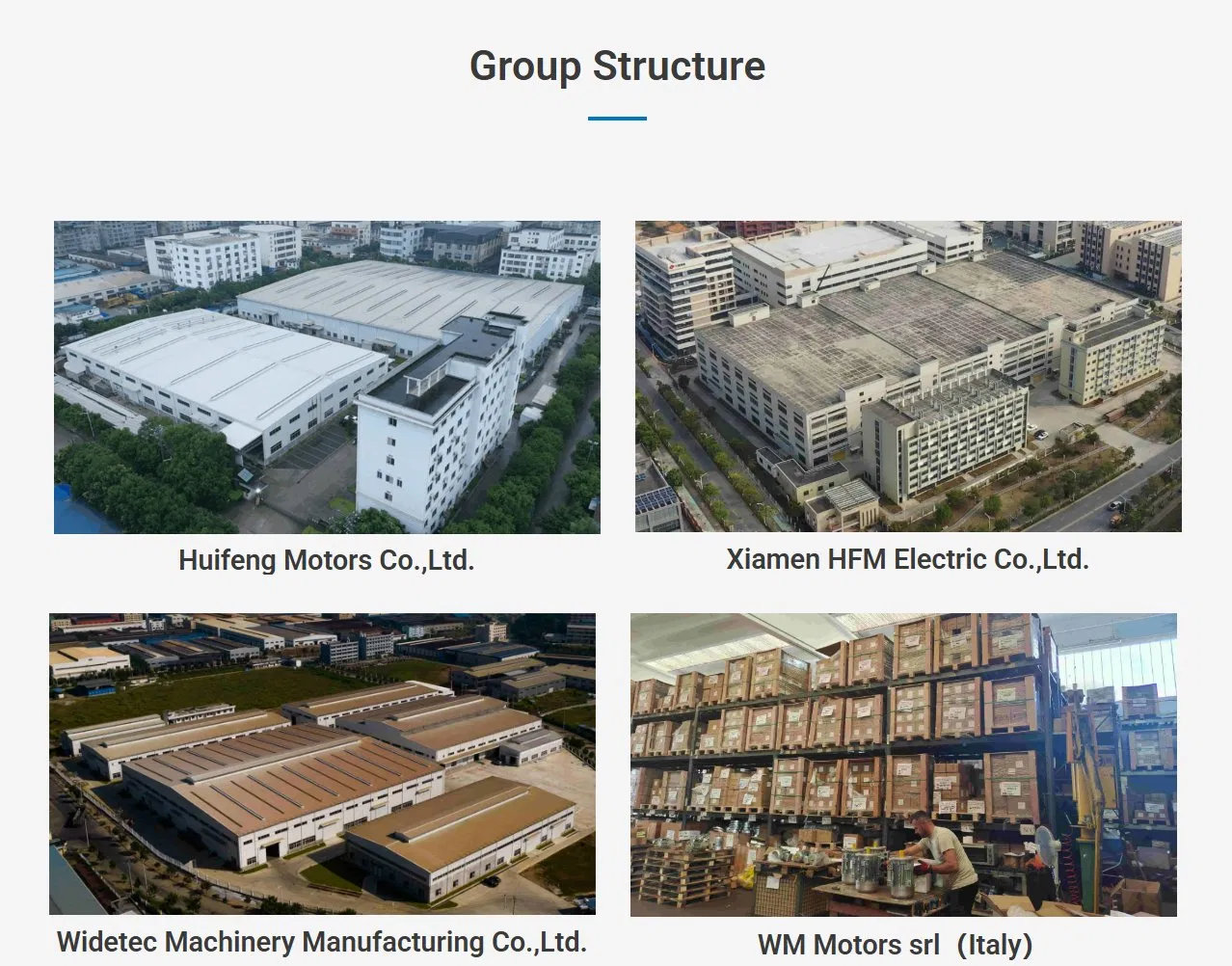

Founded in 1989, we are a professional manufacturer of electric motors with 500 employees and a 130,000 sqm facility. Our strong team of 30 engineers holds 55 national patents, ensuring premium quality for global markets.
