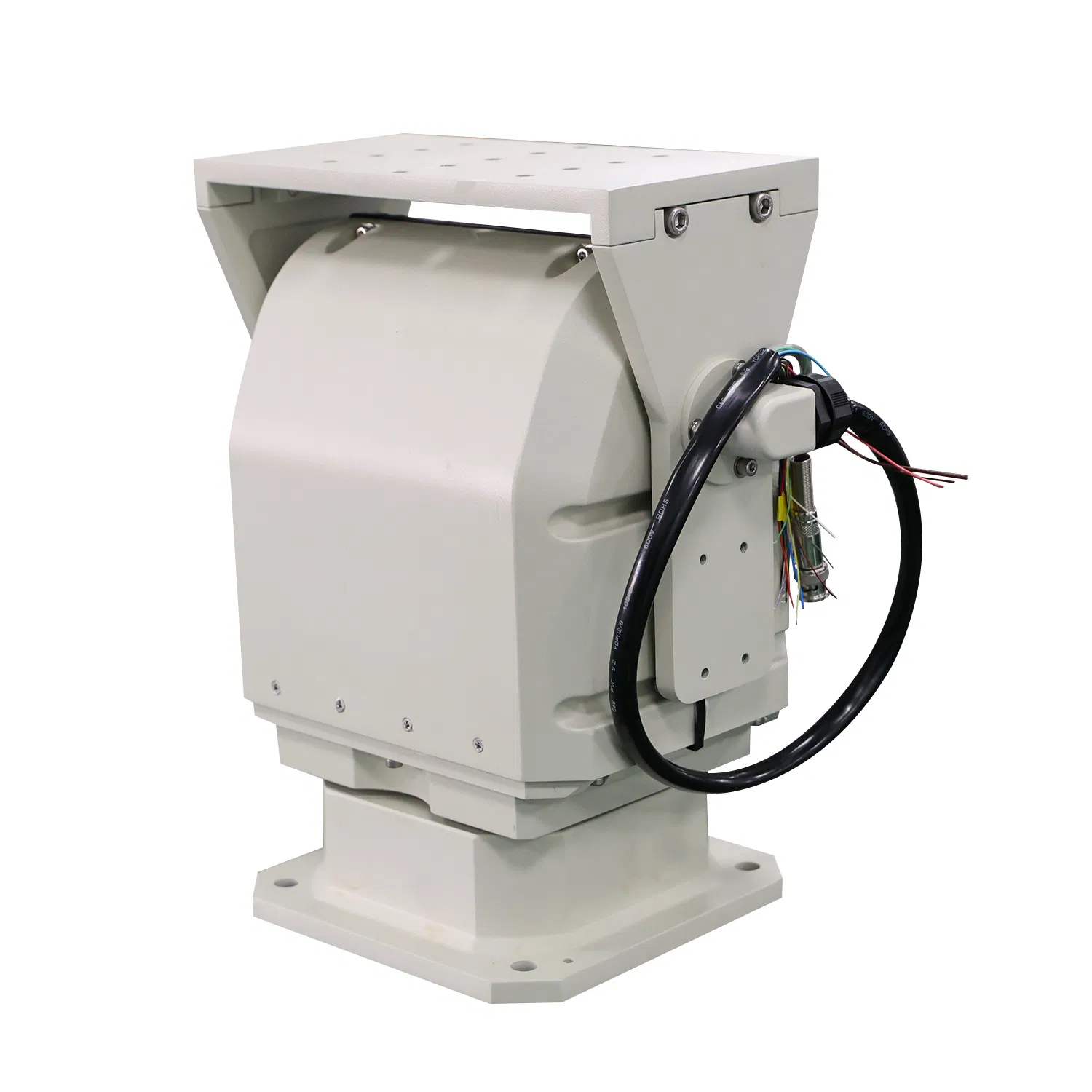

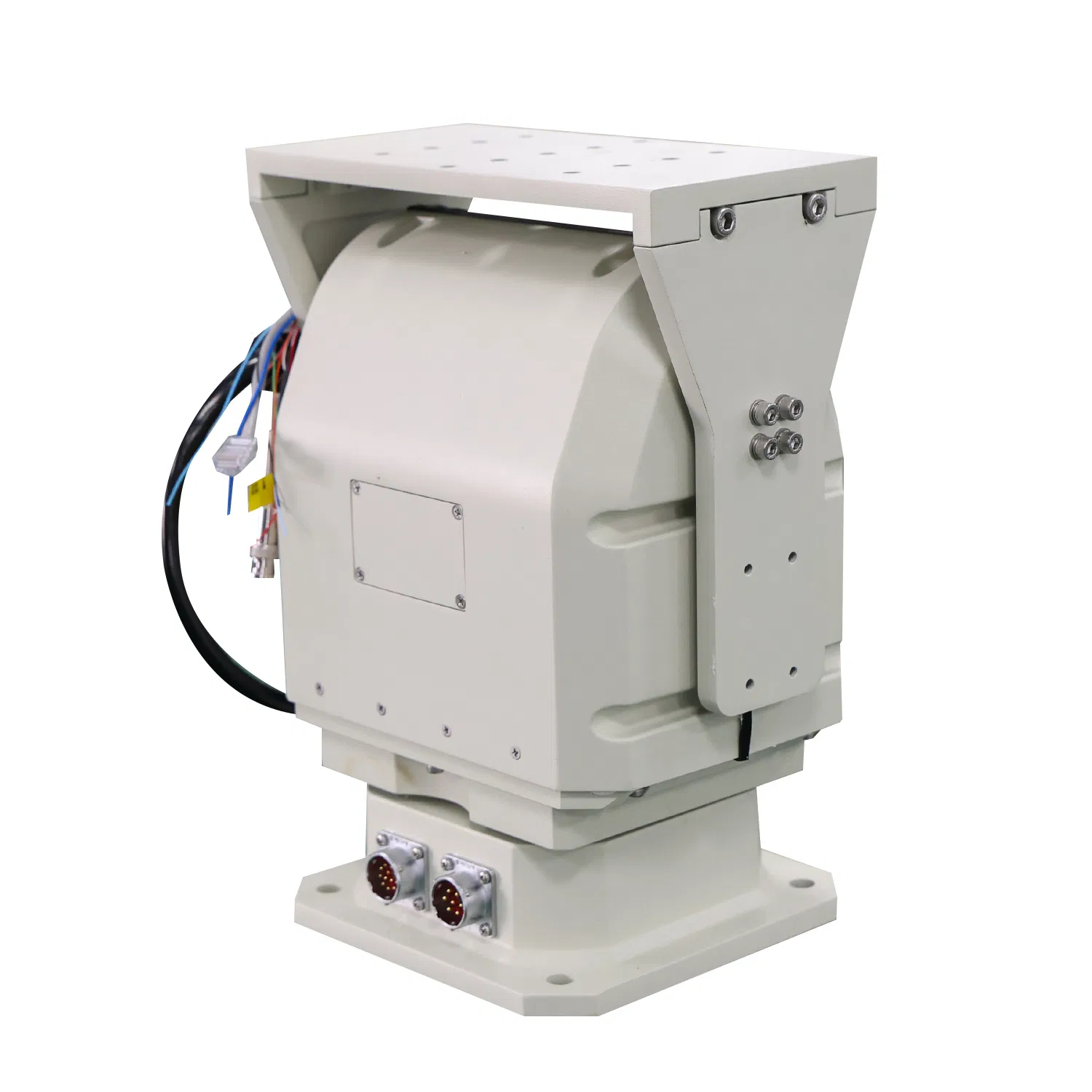

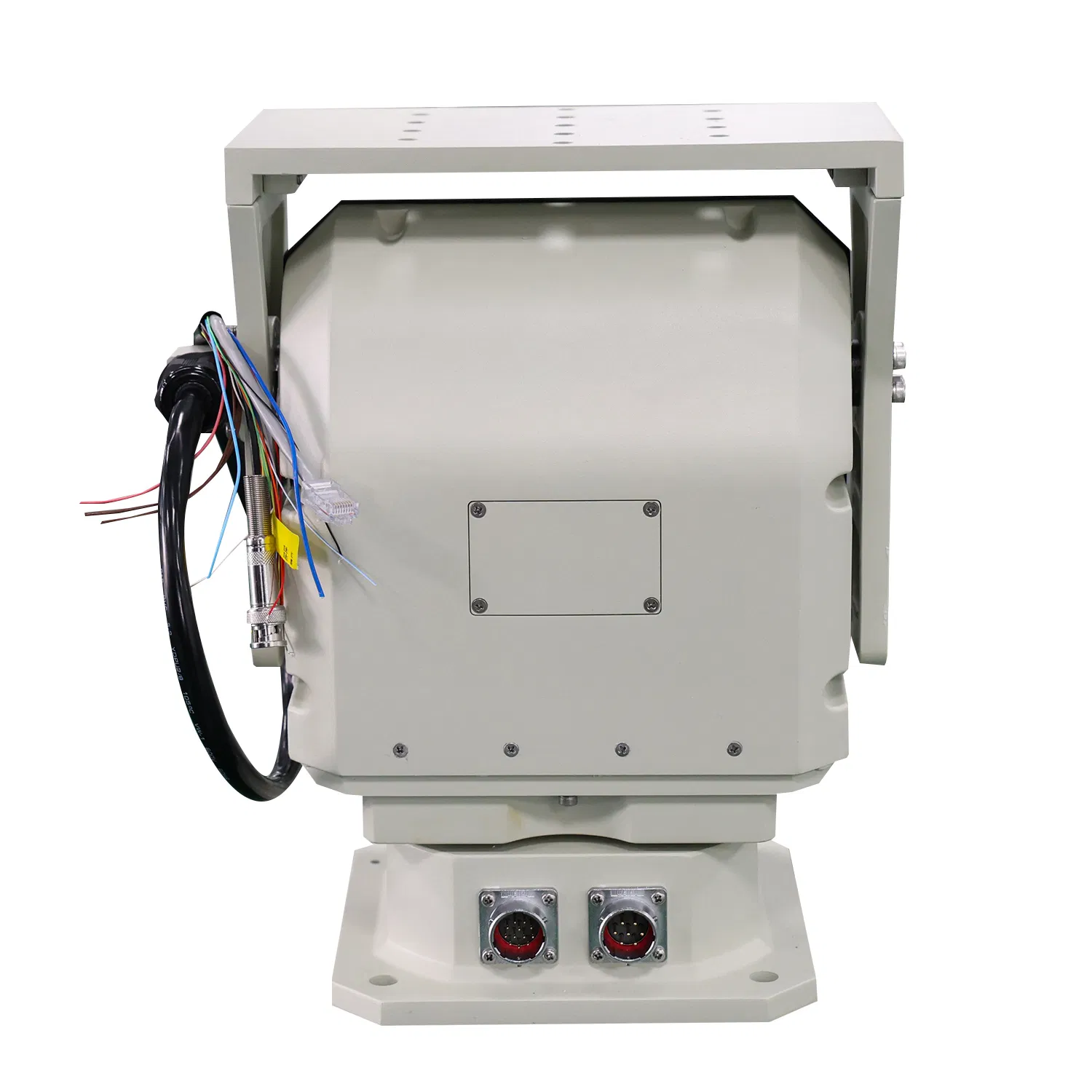

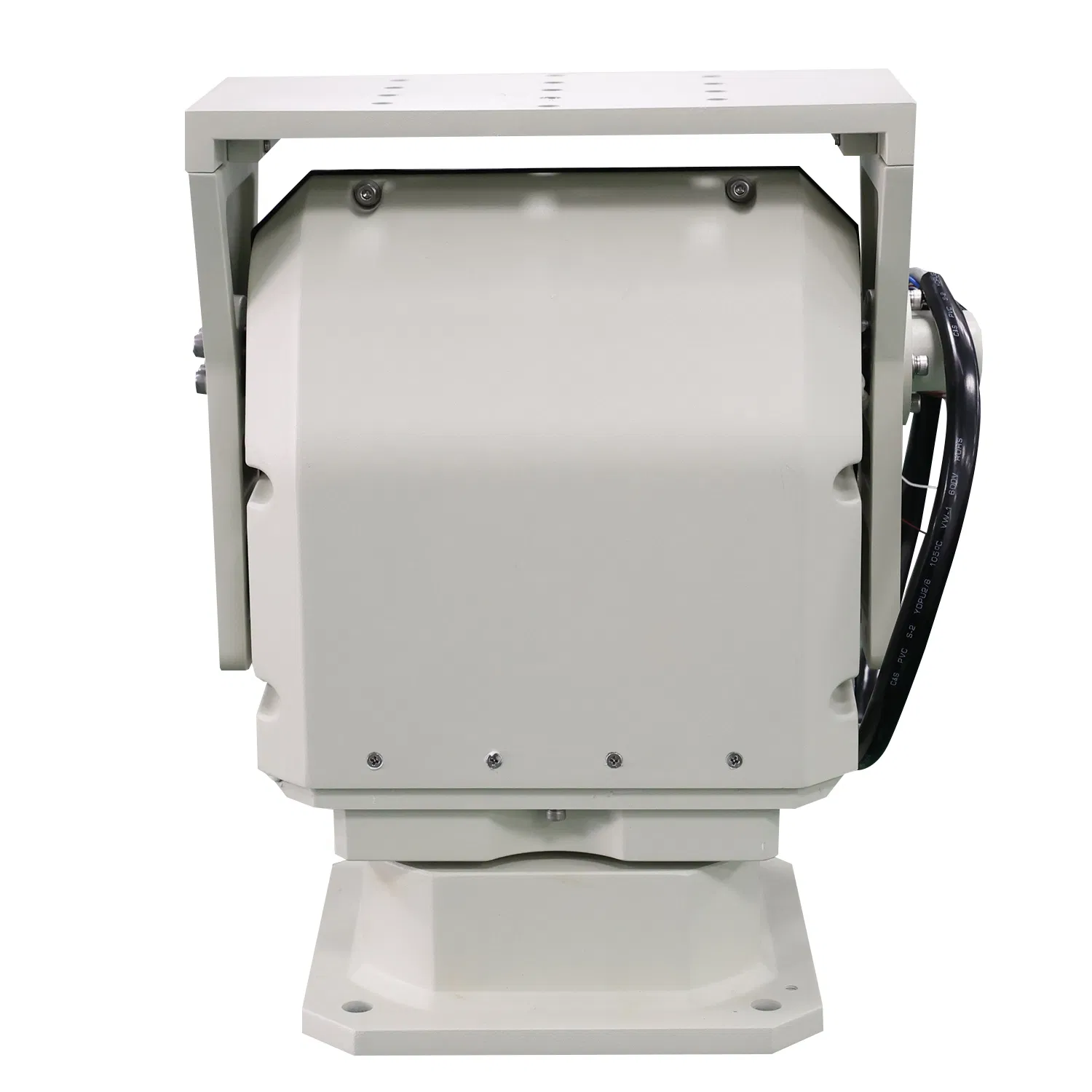

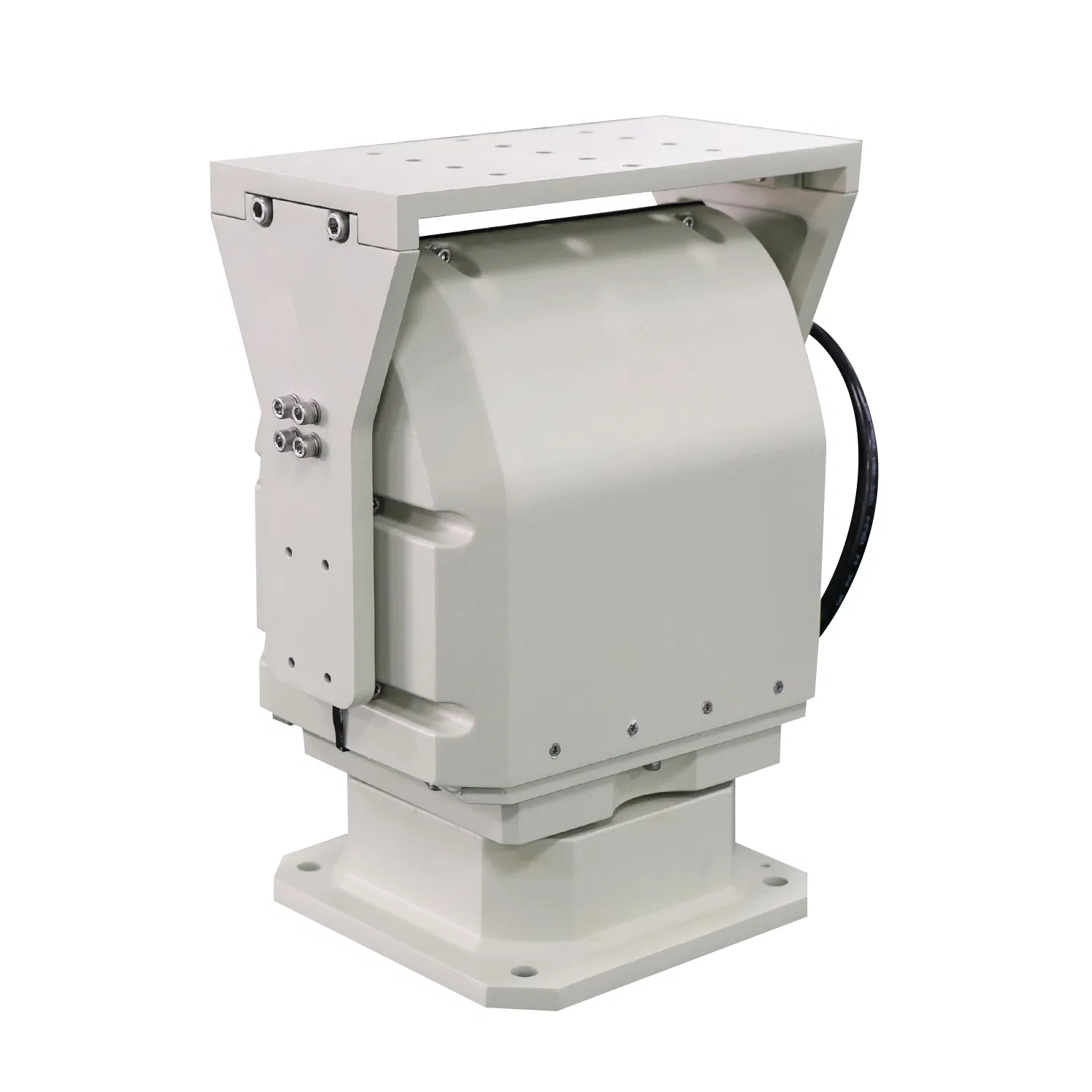

10-20kg Intelligent Steeper Motor Variable Speed Outdoor Waterproof Heavy Duty Pantilt Motorized
10-20kg Intelligent Steeper Motor Variable Speed Outdoor Waterproof Heavy Duty Pantilt Motorized
10-20kg Intelligent Steeper Motor Variable Speed Outdoor Waterproof Heavy Duty Pantilt Motorized
10-20kg Intelligent Steeper Motor Variable Speed Outdoor Waterproof Heavy Duty Pantilt Motorized
10-20kg Intelligent Steeper Motor Variable Speed Outdoor Waterproof Heavy Duty Pantilt Motorized
1 / 5
10-20kg Intelligent Steeper Motor Variable Speed Outdoor Waterproof Heavy Duty Pantilt Motorized
10-20kg Intelligent Steeper Motor Variable Speed Outdoor Waterproof Heavy Duty Pantilt Motorized
10-20kg Intelligent Steeper Motor Variable Speed Outdoor Waterproof Heavy Duty Pantilt Motorized
10-20kg Intelligent Steeper Motor Variable Speed Outdoor Waterproof Heavy Duty Pantilt Motorized
10-20kg Intelligent Steeper Motor Variable Speed Outdoor Waterproof Heavy Duty Pantilt Motorized

10-20kg Intelligent Steeper Motor Variable Speed Outdoor Waterproof Heavy Duty Pantilt Motorized

Customization: Available
Technology: Pan / Tilt / Zoom
Style: Pan/Tilt
Send Inquiry

Product Description

Technical Overview

Model NO.
SHR-SP2510
Type
IP Camera / Pan-Tilt
Sensor
CMOS
Resolution
324*256 (640*512 Optional)
Protection Class
IP66
Max Load
35kg (Heavy Duty)
Effective Distance
≧30m
Certification
CE, FCC, ISO9001: 2000

Product Gallery

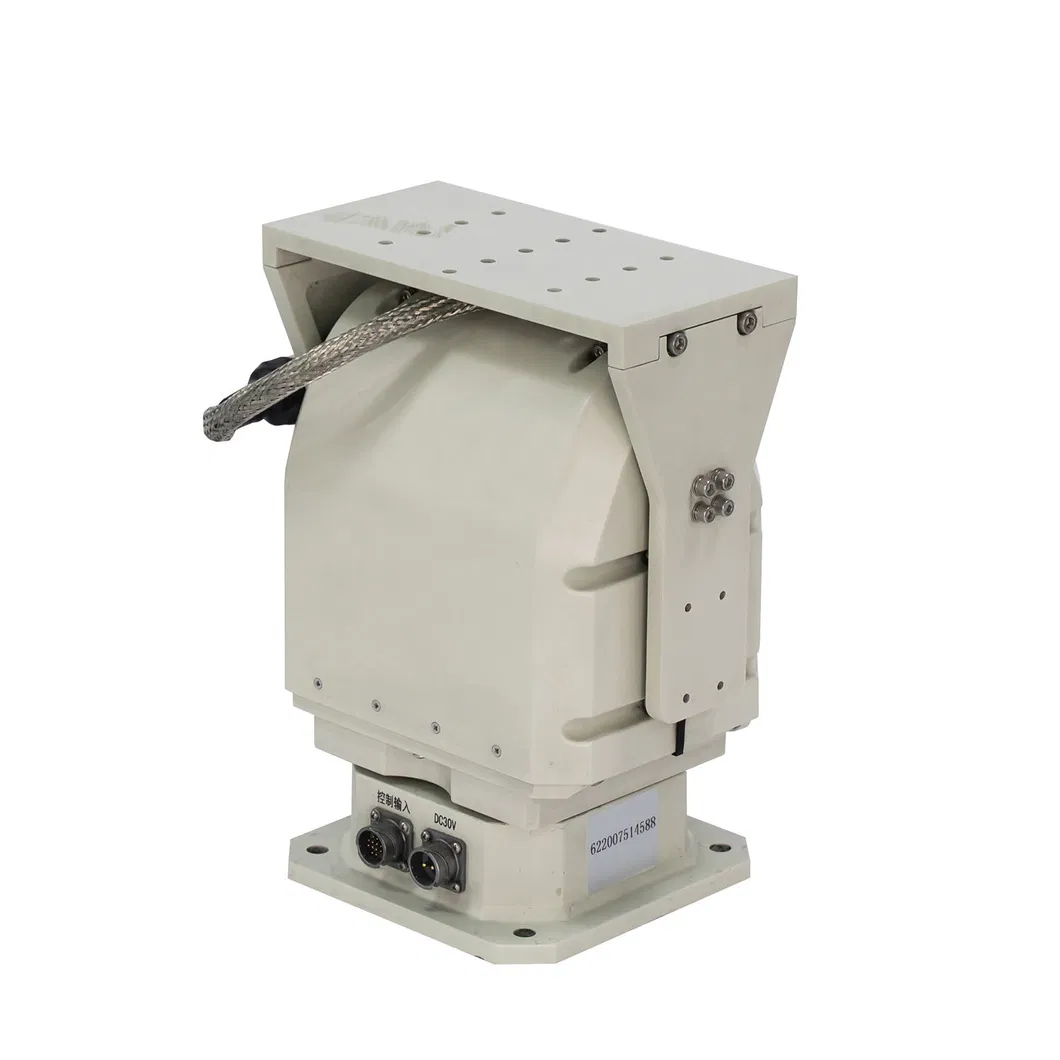

Heavy Duty Pantilt Motorized 1

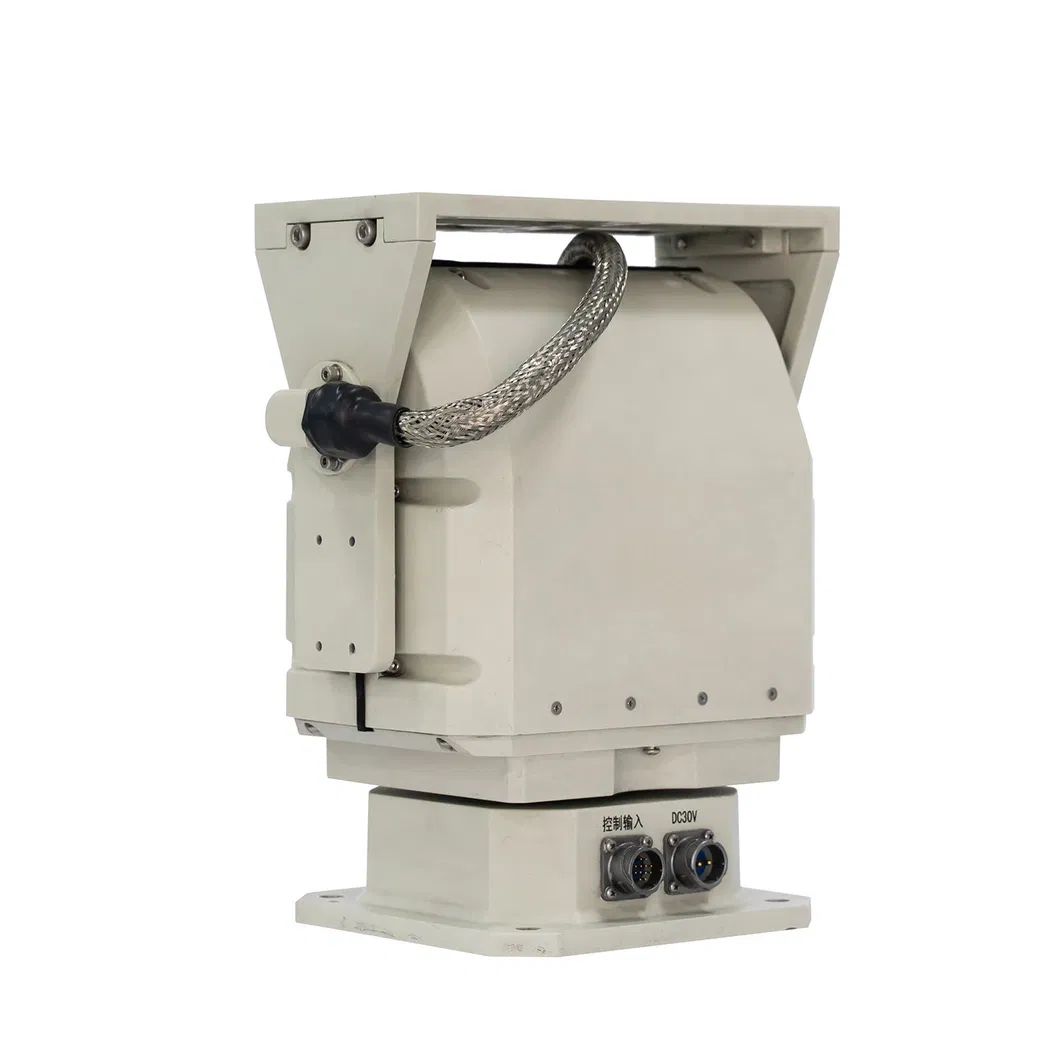

Heavy Duty Pantilt Motorized 2

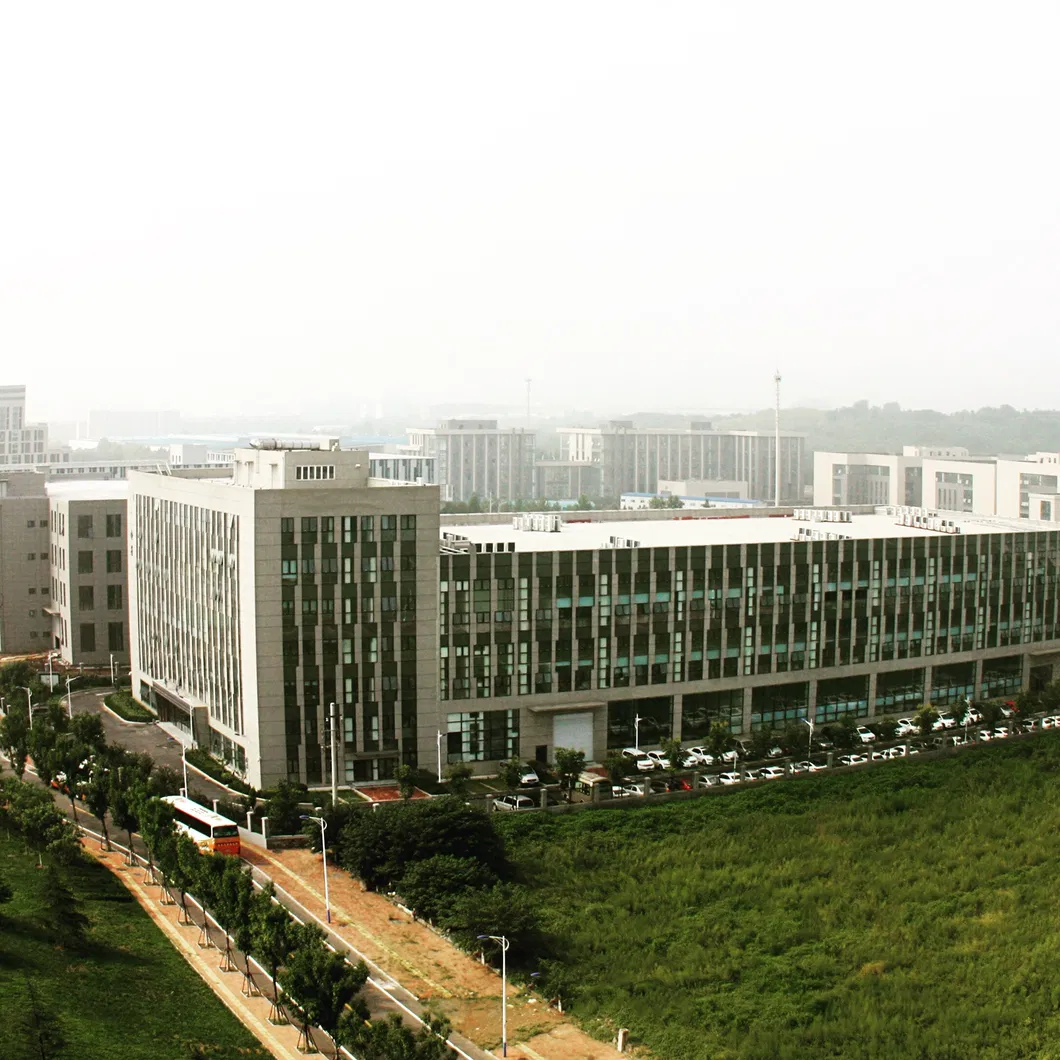

Manufacturing Insight

Core Features

⚙️
High Load Capacity: Supports 10kg / 15kg / 20kg / 35kg load options.
🎯
Precision Positioning: Resetting accuracy up to ±0.1º for reliable monitoring.
⚡
High Speed: Pan tilt speed reaches up to 60º/s for rapid response.
🛡️
Rugged Design: Die-cast aluminum alloy material with IP66 protection.
🔒
Self-Locking: Gear-driven system locks automatically when power is off.
🔄
360° Monitoring: Continuous 360º pan rotation angle.

Detailed Specifications

Model Parameter SP2510 SP2515 SP2520
Rotating Speed Pan:0.01º~60º/s, Tilt:0.01º~30º/s Pan:0.01º~45º/s, Tilt:0.01º~15º/s Pan:0.01º~20º/s, Tilt:0.01º~10º/s
Rotation Angle Pan:0º~360º continuous, Tilt: +20º~-60º
Presets 200 Points, Accuracy ±0.1º
Communication RS485/RS422, Pelco-D/P Protocol
Baud Rate 2400/4800/9600/19200bps
Power Supply AC24V±20% or DC28V±20%; ≤70W
Operation Temp -25 to +65 Celsius (Humidity 90%±3% RH)
Protection IP66 Waterproof / Weatherproof
Dimensions 265mm*180mm*315mm (L*W*H)

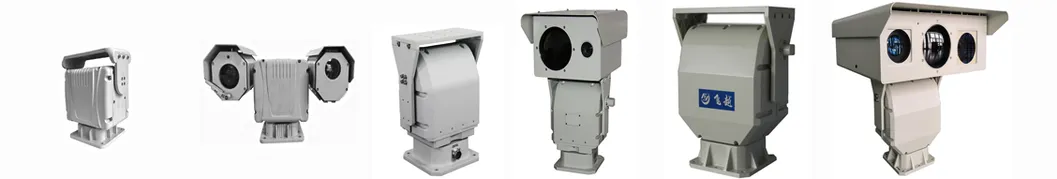

Interface and Dimensions Overview

Frequently Asked Questions

1. What is the maximum load capacity for this series?
The series offers different models supporting maximum loads of 10kg, 15kg, 20kg, and up to 35kg for heavy-duty applications.
2. How accurate is the preset positioning?
The device features high resetting accuracy of up to ±0.1º, ensuring the camera returns exactly to the intended position.
3. Can this equipment operate in extreme weather?
Yes, it is designed with an IP66 protection class and operates in temperatures ranging from -25°C to +65°C (-40°C optional).
4. What rotation ranges does the pan-tilt support?
It supports 0º to 360º continuous pan rotation and a tilt range of +20º to -60º.
5. Is the rotation speed adjustable?
Absolutely. The pan speed can be adjusted from 0.01º/s to 60º/s, and tilt speed from 0.01º/s to 30º/s depending on the specific model.
6. Does it maintain its position when power is lost?
Yes, it utilizes a high-precision worm gear-driven system that is self-locked when the power is off.
