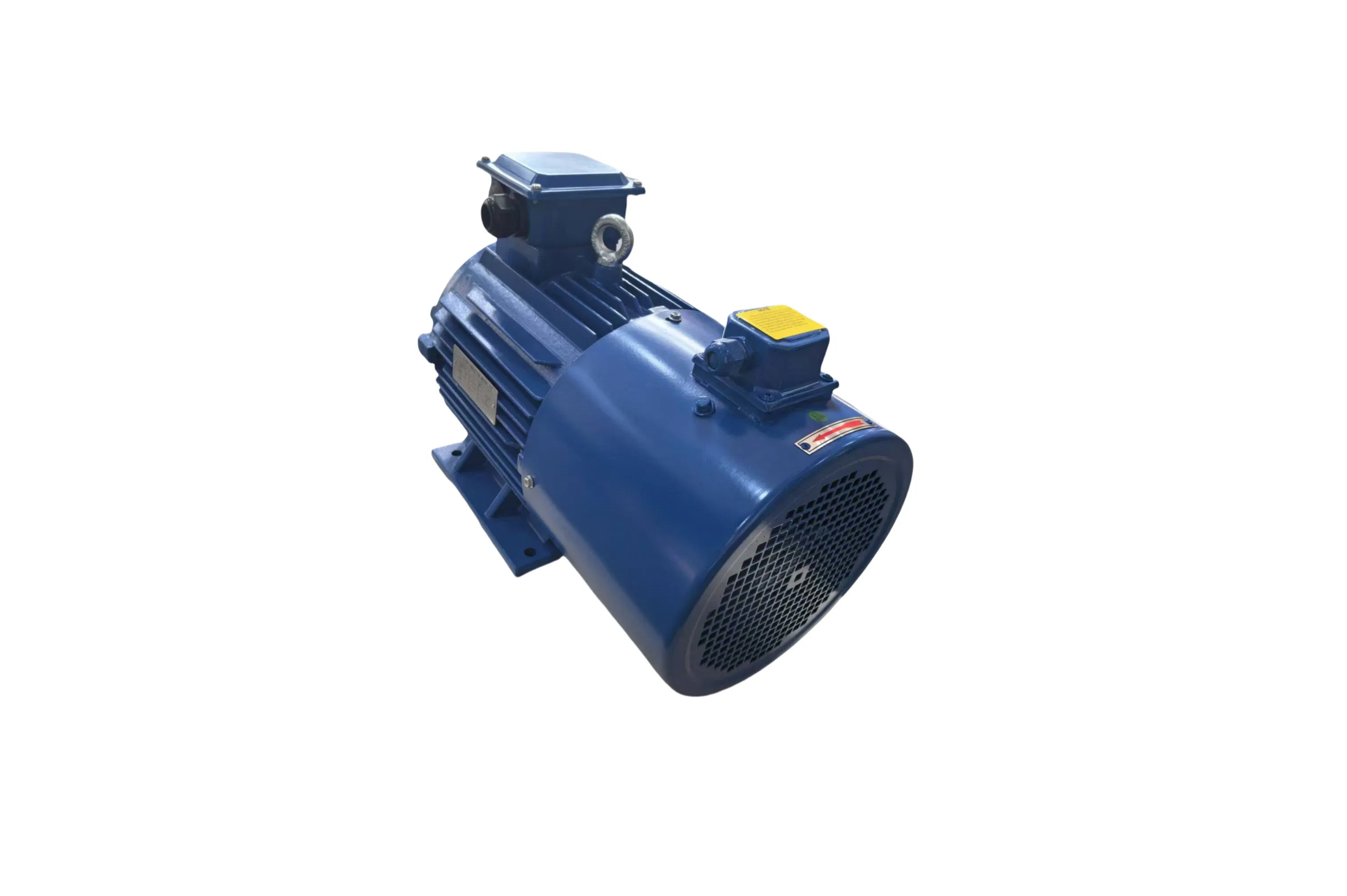

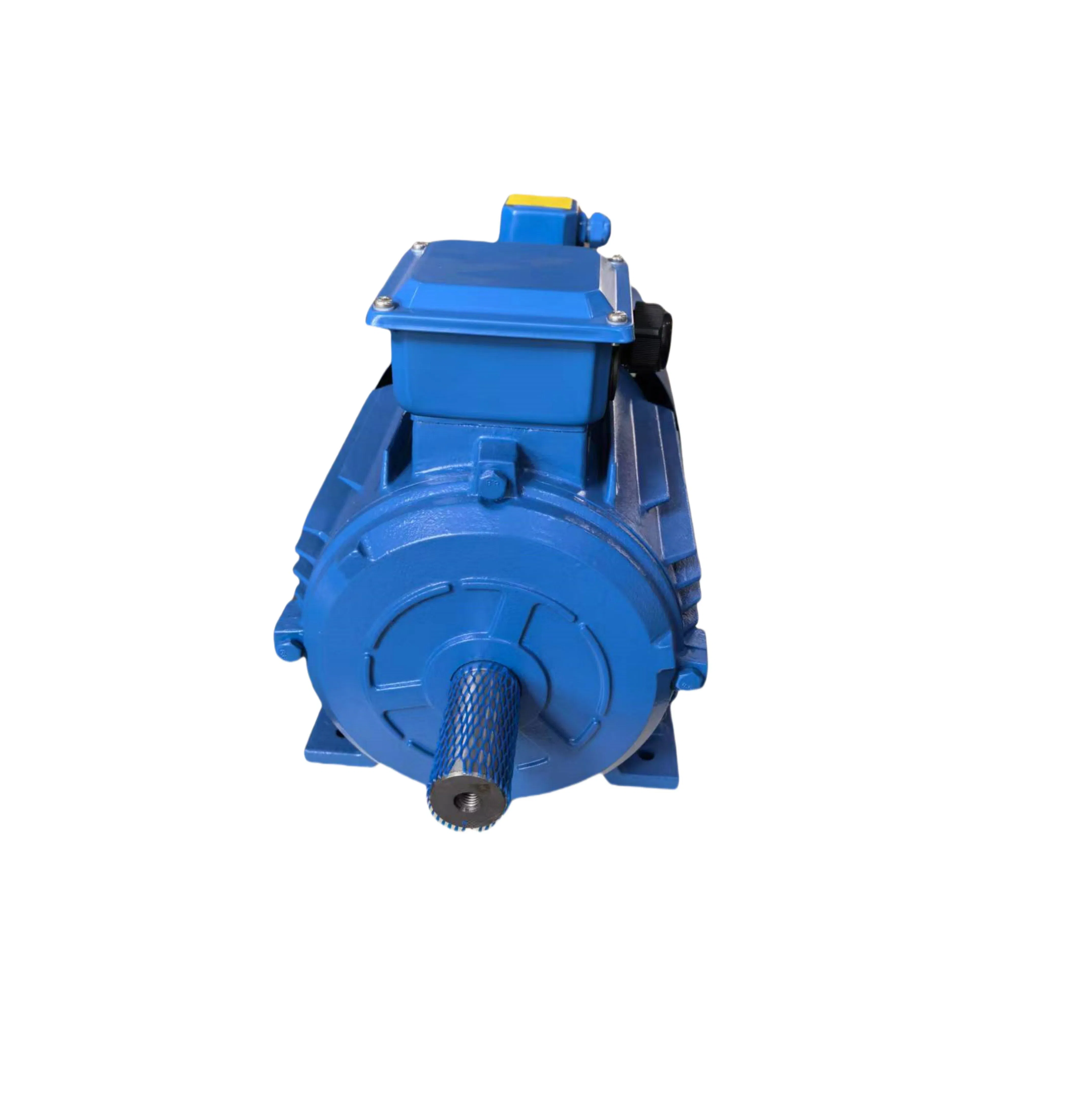

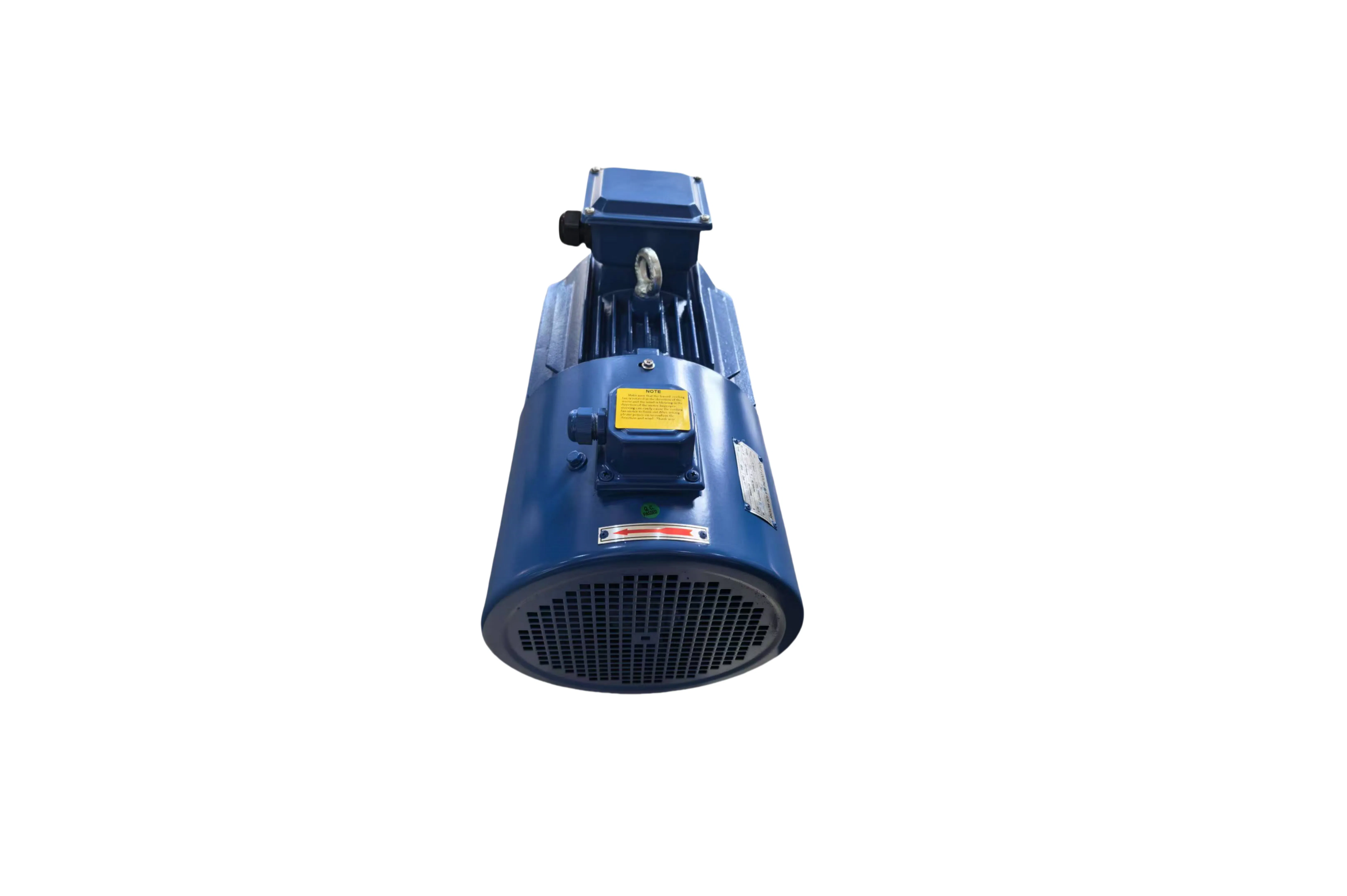

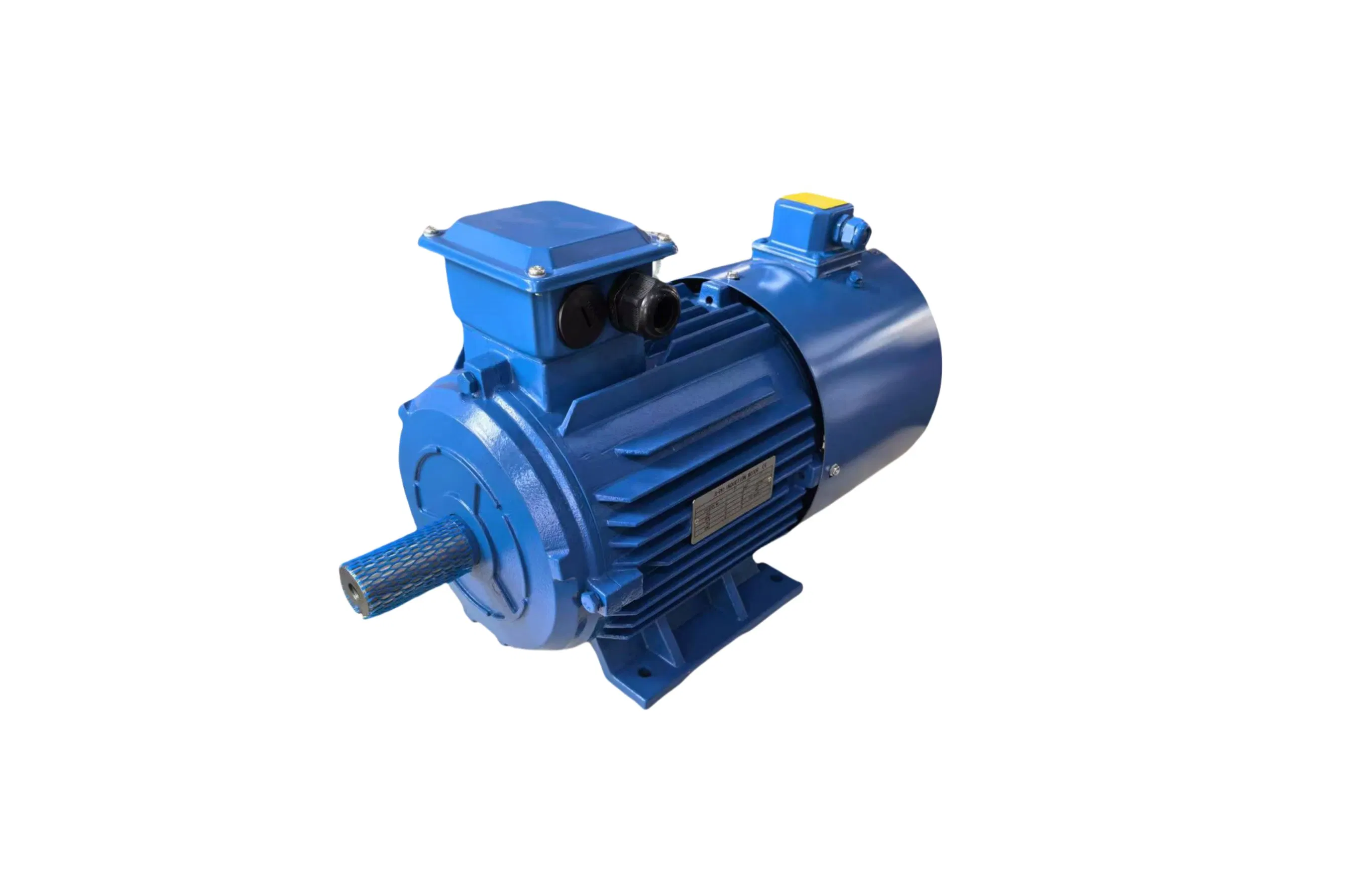

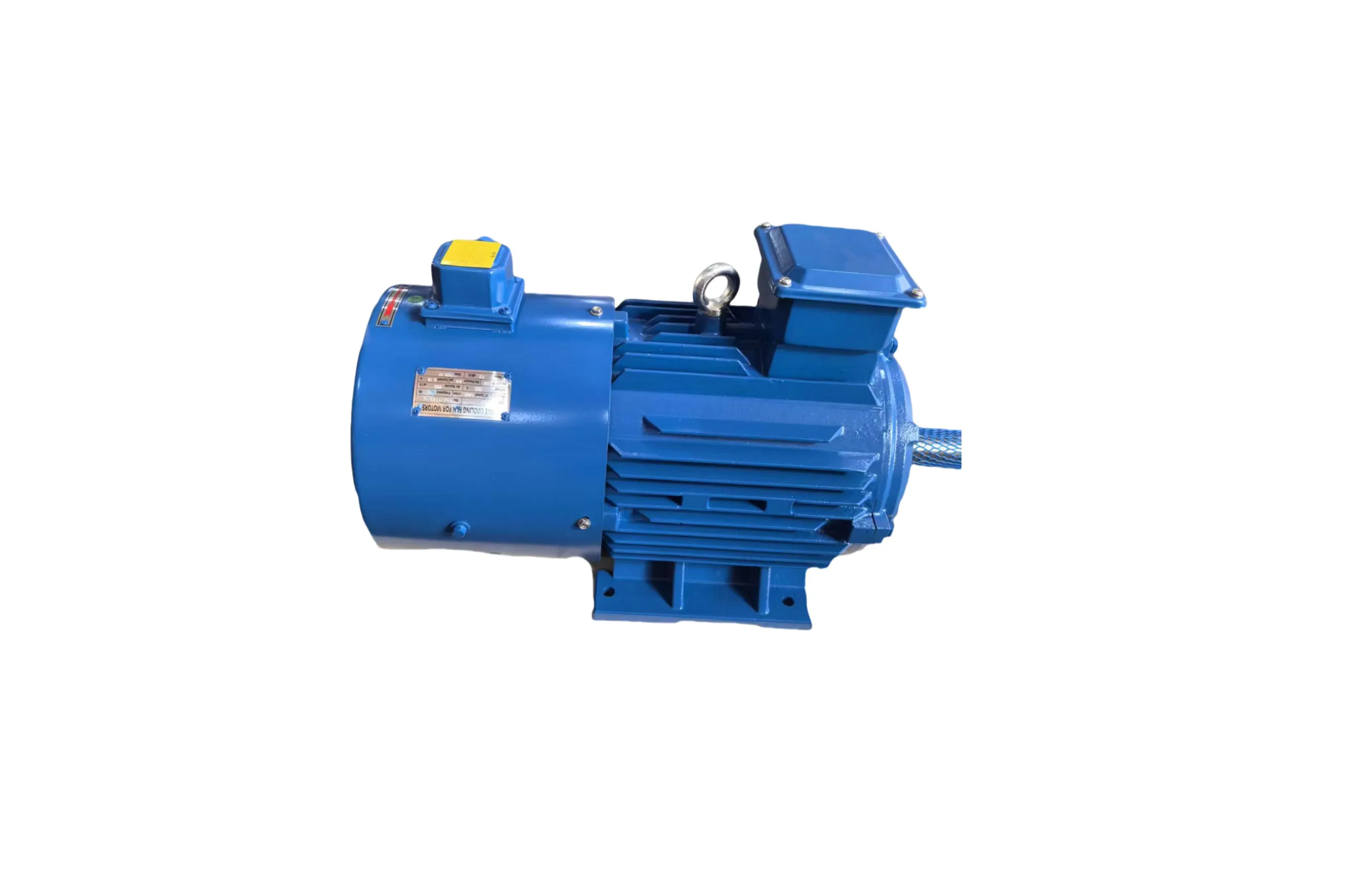

Variable Frequency AC Electric Motor for Speed Control High-Efficiency 1.5kw 4p YVF-90L-4
Variable Frequency AC Electric Motor for Speed Control High-Efficiency 1.5kw 4p YVF-90L-4
Variable Frequency AC Electric Motor for Speed Control High-Efficiency 1.5kw 4p YVF-90L-4
Variable Frequency AC Electric Motor for Speed Control High-Efficiency 1.5kw 4p YVF-90L-4
Variable Frequency AC Electric Motor for Speed Control High-Efficiency 1.5kw 4p YVF-90L-4
1 / 5
Variable Frequency AC Electric Motor for Speed Control High-Efficiency 1.5kw 4p YVF-90L-4
Variable Frequency AC Electric Motor for Speed Control High-Efficiency 1.5kw 4p YVF-90L-4
Variable Frequency AC Electric Motor for Speed Control High-Efficiency 1.5kw 4p YVF-90L-4
Variable Frequency AC Electric Motor for Speed Control High-Efficiency 1.5kw 4p YVF-90L-4
Variable Frequency AC Electric Motor for Speed Control High-Efficiency 1.5kw 4p YVF-90L-4

Variable Frequency AC Electric Motor for Speed Control High-Efficiency 1.5kw 4p YVF-90L-4

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

Basic Information
Model NO.
YVF-90L-4
Casing Protection
Closed Type
Number of Poles
4
Starting Mode
Variable Frequency Starting
Certification
ISO9001, CCC, CE, RoHS
Output Power
1.5 KW
Voltage/Freq.
220-240V/380-415V 5-100Hz
Protection Class
IP54 IP55 IP56 IP66
Insulation Class
F/B, H/B
Ambient Temp.
-10℃~40℃
Duty
S1
Altitude
≤1000m
Product Description
Variable frequency speed regulation three-phase asynchronous motors (VSD) are special three-phase asynchronous motors powered by variable-frequency speed-regulating devices. The system composed of these motors and the variable-frequency devices can achieve stepless speed regulation, thereby achieving the goals of energy conservation and automated control.
The VSD series motors feature a squirrel-cage structure and use special Class B and Class C anti-corona enameled wires. This effectively prevents inter-turn short-circuits in the windings caused by the peak voltage generated by the frequency converter, ensuring more reliable operation and convenient maintenance. The motors are equipped with independent axial-flow fans to ensure good cooling performance at different rotational speeds.
Detailed Photos

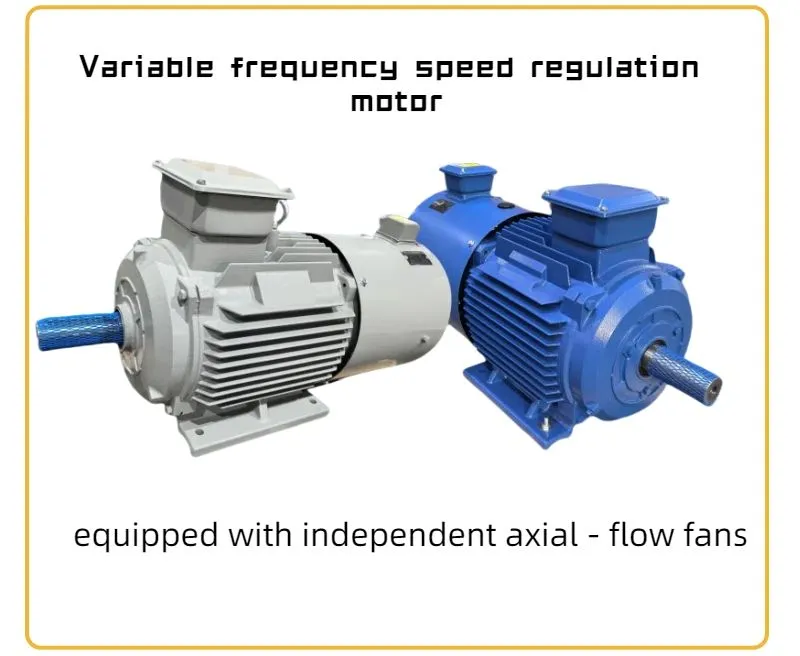

Variable Frequency Motor Photo
Product Parameters

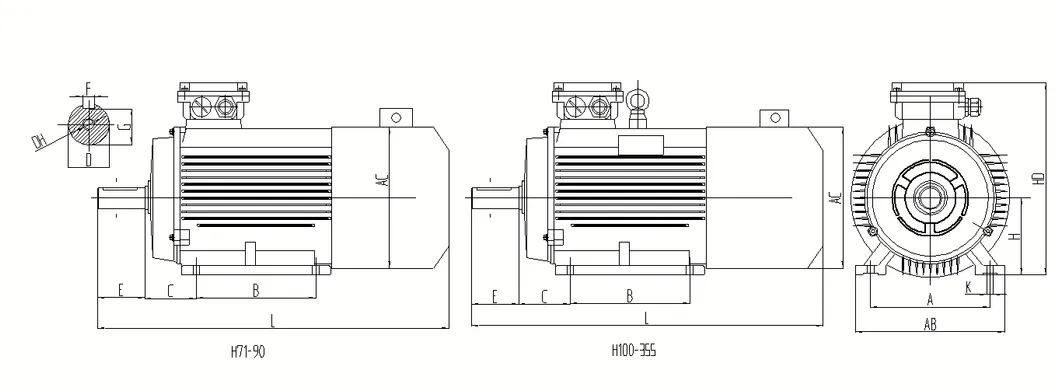

B3 (IC411) Mounting and Overall Dimensions
Mounting Dimensions Diagram
Frame Size Poles A B C D E F G H K AB AC HD L
712,4,611290451430511717136139197314
802,4,6,8125100501940615.58010158157214365
90S2,4,6,81401005624508209010180176233385
90L2,4,6,81401255624508209010180176233409
100L2,4,6,816014063286082410012198196260465
112M2,4,6,819014070286082411212230220292488
Industrial Applications

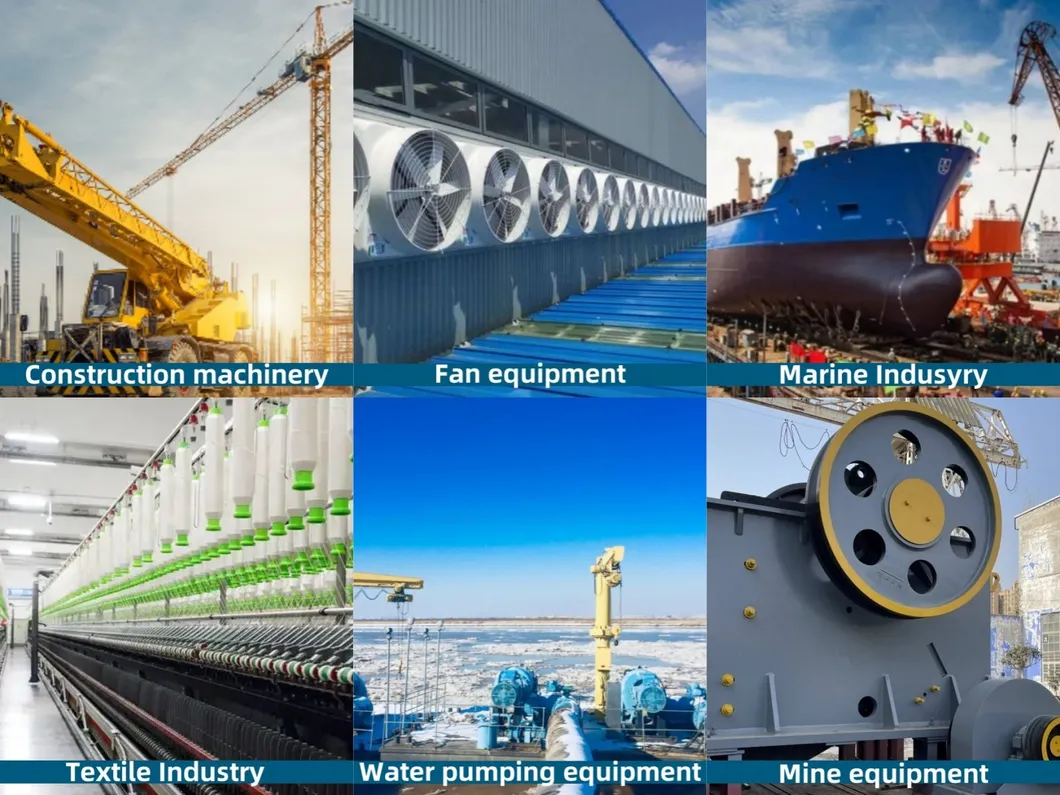

Application Example
⚙️
Suitable for: Construction machinery, mining equipment, large agricultural equipment, fans, pumps, compressors, and other versatile industrial equipment requiring precise speed control.
Service & Support
Service Chart

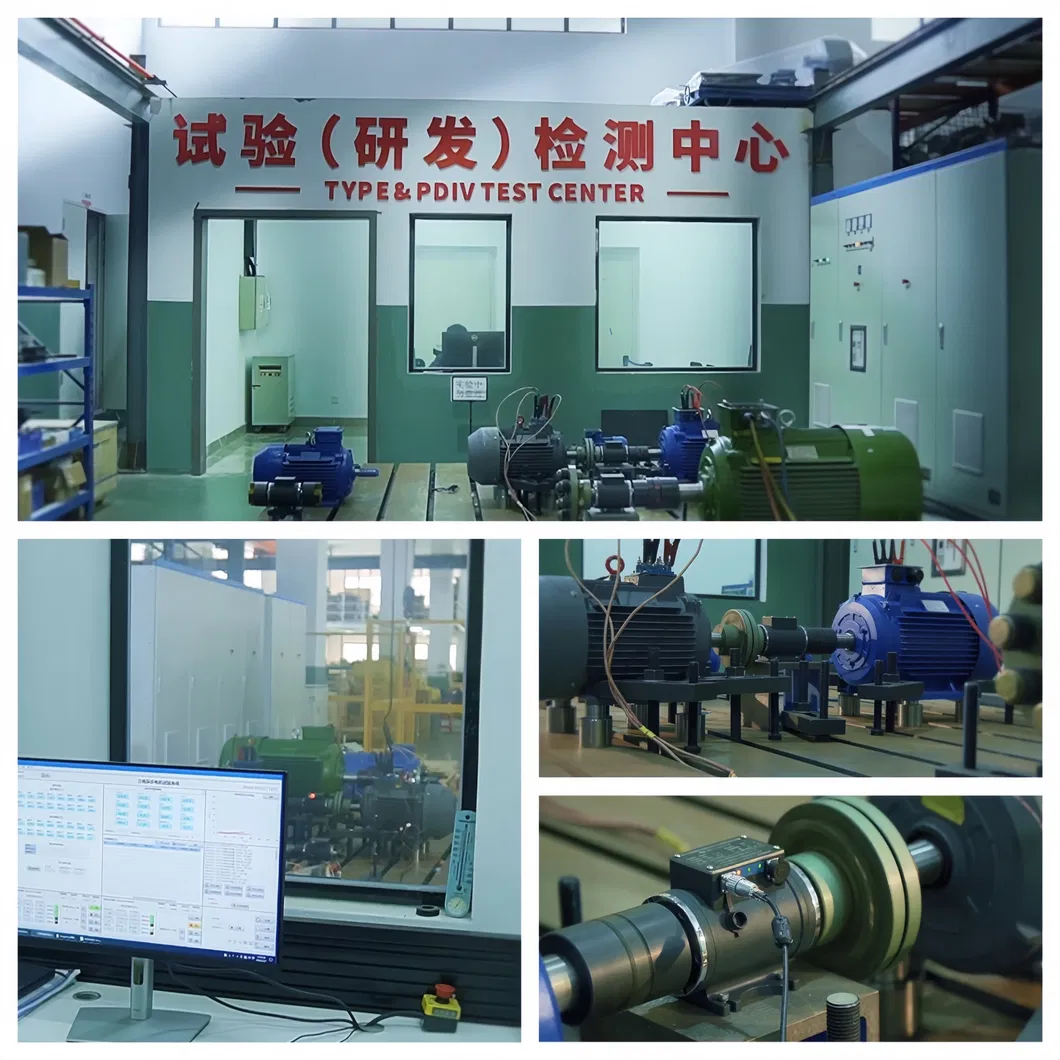

Advanced Testing Center

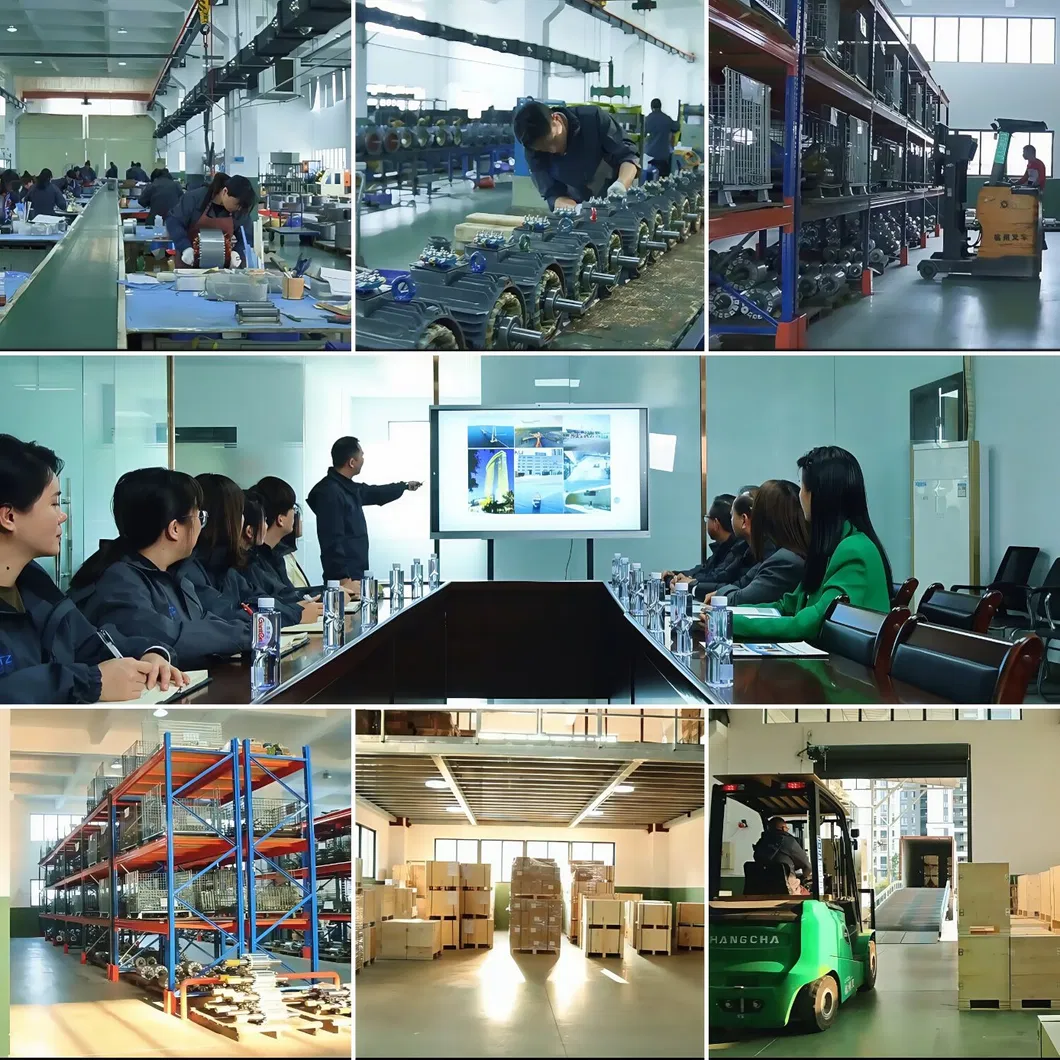

Test Facility
Lab Equipment
Our laboratory features robust experimental capacity, covering three-phase AC asynchronous motors, variable frequency motors, AC synchronous motors, and single-phase asynchronous motors.
Capabilities: Power range 0.25-500KW, frequency 0-500Hz. High precision testing for all motor performance metrics with streamlined control systems.
Exhibitions
Exhibition 1 Exhibition 2 Exhibition 3 Exhibition 4 Exhibition 5 Exhibition 6 Exhibition 7 Exhibition 8 Exhibition 9
Certifications

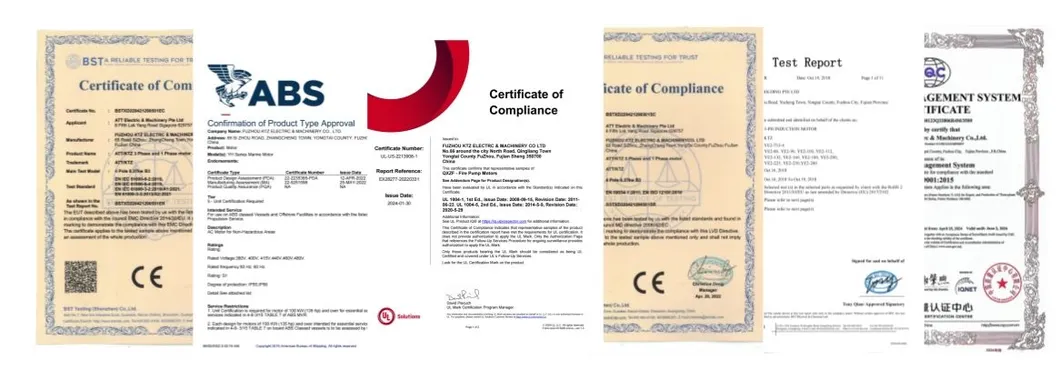

Quality Certifications
Frequently Asked Questions
Are you a factory or trading company?
We are a professional manufacturer specializing in high-efficiency motors.
Do you provide custom motor manufacturing?
Yes, we provide specialized customization based on specific industrial requirements.
What is the typical delivery timeframe?
Standard orders are typically delivered within one month. Expedited delivery is available within 7-15 days.
What is your minimum order quantity (MOQ)?
The minimum order quantity starts from 1 set.
How long is the product shelf life/warranty?
Our standard warranty and shelf life support is 12 months.
How do you ensure production quality?
Every unit undergoes strict inspection before shipping. We offer free replacements for any verified quality issues on our part.
