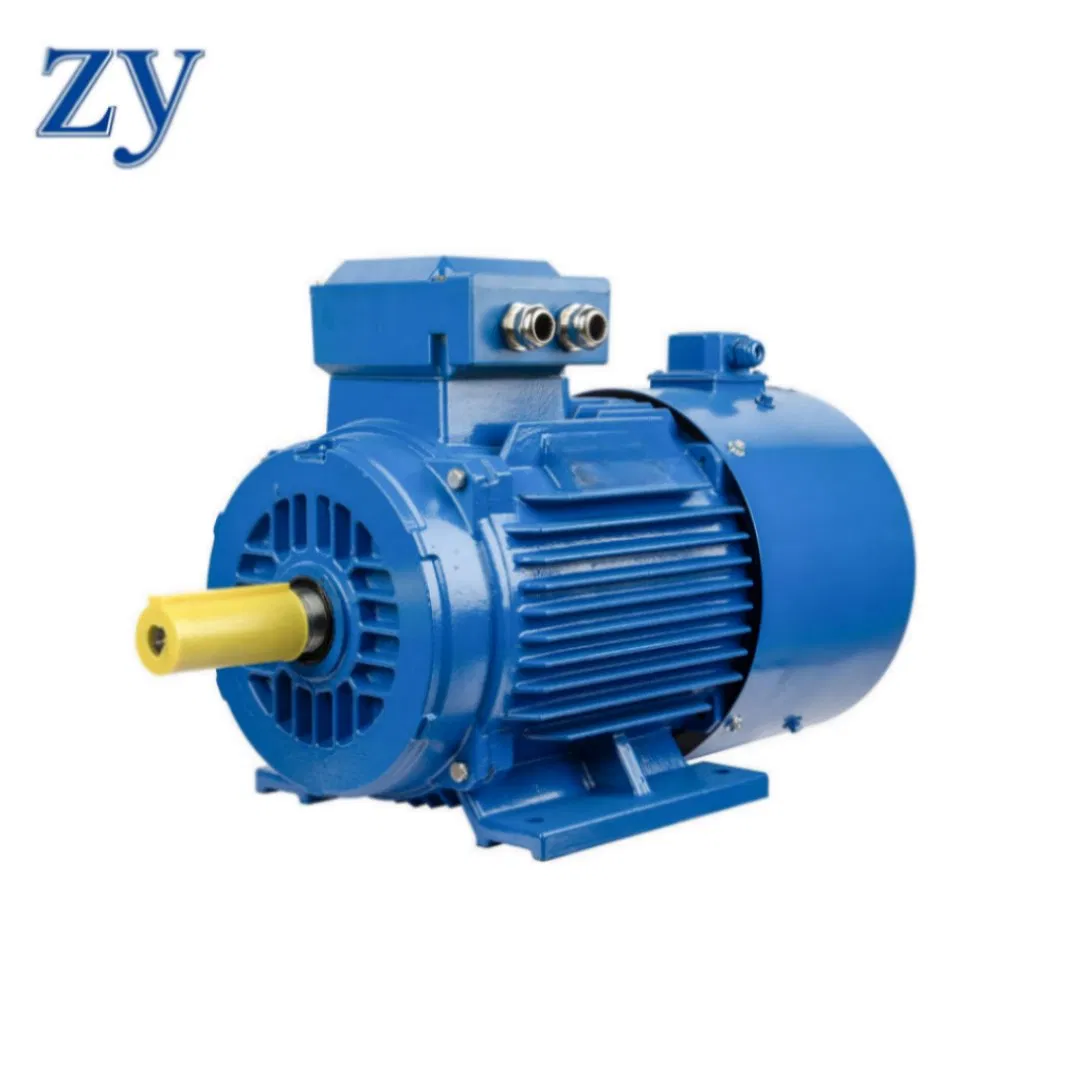

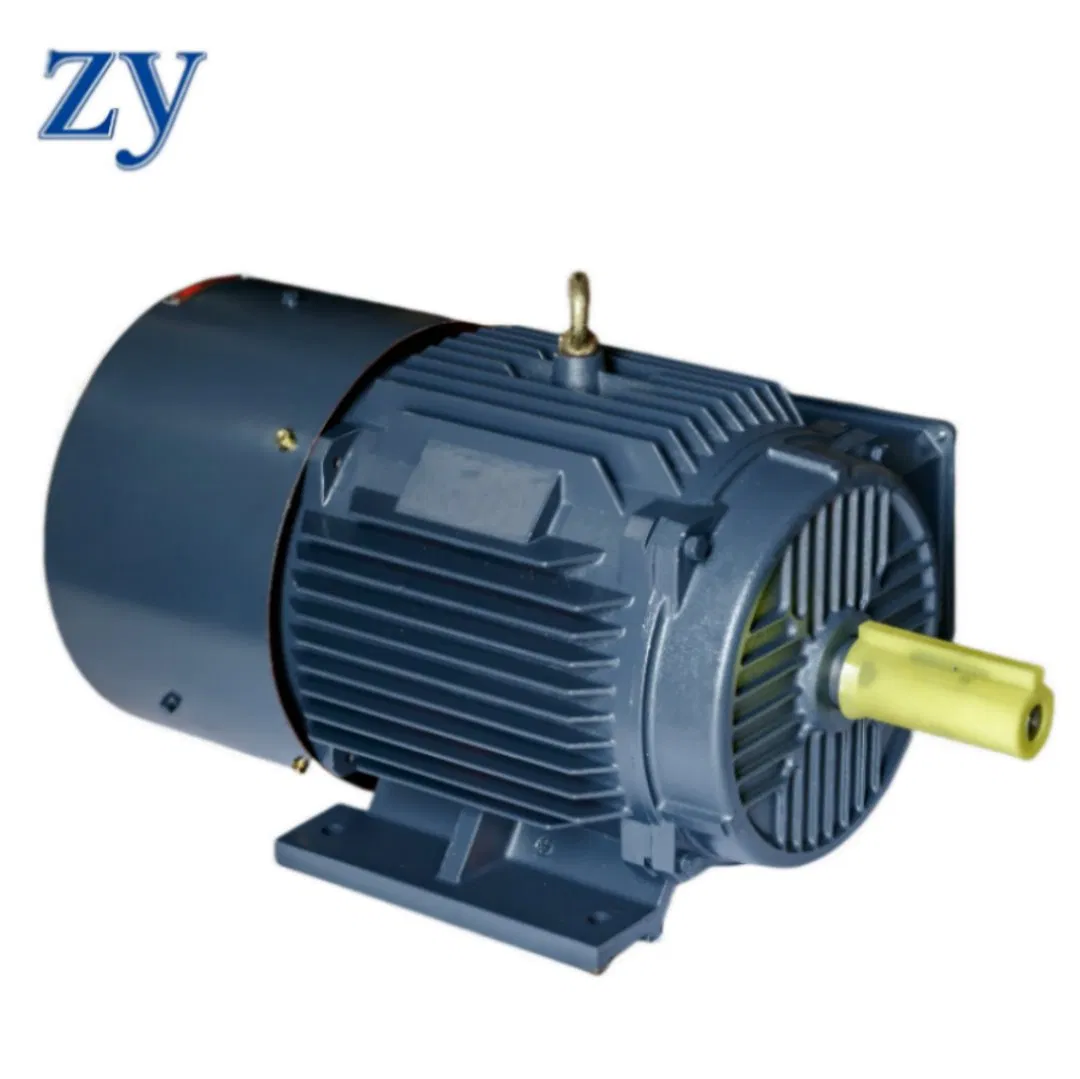

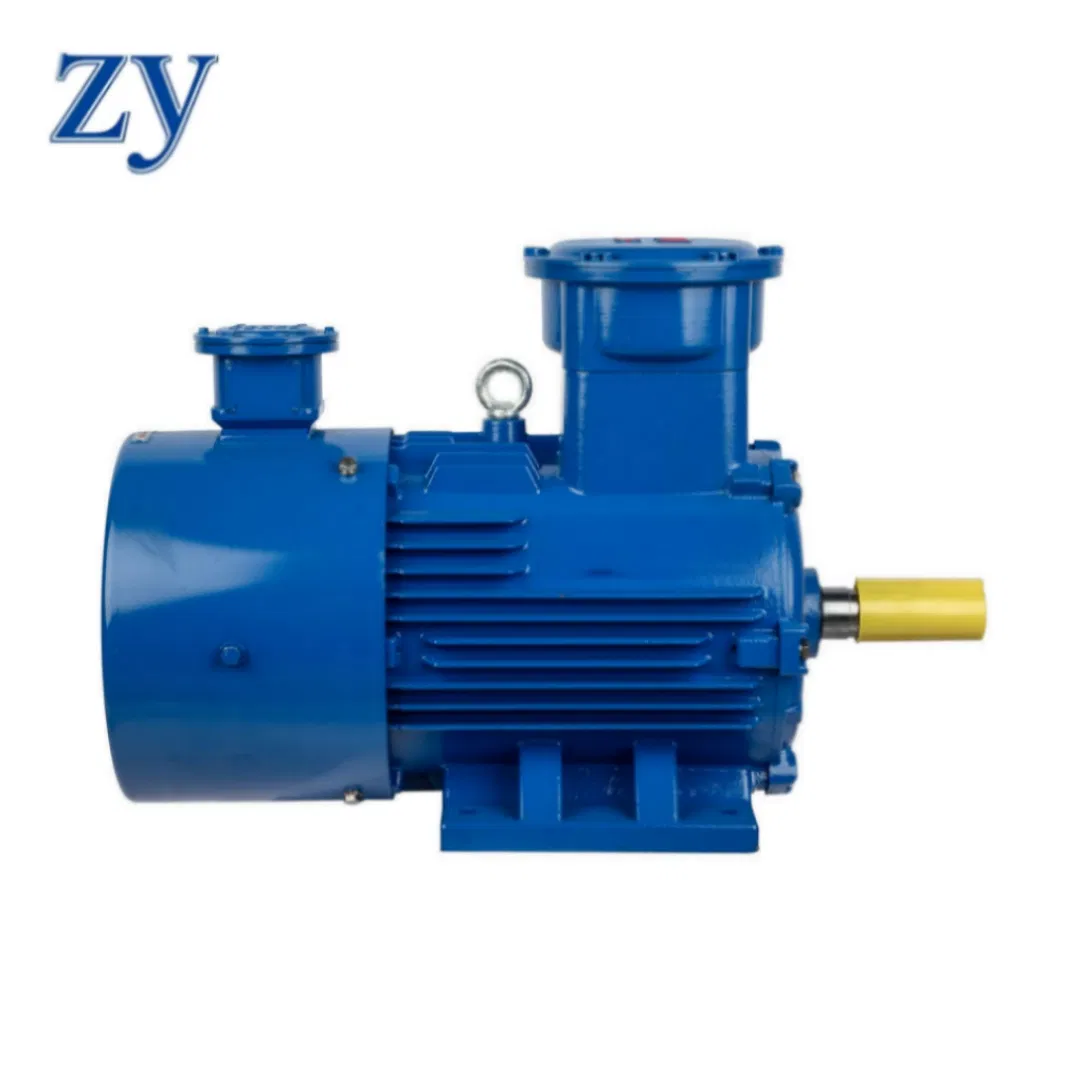

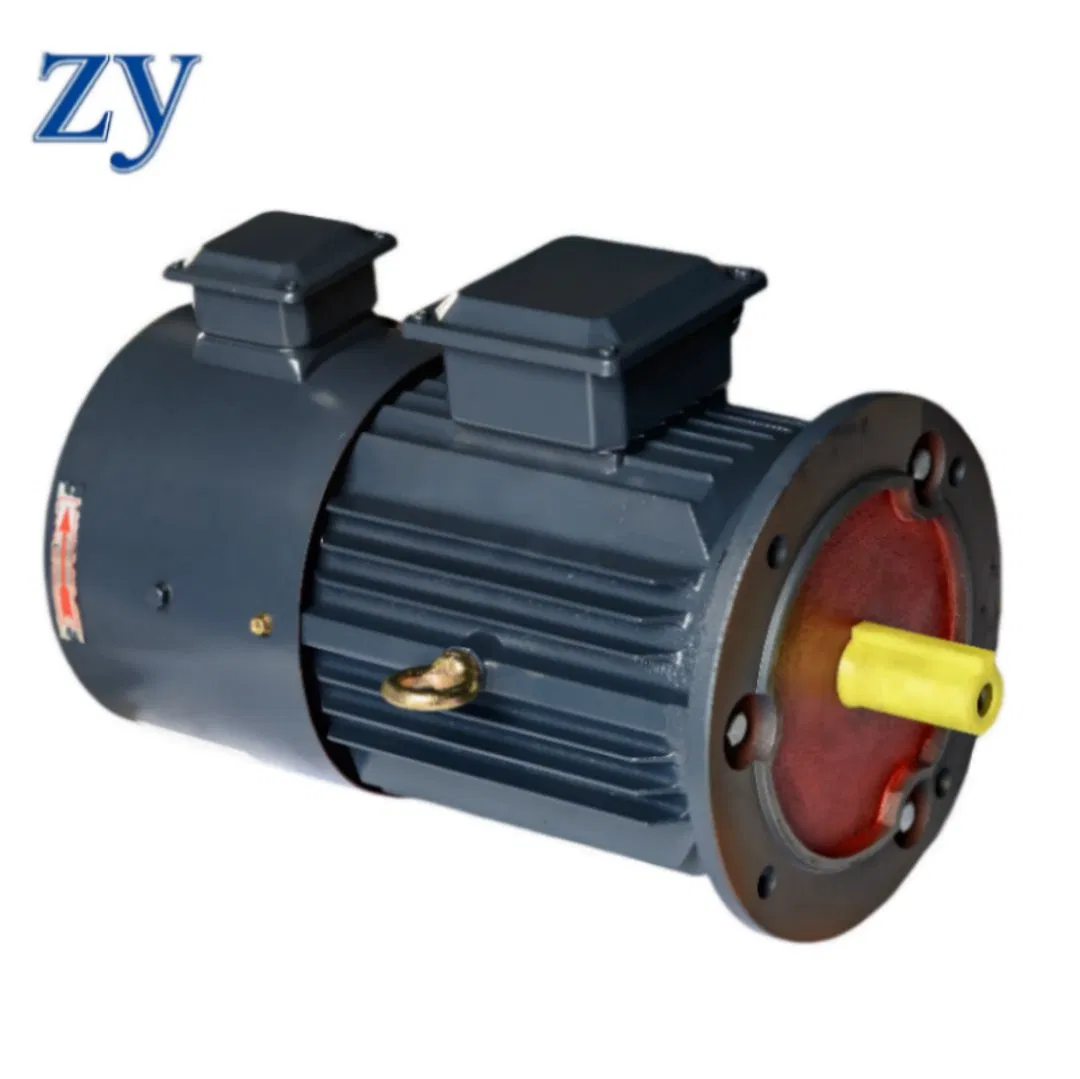

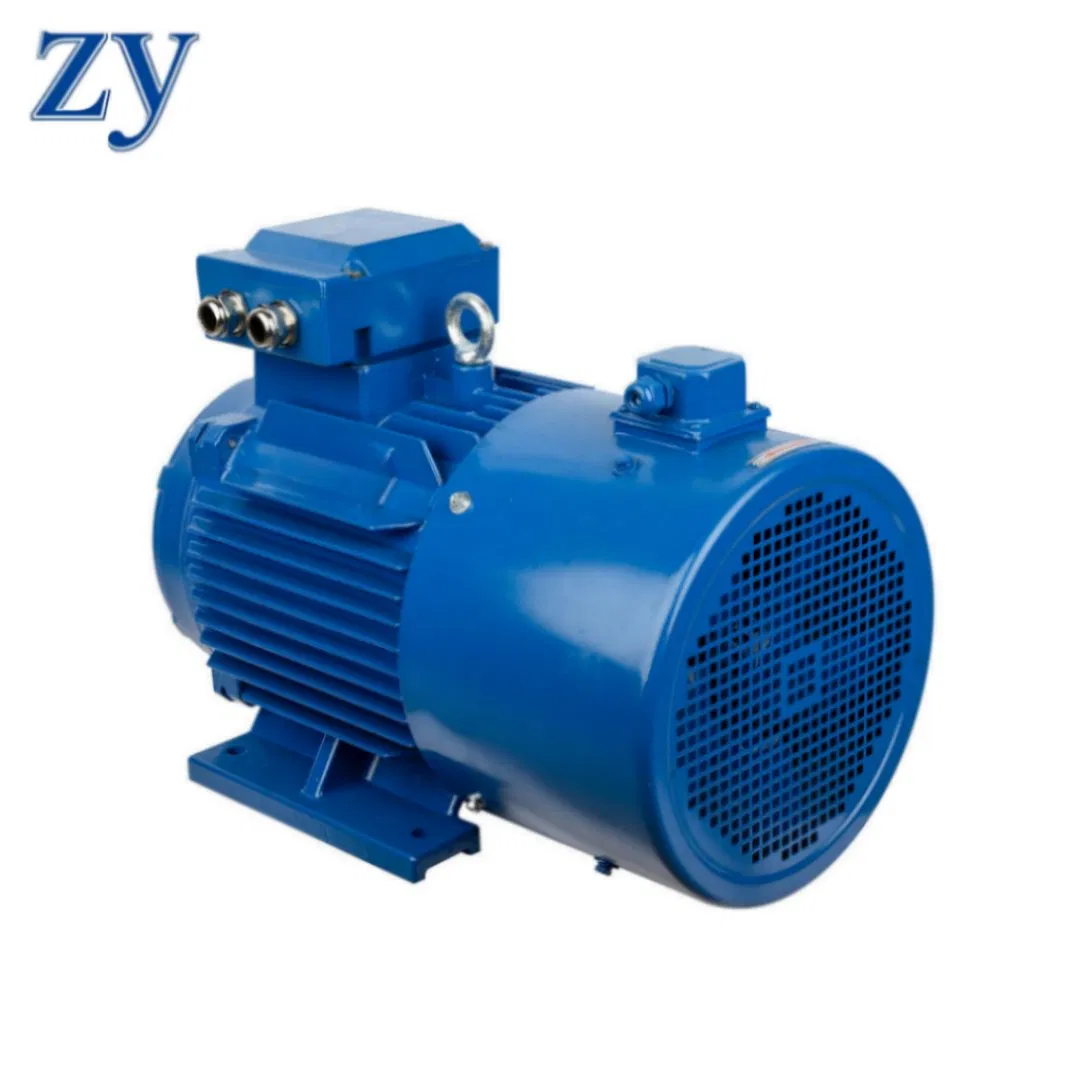

Yvf2 Variable Frequency Motor Adjustable Speed Three-Phase AC Induction Electrical Electric Motor

Customization: Available
Application: Industrial
Speed: Variable Speed

Product Description

i

Basic Specifications

Model NO.
YVF2 Series
Number of Stator
Three-Phase
Function
Driving
Casing Protection
Closed Type
Number of Poles
2/4
Starting Mode
Direct on-line Starting
Certification
ISO9001, CCC
Frequency
50Hz, 60Hz
Efficiency
IE3
Insulation Class
B/F
Housing
Cast Iron
Protection Class
IP54
Mounting Type
B3, B5, B35, B14
Transport Package
Wooden Case/Carton/Pallet
HS Code
8501400090
Production Capacity
5000PCS/Month

Product Description

YVF2 Motor Header
YVF2 Series Three Phase AC Motor

YVF2 series three-phase frequency controlled asynchronous motor possesses a wide range of speed regulation. It can match with a variety of converters to comprise an A.C. stepless adjustable frequency driving system. At low speed (5-50Hz), this motor can run smoothly under constant torque oscillation, and has a larger starting torque and a smaller starting current, delivering constant output power at high speed (50-100Hz). Its mounting arrangements and dimensions are all according to standard three-phase asynchronous motor series. Built-in cooling fans ensure excellent cooling effects under different speeds.

Product nameYVF2 series variable frequency three phase asynchronous motor
Rated power0.55~355kW
Voltage380~440V
Frame80~400mm
Number of pole2, 4, 6, 8
Rotation speed710rpm, 980rpm, 1470rpm, 2935rpm
Frequency50/60Hz
Protection levelIP55/IP54
DutyS1
Insulation classF/H
EfficiencyIE2/IE3/IE4
CoolingIC411

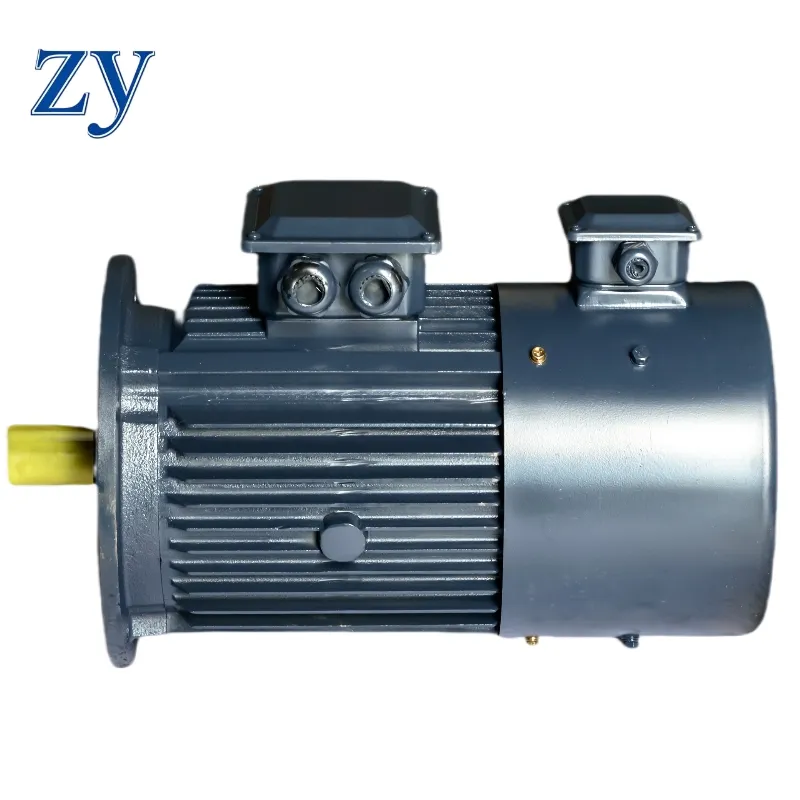

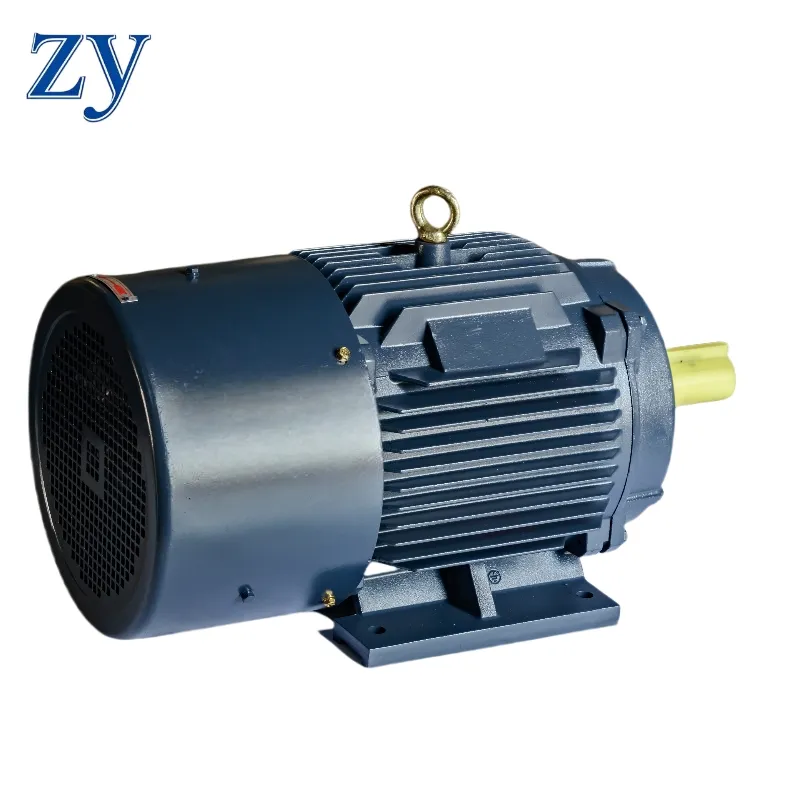

Motor View 1 Motor View 2 Motor View 3
Technical Drawing 1 Technical Drawing 2 Technical Drawing 3
📦
