1.5 Nm 57mm 1.8 Deg Stepper Electrical Motor
1.5 Nm 57mm 1.8 Deg Stepper Electrical Motor
1.5 Nm 57mm 1.8 Deg Stepper Electrical Motor
1.5 Nm 57mm 1.8 Deg Stepper Electrical Motor
1 / 4
1.5 Nm 57mm 1.8 Deg Stepper Electrical Motor
1.5 Nm 57mm 1.8 Deg Stepper Electrical Motor
1.5 Nm 57mm 1.8 Deg Stepper Electrical Motor
1.5 Nm 57mm 1.8 Deg Stepper Electrical Motor

1.5 Nm 57mm 1.8 Deg Stepper Electrical Motor

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

Basic Information
Model NO.
57BYG401-C-21D
Number of Stator
Two-Phase
Excitation Mode
HB-Hybrid
Number of Poles
8
Operate Mode
Three-Phase Six-Step
Type
Magnetic-Electric
Certification
ISO9001, CE, RoHS
Motor Series
57 Byg
Step Angle
1.8 Degree
Shaft End Length
21mm (0.83 in)
Shaft
Screw Shaft
Connectors
Connectors, Lead Wires
Transport Package
Export Carton
HS Code
8501109990
Production Capacity
5,000,000 PCS/Year
Product Overview

1.5 Nm 57MM 1.8 Deg Stepper Electrical Motor

High Acceleration
Low Noise
Low Inertia
Detailed Specifications
Motor Model
57BYG301-C-21D
Step Angle
1.8° ± 5% full step
Holding Torque
1500 mNm (212.6 oz-in)
Rated Current
2.2 A
Resistance/Phase
1.7 ohm (±10%)
Inductance/Phase
2.7 mH
Ambient Temp.
-24ºC - +60ºC
Relative Humidity
90% MAX
Insulation Res.
> 100 mΩ 500V DC
Dielectric Strength
600 V AC / 1 S
Product Visuals

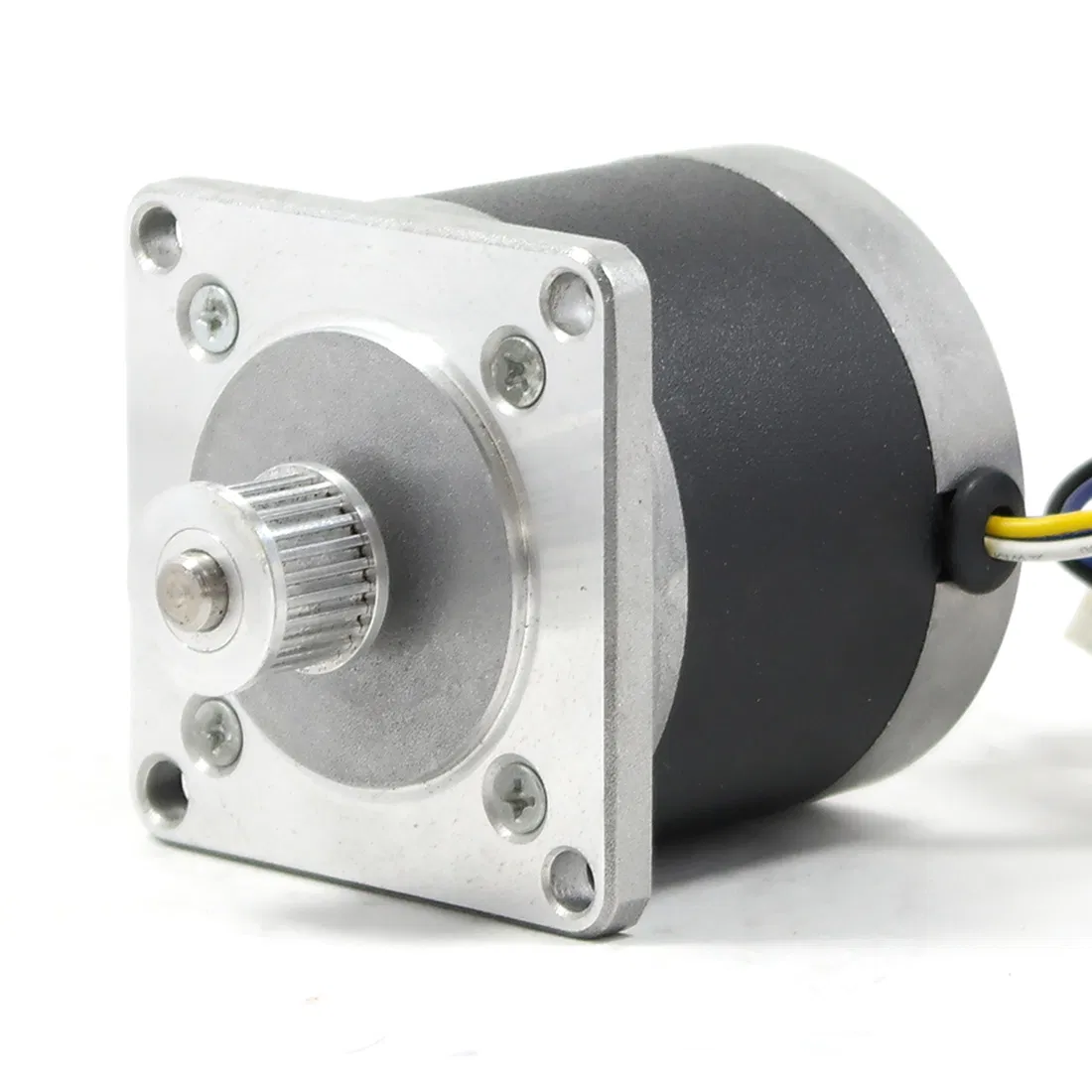

Stepper Motor View 1

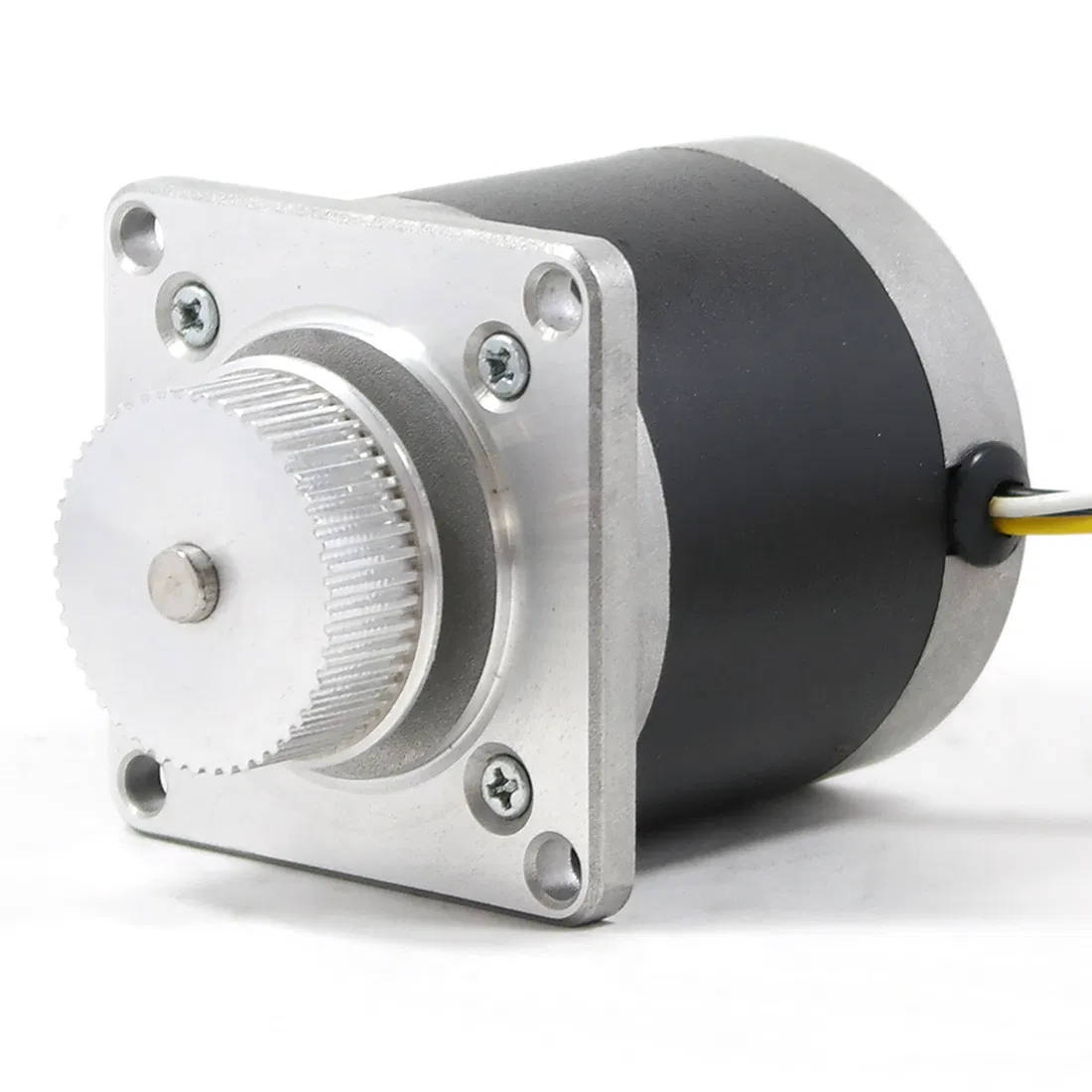

Stepper Motor View 2

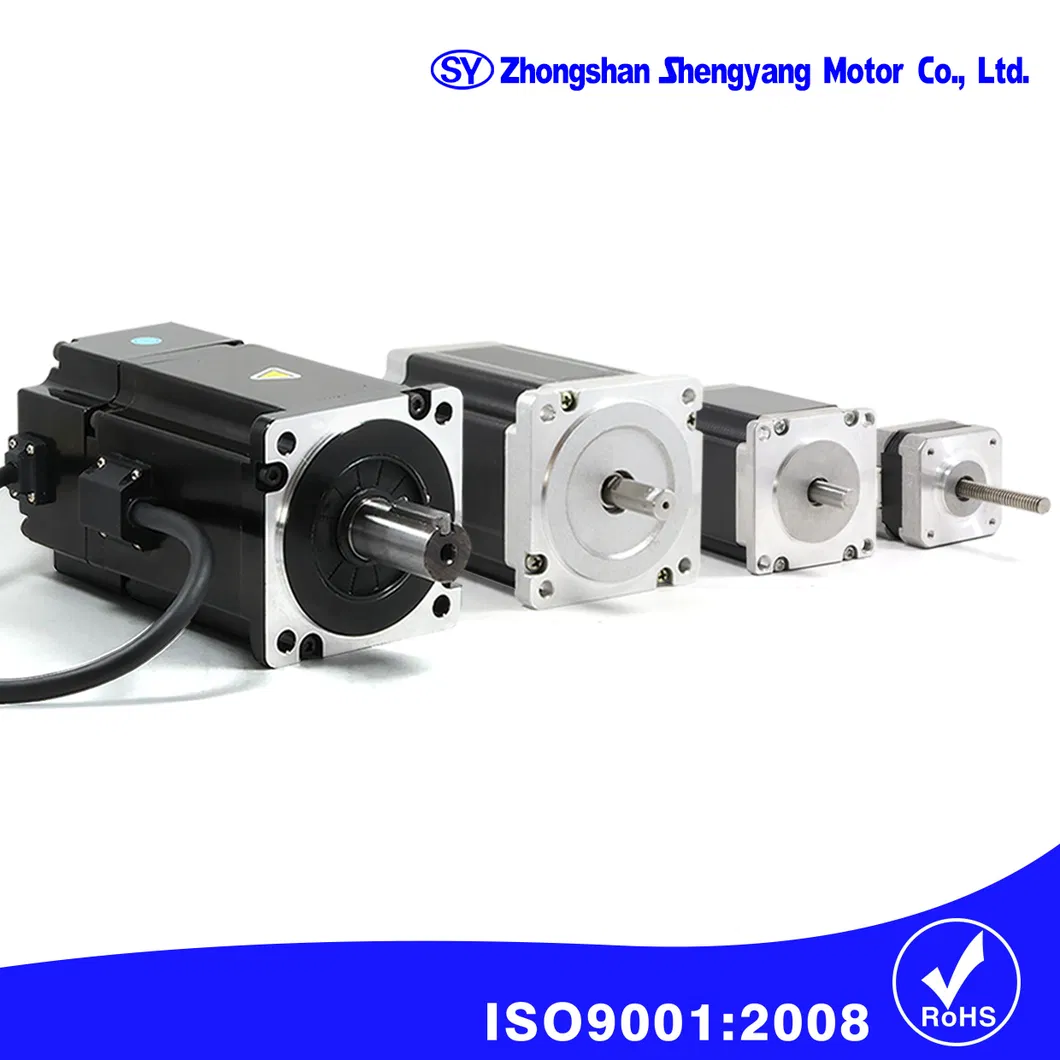

Stepper Motor Diagram
Technical Performance Comparison
Motor Series & Length Model Number Holding Torque (mNm / oz-in) Rated Current (A) Resistance/Phase (ohm) Inductance/Phase (mH)
57BYG1 (40 mm) 57BYG101 500 / 70.86 1.5 1.8 3.2
57BYG102 500 / 70.86 2.2 0.85 1.5
57BYG2 (51 mm) 57BYG201 750 / 106.3 1.5 2.6 5.6
57BYG202 750 / 106.3 2.2 1.2 2.6
57BYG3 (55 mm) 57BYG301 1100 / 155.9 2.2 1.4 3.1
57BYG302 1100 / 155.9 3.1 0.7 1.65
57BYG4 (76 mm) 57BYG401 1500 / 212.6 2.2 1.7 2.7
57BYG402 1500 / 212.6 3.1 0.85 2.4
FAQ
What is the step angle accuracy of this motor?
The step angle is 1.8° with an accuracy of ±5% for a full step under no-load conditions.
Can the motor performance be customized?
Yes, performance and parameters can be customized. You can provide your specific motor diagram or samples for technical evaluation.
What certifications do these motors hold?
Our motors are manufactured under the ISO9001 quality system and comply with CE and RoHS standards.
How do I interpret the holding torque in oz-in?
For the 57BYG4 series, the 1500 mNm holding torque is equivalent to approximately 212.6 oz-in.
What is the dielectric strength of the motor?
The motor can withstand 600 V AC for 1 second, with a leakage current of less than 1 mA.
What are the recommended operating environments?
The motor is designed to operate in ambient temperatures between -24ºC and +60ºC with a maximum relative humidity of 90%.
