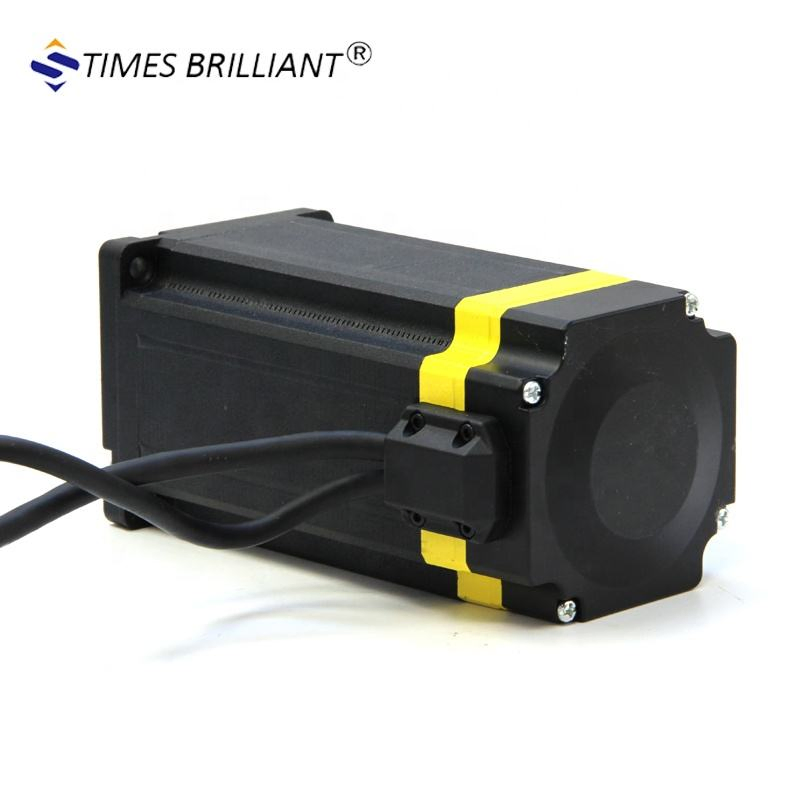

Closed Loop 12nm 86ebp181alc Stepper Motor with Driver for CNC

1 / 5

Closed Loop 12nm 86ebp181alc Stepper Motor with Driver for CNC

Customization:	Available
Application:	Clocks and Watches
Speed:	Low Speed

Send Inquiry

Product Description

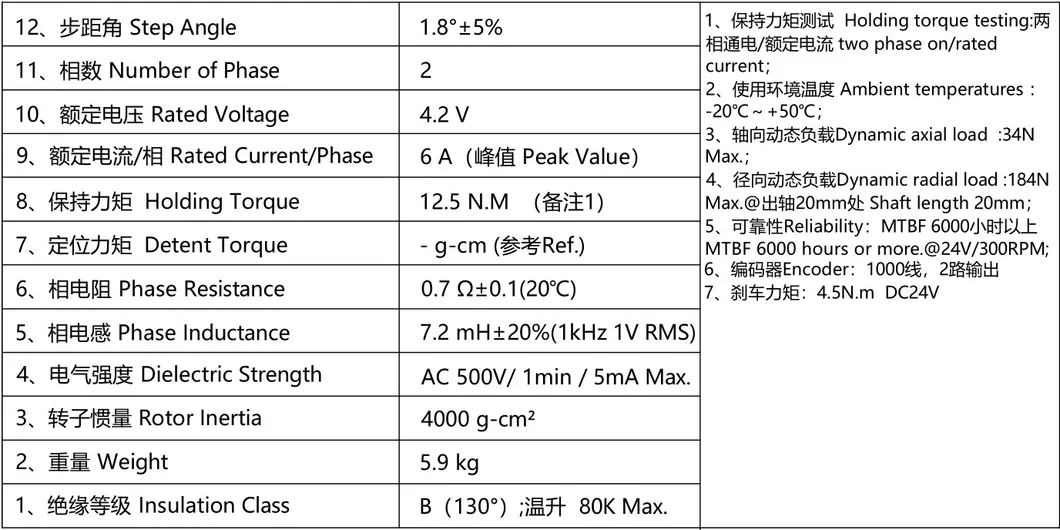

⚙️ Basic Information

Model NO.

86EBP181ALC

Number of Stator

Two-Phase

Excitation Mode

HB-Hybrid

Function

Driving

Number of Poles

Operate Mode

The Three Single Phase

Type

Permanent Magnet

Certification

Phase

Warranty

3 months - 1 year

Holding Torque

12.5 N.M

Current / Phase

Rotor Inertia

4000 Gcm2

Insulation Class

Step Angle

1.8°

Weight

5.9 Kg

📦 Product Overview

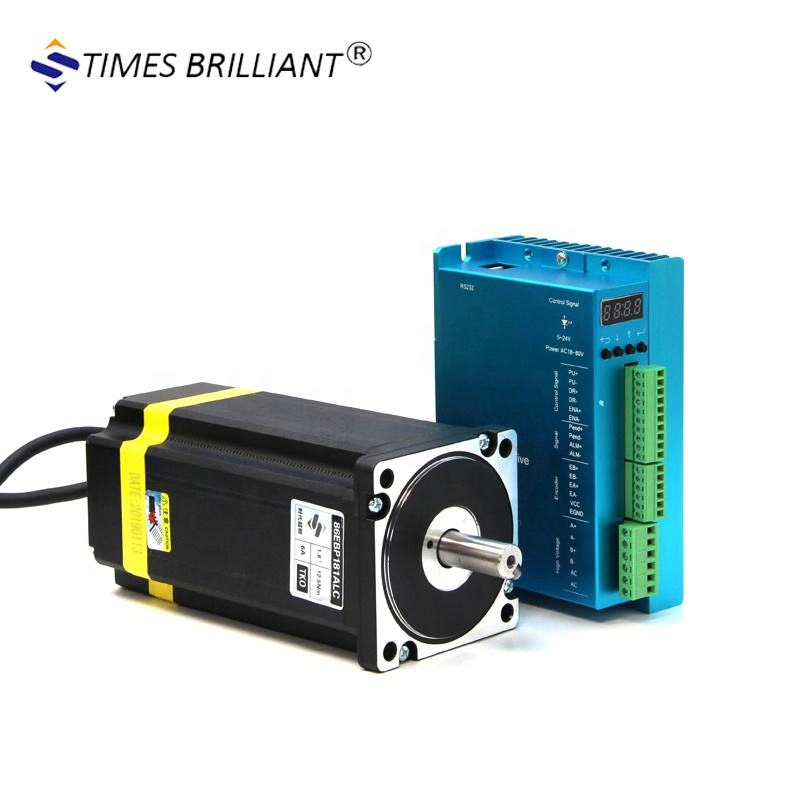

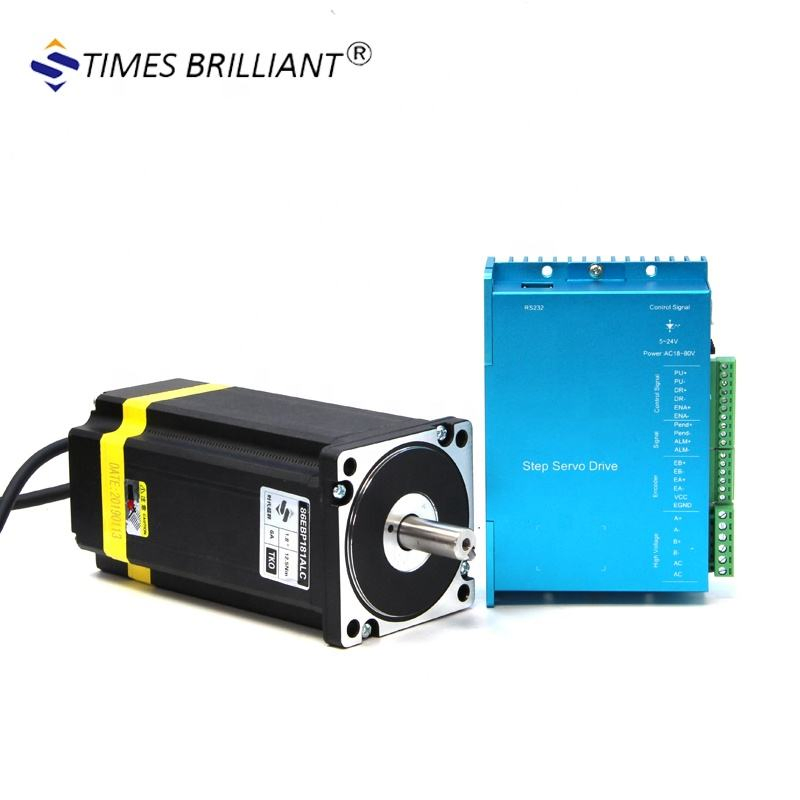

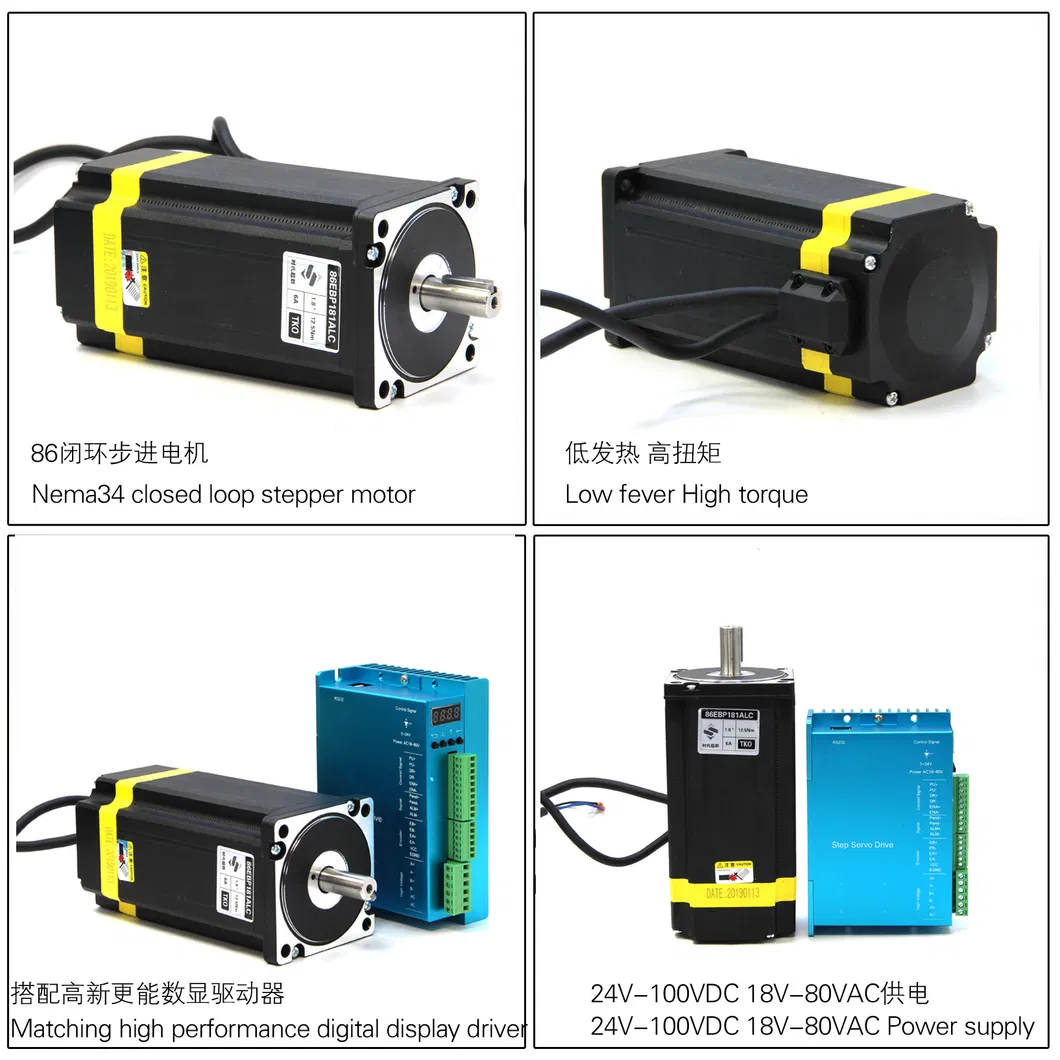

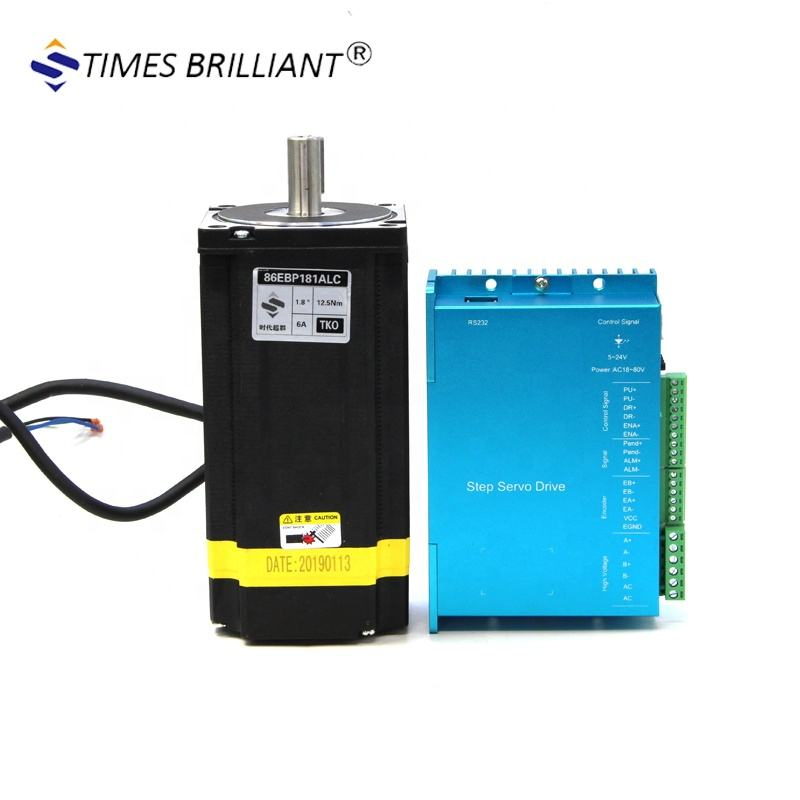

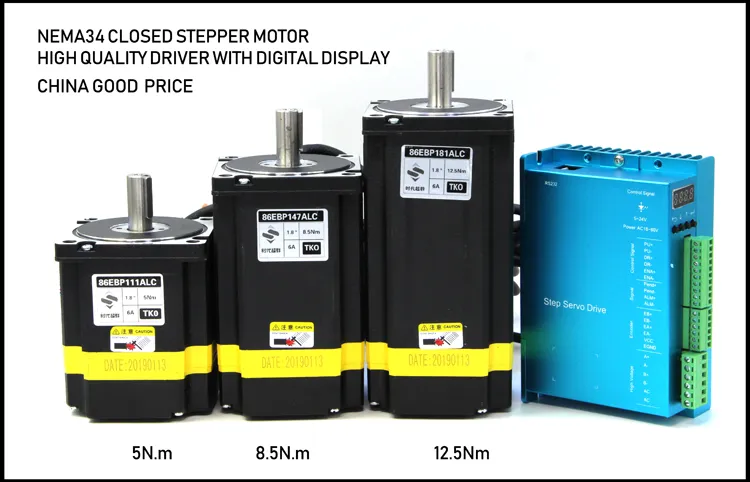

12.5Nm Nema34 Close Loop Stepper Motor & Driver Kit

This high-performance kit is designed for CNC machines, offering a robust 12.5Nm holding torque with an integrated encoder for closed-loop precision.

Note: The motor contains magnetic components. Magnetic inspection fees may apply during transportation for small orders.

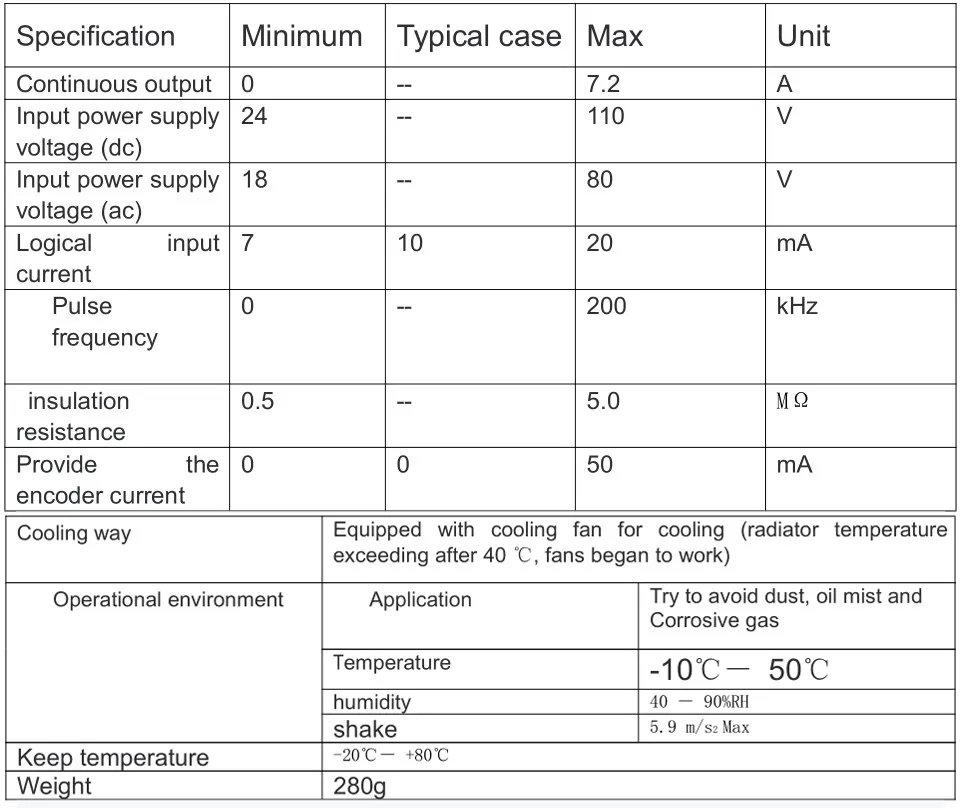

🎮 ZDM-2HA865 Digital Closed-Loop Driver

Brief Introduction: ZDM-2HA865 is a new generation DSP digital step closed-loop driver. Using advanced vector control technology, it completely overcomes the problem of step loss in traditional open-loop stepper motors.

New DSP chip for 32-bit motor control
Significant improvement in high-speed performance
Reduced motor heating and vibration
LED digital tube display for intuitive operation
Static and dynamic current settings (0-7.2A)
Adaptive for 57/60 and 86 series hybrid closed-loop motors
Pulse response frequency up to 200KHz
Multiple protections: over-current, over-heat, over-voltage

🛡️ Services & Packaging

❓ Frequently Asked Questions

What are the main advantages of a closed-loop stepper motor system?

The closed-loop system uses an encoder to provide feedback, effectively eliminating step loss. It also improves high-speed performance, reduces motor heat, and minimizes vibration compared to open-loop systems.

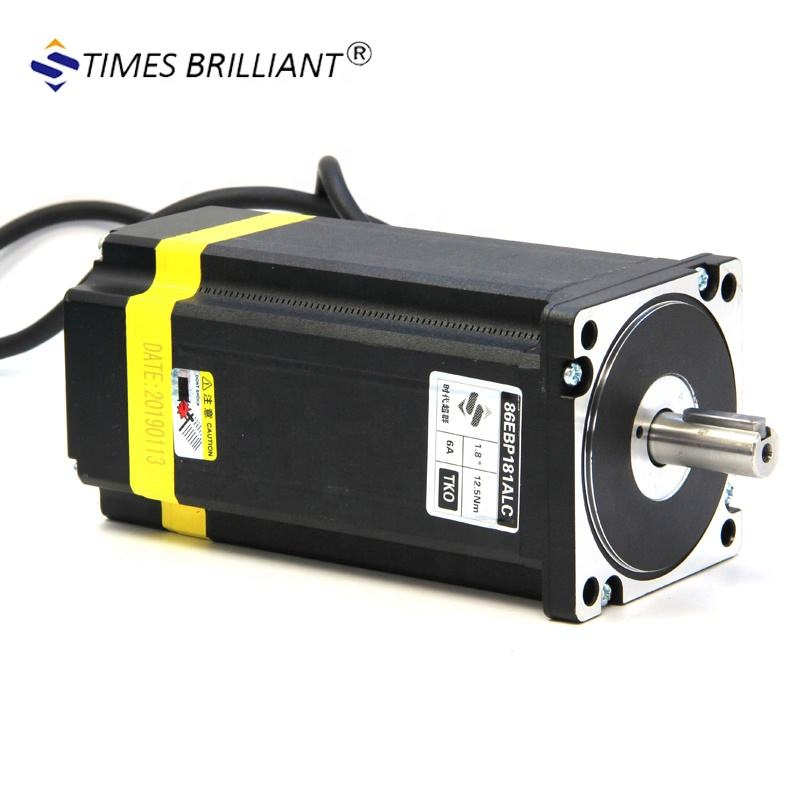

What is the holding torque of the 86EBP181ALC motor?

The motor provides a high holding torque of 12.5 N.m, making it suitable for heavy-duty CNC applications.

Can the ZDM-2HA865 driver be used with other motor sizes?

Yes, the driver is adaptive and compatible with both 57/60 series and 86 series hybrid closed-loop stepper motors.

What is the maximum pulse response frequency for the driver?

The driver supports a pulse response frequency of up to 200KHz.

Is the motor suitable for high-precision tasks?

Absolutely. With 256 subdivisions (up to 51200 pulses/rotation) and closed-loop control, it offers high precision and reliability for equipment upgrades.

What safety protections does the driver include?

The driver includes built-in protection for over-current, over-heat, over-voltage, and tracking errors to ensure system stability.
