High Stability Custom IP Rate Robot Arms 3n. M NEMA23 Stepper Motor

Basic Information

Model NO.NEMA17/NEMA23/NEMA34

Number of StatorTwo-Phase

Excitation ModeHB-Hybrid

FunctionControl, Driving

Number of Poles2

TypeMagnetic-Electric

CertificationISO9001

Product NameHybrid Stepper Motor

Control ModeClosed Loop / Open Loop

Phase Configuration2 Phase (Bipolar)

Step Angle1.8° / 1.2°

Holding Torque0.19 - 10 N · M

Rated Current1.0 - 6.5A

Rated Voltage12V - 110V DC / 85-265V AC

Protection GradeIP54 (Standard) IP20

FeatureLow Noise, Closed Loop Control, High Efficiency

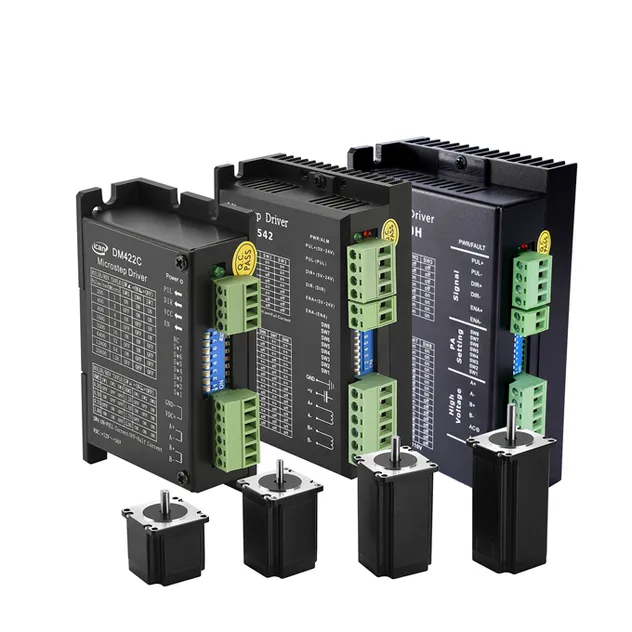

Key Features

⚙

Advanced closed-loop encoder feedback with 1.8° and 1.2° step angles prevents missed steps and ensures absolute positioning accuracy.

⚡

Available in 42mm/57mm/86mm frame sizes delivering 0.19-10 N·m holding torque with 1.0-6.5A phase current for diverse applications.

🔌

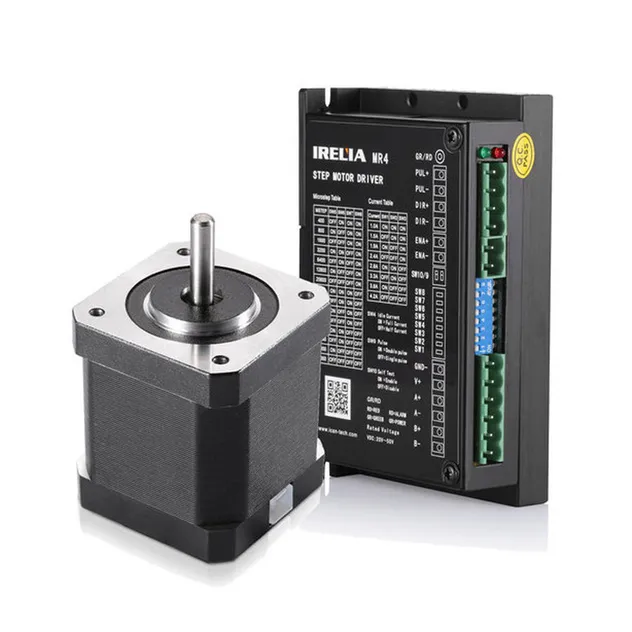

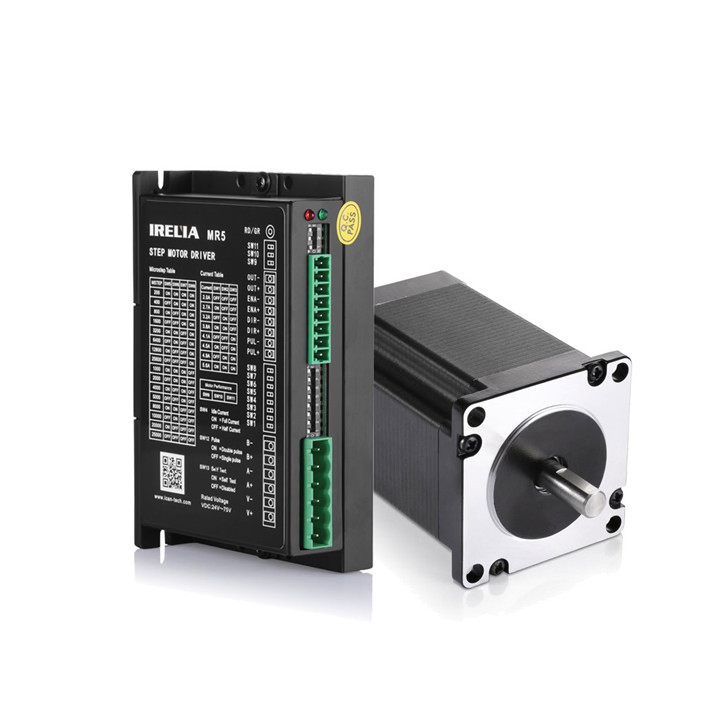

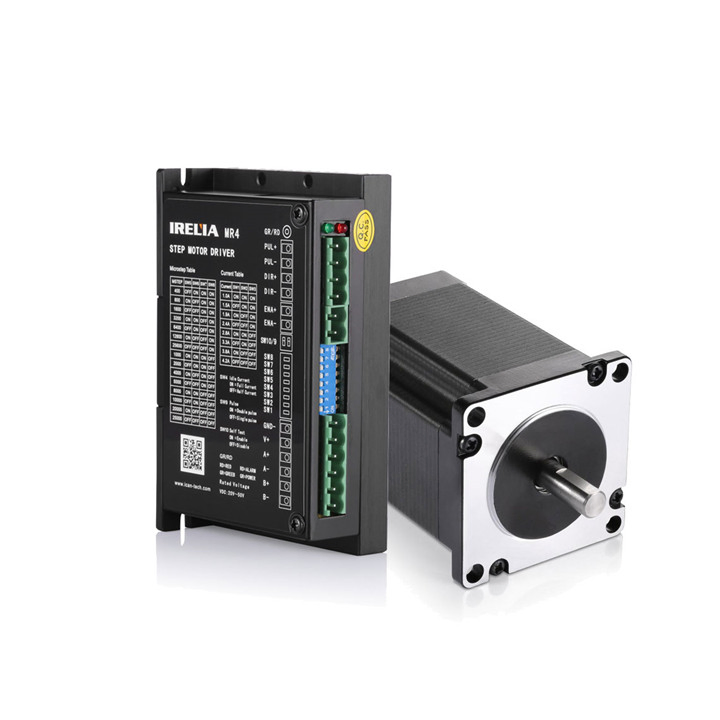

Pre-configured compatibility with MR2, MR4, MR5, MR7, and 3MR8 adaptive drivers enables plug-and-play integration.

🛠

Geared stepper motor options integrate planetary gearboxes for enhanced torque multiplication, perfect for CNC and robotics.

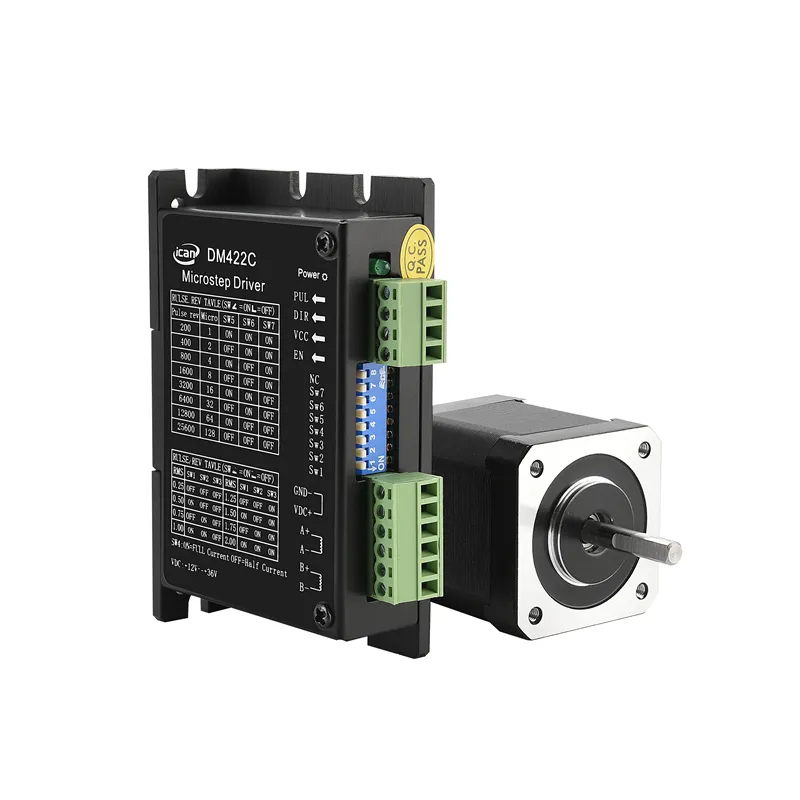

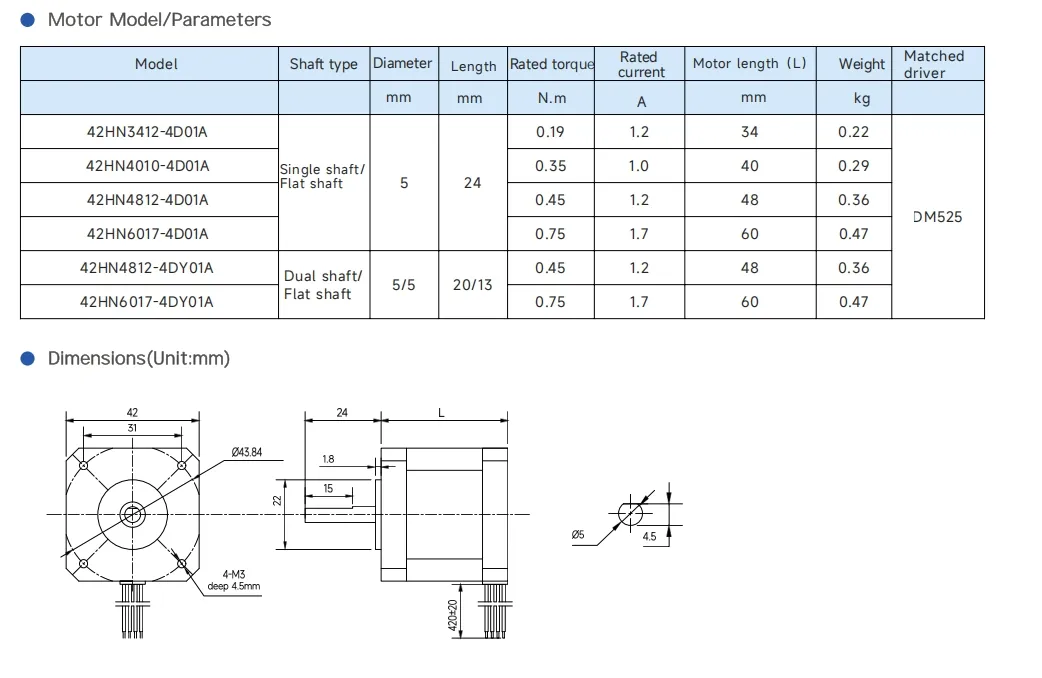

Nema 17

Specifications:
Flange size: 42mm | Step Angle: 1.8 degree
Holding torque: 0.19-0.75Nm | Motor Length: 34-60mm
Axis diameter: 5mm | Matched driver: MR2, 2MD320, DM525

Applications:
3D Printers, small CNC routers, medical pumps, and educational DIY projects.

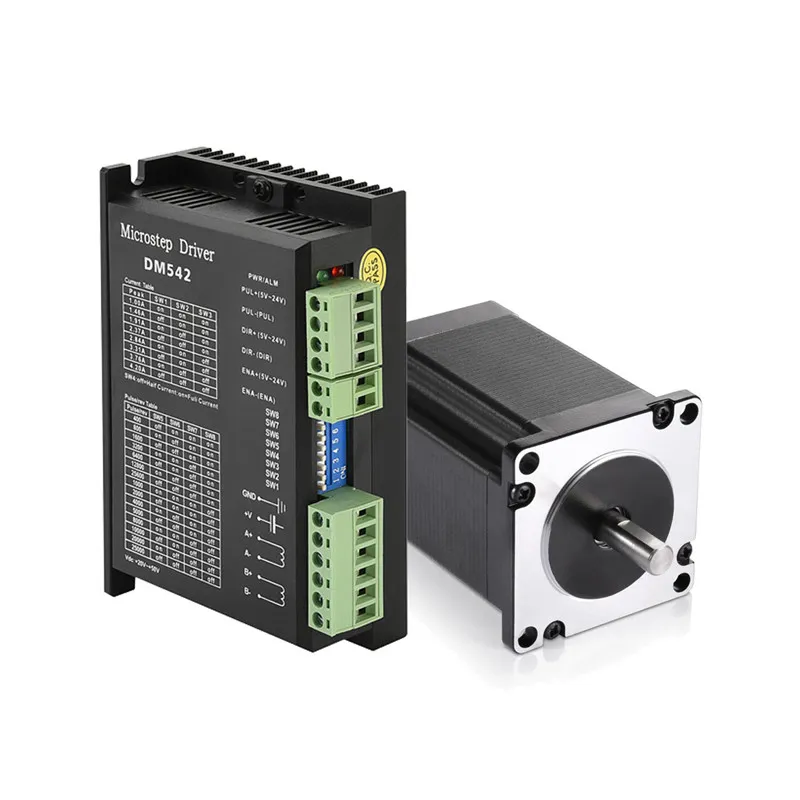

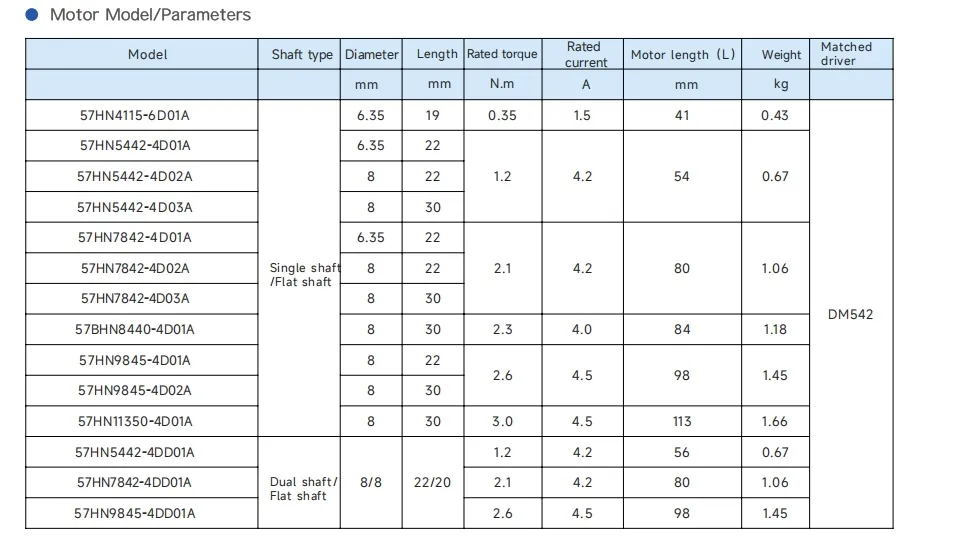

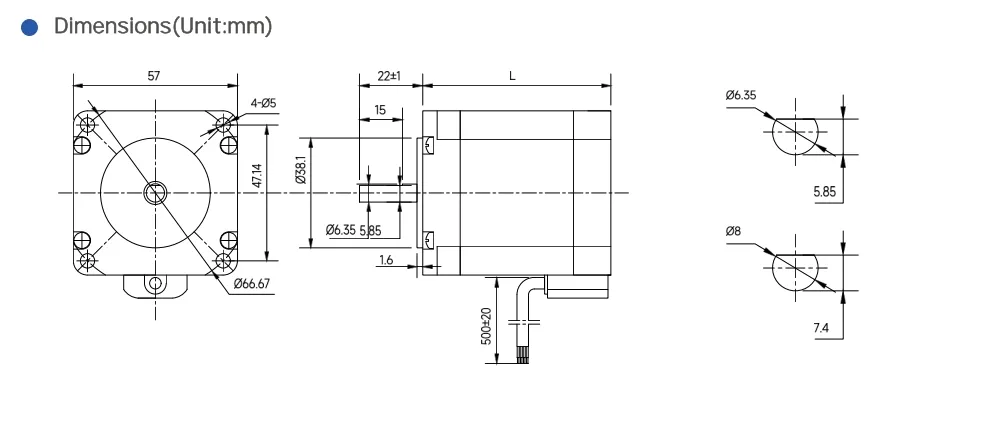

Nema 23

Specifications:
Flange size: 57mm | Step Angle: 1.8 degree
Holding torque: 0.35-3Nm | Motor Length: 41-113mm
Axis diameter: 6.35mm, 8mm (customizable) | Matched driver: DM542, MR4, DM556

Applications:
Medium-sized CNC machines, industrial robot arms, and industrial-grade 3D printers.

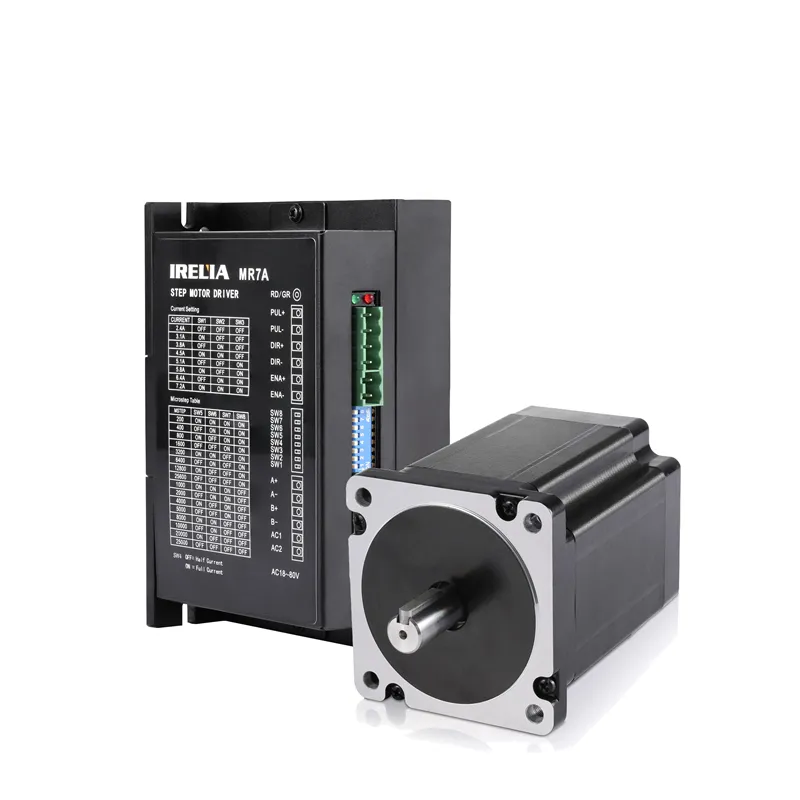

NEMA 34

Specifications:
Flange size: 86mm | Step Angle: 1.8 degree
Holding torque: 3.4-12Nm | Motor Length: 68-156mm

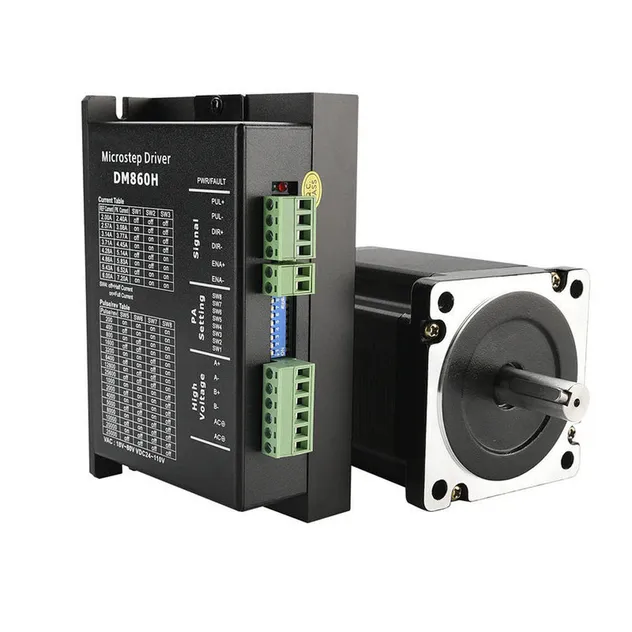

Axis diameter: 12.7mm, 14mm | Matched driver: DM860, MR7

Applications:
Heavy-duty CNC equipment, conveyor systems, gantry robots, and precision laboratory equipment.

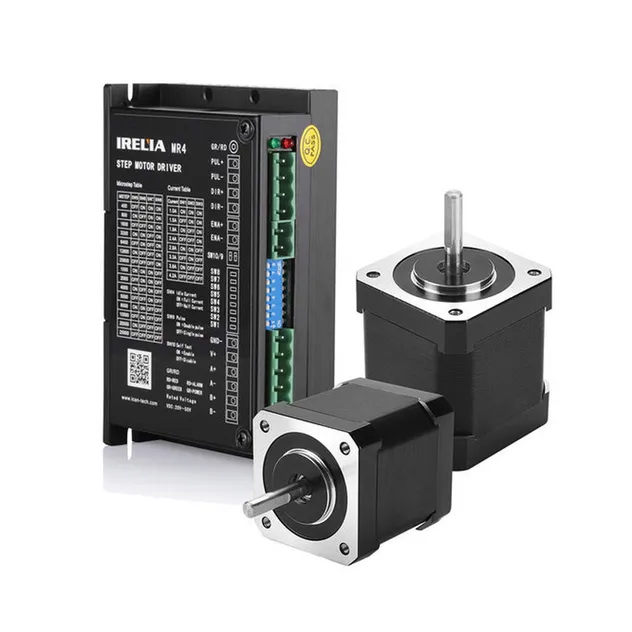

Detailed Photos

Other Products

Round Shaft BLDC Motor

Right Angle BLDC Motor

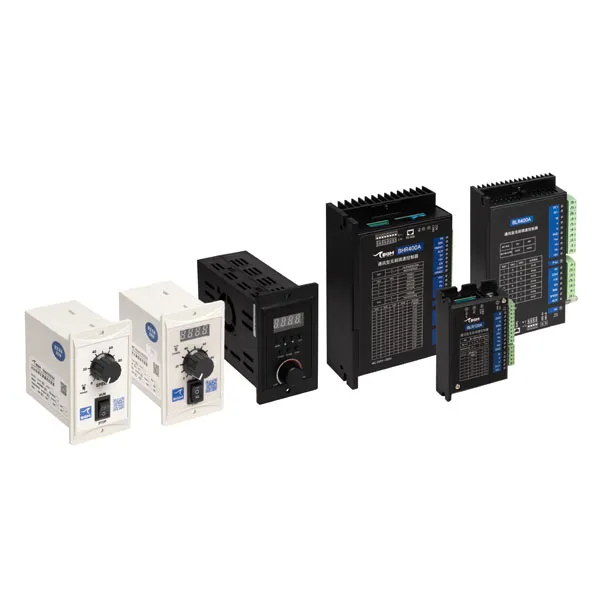

BLDC Motor Driver

Planetary Brushless Motor

Hybrid Stepper Motor

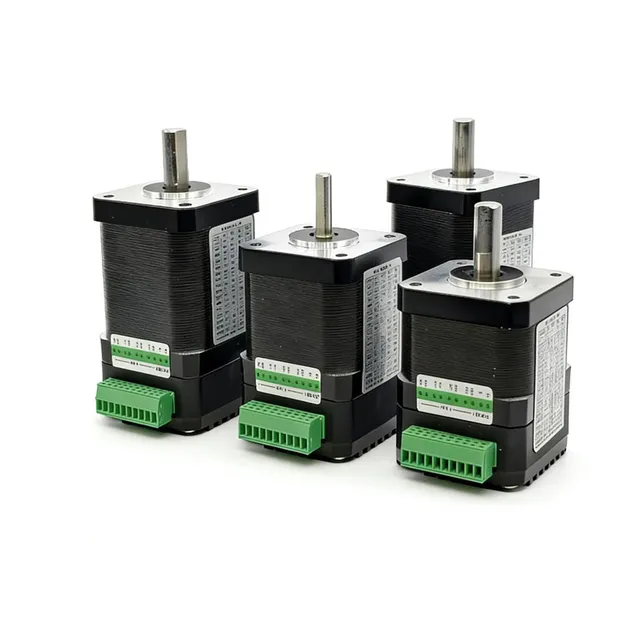

Integrated Stepper Motor

Frequently Asked Questions

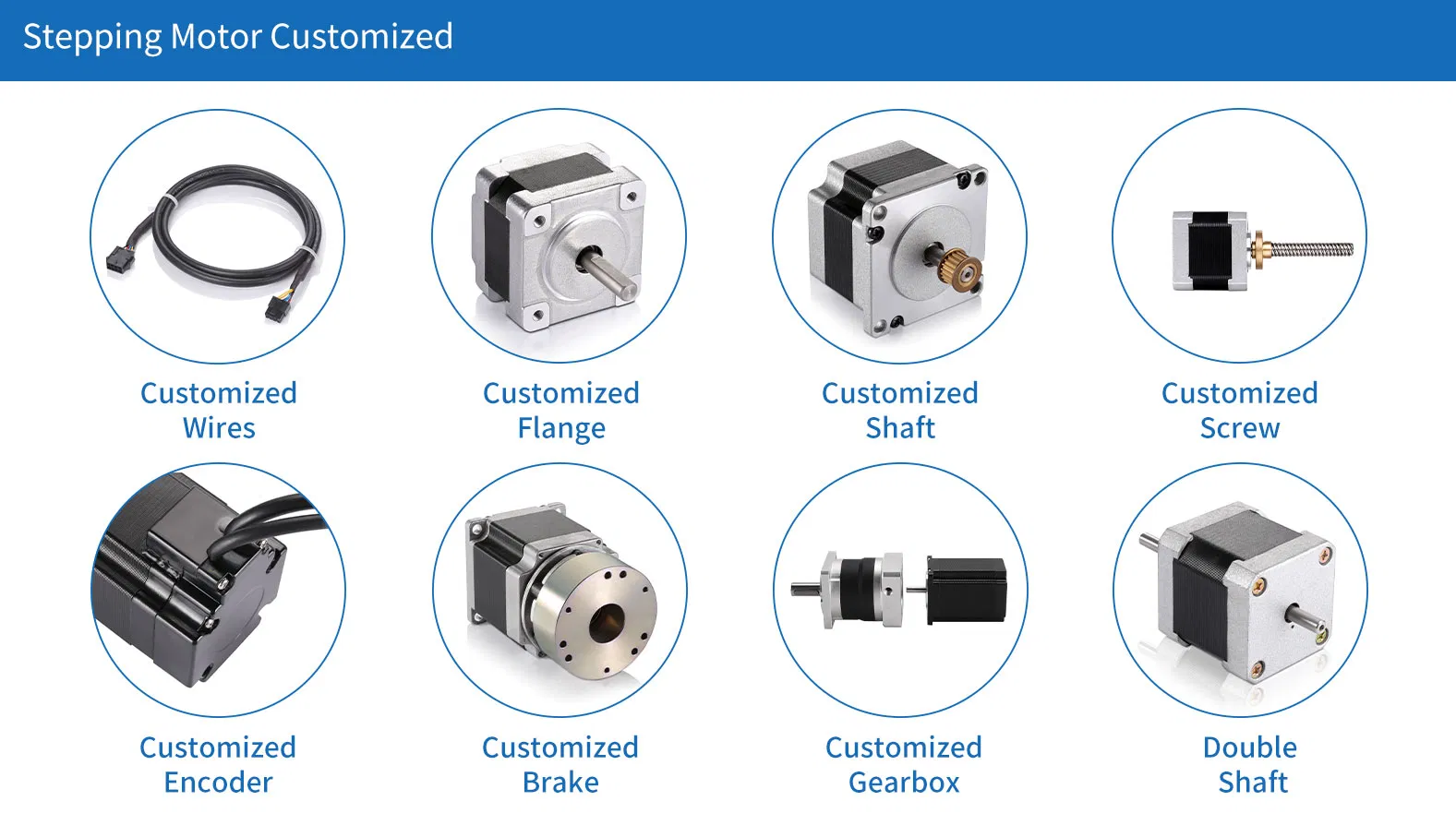

Can you make the gearbox or gear motor with custom specifications?

YES. We have strong R&D capability and a team of engineers with extensive experience to handle custom requirements.

Do you provide samples? How long does it take?

YES. Samples can be provided. Usually, sample making takes 7-15 days.

Do you provide technology support and what is the warranty?

YES. We provide full technology support. All products come with an 18-month warranty period.

What is the sample-making process?

First, contact our sales team to discuss specifications and confirm drawings. After payment, we begin production and ship the sample for your testing.

How long is your delivery time?

Normally, 3~5 working days after payment. Special requirement orders are negotiable based on the actual situation.

Are different control modes available?

Yes, we offer both Closed Loop and Open Loop control modes depending on your application accuracy requirements.
