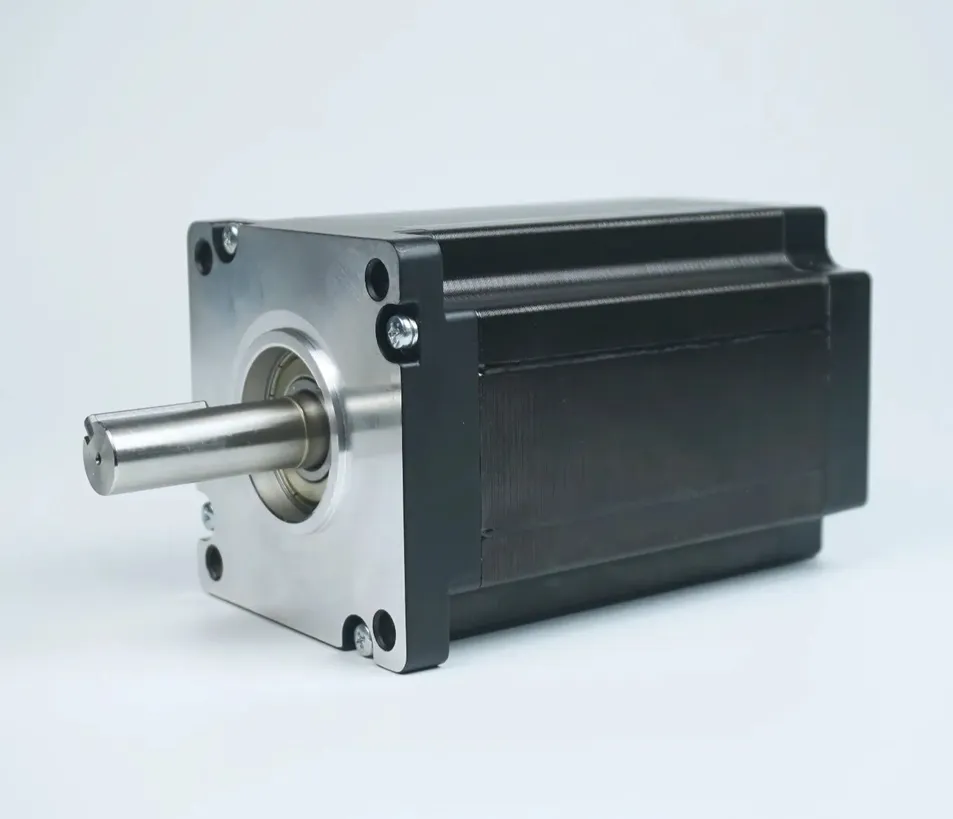

110BHH169-600A-55C Motor

110BHH169-600A-55C

The 110BHH169 is a premium NEMA 42 hybrid stepper motor with a 169mm body, delivering 22.0 N·m holding torque at 6.0A per phase — the highest torque in the standard 2-phase 110BH series. It is the go-to choice for the most demanding industrial stepper motor applications.

KEY HIGHLIGHTS
✔ 22.0 N·m (220 kg·cm) holding torque — highest in 2-phase 110BH series
✔ 110mm (NEMA 42) frame, 169mm body
✔ 1.8° step angle, 2-phase bipolar
✔ Recommended driver: CW1108 / CW2283
Full Specification
PARAMETER VALUE
Step Angle1.8° ± 5%
Holding Torque22.0 N·m (220 kg·cm)
Rated Current6.0 A/Phase
No. of Phases2
No. of Leads4
Shaft Diameter19mm
Frame Size110mm (NEMA 42)
Body Length169mm
Weight9.8 kg
Recommended DriverCW1108 / CW2283

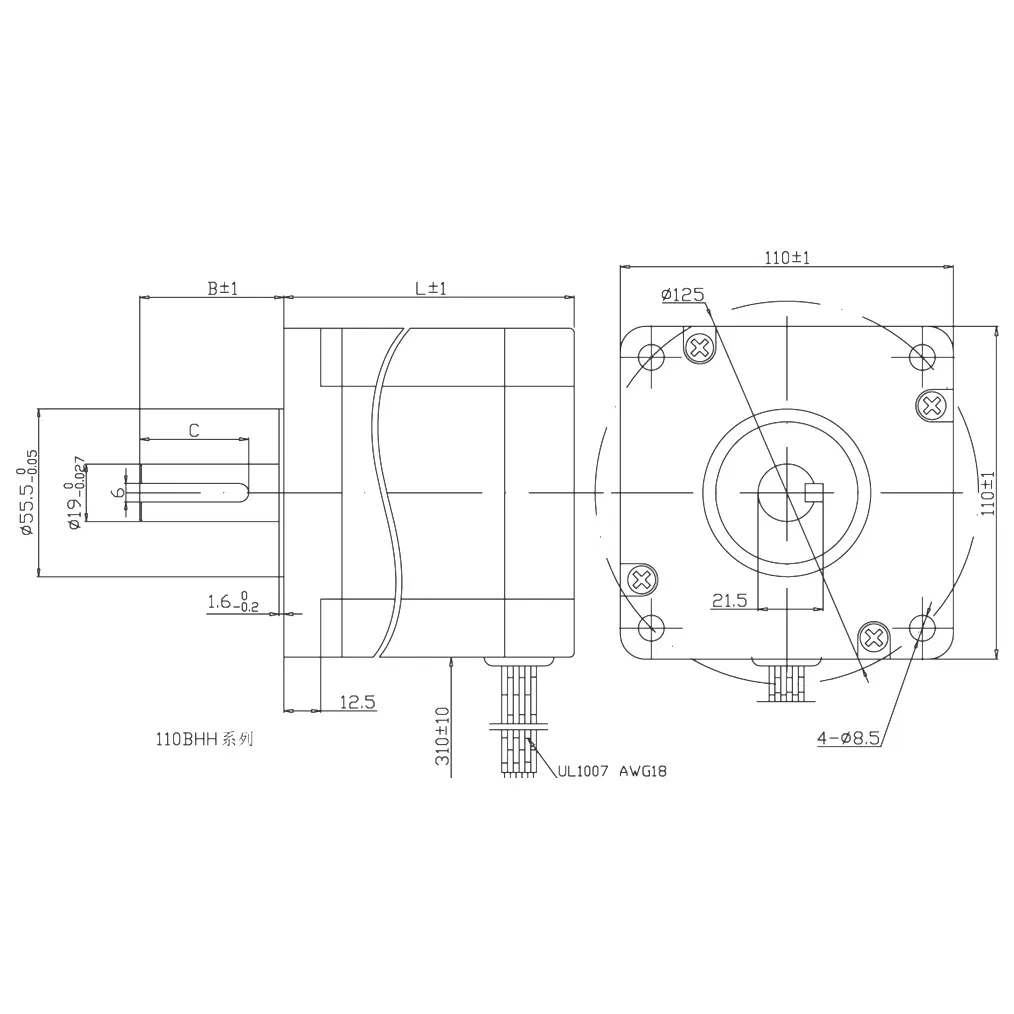

Technical Drawings & Details

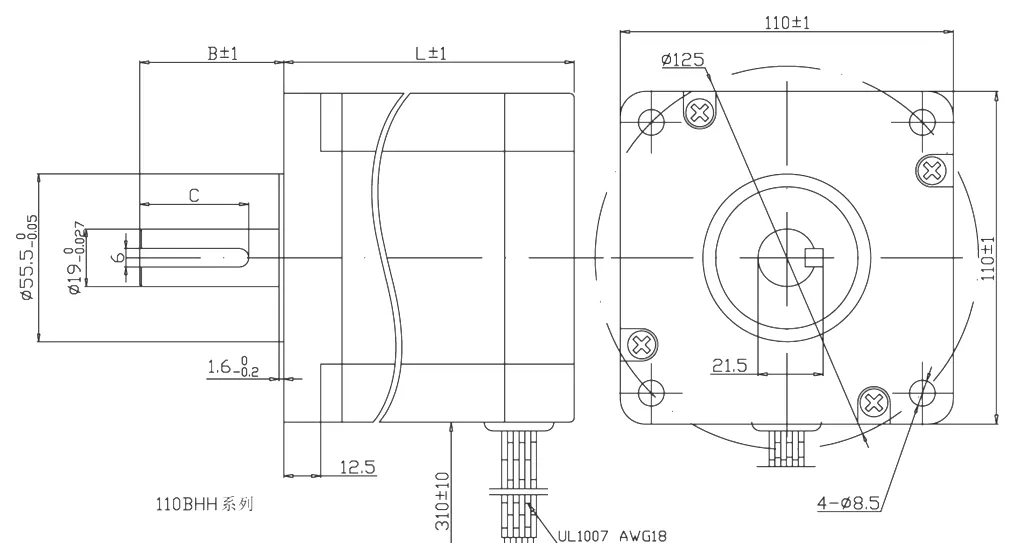

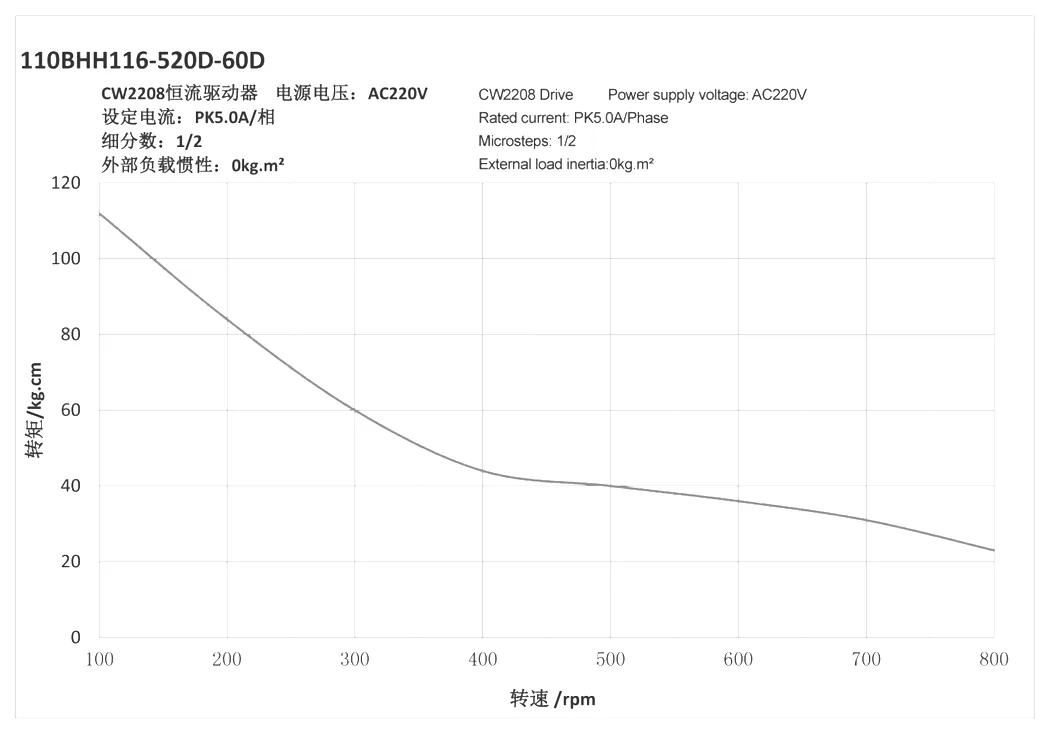

Divider Dimensions Performance Chart Motor Structure
Detail 1 Detail 2
Quality Control Production
Internal Parts Factory Testing Finished Product
Application Usage Packaging
Frequently Asked Questions
What is the holding torque of the 110BHH169-600A-55C?
This motor delivers a high holding torque of 22.0 N·m (220 kg·cm), which is the highest in the 2-phase 110BH series.
What are the recommended drivers for this NEMA 42 motor?
We recommend using the CW1108 or CW2283 drivers to ensure optimal performance and reliability.
Is this motor compatible with CNC machines?
Yes, it is specifically designed for high-demand industrial applications including CNC machines, engraving machines, and 3D printing equipment.
What is the physical size of the motor?
It features a standard 110mm (NEMA 42) frame size with a body length of 169mm and a shaft diameter of 19mm.
How many leads does the motor have?
This is a 2-phase bipolar hybrid stepper motor and comes with 4 leads for connection.
What certifications does the motor hold?
The motor is fully certified according to ISO9001, CE, and RoHS standards, ensuring international quality compliance.
