Send Inquiry

Product Description

1
Product Overview

5:1-80:1 NEMA23 Worm Gear Stepper Motor with NMRV30 Speed Reducer

Motor Length: 56mm

Material Specifications
  • Worm Wheel: Nodular cast iron and bronze
  • Worm Shaft: 45# steel (Surface hardness 56-62HRC with carbonized layer 0.3-0.5mm)
  • Housing: Aluminum with oven painting
  • Color: Silver
2
Package Content
  • 1pc x NEMA 23 Worm Gearbox Stepper Motor

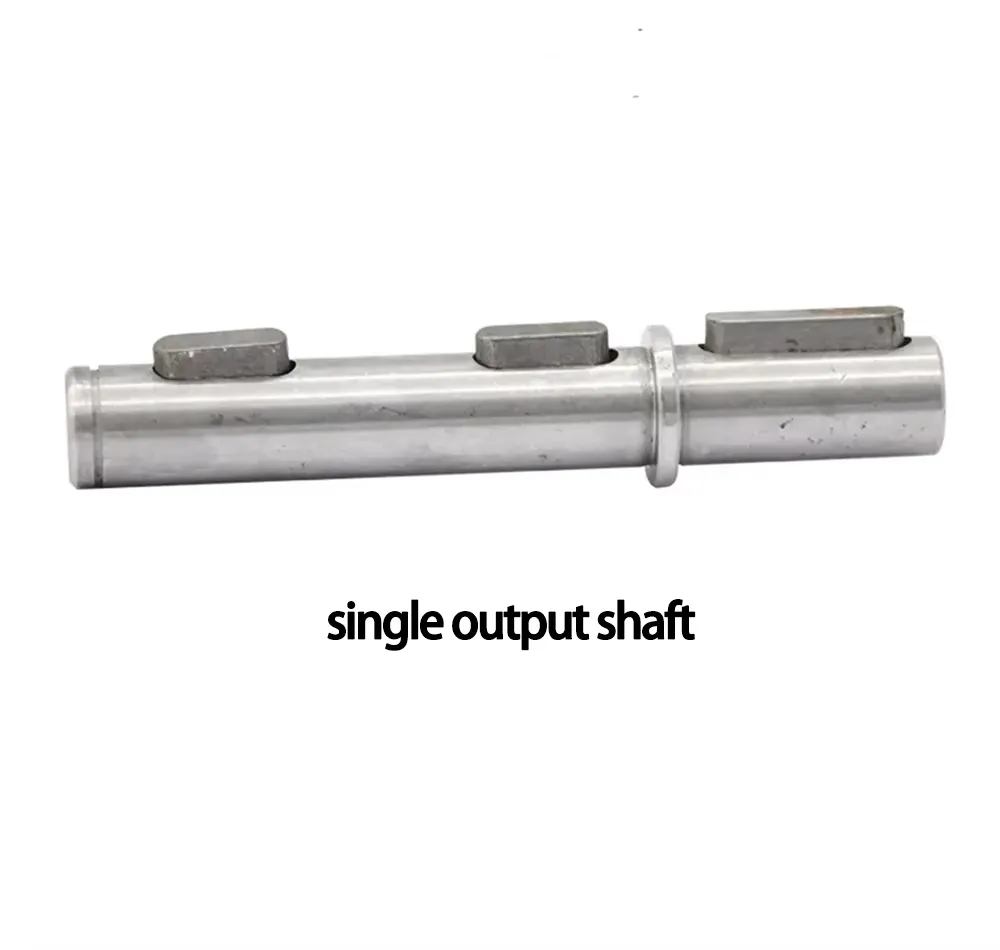

  • 1pc x RV30 single output shaft

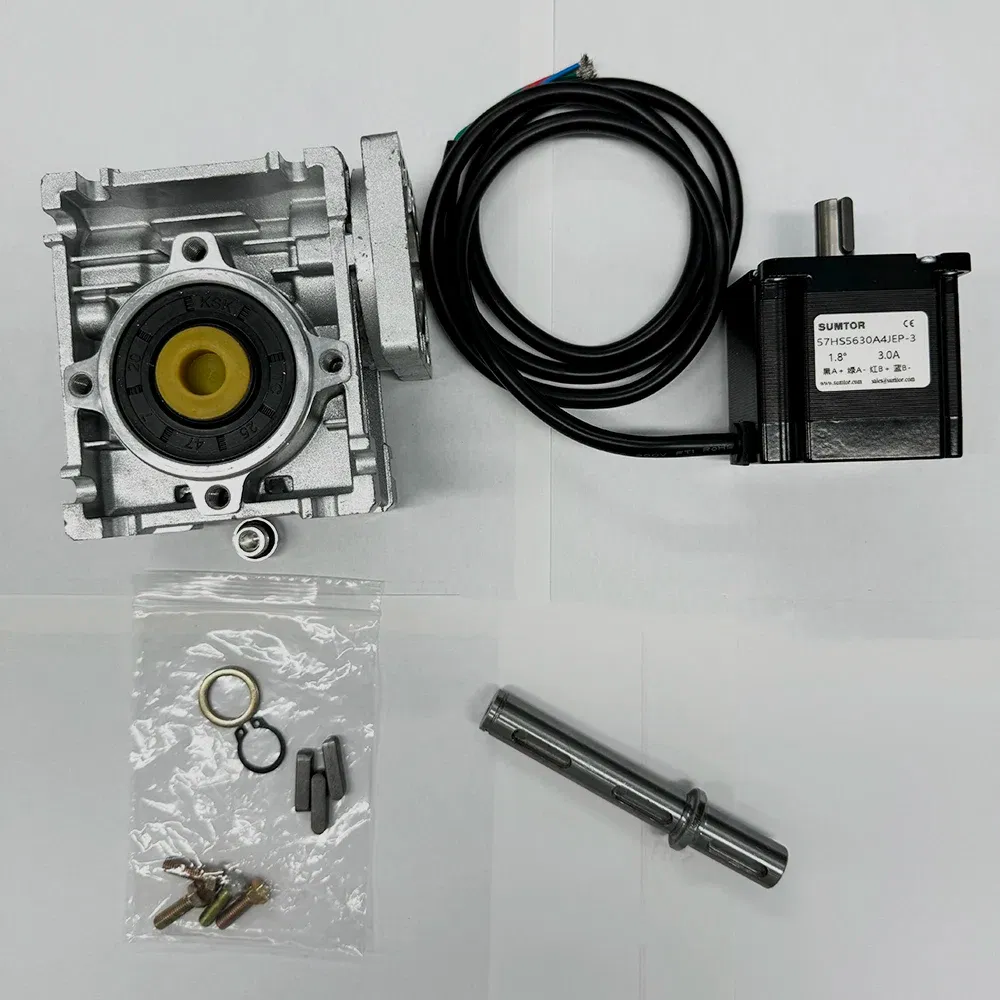

NEMA23 Worm Gear Stepper Motor Package
3
Key Features
  • High quality aluminum alloy die cast gearbox for durability
  • High accuracy worm gear and worm shaft design
  • Low noise operation and reduced temperature increase
  • Easy mounting and high mechanical efficiency
4
Technical Specifications
Item Specifications
Step Angle Accuracy±5%
Resistance Accuracy±10%
Inductance Accuracy±20%
Temperature Rise80C max (rated current, 2 phase on)
Ambient Temperature-20C ~ +50C
Insulation Resistance100MΩ Min. 500VDC
Dielectric Strength500VAC / 1 minute
5
Technical Drawings

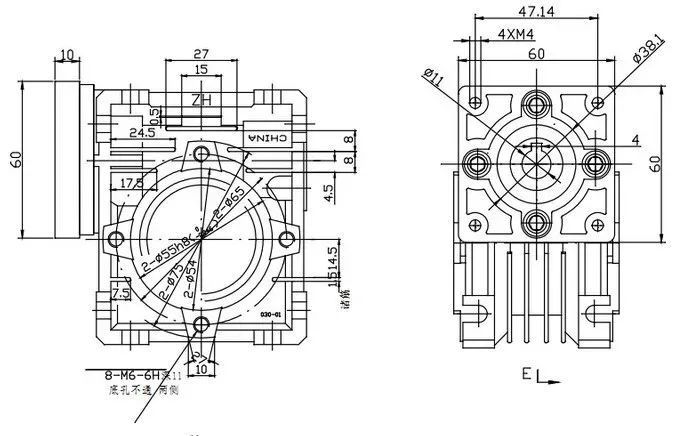

Worm Gear Reducer Dimensions

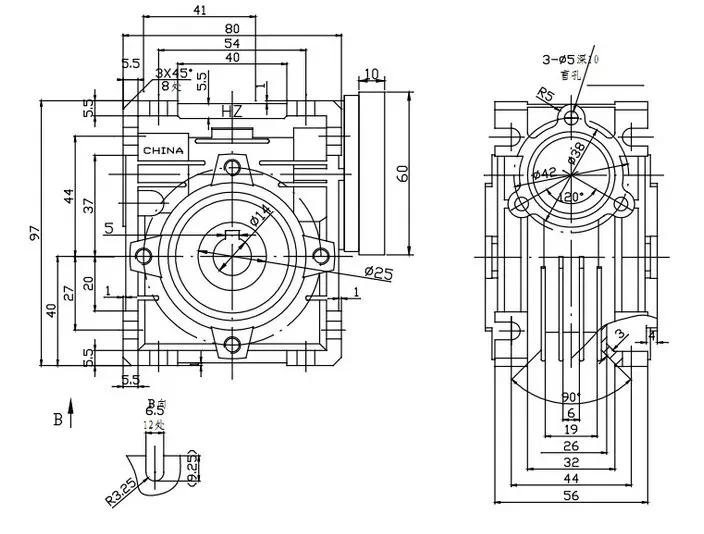

Drawing 1
Drawing 2
Shaft & Motor Dimensions
Shaft Dimension

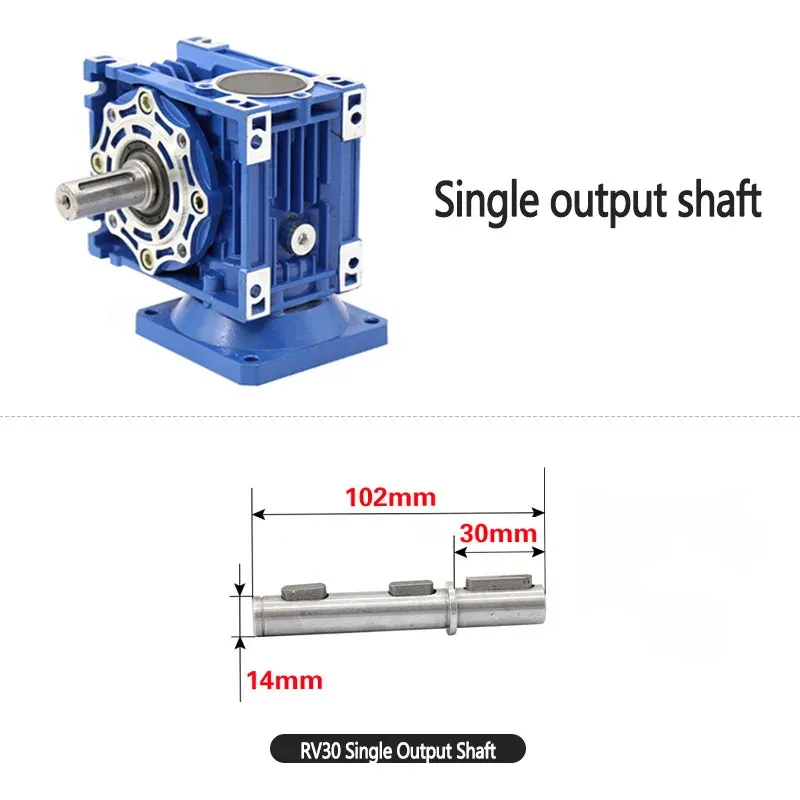

Reducer Detail

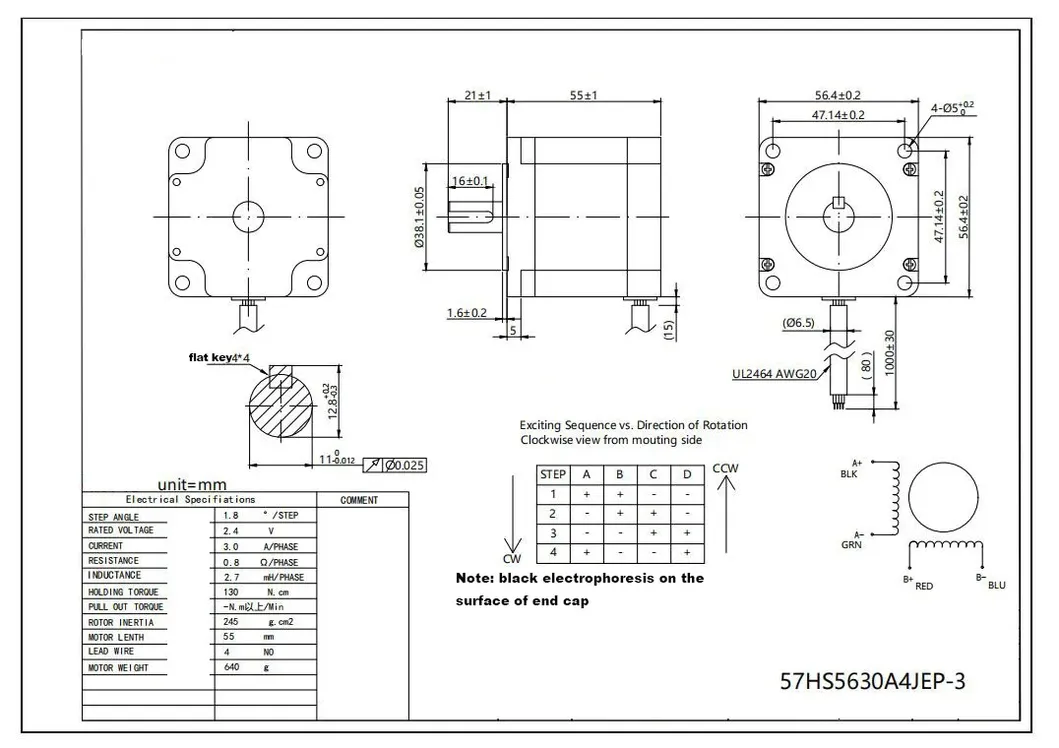

NEMA 23 Stepper Motor Drawing
NEMA23 Stepper Motor Drawing
6

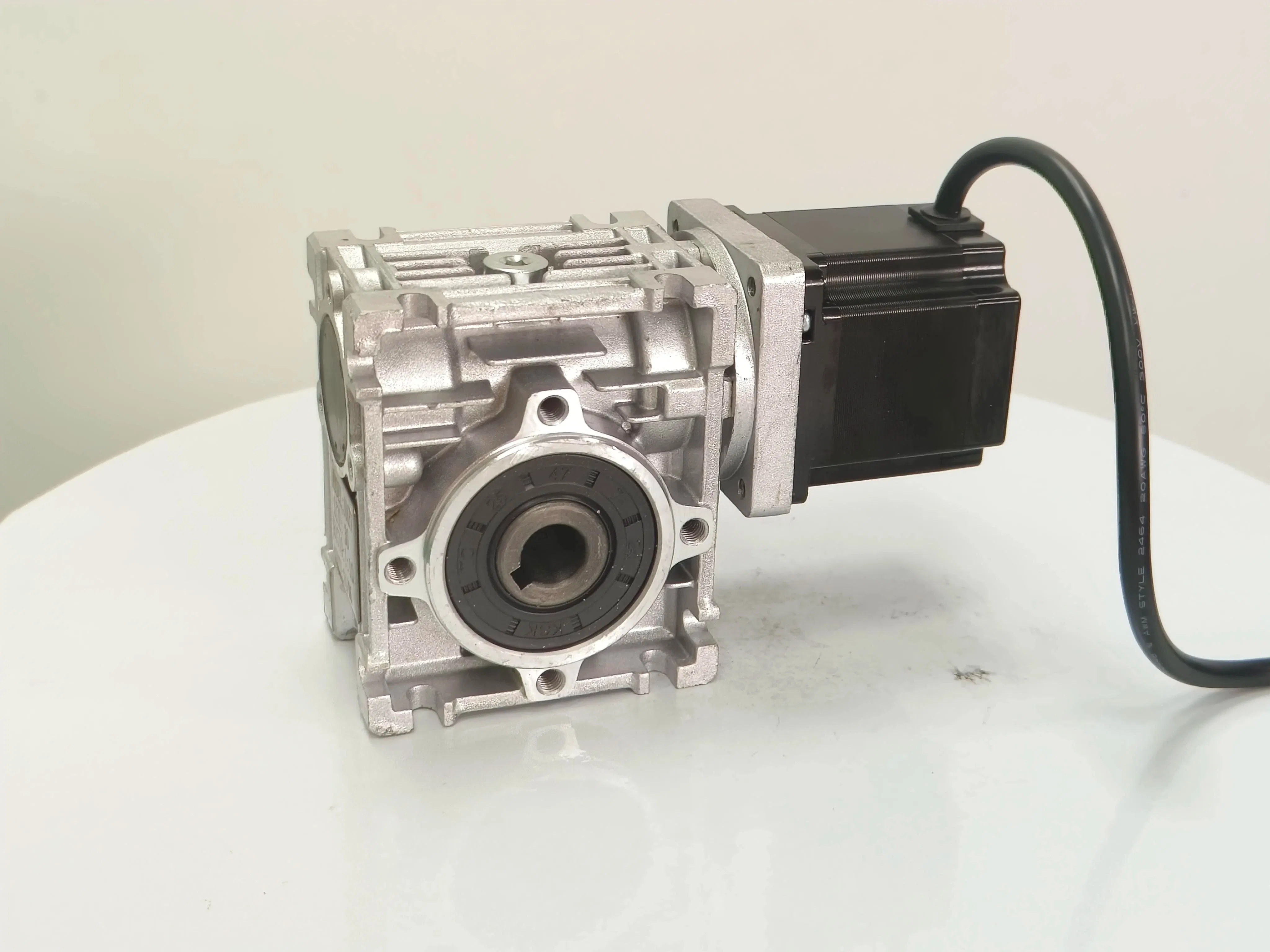

Product Gallery

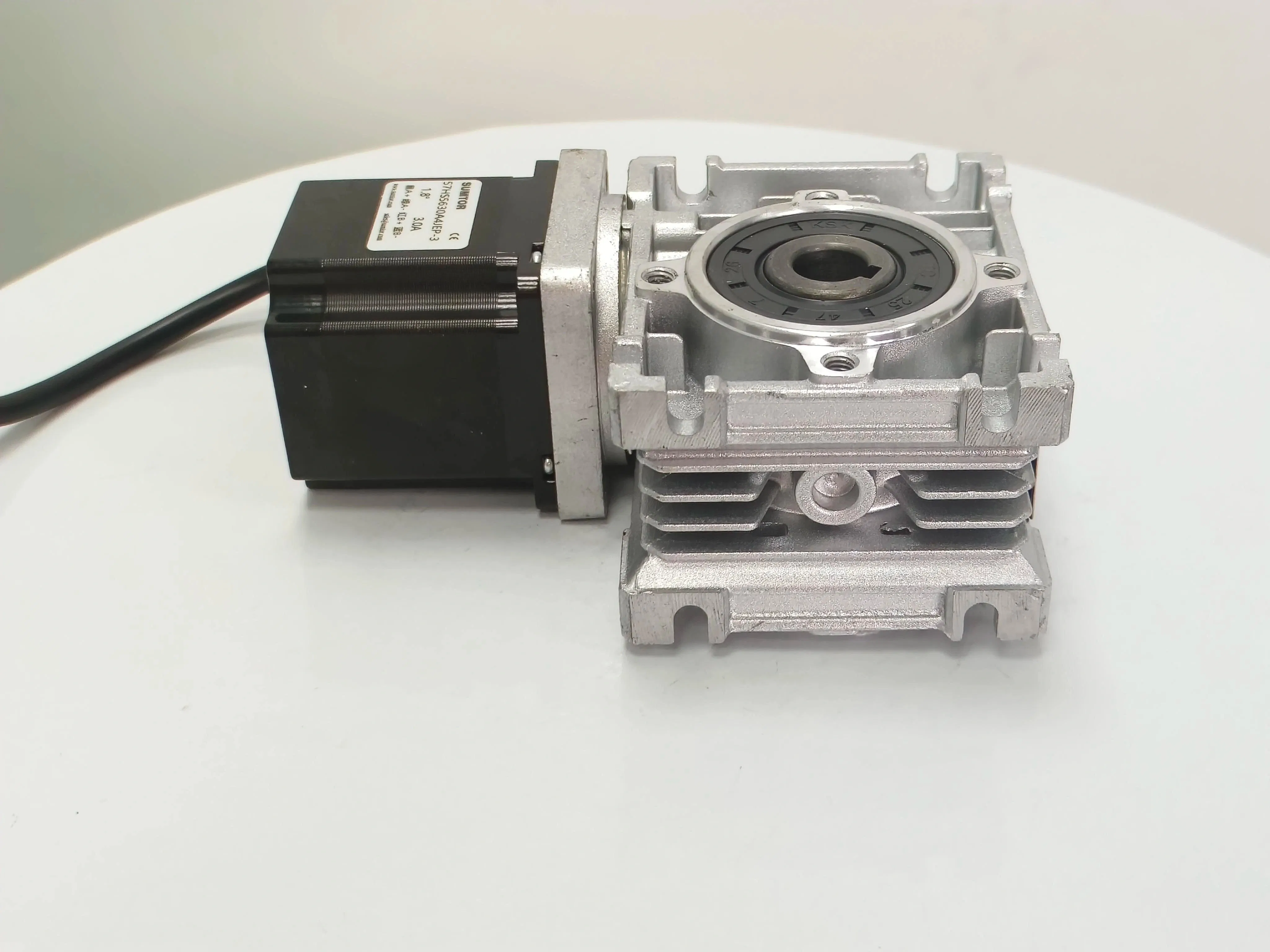

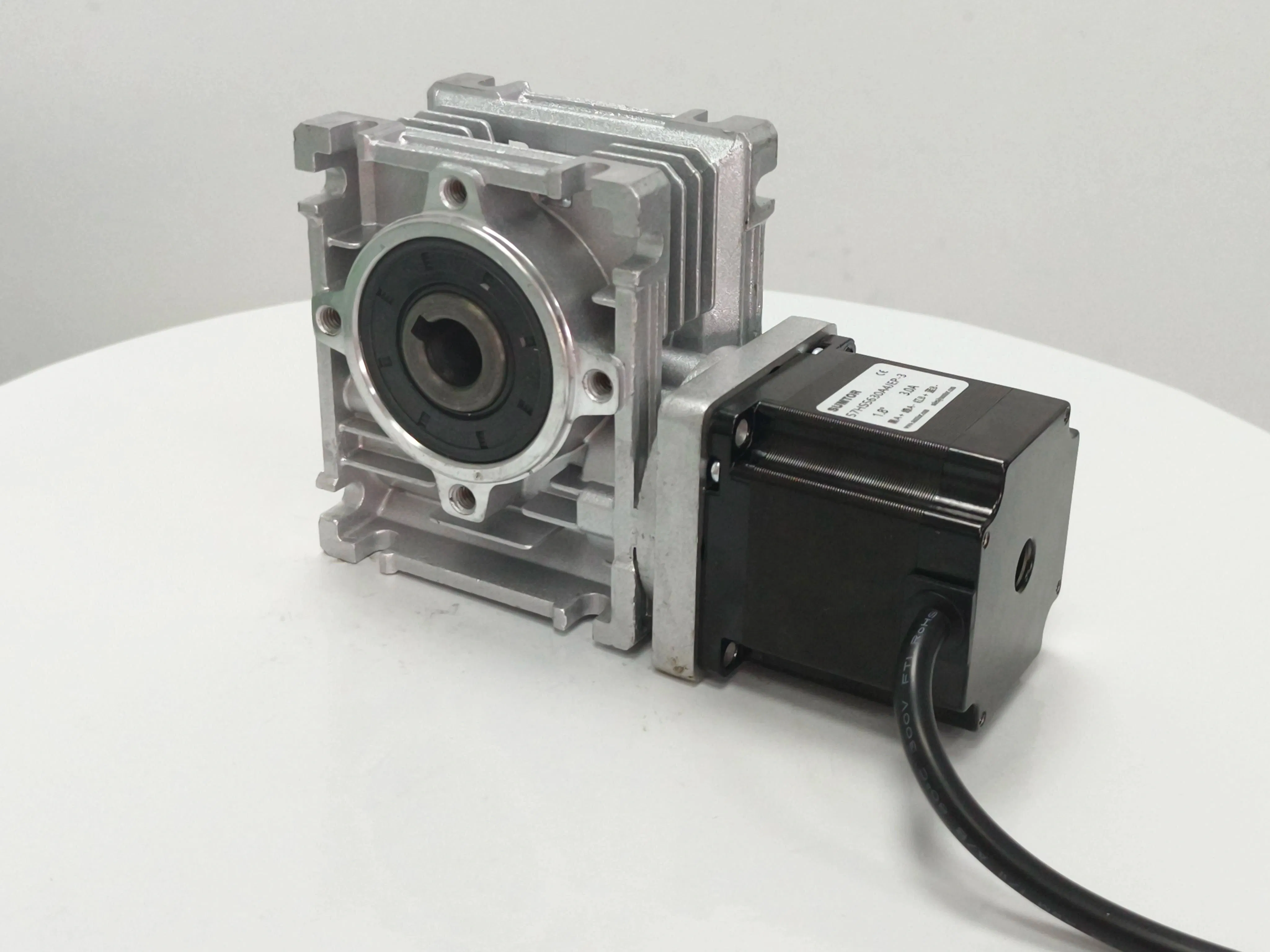

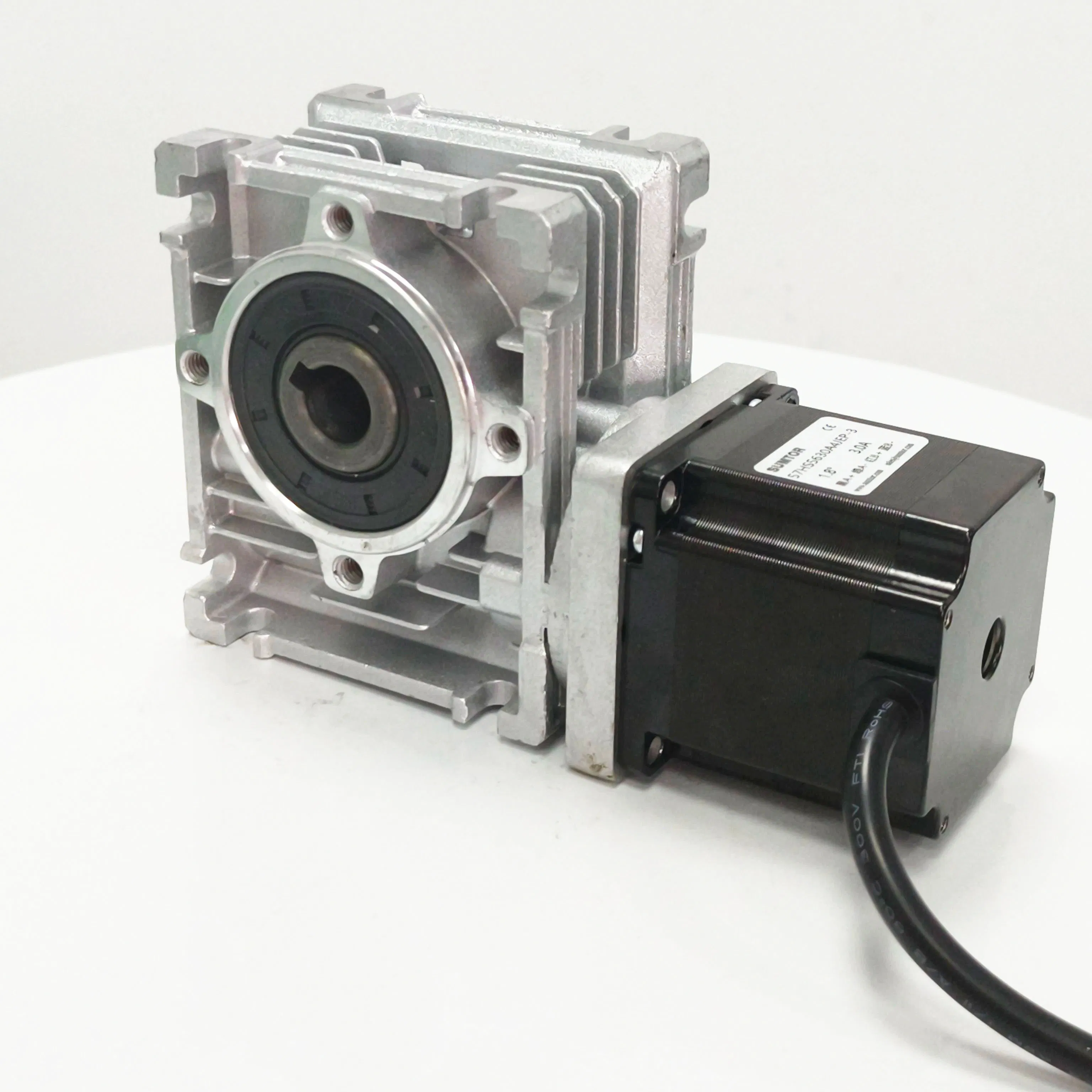

Product Photo 1
Product Photo 2
Product Photo 3
7
Packaging & Logistics
Packaging 1
Packaging 2
Packaging 3
Logistics 1
Logistics 2
Logistics 3
Logistics 4
Logistics 5
Logistics 6
Logistics 7
Logistics 8
Frequently Asked Questions
What reduction ratios are available for this motor?
The NEMA23 worm gear stepper motor supports a wide range of reduction ratios from 5:1 up to 80:1.
What are the main materials used in the gearbox?
The gearbox features a nodular cast iron and bronze worm wheel, a 45# steel worm shaft, and a high-quality die-cast aluminum housing.
Is this motor suitable for high-precision applications?
Yes, it features high accuracy worm gears and shafts with a step angle accuracy of ±5%, making it suitable for precise motion control.
What is the operating temperature range?
The motor is designed to operate in ambient temperatures ranging from -20°C to +50°C.
Does the package include the output shaft?
Yes, each unit comes with one NEMA 23 worm gearbox stepper motor and one RV30 single output shaft.
How does the gearbox handle heat and noise?
The high-quality aluminum alloy housing and precision engineering ensure lower noise levels and efficient heat dissipation during operation.

Related Products
