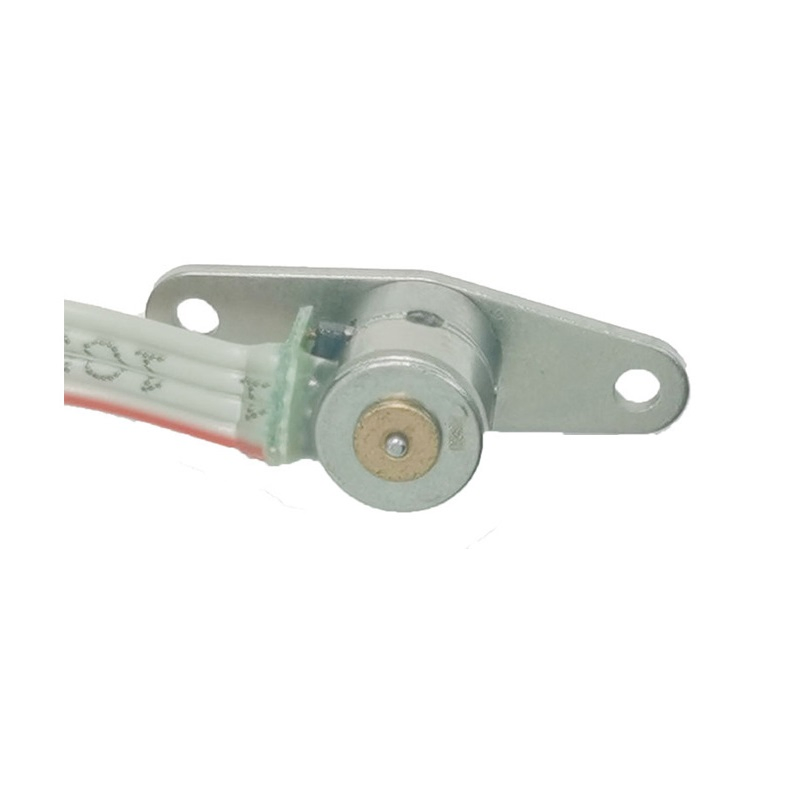

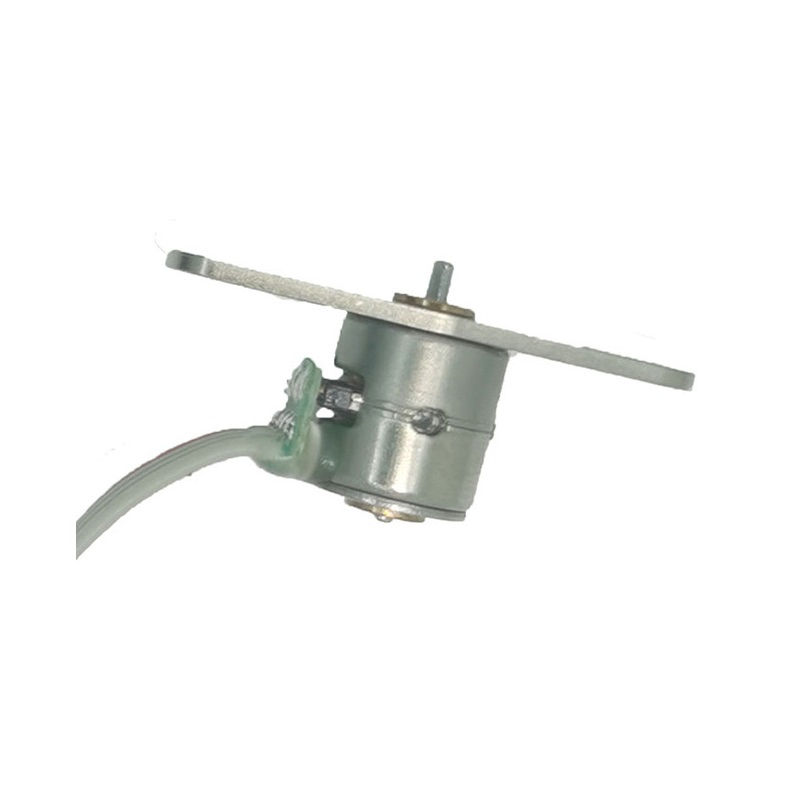

Compact 8mm 5V DC Micro Stepper Motor for Precision Control

1 / 5

Compact 8mm 5V DC Micro Stepper Motor for Precision Control

Send Inquiry

Product Description

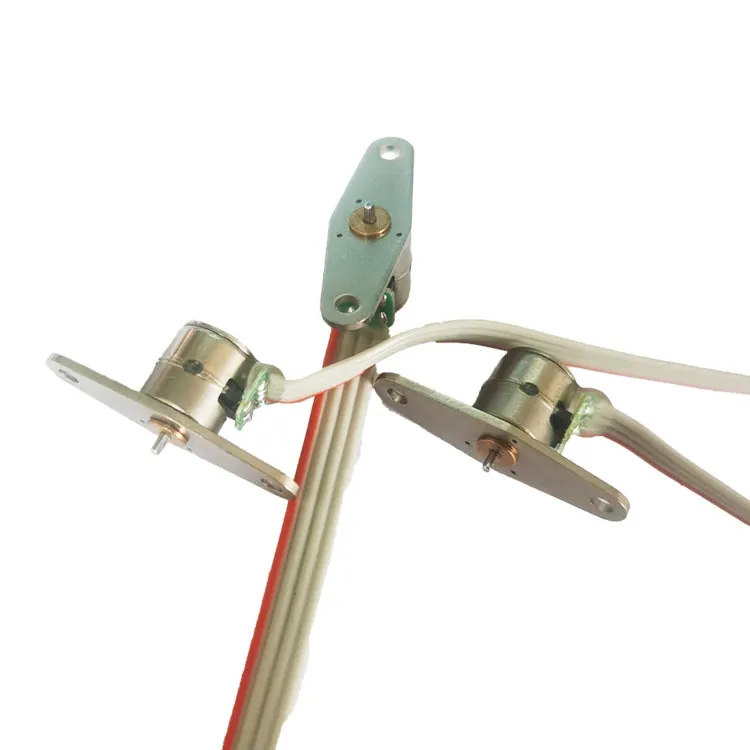

Micro Stepper Motor Gallery

DC Micro Stepper Motor Precision Control

⚙️

Precision Control
Optimized for high-accuracy compact positioning tasks.

⚡

Versatile Voltage
Supports a range from 3.0V DC to 12.0V DC operation.

📏

Micro Dimensions
Compact diameters from Φ6mm to Φ20mm available.

Technical Parameters

No.	Model No.	Dimensions (mm)	Stroke (mm)	Slider Material	Voltage (V)	Current (mA)	Resistance (Ω)	Output Torque (gf.cm)
1	07-005-002	Φ6x(5.9+3.95)	/	/	3.3	165	20	/
2	07-005-003	Φ6x(5.9+3.95)	/	/	3.3	165	17.5	/
3	07-005-004	Φ6x(5.9+3.95)	/	/	3.3	275	12	2.00
4	07-005-005	Φ6x(9.1+11.4)	6.8	Plastic	3.3	110	30	0.06
5	07-005-006	Φ6xL(8+4.8)	/	/	4.8	180	26.5	1.60
6	07-005-007	Φ6x(7.7+5.1)	/	/	4.8	180	26.5	1.60
7	07-005-011	Φ6x(4.3+2.9)	/	/	3.3	110	30	0.06
8	08-005-001	Φ6x(7.8+4.5)	10.7	/	5.0	300	15	1.00
9	07-005-027	Φ8x(8.82+23)	16	Plastic	3.3	160	20	80.00
10	07-005-032	Φ8x(8.5+4.2)	/	/	3.3	165	20	1.50
11	07-005-033	Φ8x(8.82+18.6)	17	/	3.3	160	20	0.25
12	07-005-034	Φ8x(8.82+15.75)	13.35	/	5.0	100	50	0.23
13	07-005-035	Φ8x(8.5+4.1)	/	/	3.3	165	20	1.50
14	08-005-011	Φ8.3x(10.1+22.5)	19.4	Copper	3.0	500	6	20.00
15	08-005-012	Φ8x(+)	/	/	3.0	500	6	20.00
16	08-005-013	Φ8.3x(9+5.7)	/	/	4.8	220	23	3.00
17	08-005-014	Φ8.3x(9+14)	11.5	/	5.0	300	16.3	30.00
18	08-005-015	Φ8.3x(9+4)	/	/	3.3	500	6	2.50
19	07-005-041	Φ10x(10.62+37.6)	36.6	/	5.0	90	55	0.30
20	07-005-042	Φ10x(10.62+37.6)	34.4	Copper	5.0	90	55	0.30
21	07-005-043	Φ10x(+)	/	/	5.0	160	31	5.00
22	07-005-044	Φ10x(+)	/	/	5.0	160	31	7.00
23	07-005-045	Φ10x(9.62+38.6)	33.8	Copper	5.0	300	15	6.50
24	07-005-046	Φ10x(9.3+19)	/	/	5.0	250	20	15.00
25	07-005-047	Φ10x(9.8+2.4)	/	/	3.3	66	15	4.00
26	07-005-048	Φ10x(8.8+5.1)	/	/	5.0	300	15	5.00
27	07-005-049	Φ10x(9.3+2.9)	/	/	3.3	66	15	4.00
28	08-005-021	Φ10x(10+56.5)	50.5	Copper	5.0	270	18	6.00
29	08-005-022	Φ10x(10+70)	65	Copper	5.0	270	18	6.00
30	08-005-024	Φ10x(9+14.5)	/	/	5.0	200	25	150.00
31	08-005-025	Φ10x(10.5+9)	/	/	5.0	128	20	500.00
32	08-005-026	Φ10x(10.8+31)	23.9	Plastic	5.0	330	15	5.00
33	08-005-031	Φ10.2x(10.75+11.4)	5.4	Plastic	5.0	330	15	9.00
34	08-005-032	Φ10.2x(10.75+11.4)	5.4	Plastic	5.0	330	15	9.00
35	08-005-033	Φ10x(10.6+38.6)	35.1	Copper	5.0	330	15	7.00
36	08-005-035	Φ10.72+18.55	15.5	Copper	5.0	128	39	4.00
37	08-005-036	Φ10.75+18.6	11.8	Plastic	5.0	330	15	9.00
38	08-005-037	Φ10.75+14.7	7	Plastic	5.0	400	15	9.00
39	08-005-038	Φ10.75+18.6	11.8	Plastic	5.0	330	15	9.00
40	08-005-039	Φ10.75+12.6	5.4	Plastic	5.0	330	15	9.00
41	07-005-060	Φ15x(10.8+59)	/	/	12.0	400	31	180.00
42	07-005-061	Φ15x(12.9+36.5)	26.7	Copper	6.0	300	15	200.00
43	07-005-062	Φ15x(12.9+46.5)	12.9	Copper	6.0	300	15	200.00
44	07-005-063	Φ15x(10.8+12)	/	/	12.0	760	31	720.00
45	07-005-064	Φ15x(12.9+46.5)	37.5	Copper	12.0	760	31	720.00
46	07-005-079	Φ15x(10.8+12)	/	/	12.0	760	31	720.00
47	08-005-041	Φ15x(11+16.5)	/	/	3.0	200	15	6.00
48	08-005-042	Φ15x(10.9+30)	19.7	Copper	6.0	400	15	200.00
49	08-005-043	Φ15x(10.9+30)	20	Plastic	6.0	400	15	200.00
50	08-005-046	Φ15x(21+13)	/	/	12.0	200	118	1700.00
51	08-005-047	Φ15x(10.9+25)	11.8	Copper	6.0	400	15	200.00
52	08-005-048	Φ15x(11.3+30)	17.5	Copper	12.0	200	31	700.00
53	07-005-082	Φ20x(21+46.1)	34.2	Copper	12.0	800	15	1800.00
54	07-005-083	Φ20x(21+66.9)	55.9	Copper	12.0	800	15	1800.00
55	07-005-084	Φ20x(18.4+4)	/	/	12.0	300	40	20.00
56	08-005-061	Φ20x(20.1+34.9)	22	Copper	12.0	770	15.6	1200.00
57	08-005-062	Φ20x(20.1+34.9)	22	Copper	12.0	770	15.6	1200.00
58	08-005-063	Φ20x(20.1+47.9)	35	Copper	12.0	600	20	1000.00
59	08-005-064	Φ20x(18.4+4.3)	/	/	12.0	600	20	32.00
60	08-005-065	Φ20x(37.4+10.5)	/	/	12.0	600	20	2000.00
61	08-005-066	Φ20x(35.9+10.5)	/	/	12.0	200	60	500.00
62	08-005-101	Φ20x(15.5+19)	/	/	12.0	200	60	1000.00

Frequently Asked Questions

What is the available diameter range for these motors?

The micro stepper motor series includes diameters ranging from compact Φ6mm units to more powerful Φ20mm models, covering various industrial requirements.

What are the common voltage specifications?

The motors are designed to operate at several DC voltage levels, including 3.0V, 3.3V, 4.8V, 5.0V, 6.0V, and 12.0V, providing flexibility for different power systems.

What slider materials are used in these micro motors?

Depending on the specific model and durability requirements, we offer sliders made from high-quality Plastic or Copper to ensure longevity and performance.

What is the maximum torque achievable in this series?

The high-end models in the Φ20mm category (such as model 08-005-065) can deliver an output torque of up to 2000 gf.cm for heavy-duty micro applications.

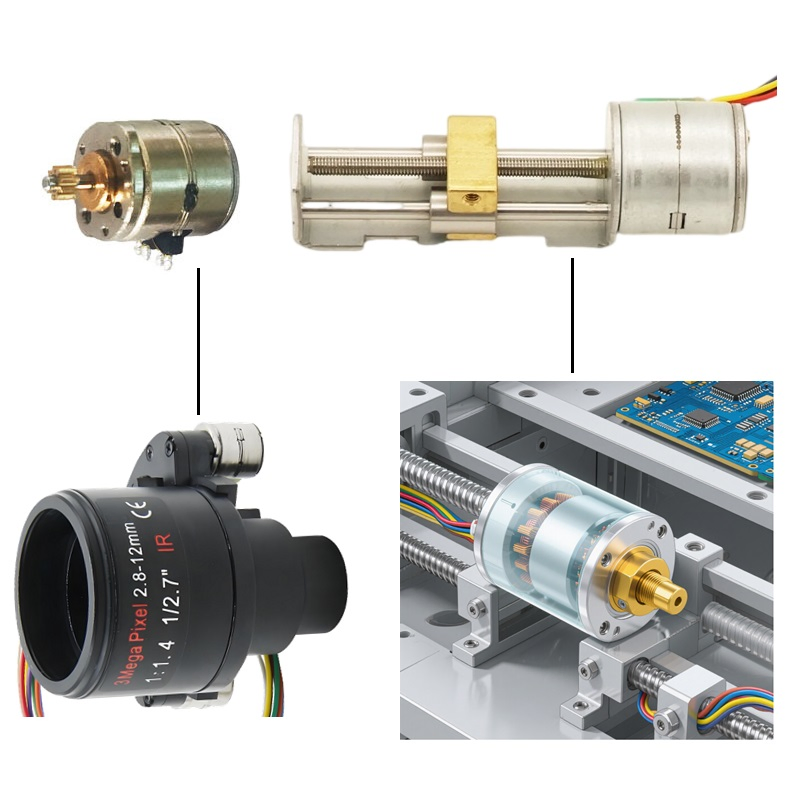

Can these motors be used for linear motion?

Yes, models with defined "Stroke" parameters (ranging from 5.4mm to 65mm) are specifically designed for precision linear movement control using integrated slider mechanisms.

How high is the resistance for these stepper motors?

The resistance varies across the range to match different driver requirements, from as low as 6Ω for high-current models to 118Ω for specific precision types.
