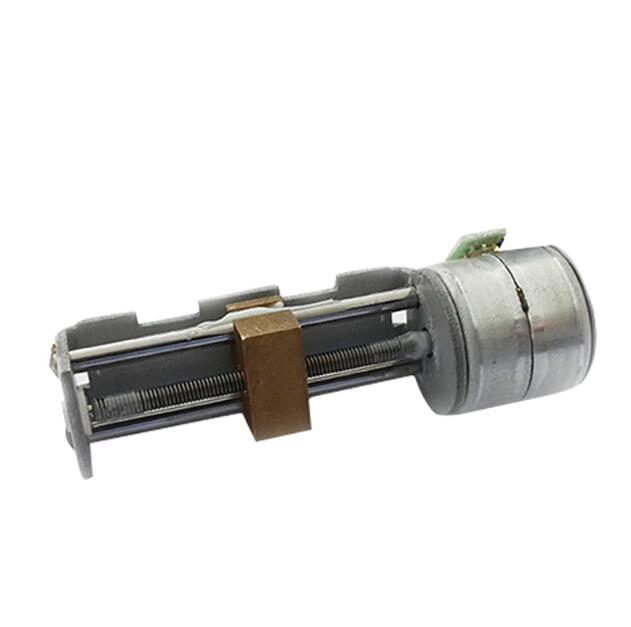

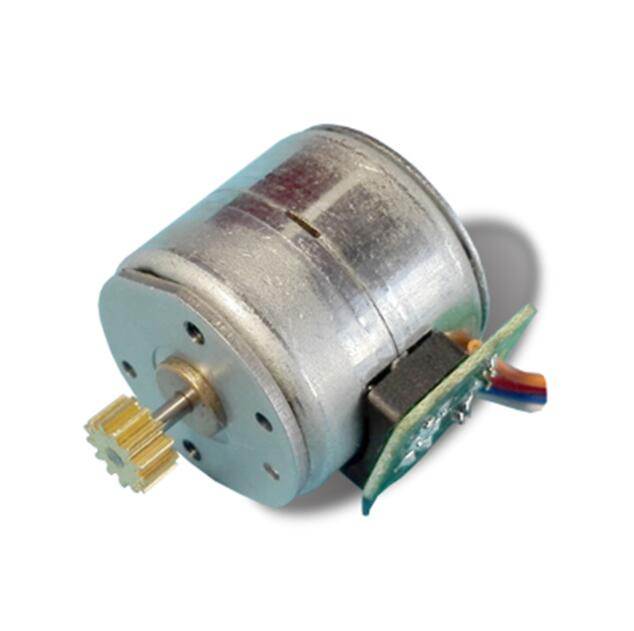

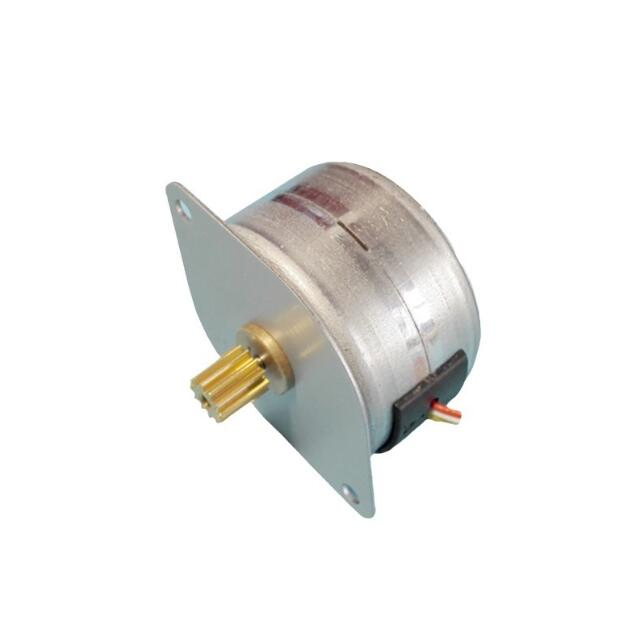

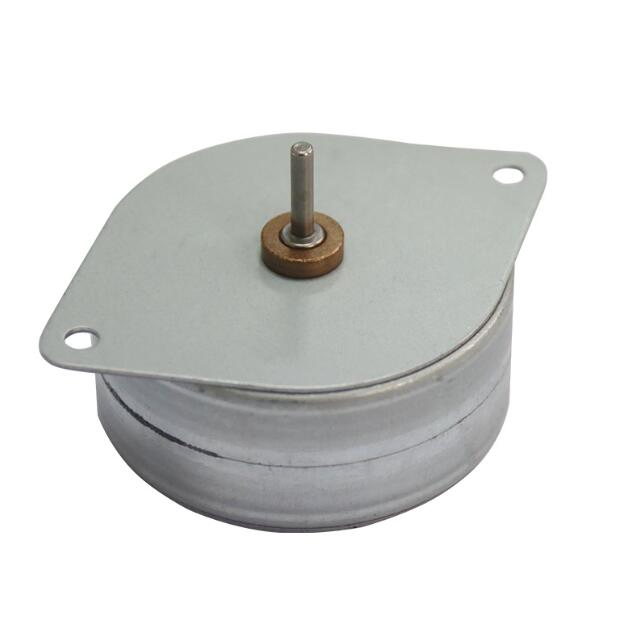

35mm 12VDC 2phase Permanent Magnet Stepper Motor Gear Motor for Valve

1 / 5

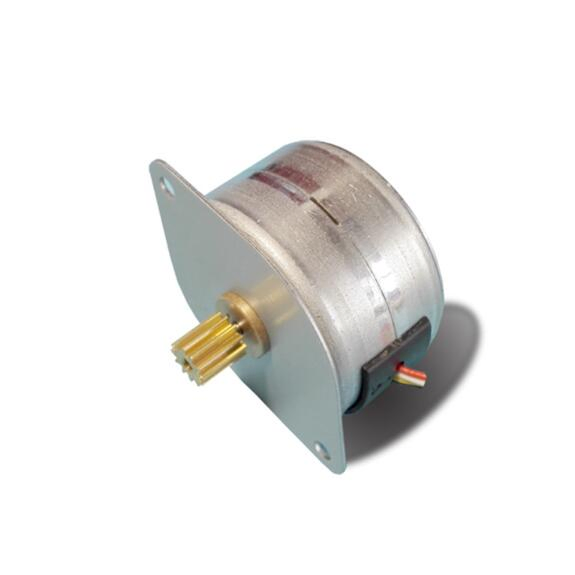

35mm 12VDC 2phase Permanent Magnet Stepper Motor Gear Motor for Valve

Send Inquiry

Product Description

Stepper Motor Features

✔ Simple & Cost-Effective: Permanent magnet rotor, claw-pole stator; low manufacturing cost, high cost-performance.

✔ Large Step Angle: Typically 7.5°/15°, medium precision for coarse positioning.

✔ Detent Torque: Maintains position when unpowered via permanent magnet attraction (Power-Off Holding).

✔ High Torque at Low Speed: Strong torque at low speeds; direct drive without gearbox.

✔ Fast Response: Quick start/stop/reverse; speed via pulse frequency; open-loop accurate positioning.

✔ Low Power & Noise: Low control power, quiet operation (~35dB).

Product Presentation

Front View

Back View

Technical Specifications

Note: Voltage, speed, power, and torque can be customized to meet specific requirements.

Model	Step Angle (Deg.)	Phase	Voltage(V)	Current(A)	Resistance(Ω)	Inductance(mH)	Starting Freq(pps)	Pull-in Torque(g.cm)	Detent Torque(g.cm)
DR35YCBJ01	15	4	24	0.282	85	36.5	370	80	150
DR35YCBJ02	15	2	12	0.8	15	13.5	450	150	150
DR35YCBJ03	7.5	2	12	0.2	60	65	350	100	125
DR35YCBJ04	7.5	4	18	1.3	13.5	9.5	580	120	125
DR35YCBJ06	7.5	4	24	0.2	120	275	350	70	125
DR35YCBJ07	7.5	4	24	0.2	118	270	350	65	110
DR35YCBJ09	7.5	4	24	0.5	5.5	3.4	390	185	130
DR35YCBJ10	7.5	2	5	0.71	7	6.3	500	60	50
DR35YCBJ11	7.5	2	5	0.4	12.5	10.5	380	110	75
DR35YCBJ12	7.5	2	5	0.67	7.5	5.2	400	65	60
DR35YCBJ13	7.5	2	24	0.65	7.2	4.85	850	190	80

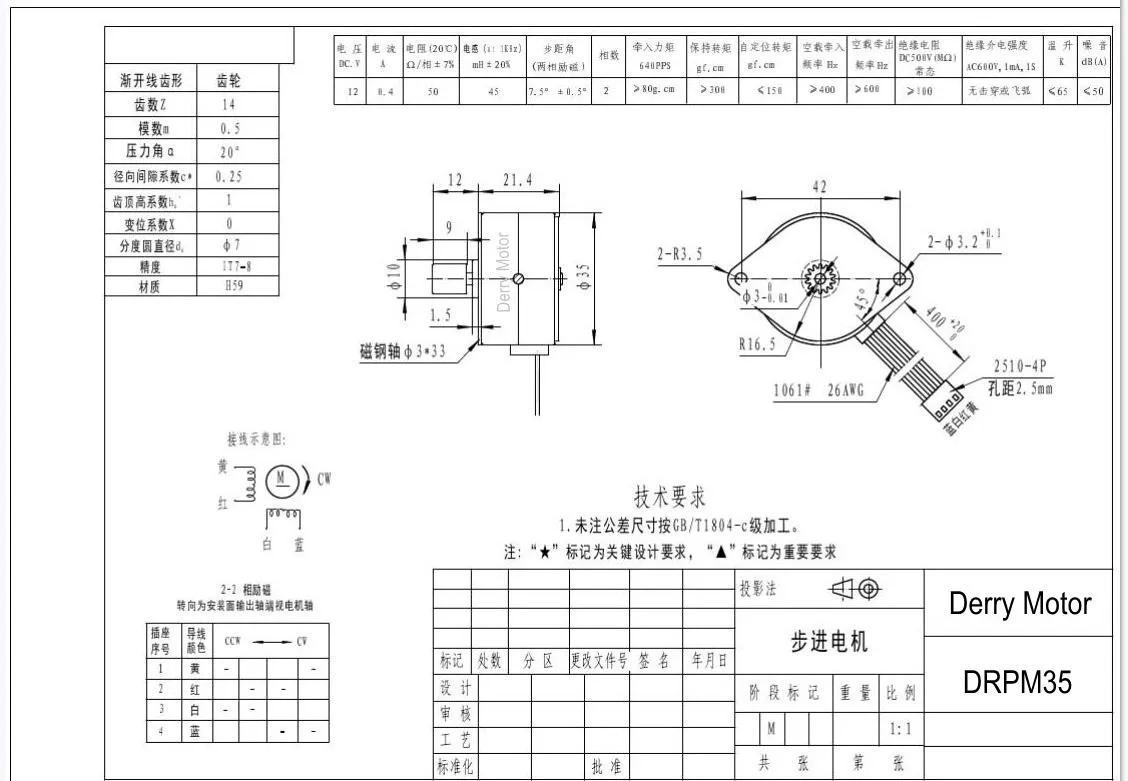

Technical Drawing

Related Stepper Motor Series

Dia.15mm Series

Compact structure, low inertia, fast response. Ideal for 3D printers and precision instruments.

Dia.20mm Series

Standard size with high cost-performance. Suitable for medical devices and conveyors.

Dia.25mm Series

Balanced torque density and smooth operation. Used in packaging machines and AGV systems.

Dia.35mm Series

Excellent heat dissipation and stable performance for industrial automation.

Dia.42mm Series

Large frame with high power and robust structure for heavy-duty applications.

High Torque Series

Designed for low speed and high torque output requirements.

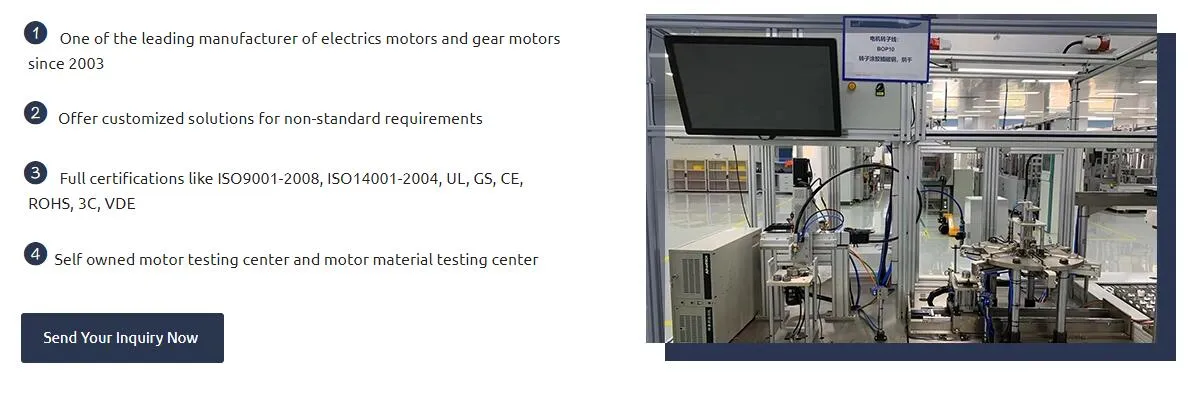

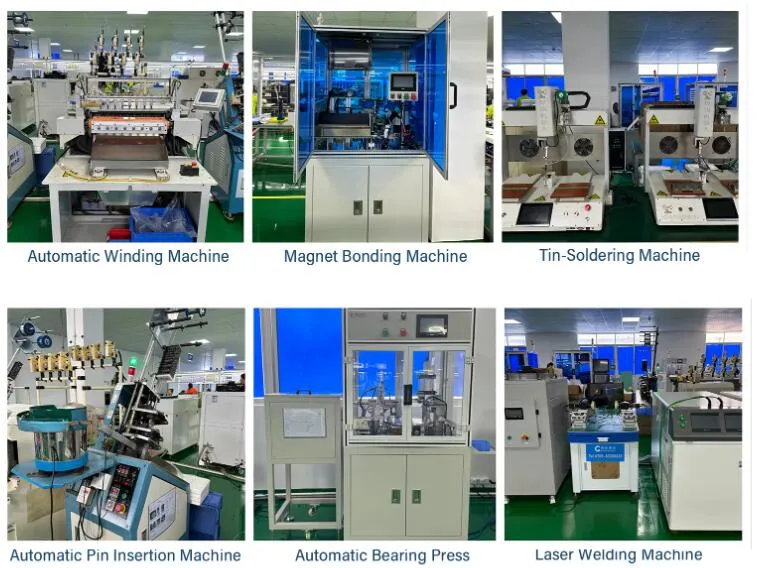

Professional Manufacturing

Specializing in the production of PM stepper motors, we focus on R&D and sales of high-quality models across a full range of sizes, including 15mm, 25mm, 35mm, 42mm, 49mm, 57mm, and 64mm. With mature production technology and strict quality control, we provide reliable and cost-effective motor solutions for industrial automation, power tools, intelligent equipment, and home appliances.
