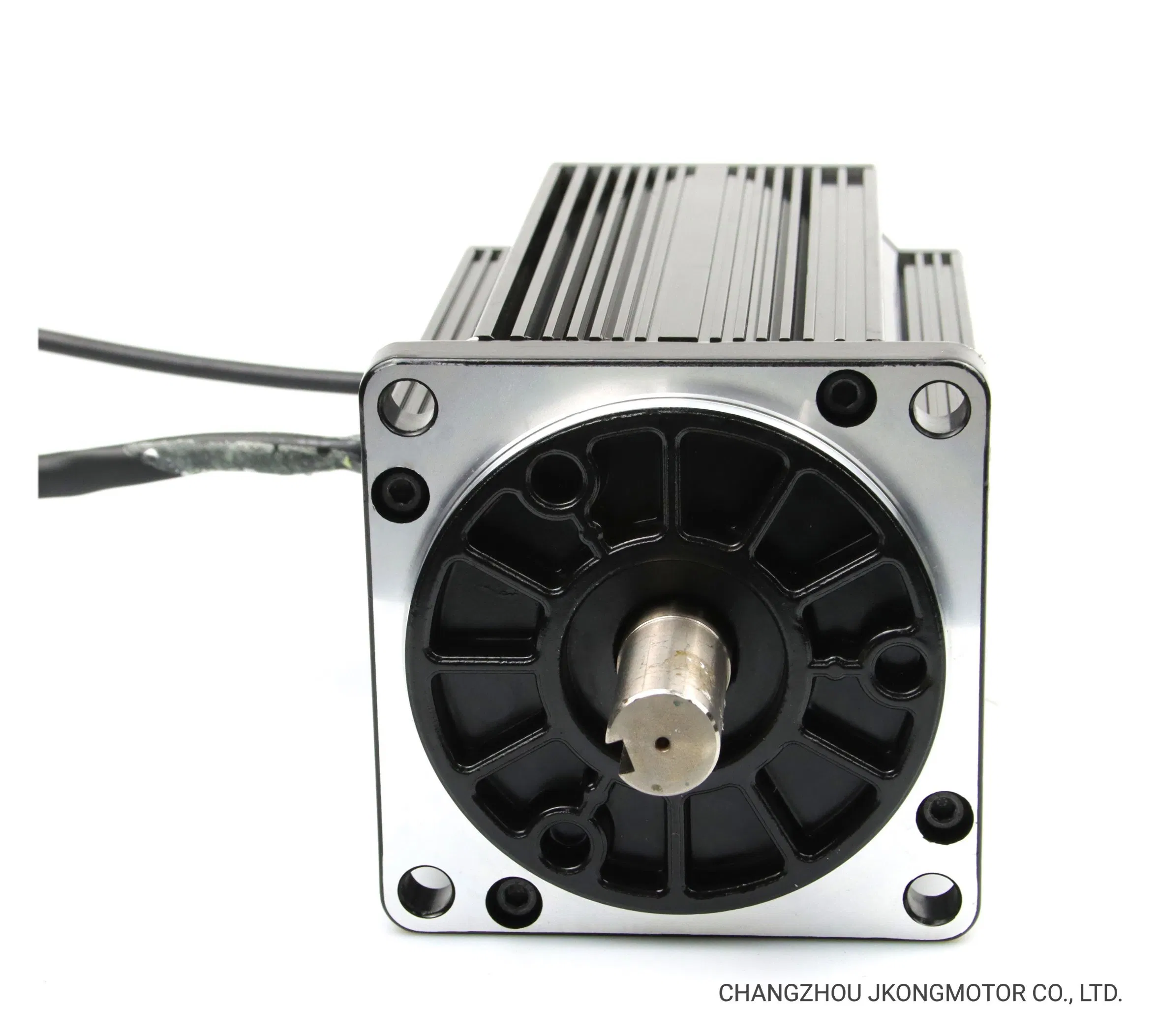

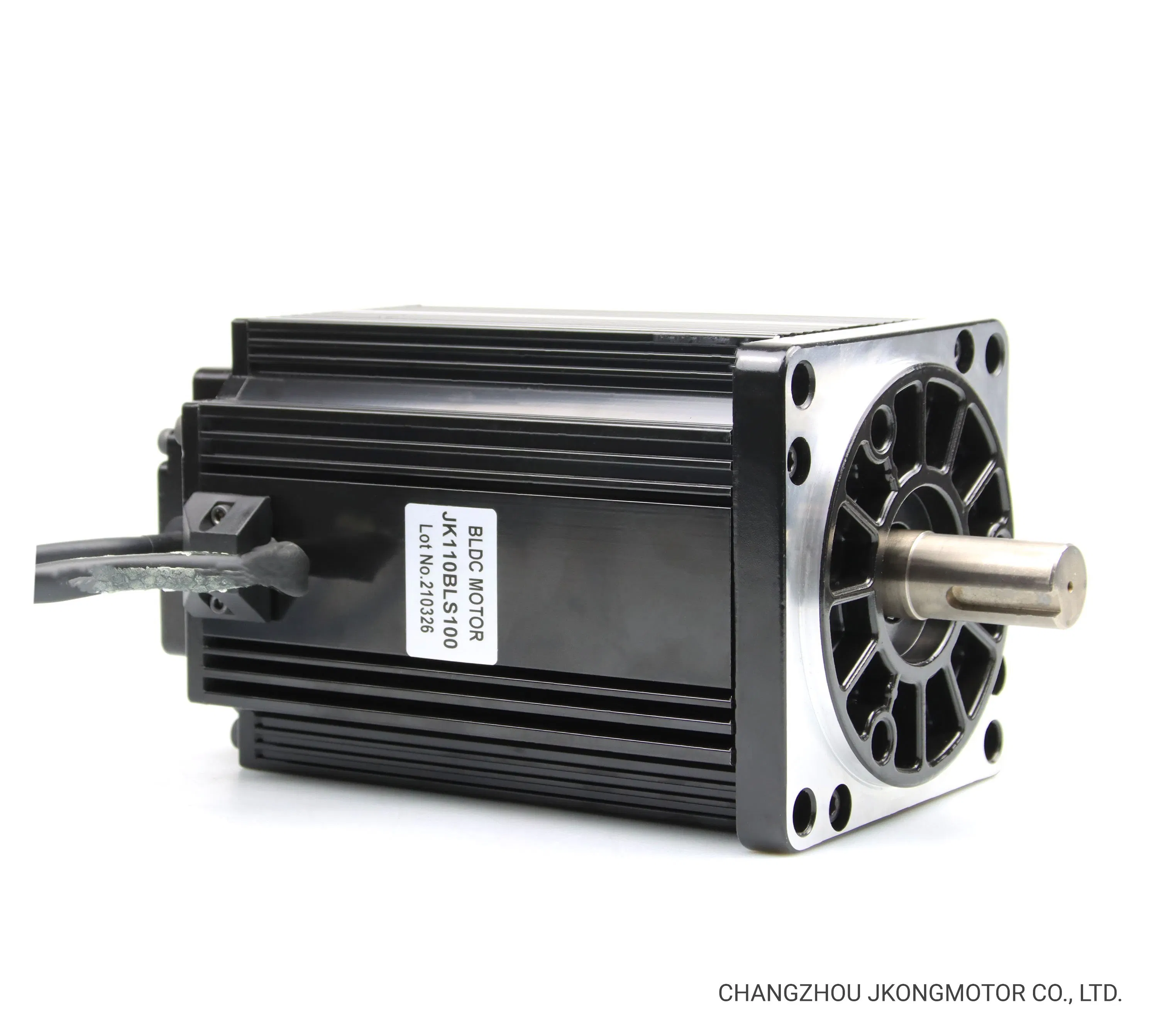

1.5kw 5n. M 3000rpm 110mm BLDC Motor for Industrial Automation

1 / 5

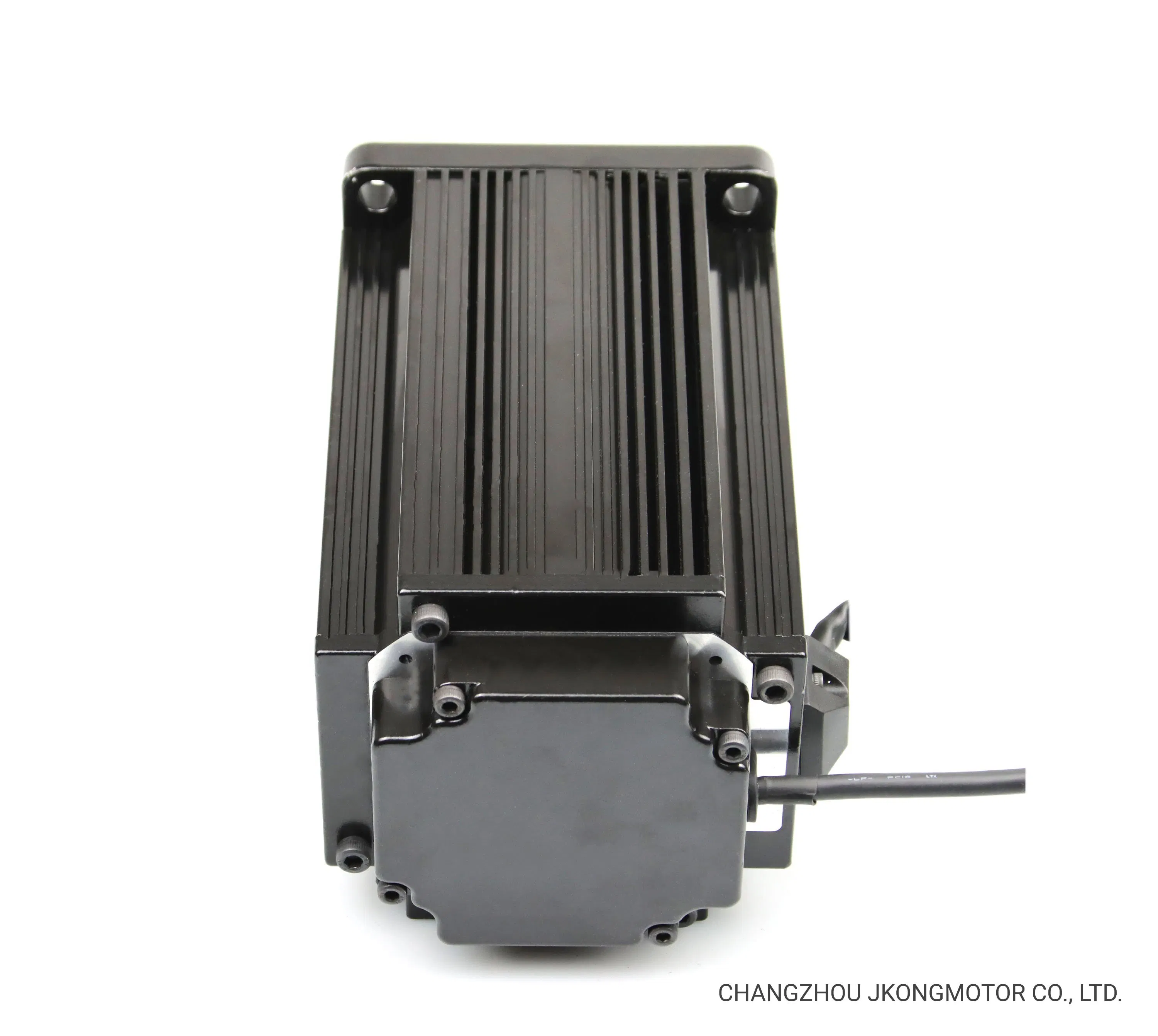

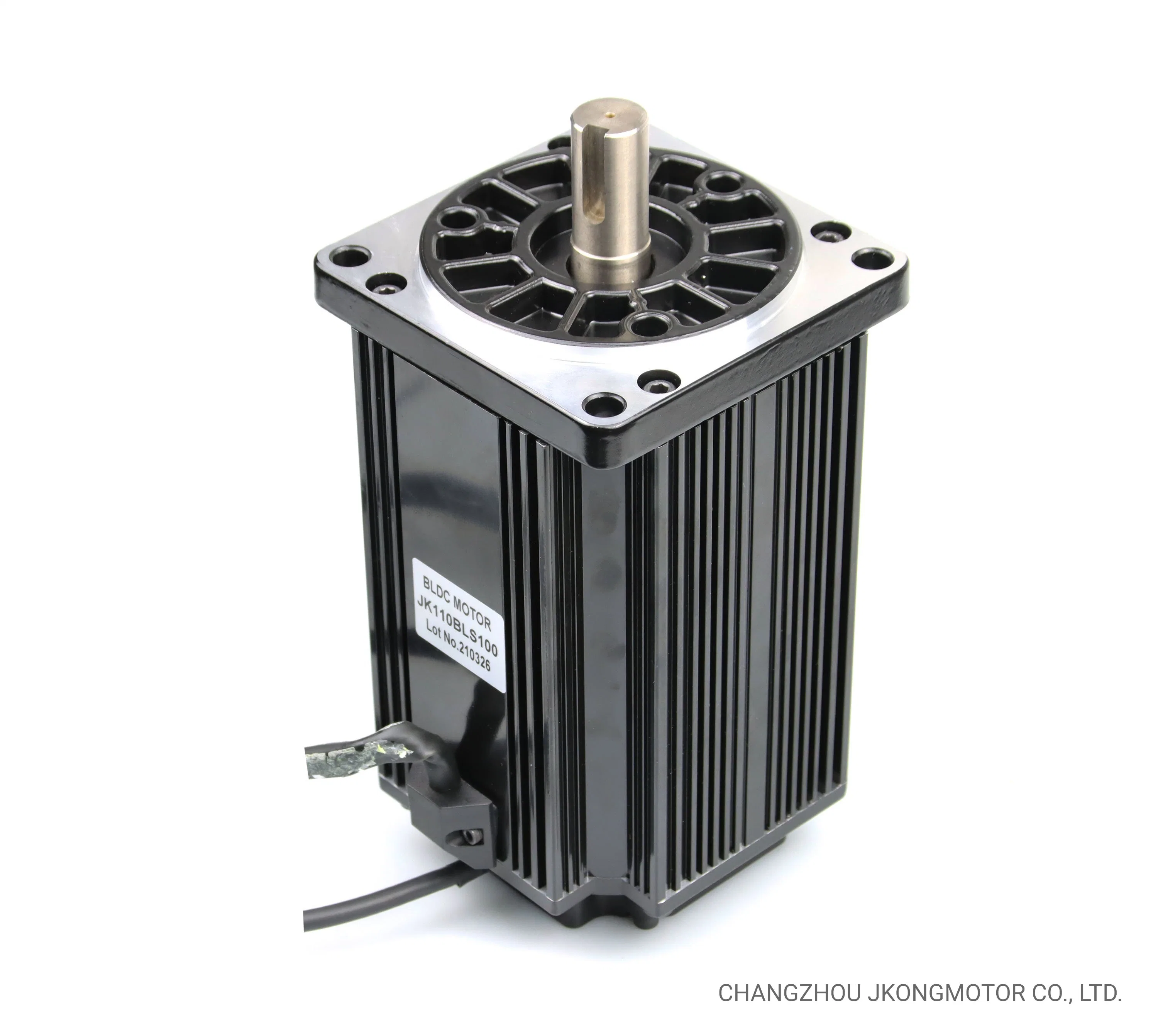

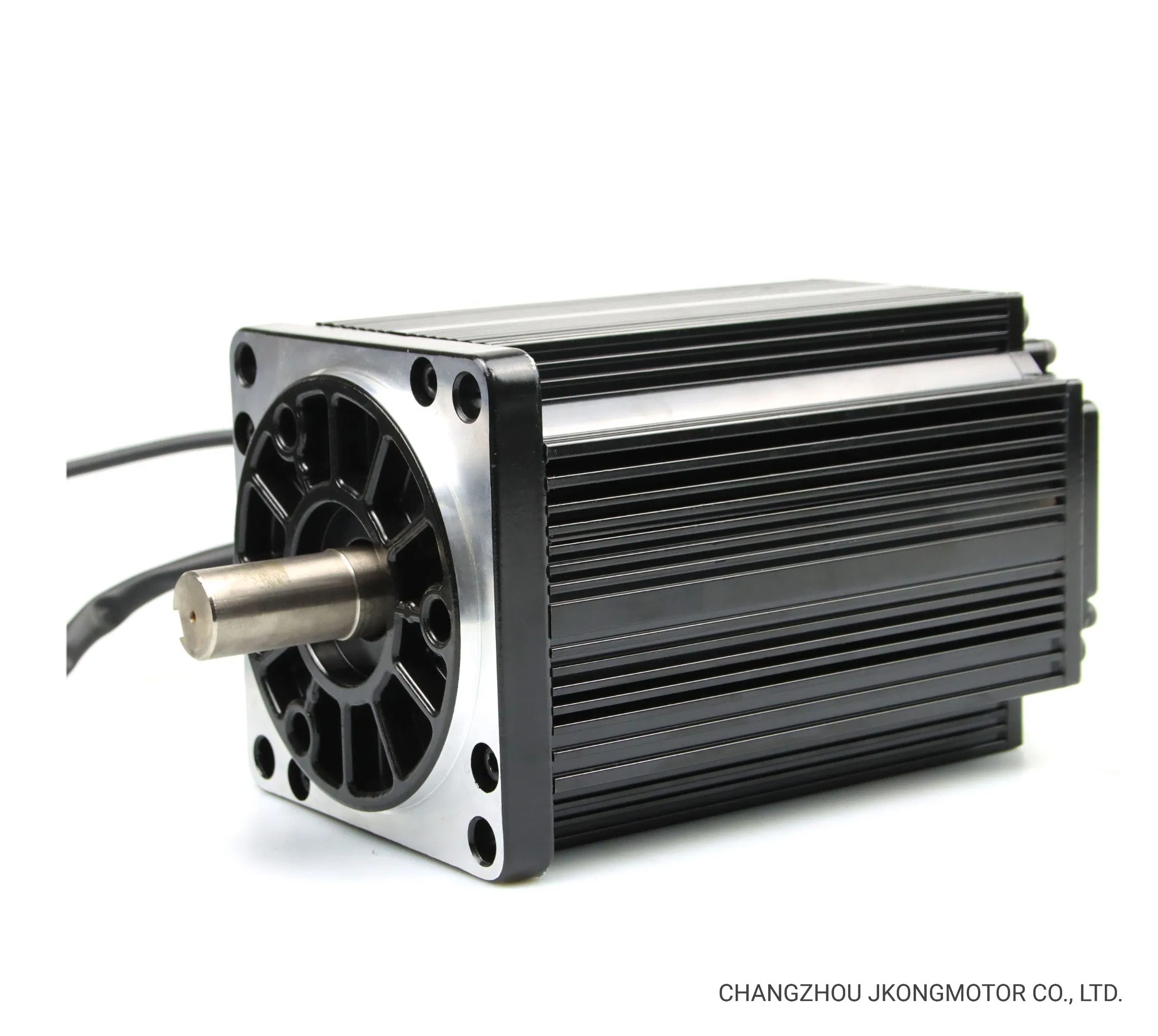

1.5kw 5n. M 3000rpm 110mm BLDC Motor for Industrial Automation

Send Inquiry

Product Description

High Power 1.5KW 5N.m 3000rpm 110mm BLDC Motor

◈

Product Name: Brushless DC Motor

◈

Model: JK110BLS100

◈

Power: 1.57KW / 5N.m Torque

◈

Speed: 3000rpm (Customizable)

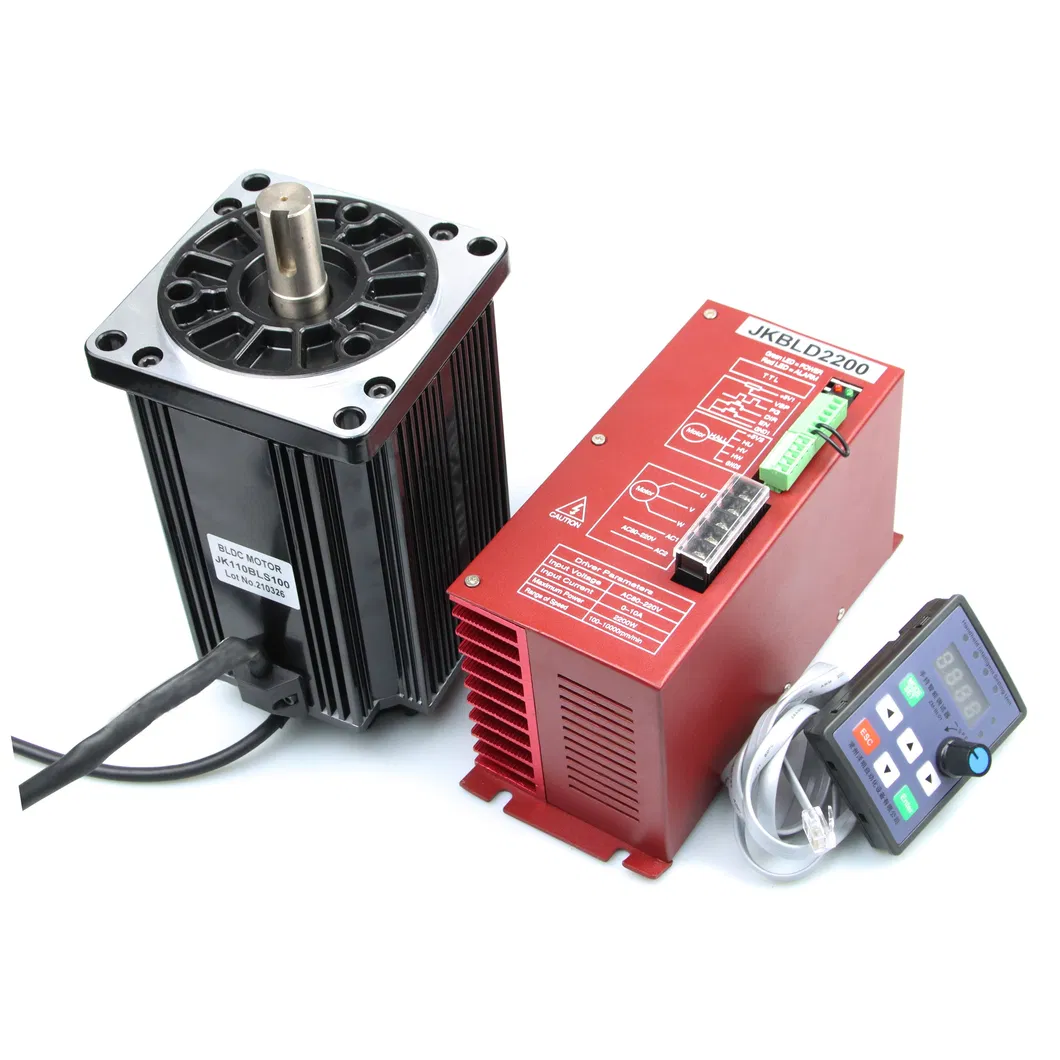

Application: This high-performance motor is engineered for dust collecting systems and industrial automation. It is optimally matched with the JKBLD2200 Brushless DC driver and BL01 external display board.

General Specifications

Item	Specification
Winding type	Star
Hall effect angle	120 degree electrical angle
Shaft run out	0.025mm
Radial play	0.02mm @ 450g
End play	0.08mm @ 450g
Max. radial force	300N @ 20mm from the flange
Max. axial force	70N
Insulation class	Class F
Dielectric strength	1200VDC for one minute
Insulation resistance	100MΩ Min., 500VDC

Electrical Specification Comparison

Specification	Unit	JK110BLS75	JK110BLS100	JK110BLS125
Number Of Phase	Phase	3	3	3
Number Of Poles	Poles	8	8	8
Nominal Voltage	VDC	310	310	8
No Load Speed	Rpm	3400 ±10%	3400 ±10%	3500 ±10%
Rated Torque	N.m	3.3	5	6.6
Rated Speed	Rpm	3000 ±10%	3000 ±10%	3000 ±10%
Output Power	KW	1.03	1.57	2.07
Body Length	mm	155	180	205
Sensor	-	Honeywell
Insulation Class	-	H

Product Visuals & Dimensions

Industrial Applications

Our high-tech motor solutions are widely utilized in various specialized fields, including:

✔ Robotics & Automation
✔ Medical Instruments
✔ 3D Printing Technology
✔ CNC Machinery
✔ Textile Machines
✔ Lighting & Audio Equipment

All products have obtained CE certification and comply with EU ROHS standards, ensuring high reliability for global markets.

Frequently Asked Questions

What are the primary applications for the 1.5KW BLDC motor?

This motor is specifically designed for industrial automation and heavy-duty dust collecting systems, but is also suitable for CNC machines and robotics.

Can the rated speed of the JK110BLS100 be customized?

Yes, while the standard rated speed is 3000rpm, we offer customization options ranging from 2000rpm up to 10000rpm to meet specific project requirements.

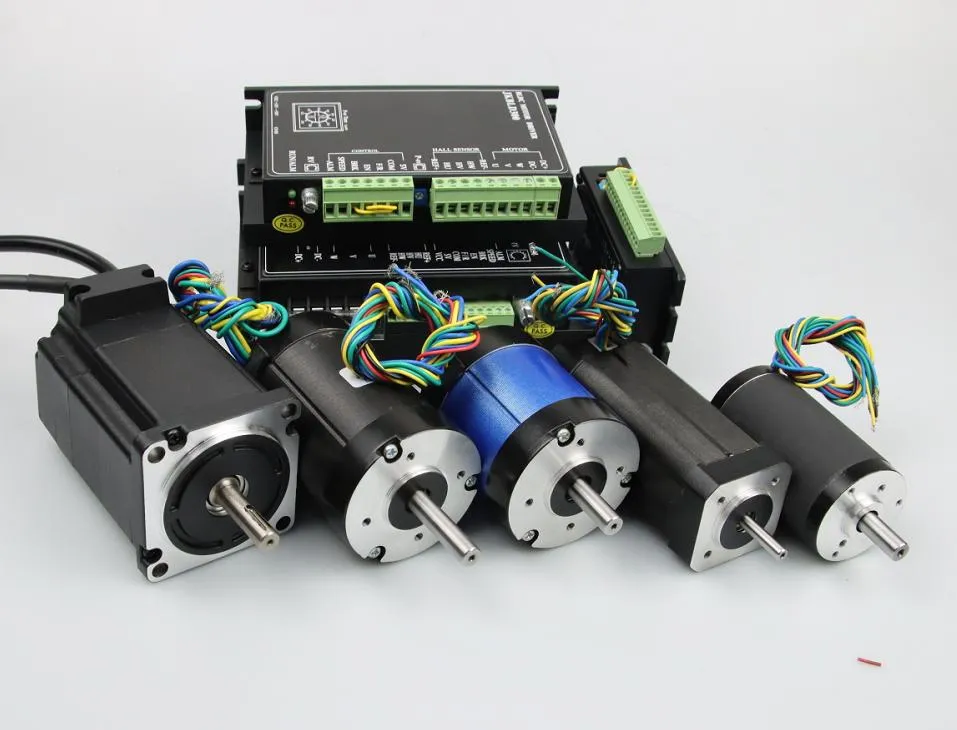

What driver should I use with this brushless DC motor?

The JK110BLS series is perfectly matched with the JKBLD2200 Brushless DC driver and can be used with the BL01 external display board for monitoring.

What is the insulation rating for these industrial motors?

These motors are built to high standards, featuring Class F or Class H insulation, ensuring durability in demanding industrial environments.

Does this motor support different voltage inputs?

The standard rated voltage is 310V, but the winding can be customized for 60V, 110V, or 220V depending on your power supply infrastructure.

Are these motors compliant with international standards?

Yes, all our brushless DC motors have obtained CE certification and fully comply with EU ROHS environmental standards.
