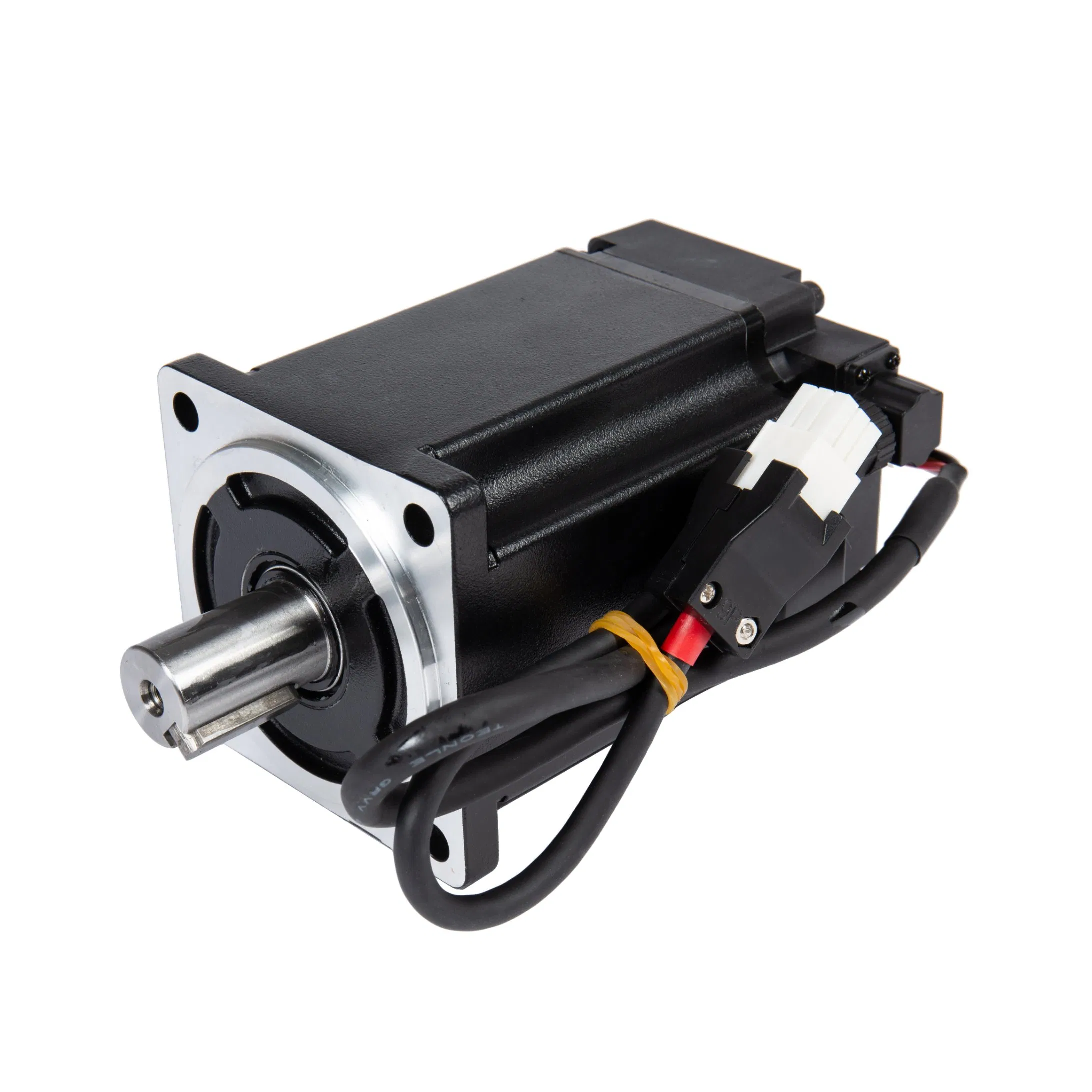

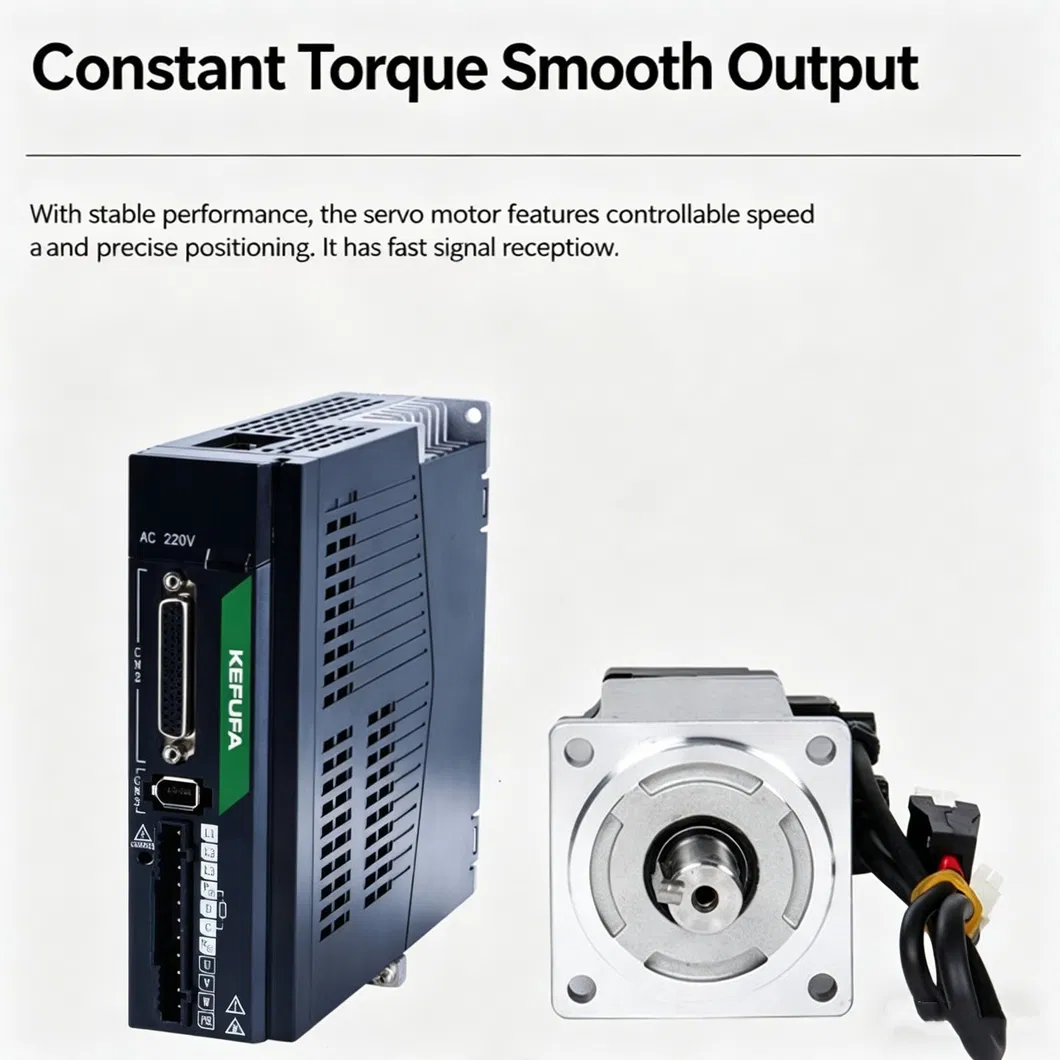

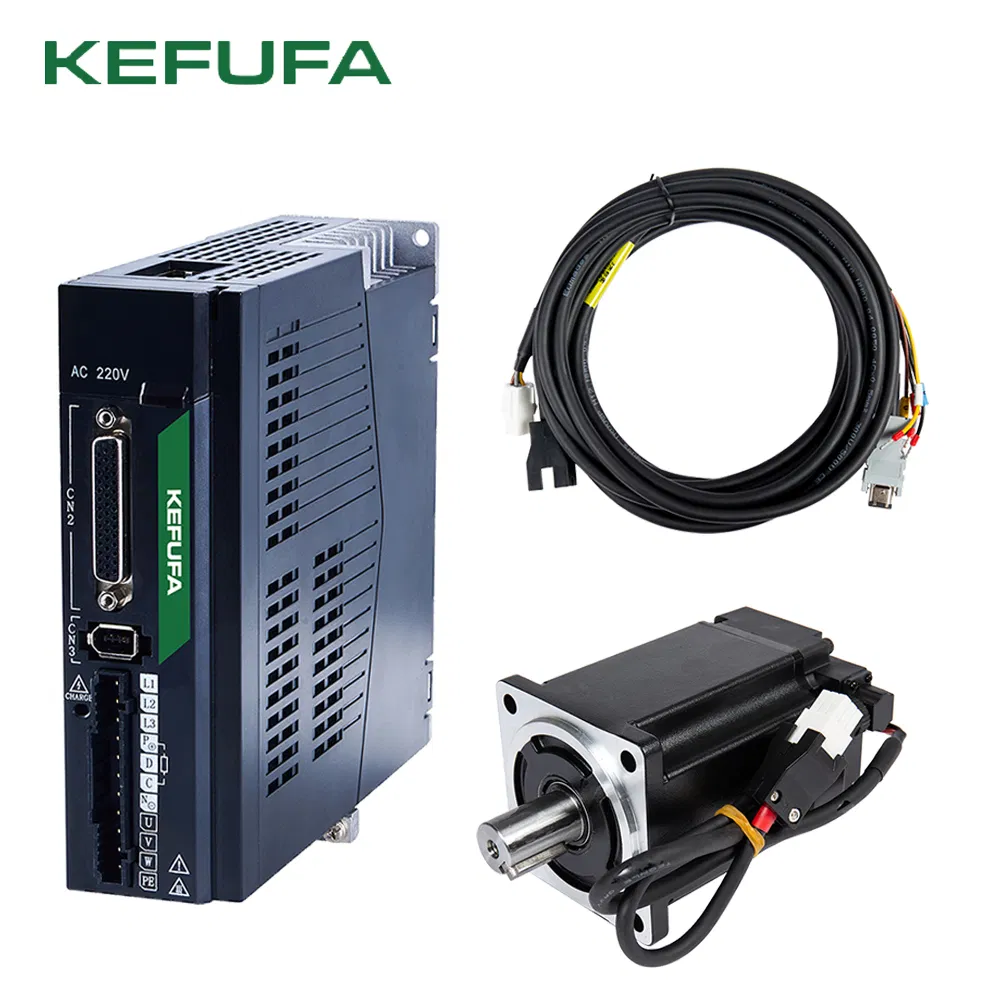

The Kefufa K100 Series 400W Servo Motor is a high-performance 485 pulse servo system designed for small-to-medium power automation applications. Combining industrial-grade reliability, exceptional precision, and cost-effectiveness, it delivers stable and efficient motion control for diverse industrial scenarios. Ideal for users seeking high-quality servo solutions without the high cost of imported alternatives, this motor stands out as a top choice for modern automation upgrades.
Equipped with a 17-bit multi-turn absolute encoder, the motor ensures ultra-high positioning accuracy and reliable position memory, eliminating the need for homing after power-off. With a speed loop frequency response of 2.0kHz and a powerful 800MHz main control chip, it achieves fast response and precise control.
Built with a robust structure and an oil-sealed design, the motor boasts an IP65 protection rating, effectively resisting dust intrusion and water splashes. It also supports multi-stage notch filter settings to suppress mechanical resonance, ensuring smooth operation.

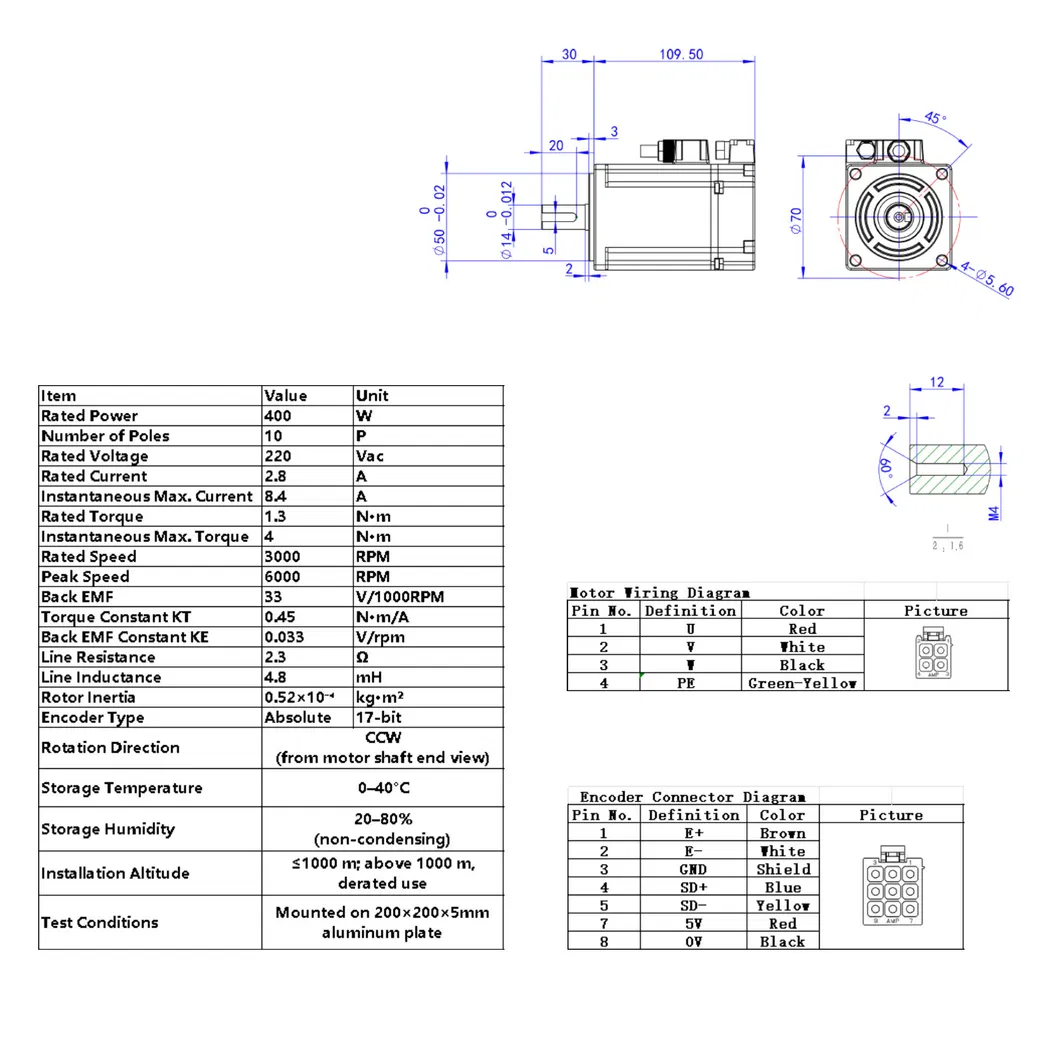

Rated at 400W power, 1.27N·m rated torque, and 3000rpm rated speed. It supports AC220V single/three-phase voltage input, compatible with most general automation equipment.
Comes with built-in filtering, vibration suppression, and one-click automatic tuning. Customizable Brake and 23-bit multi-turn absolute encoder options are available.
