Professional Brushless DC Motor Manufacturer

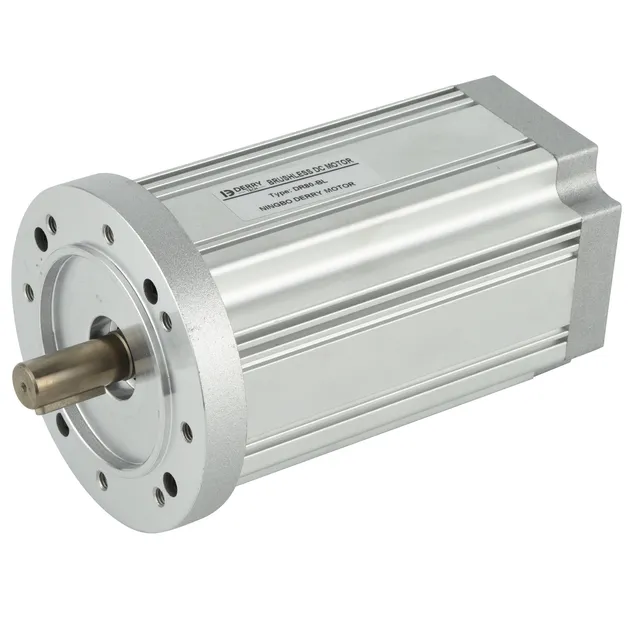

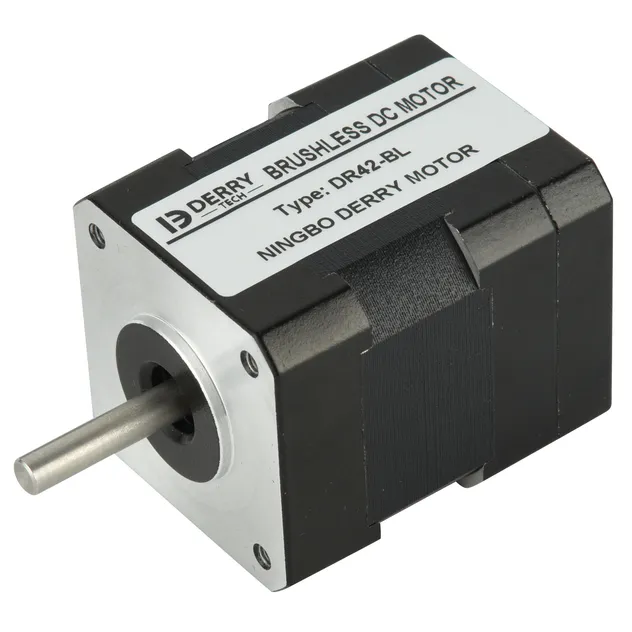

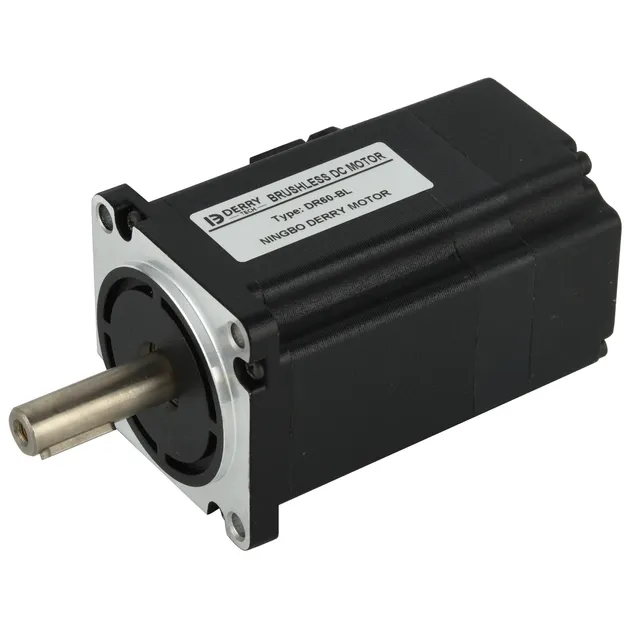

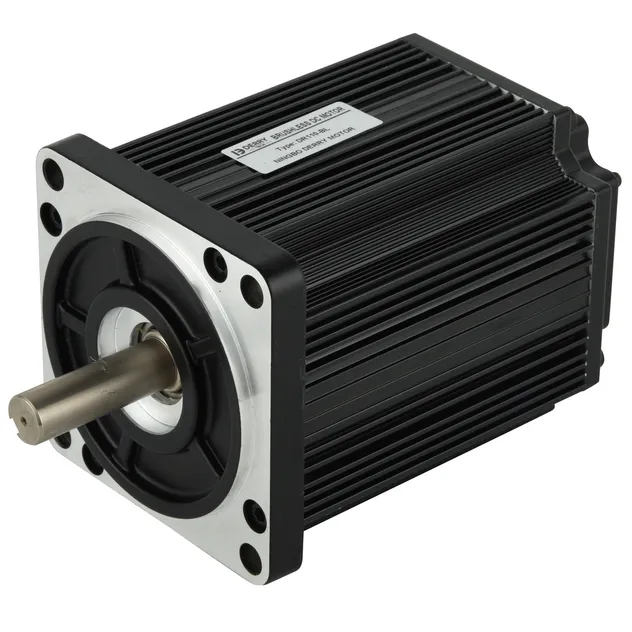

Focusing on the R&D, production, and sales of high-quality brushless DC motors (BLDC motors) across a comprehensive range of sizes, including 42mm, 57mm, 60mm, 70mm, 80mm, 86mm, 110mm, and 130mm models. With mature production technology and strict quality control, we provide reliable, efficient, and cost-effective motor solutions for industrial automation, power tools, intelligent equipment, and home appliances.
2

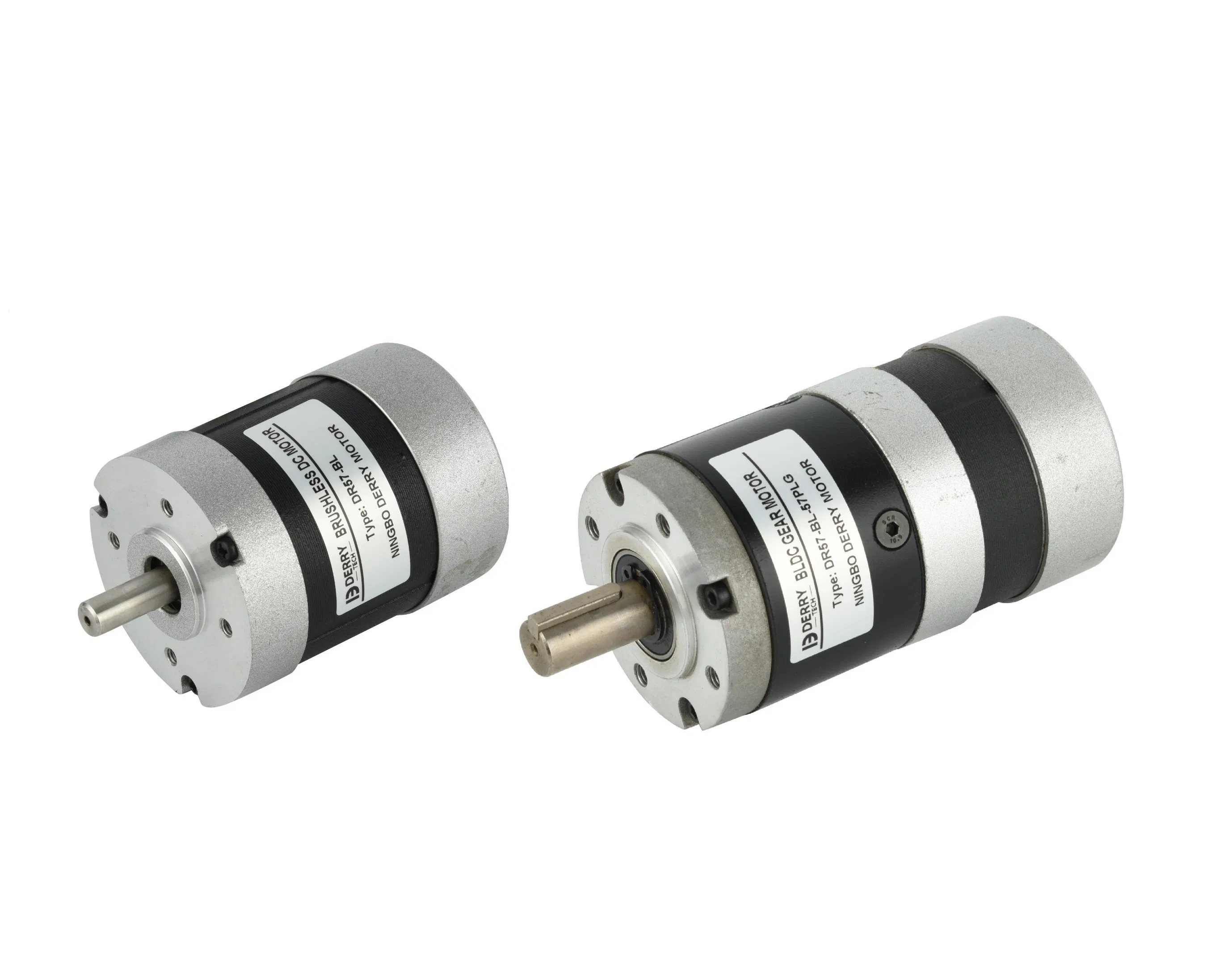

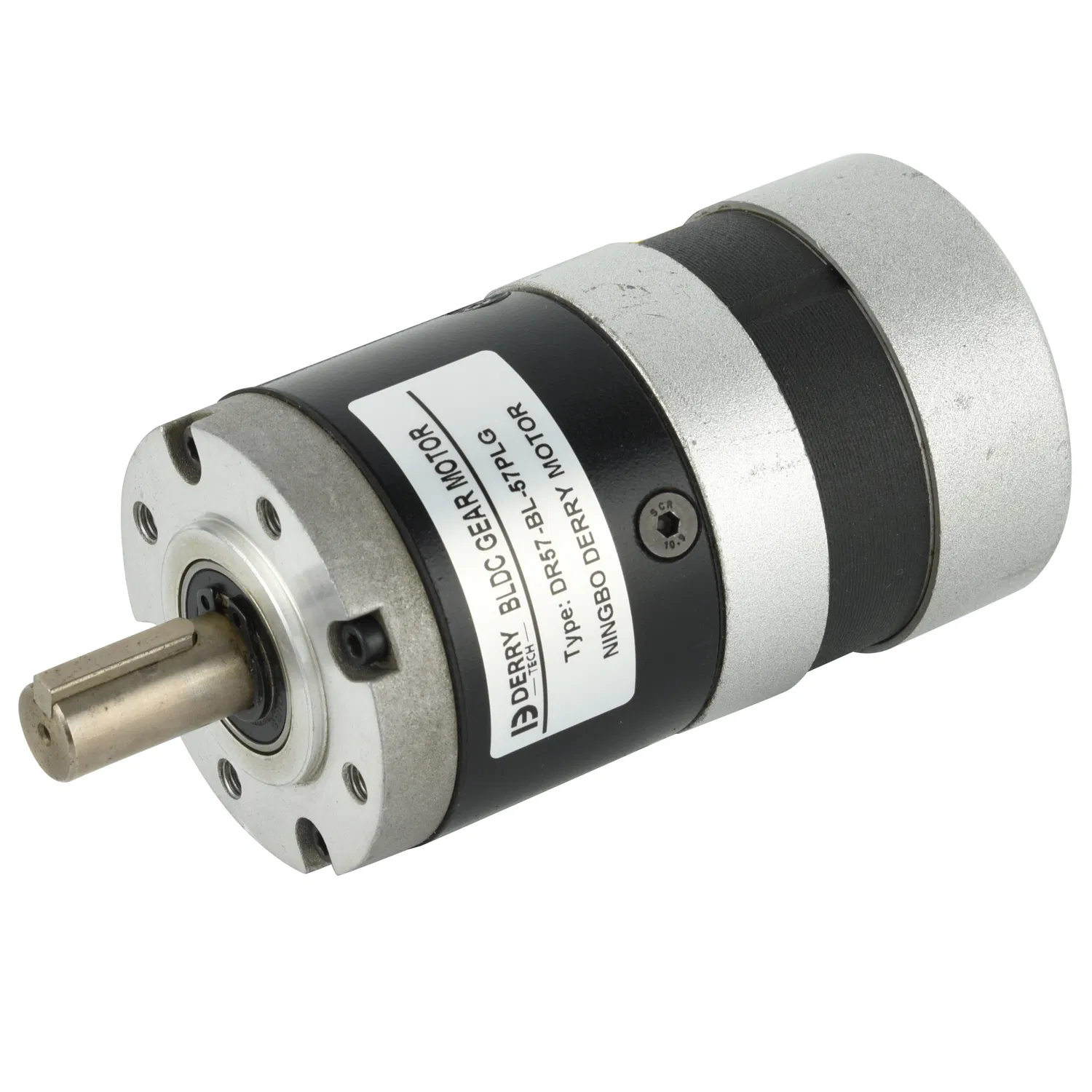

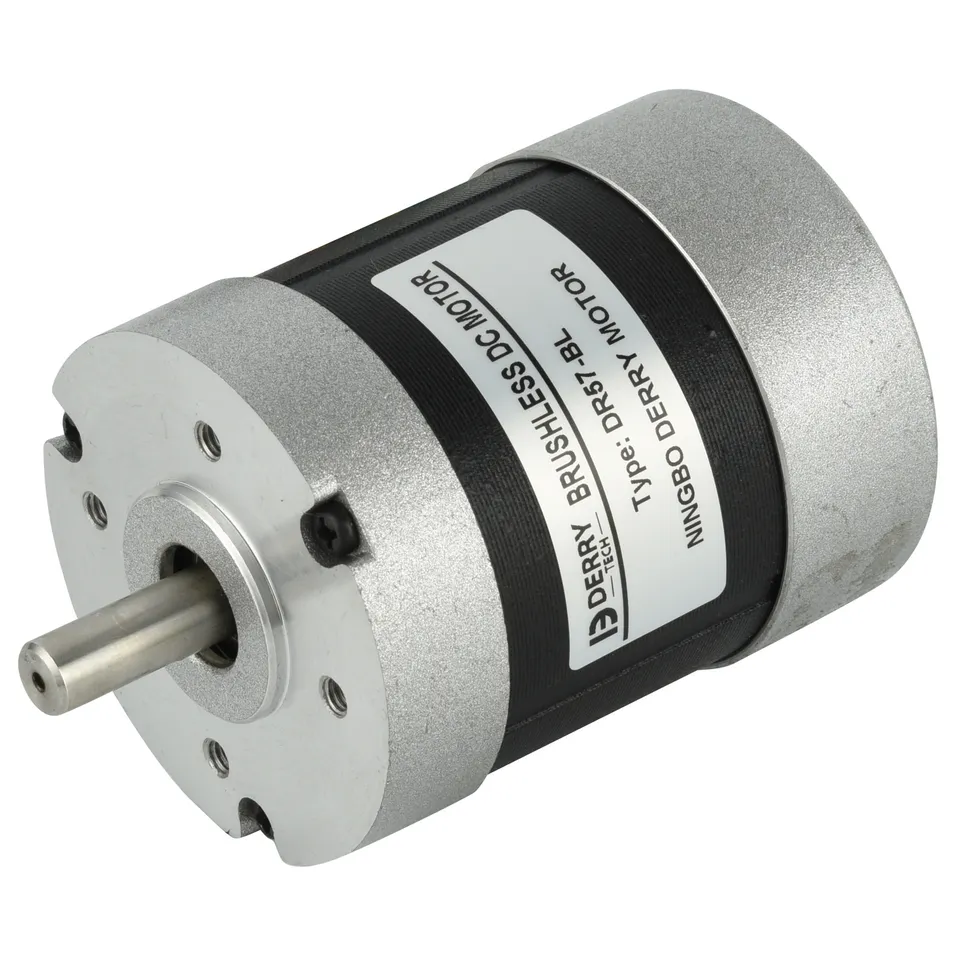

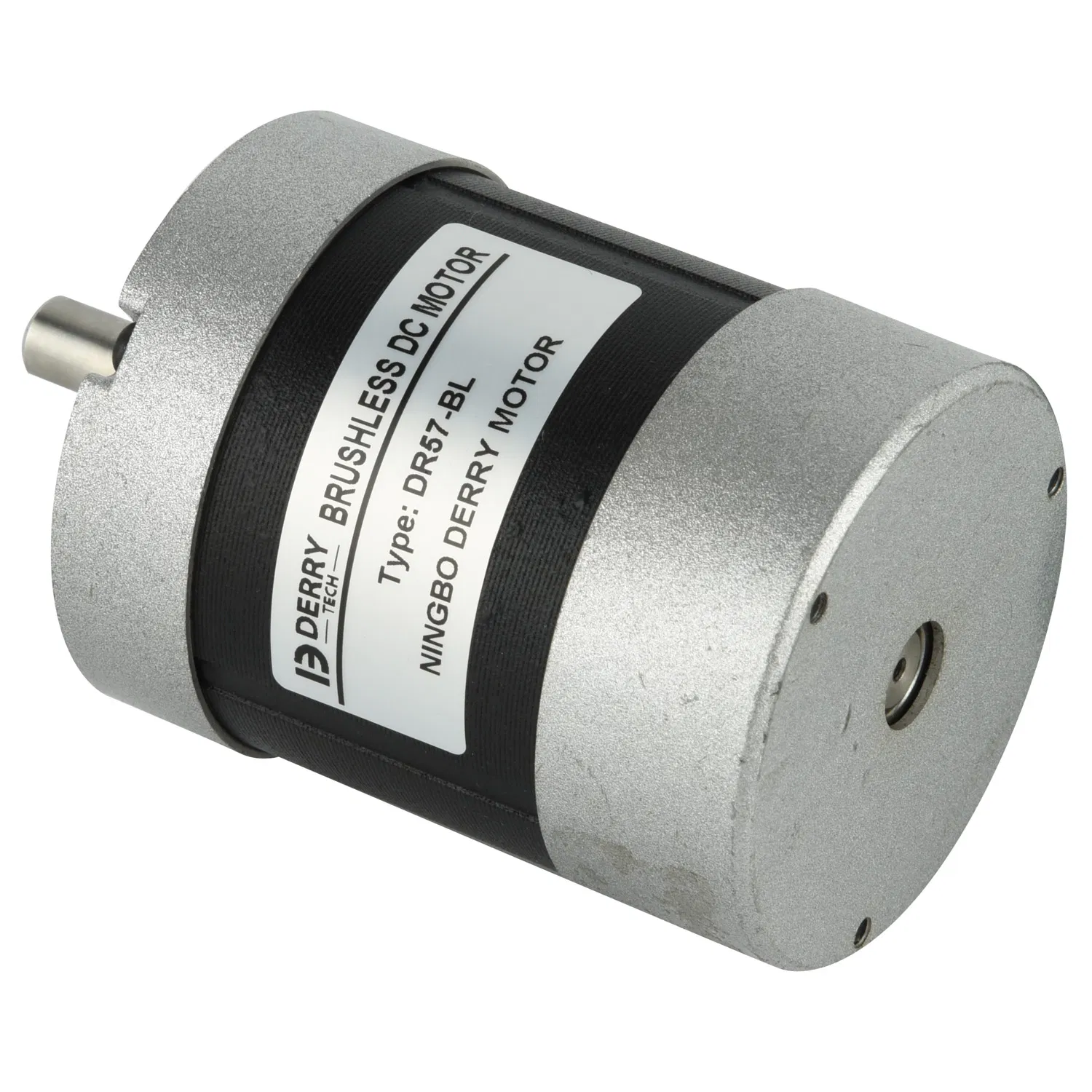

Features of Dia.57mm Brushless DC Motor
General-purpose standard size with high cost-performance.
Medium torque and medium power output.
Excellent stability and precise controllability.
Moderate dimensions for easy installation in various systems.
Ideal for small automation equipment, medical devices, and conveyors.
4

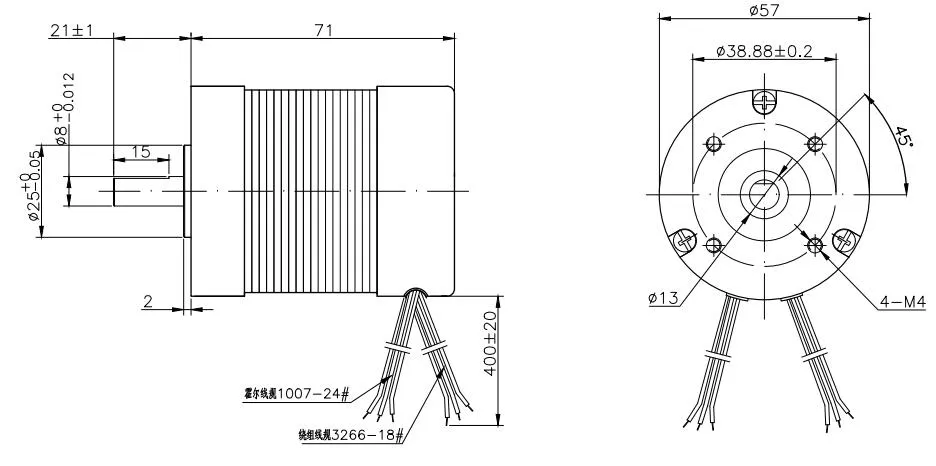

Technical Specifications
Customization options are available for voltage, speed, power, and torque.
| Voltage |
24VDC |
| Rated Power |
135W |
| Rated Speed |
3000RPM |
| Rated Current |
7A |
| Rated Torque |
0.4N.m |
| Number of Poles |
4 |
Frequently Asked Questions (FAQ)
What is the standard voltage range for your BLDC motors?
Our standard range includes 12V, 24V, 48V, and 220V. We also offer customization for other specific voltage requirements.
Can speed and torque be customized?
Yes. Speed ranges typically from 1000 to 15000 RPM, and torque from 0.05 to 30 N·m depending on the motor model and configuration.
What is the expected service life and protection class?
The standard protection class is IP54 (with IP65 as an option). The service life generally ranges between 3000 and 8000 hours under rated operating conditions.
What is the typical lead time for orders?
Sample orders are usually fulfilled within 3-7 working days, while bulk orders typically take 15-30 working days depending on the customization level.
Do you support international shipping and various trade terms?
We support global shipping via express, air, and sea. We are flexible with trade terms including FOB, CIF, and DDP to meet customer needs.
What are the main applications for the 57mm series?
Due to its balanced power and compact size, it is widely used in small automation equipment, medical devices, conveyor systems, and various industrial instruments.
