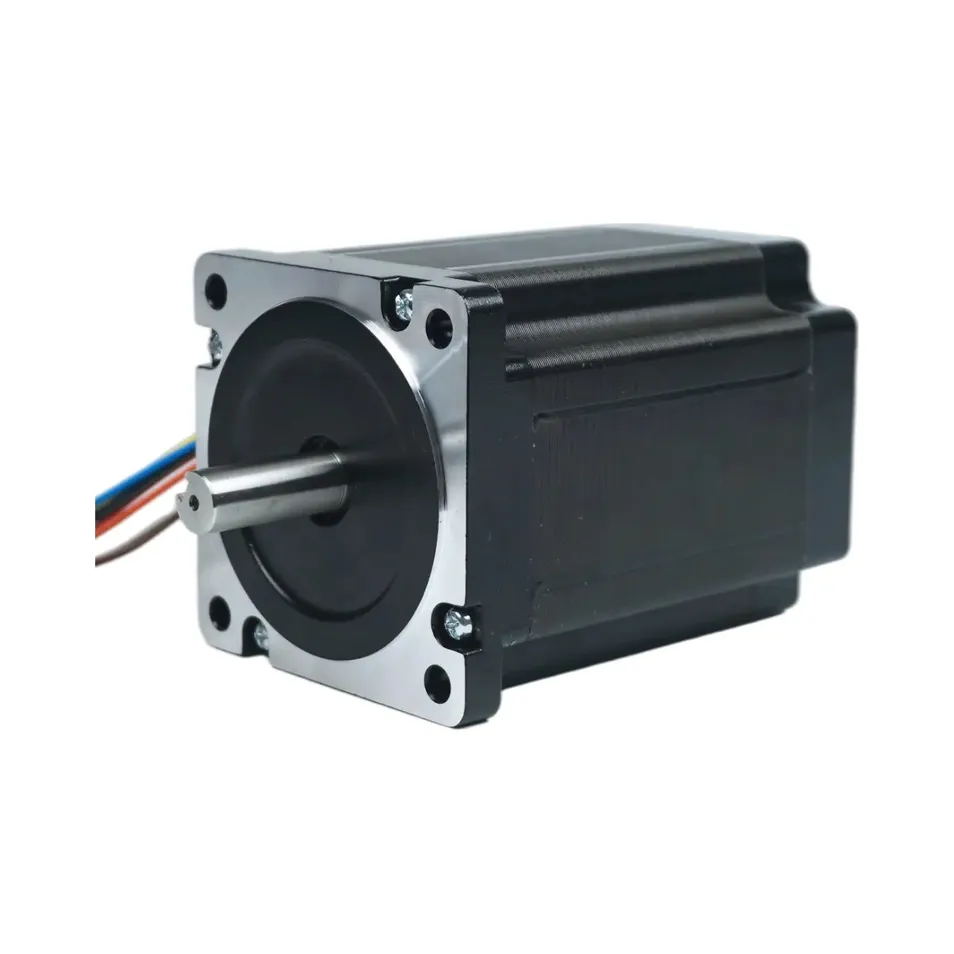

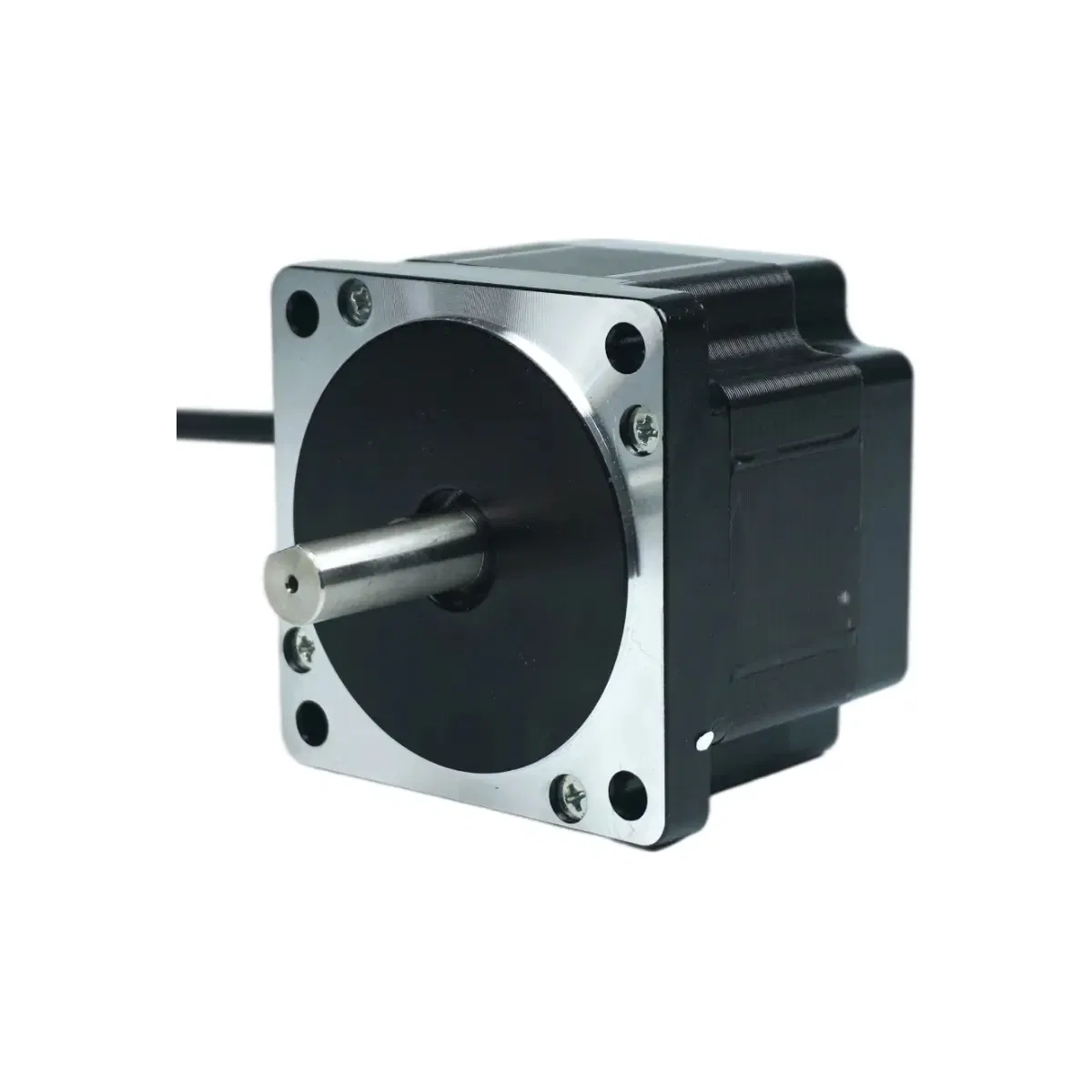

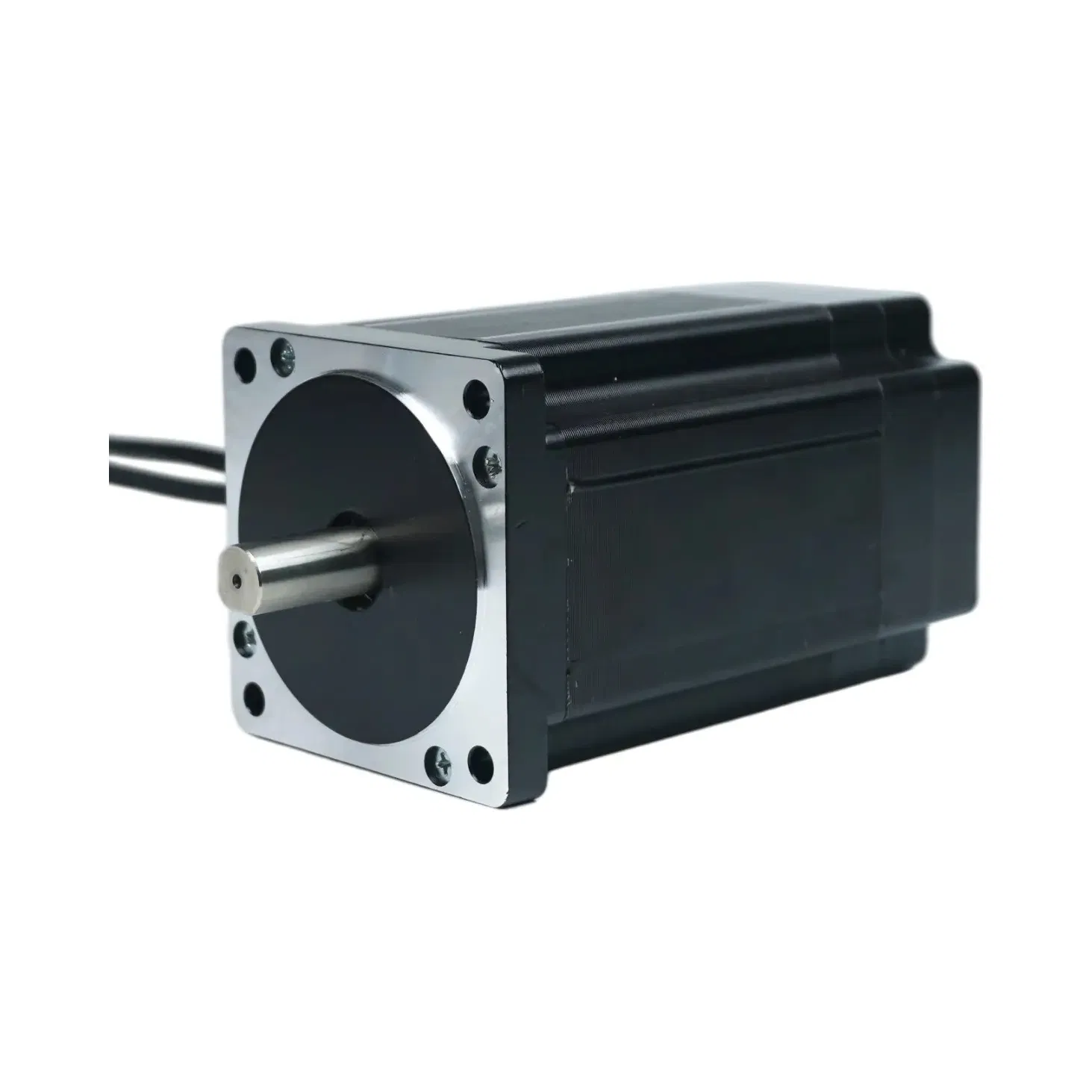

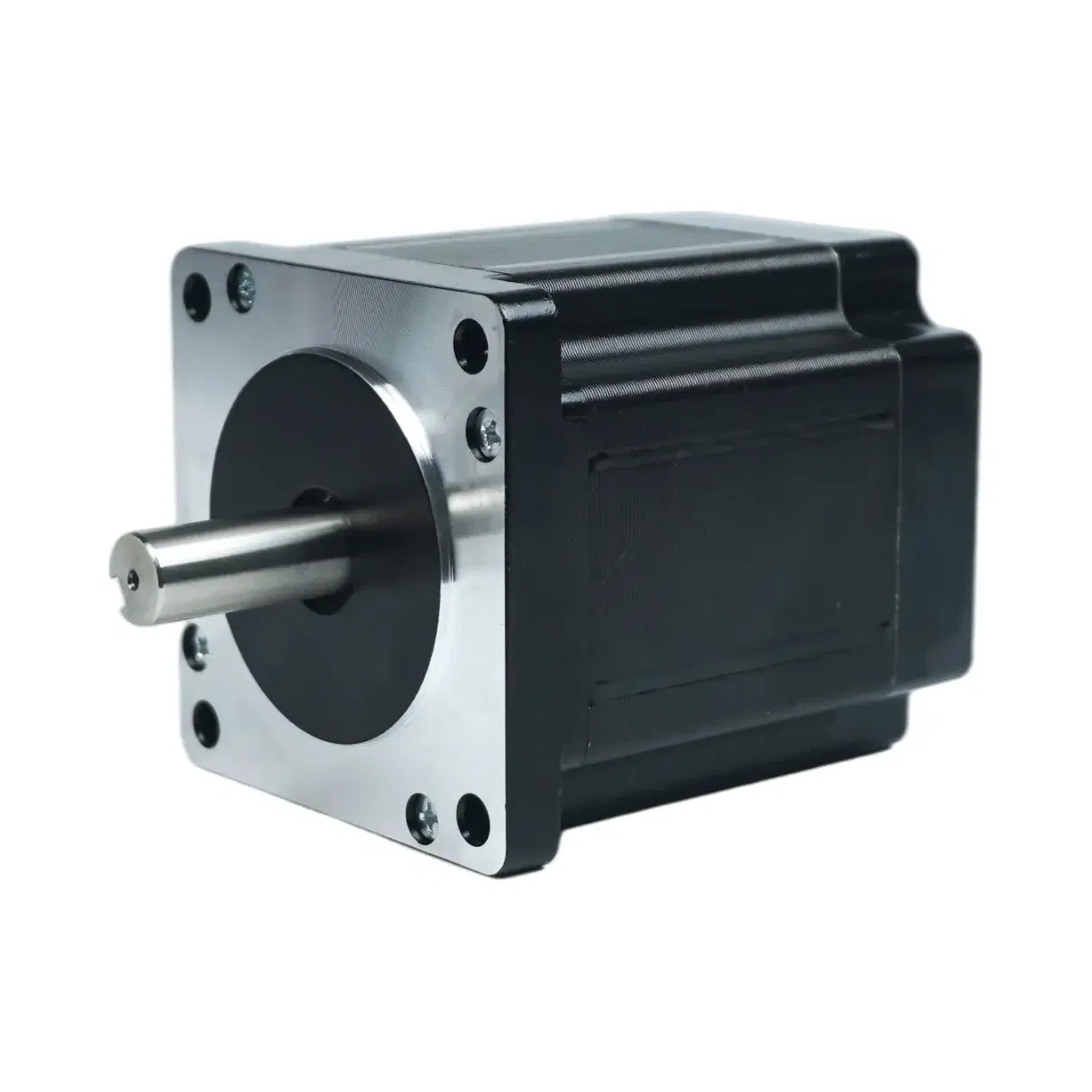

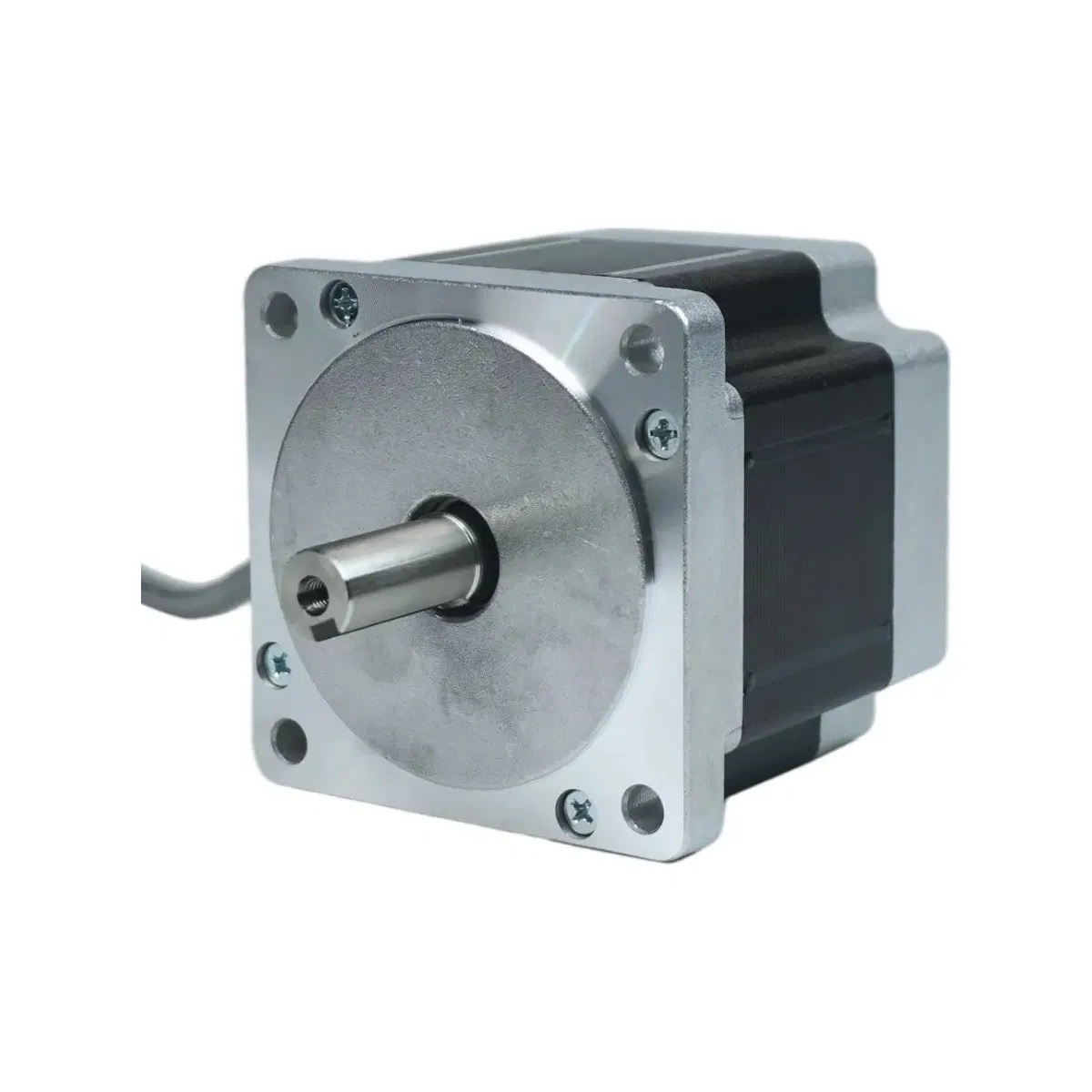

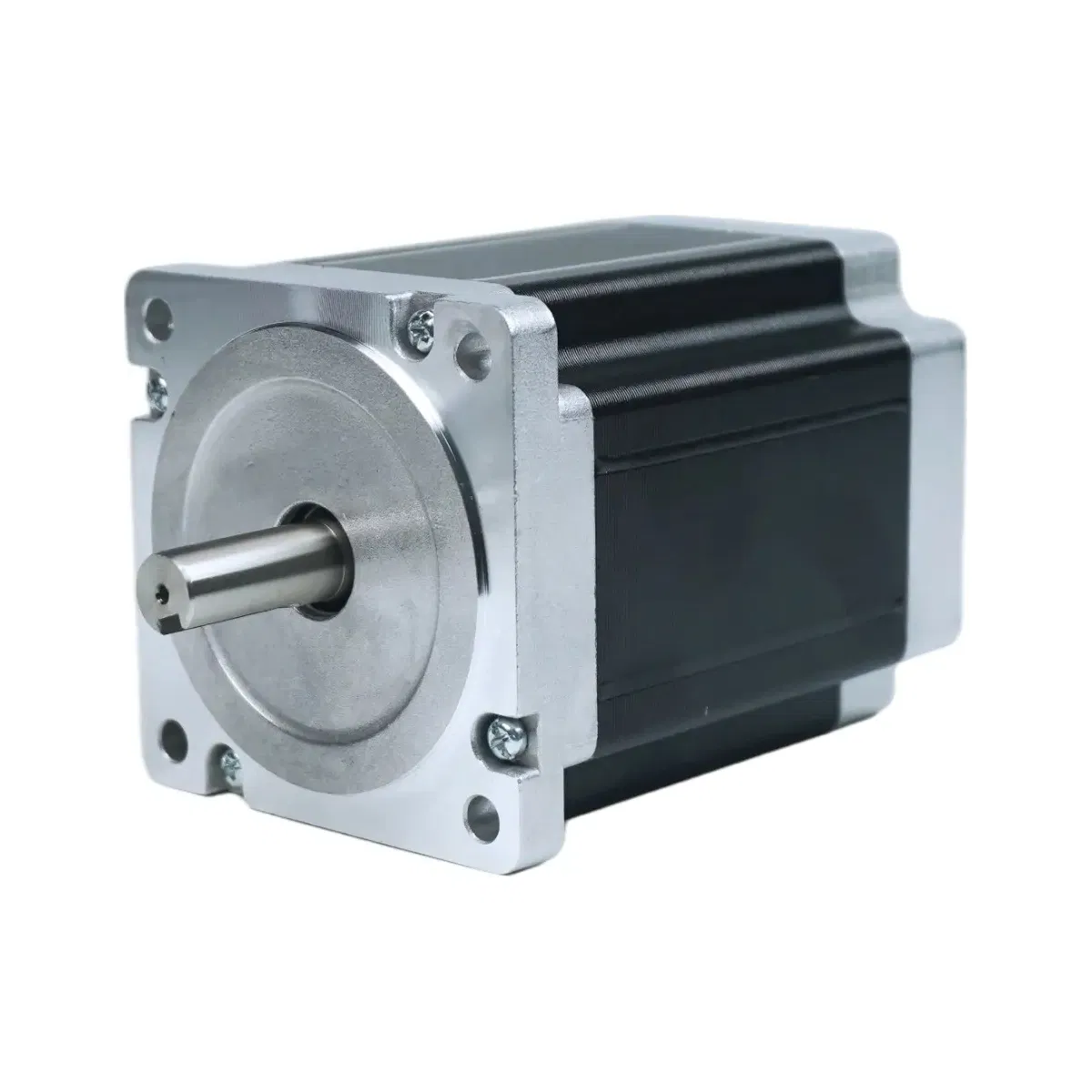

The CW86BL-750W-48V-CV is a robust 86mm brushless DC motor delivering 750W at 48V DC, designed for medium-to-heavy industrial conveyor lines, packaging automation, and textile machinery. With a rated torque of 2.39 N·m and peak torque of 7.16 N·m, it provides the power needed for continuous high-throughput production. The motor's high efficiency (≥ 85%) and brushless design eliminate the maintenance burden of traditional brushed motors, making it ideal for 24/7 production environments.
| PARAMETER | VALUE |
|---|---|
| Rated Voltage | 48V DC (24V / 36V / 72V customizable) |
| Rated Power | 750 W |
| Rated Speed | 3,000 RPM |

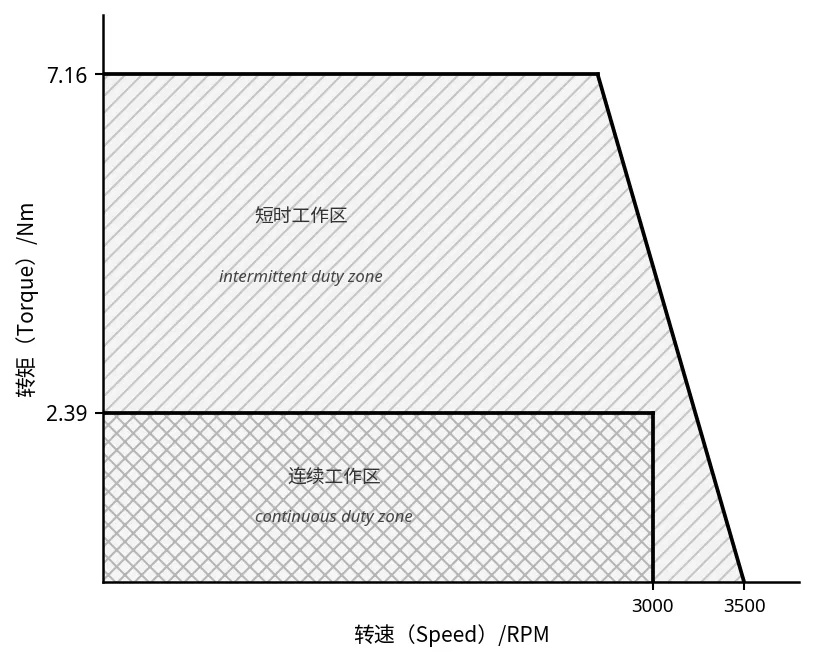

| Rated Torque | 2.39 N·m |
| Peak Torque | 7.16 N·m |
| Rated Current | 19.5 A |
| Efficiency | ≥ 85% |

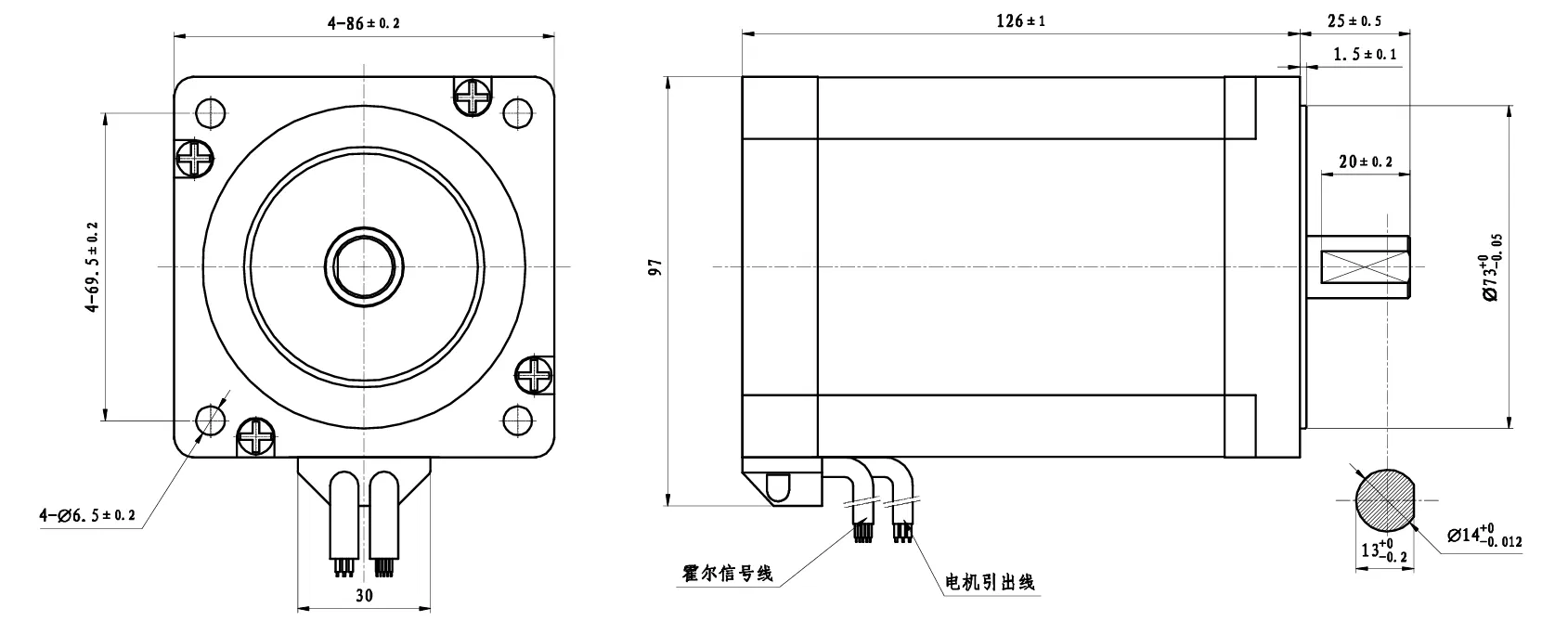

| Flange Size | 86 × 86 mm |
| Shaft Diameter | 14 mm (customizable) |
| Protection Rating | IP54 |
| Insulation Class | Class F (155°C) |
| Feedback | Hall Sensor (encoder optional) |

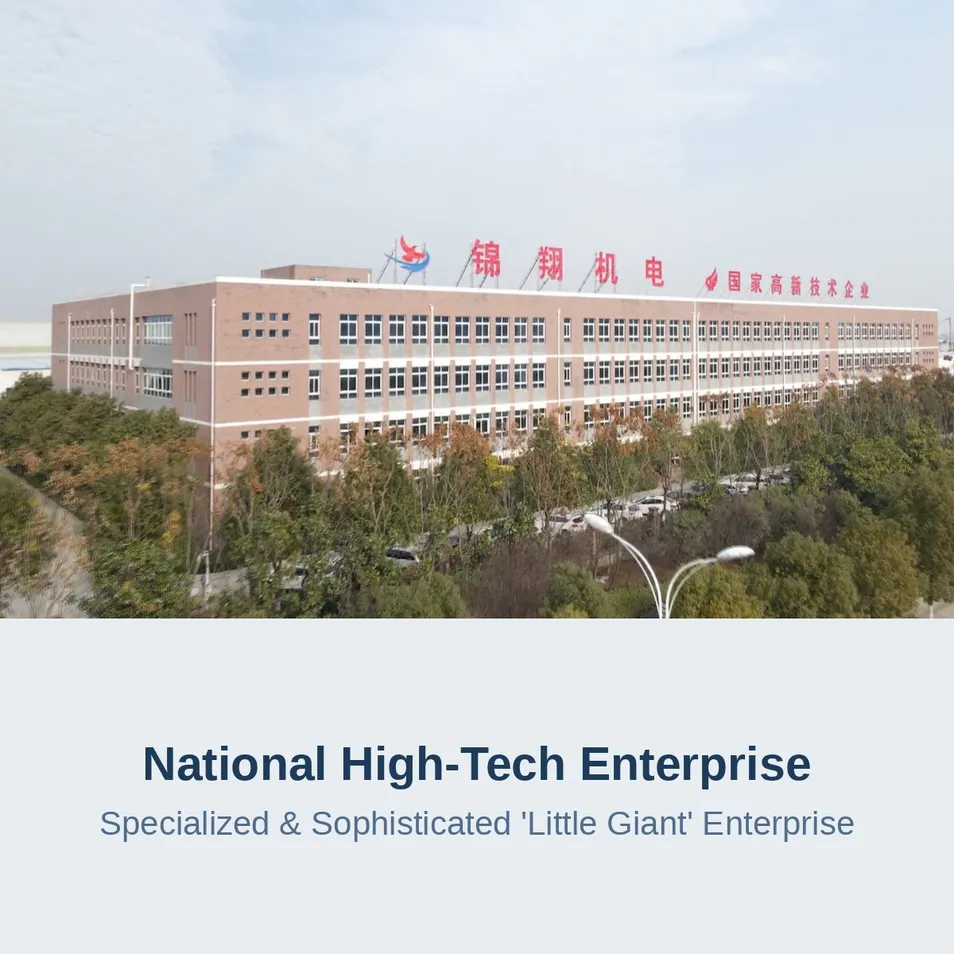

We are a specialized OEM manufacturer of motors and motion control solutions, with over 30 years of production experience in the industrial motor field. Serving 1800+ industrial clients worldwide, our core strength lies in full OEM customization.
We work directly with equipment manufacturers and system integrators to design motors that match exact application requirements—from shaft dimensions to winding specs and encoder types. With all main equipment and large-scale machinery in-house, we support both single-unit prototypes and high-volume production runs.
