Technical Specifications
| Function | Control, Driving |
| Casing Protection | Closed Type |
| Number of Poles | 8 |
| Certification | ISO9001, CE, RoHS |
| Power Range | 10W Upto 2000W |
| Voltage Range | 12V 24V Upto 380VDC |
| Size Range | 28mm TO 110mm |
| Capacity | 10000 PCS Per Month |
| HS Code | 8501310000 |
| Package Size | 10.00cm * 10.00cm * 20.00cm |
| Gross Weight | 2.000kg |
| Origin | China |

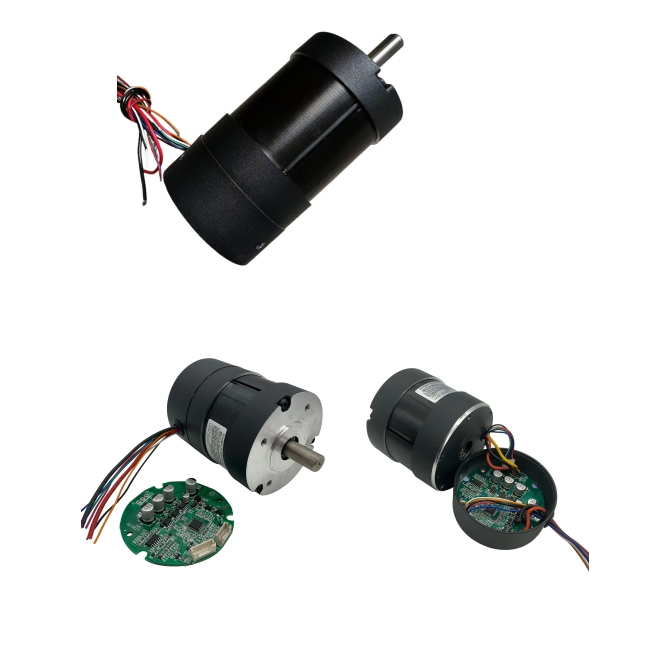

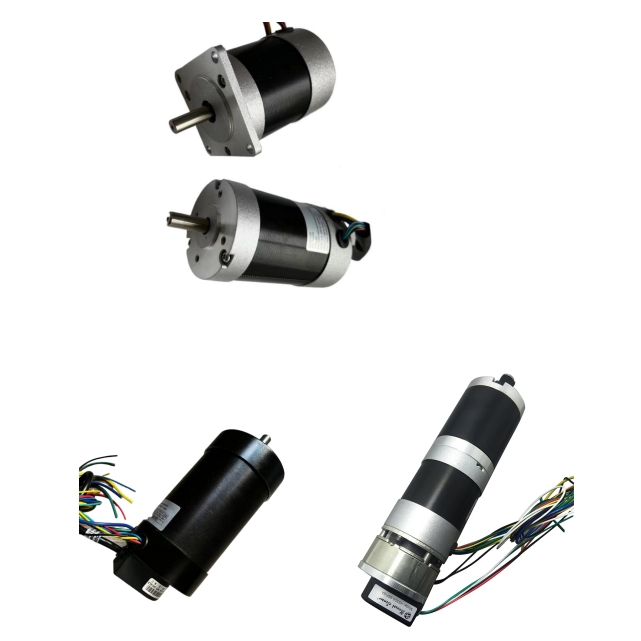

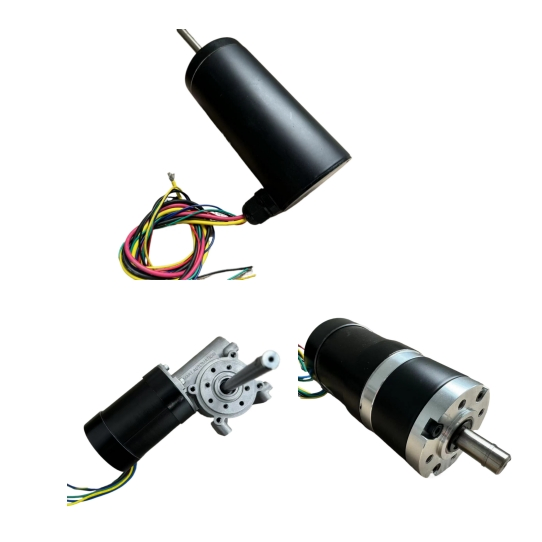

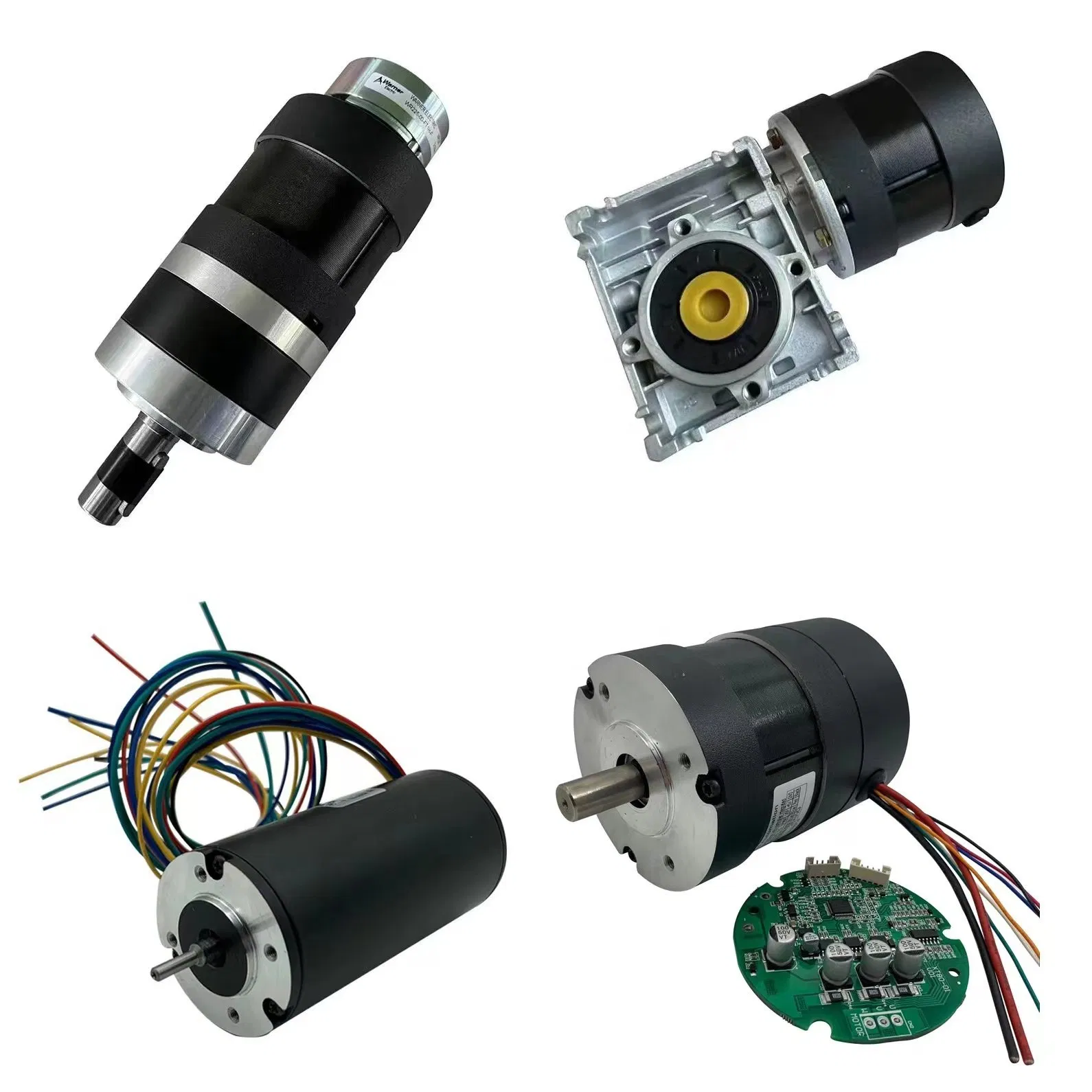

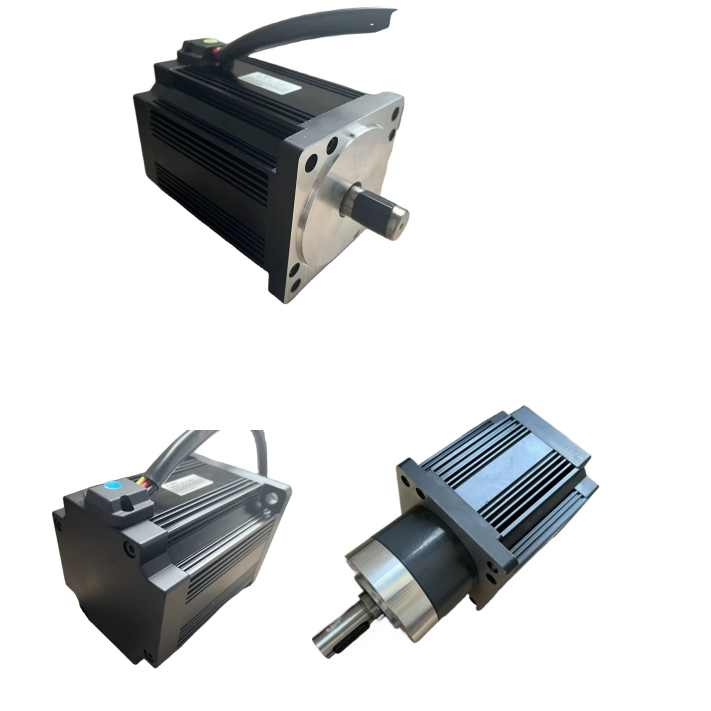

Customized Brushless DC Motors / BLDC Gear Motor
⚙️ Fully Customizable Solutions
We provide customizable voltage, dimensions, performance, shafts, and mounting options to fit your specific needs. Integrated solutions including encoders, gearboxes, brakes, and controllers are available.
📧 Expert Proposals
Please Send Inquiry, and We Will Get You the Best and Most Cost-Effective Solution/Proposal.
Product Options
| Diameter | 30mm to 130mm (Various Sizes) |
| Rated Voltage | 10V, 12V, 24V, 48V up to 380VDC |
| Rated Torque | Up to 10Nm (With gearbox up to 120Nm) |
| Rated Speed | 1rpm up to 15000rpm |
| Protection Class | IP00, IP40, IP50, IP54, IP56, IP66, IP67 |
| Suppression | EMI suppression and Thermal protection available |
| Add-ons | Planetary/Worm Gearbox, Electric Brake, Optical/Magnetic Encoders, Integrated Controllers |

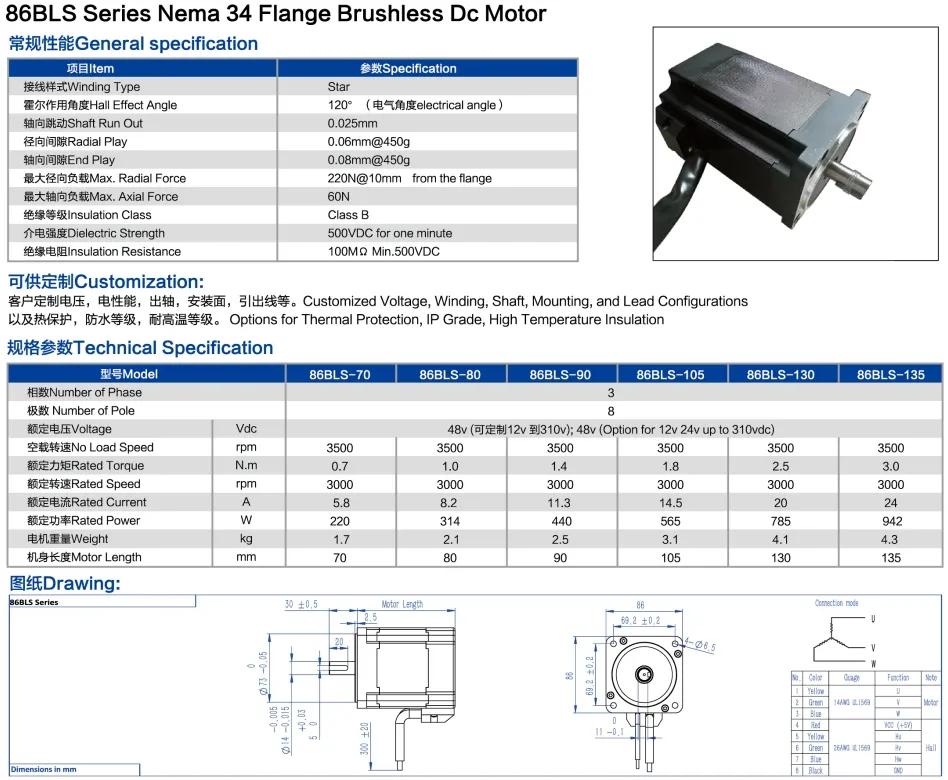

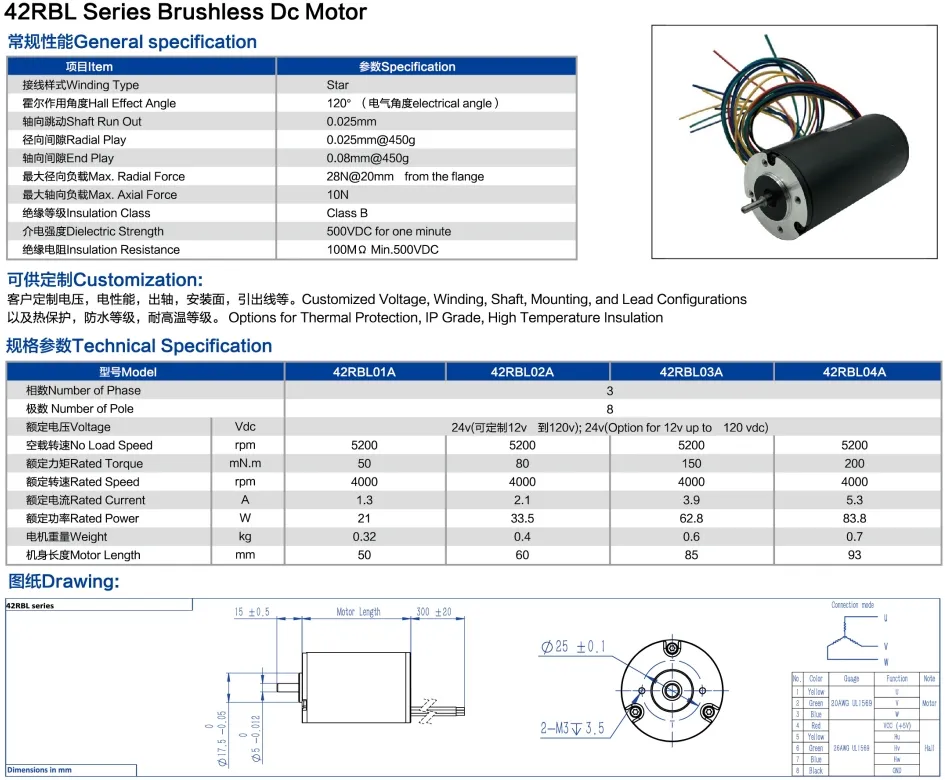

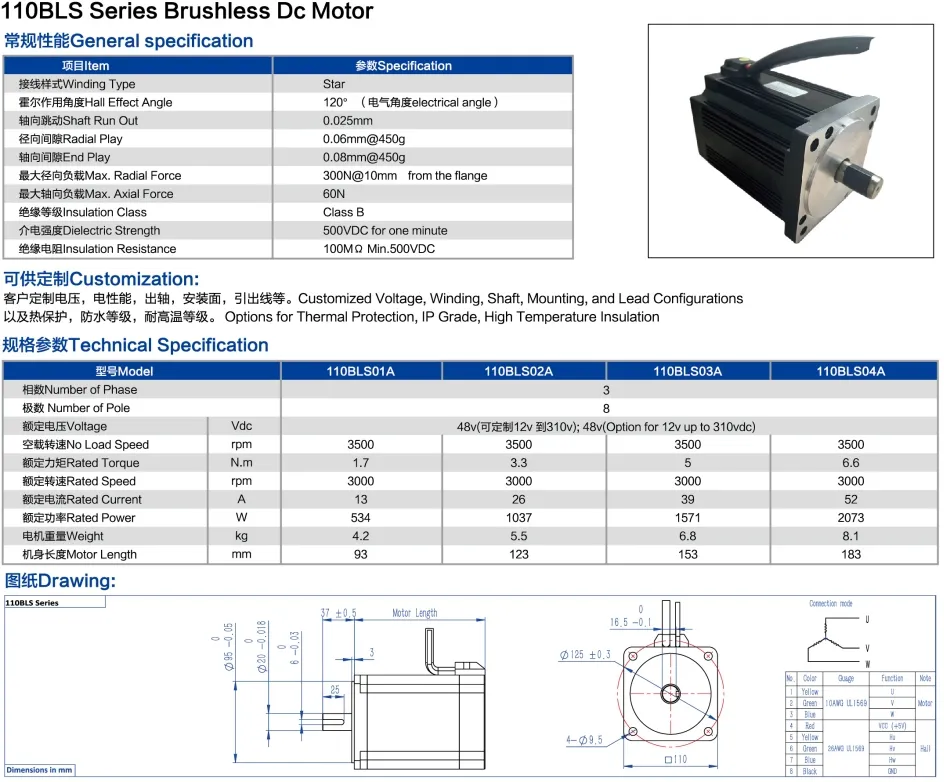

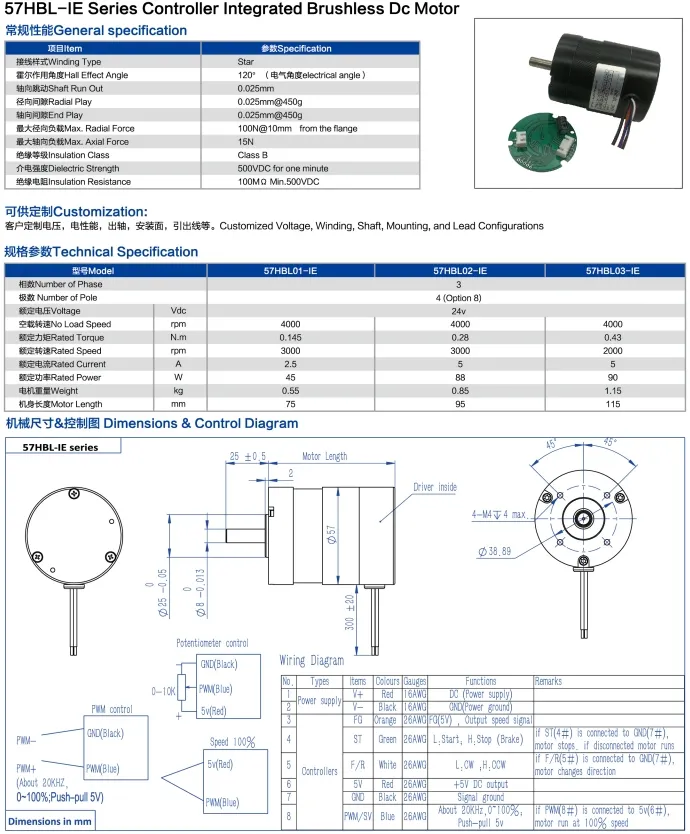

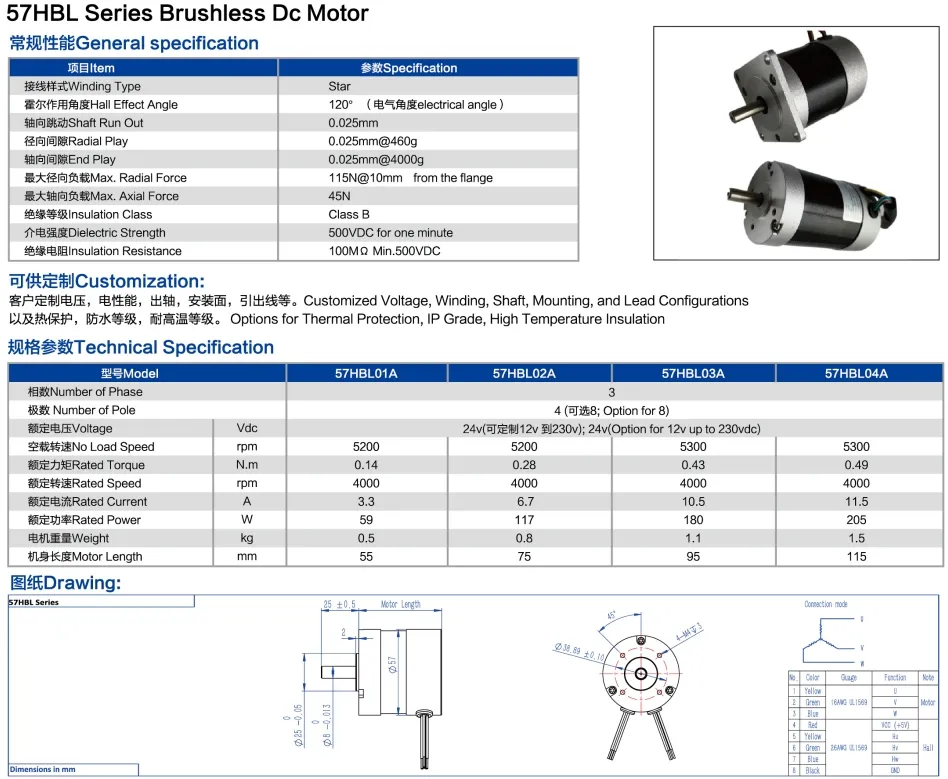

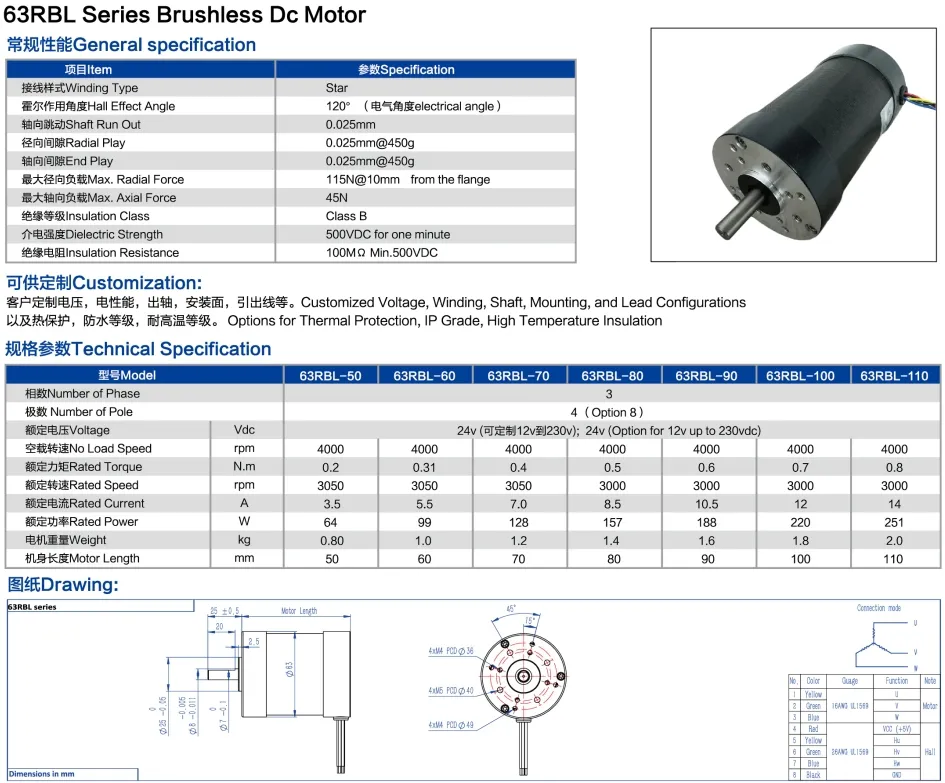

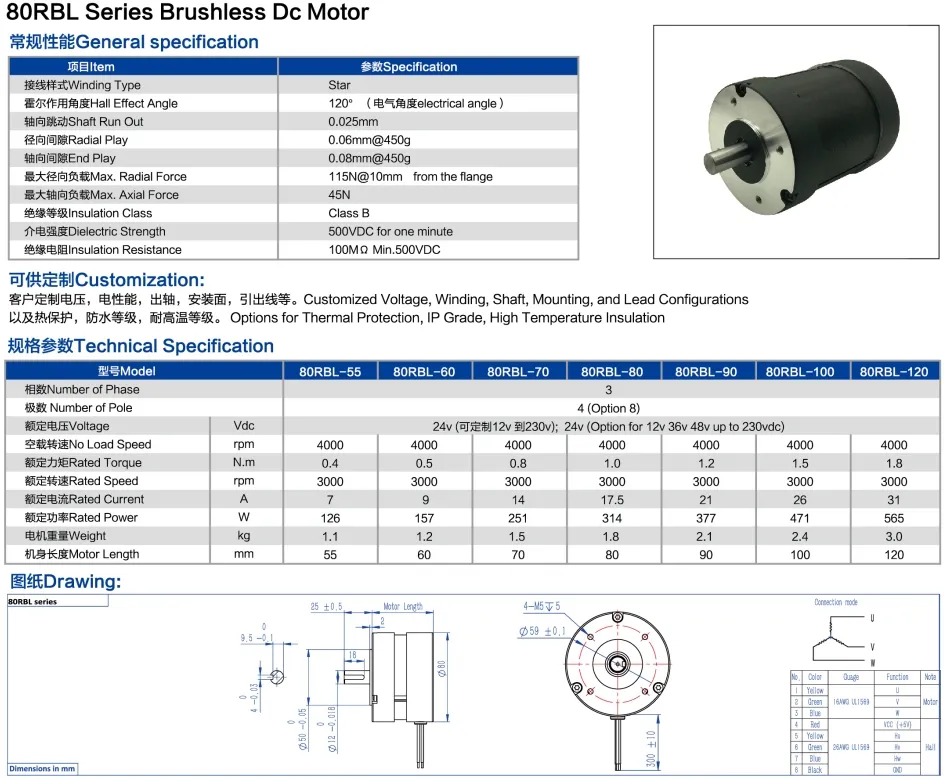

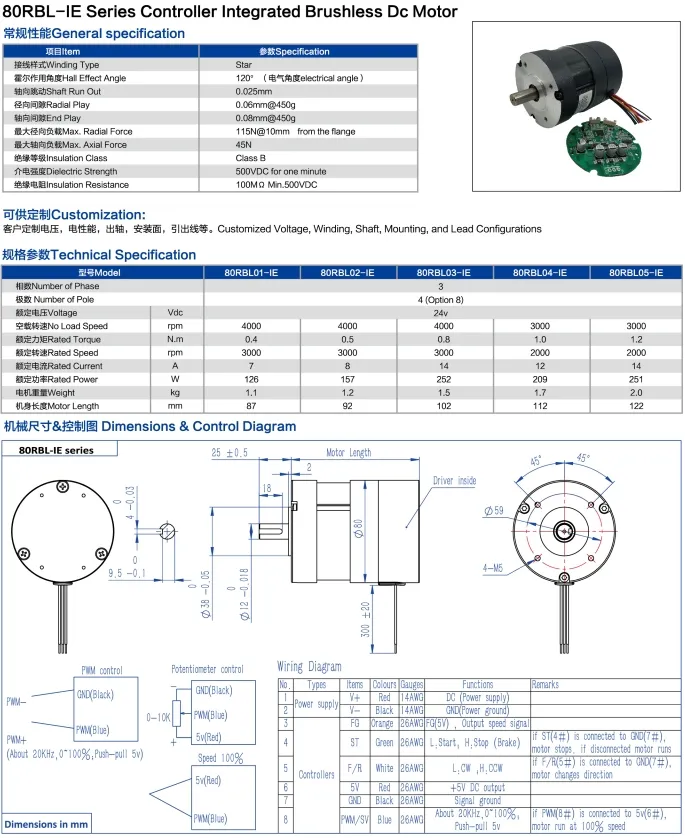

Typical Product Models

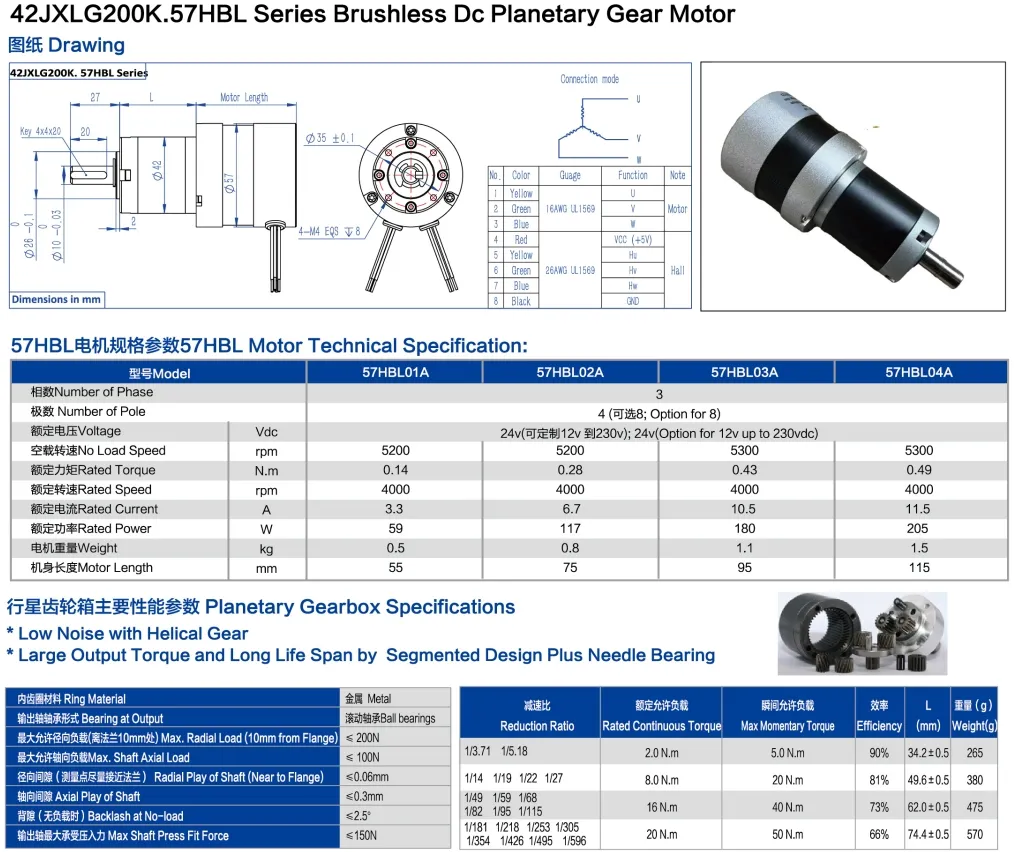

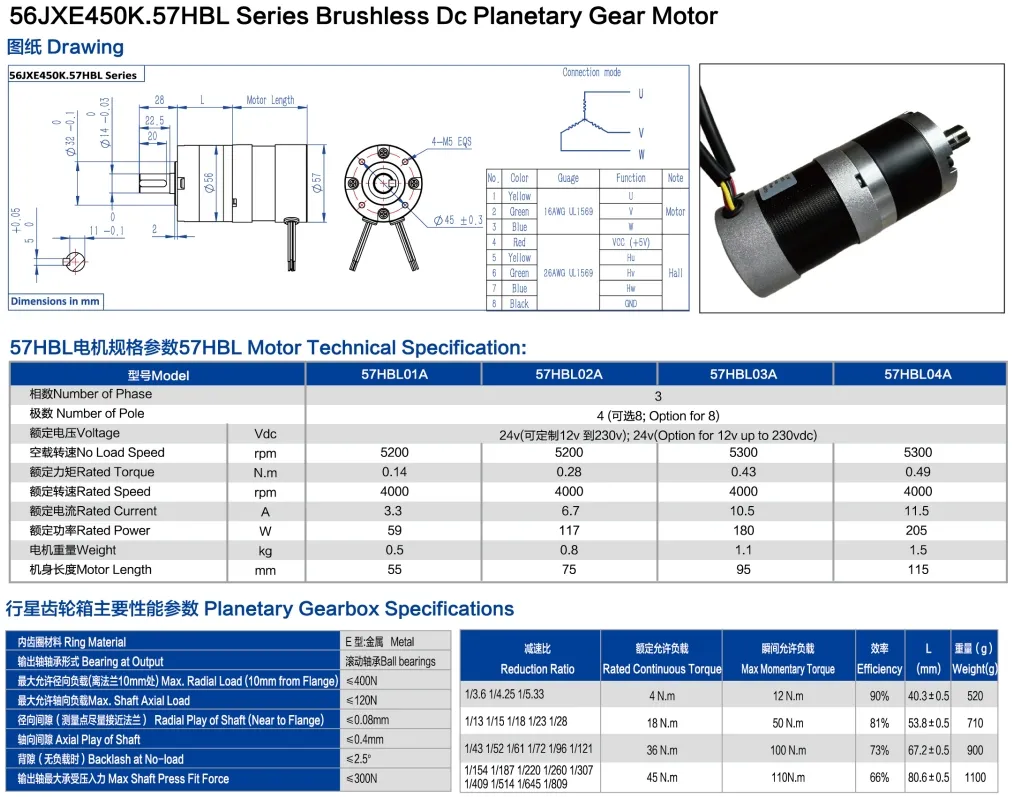

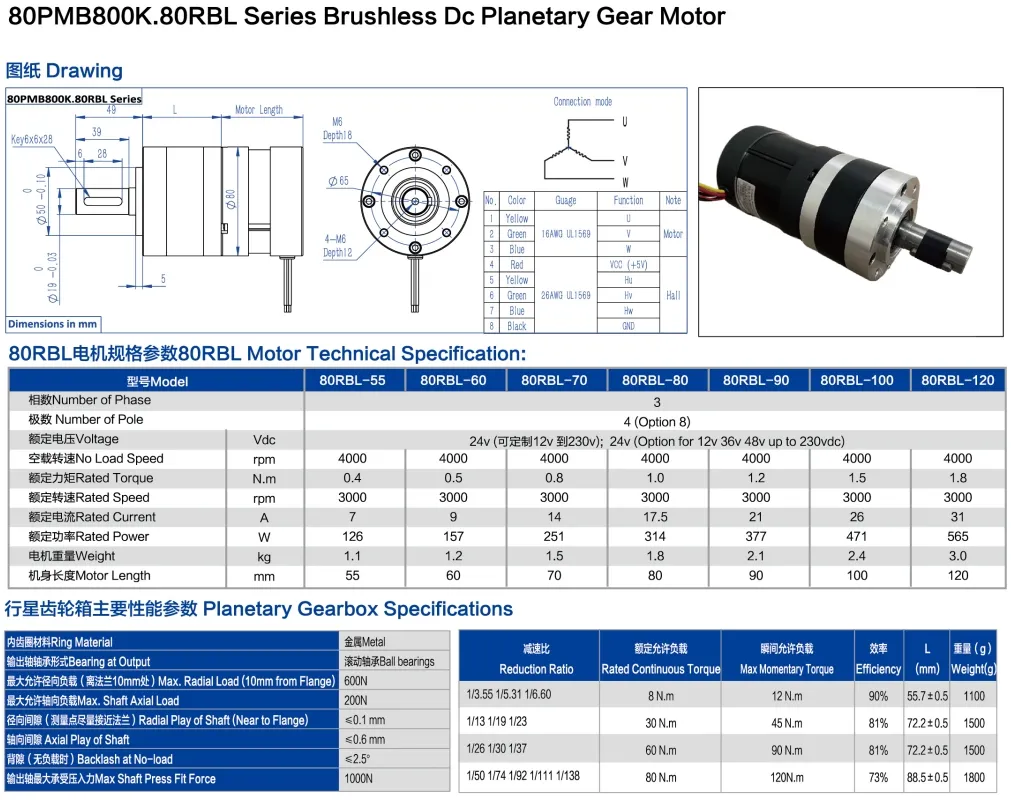

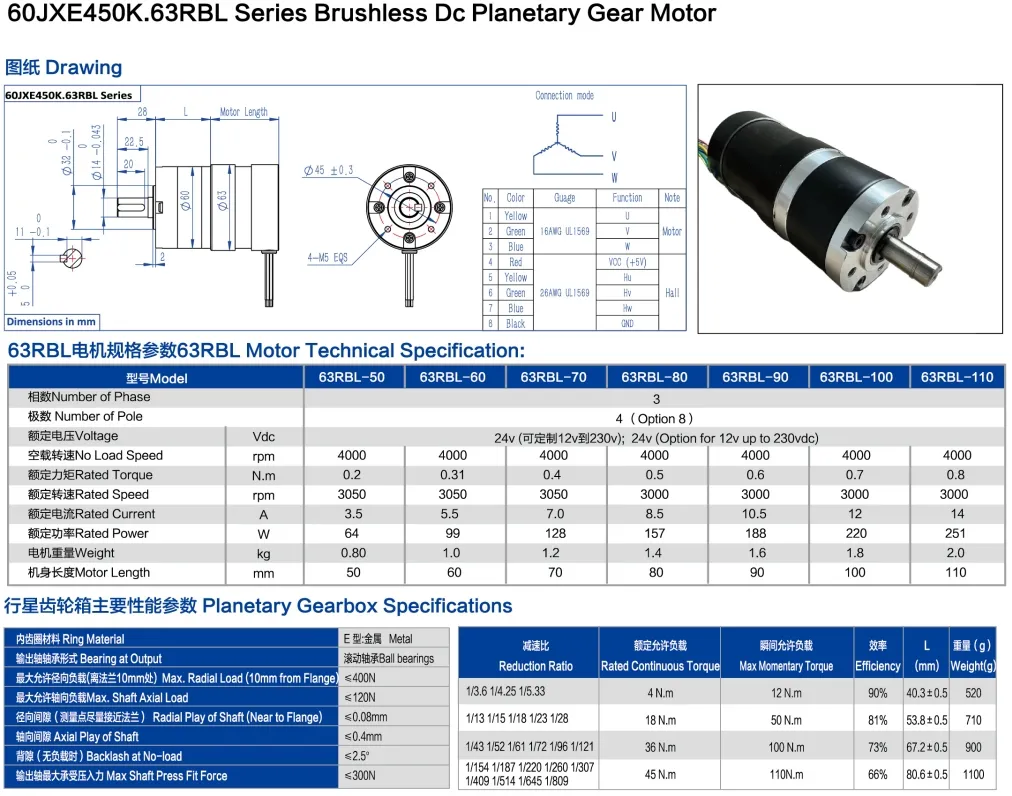

Typical BLDC Planetary Gear Motors

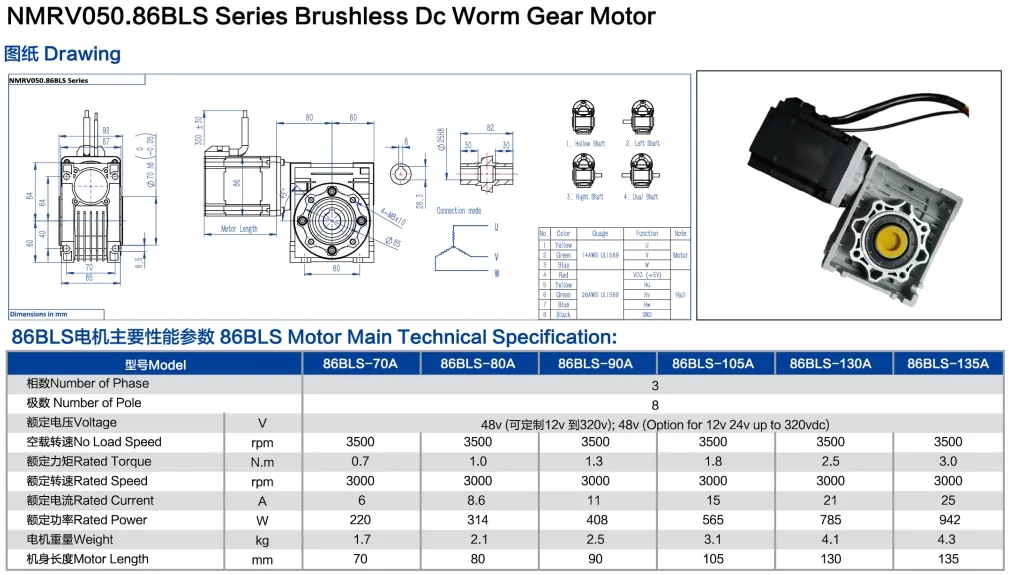

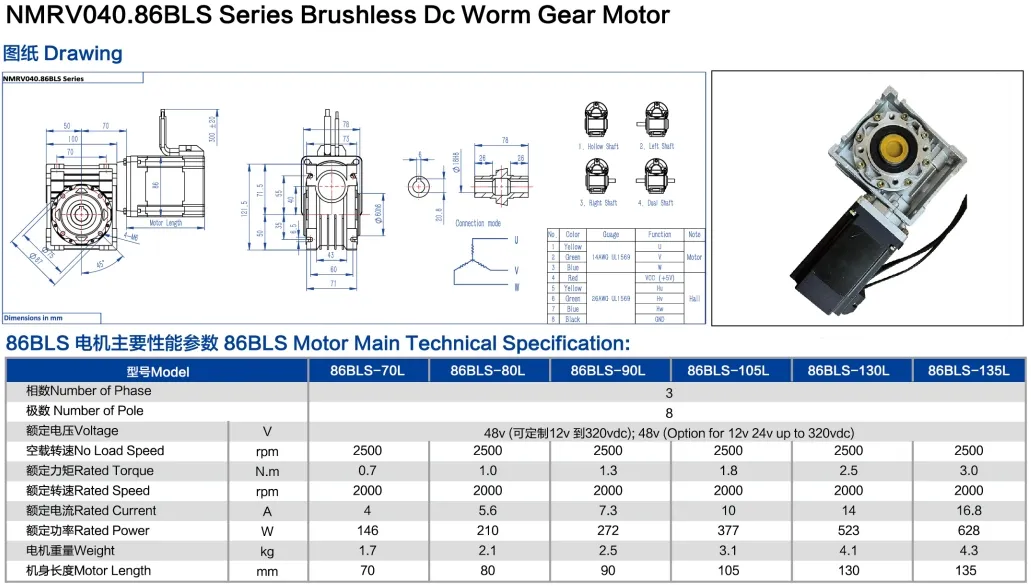

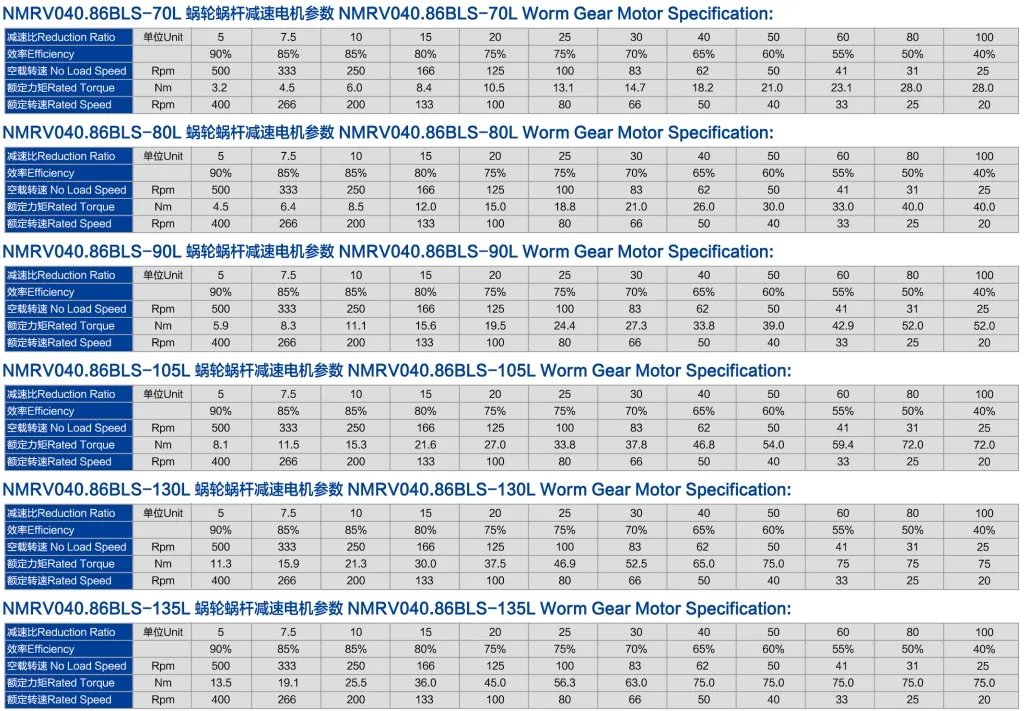

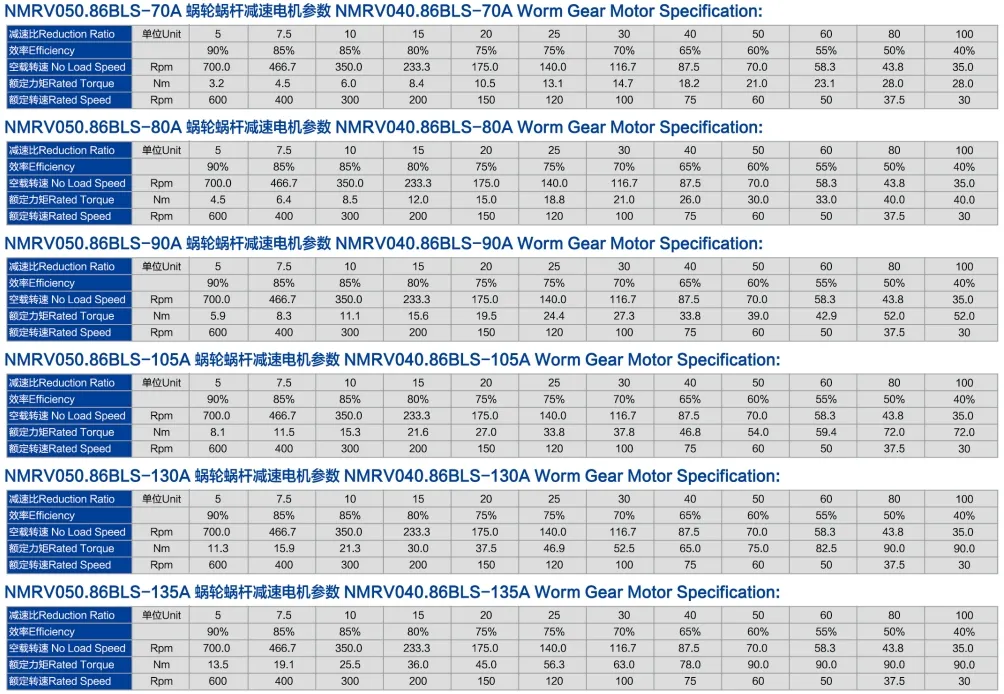

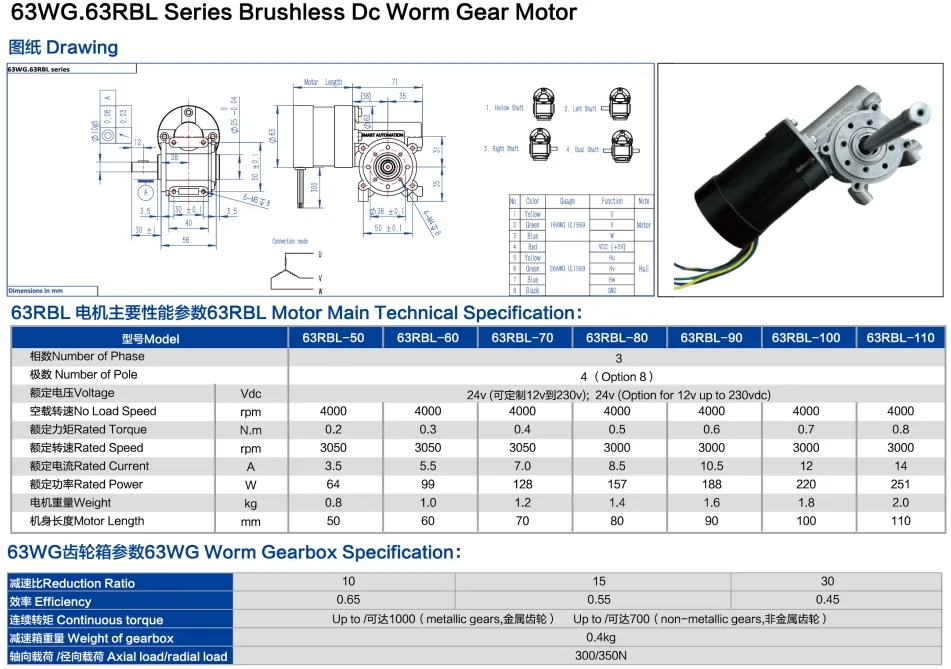

Typical Worm Gear Motors
Frequently Asked Questions (FAQ)
Q1: Can the BLDC motor specifications be customized?
A1: Yes, we offer full customization for voltage, dimensions, torque, speed, shaft design, and mounting configurations to meet your specific application requirements.
Q2: What is the maximum torque available for these motors?
A2: The standalone BLDC motor provides up to 10Nm, but when integrated with our gearboxes, the rated torque can reach up to 120Nm.
Q3: Do you provide integrated controllers or encoders?
A3: Yes, we can supply motors with integrated controllers, optical or magnetic encoders, and electric brakes as optional assemblies.
Q4: What environmental protection ratings are available?
A4: Depending on your needs, we offer various protection classes ranging from IP00 to IP67 for high-level water and dust resistance.
Q5: What certifications do your BLDC motors hold?
A5: Our products are manufactured under strict quality standards and carry ISO9001, CE, and RoHS certifications.
Q6: What is the typical lead time and production capacity?
A6: Our monthly production capacity is 10,000 PCS. Lead times vary by customization level; please contact us for a detailed proposal.
RedCat Motors
