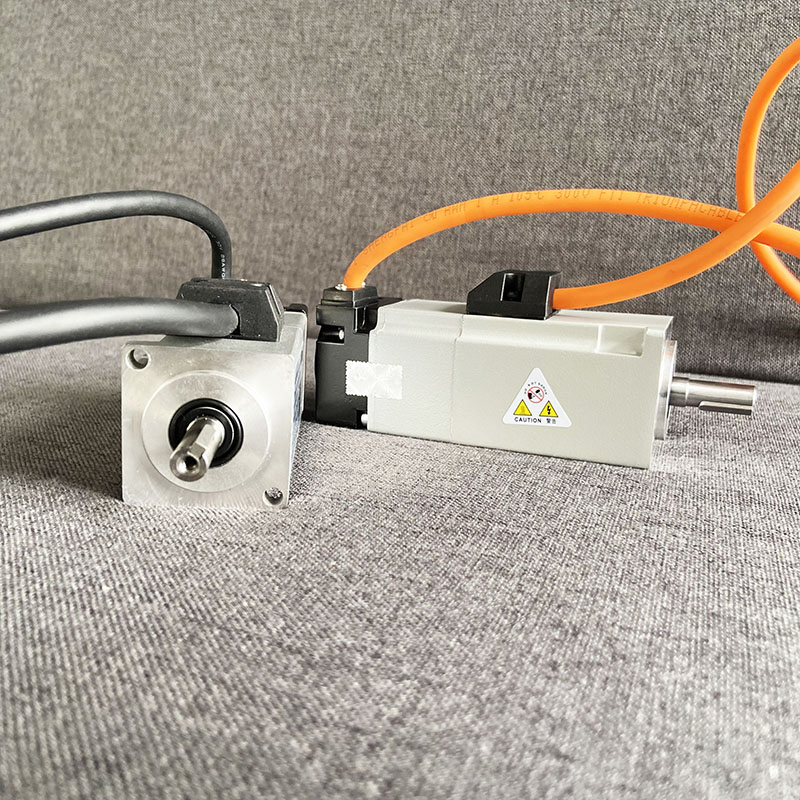

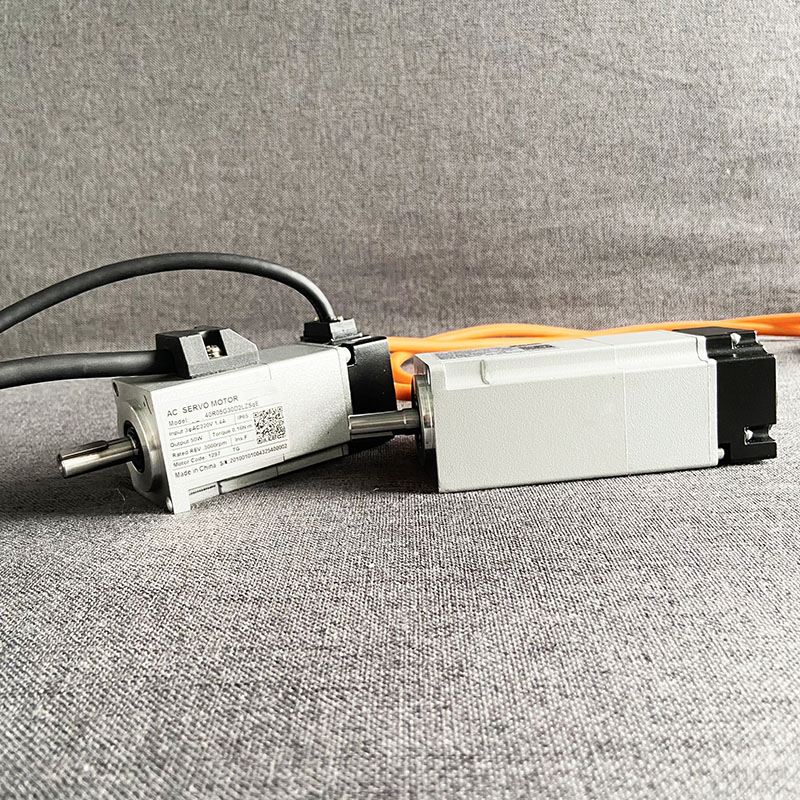

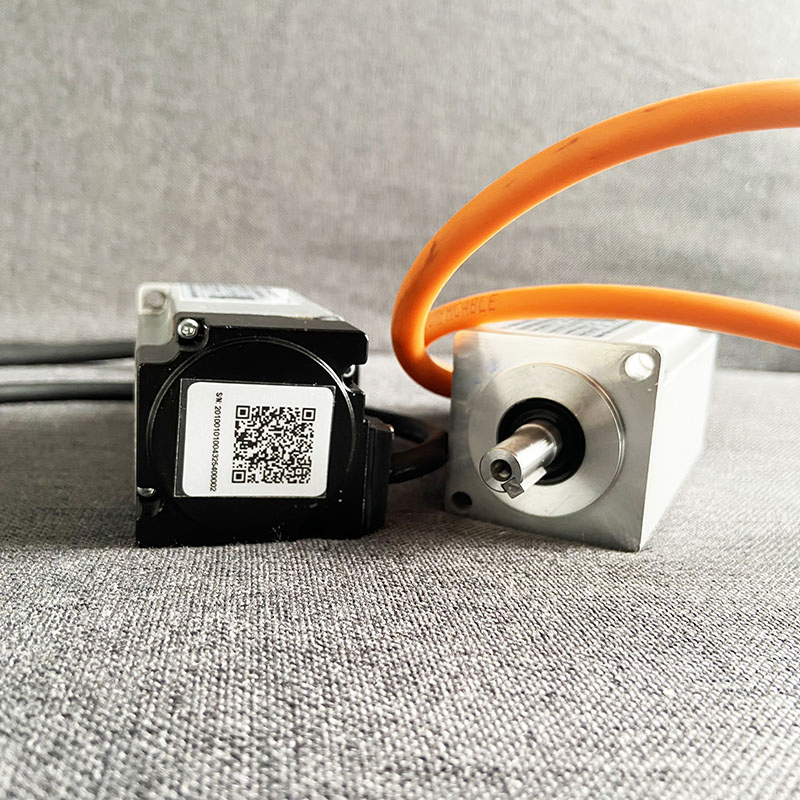

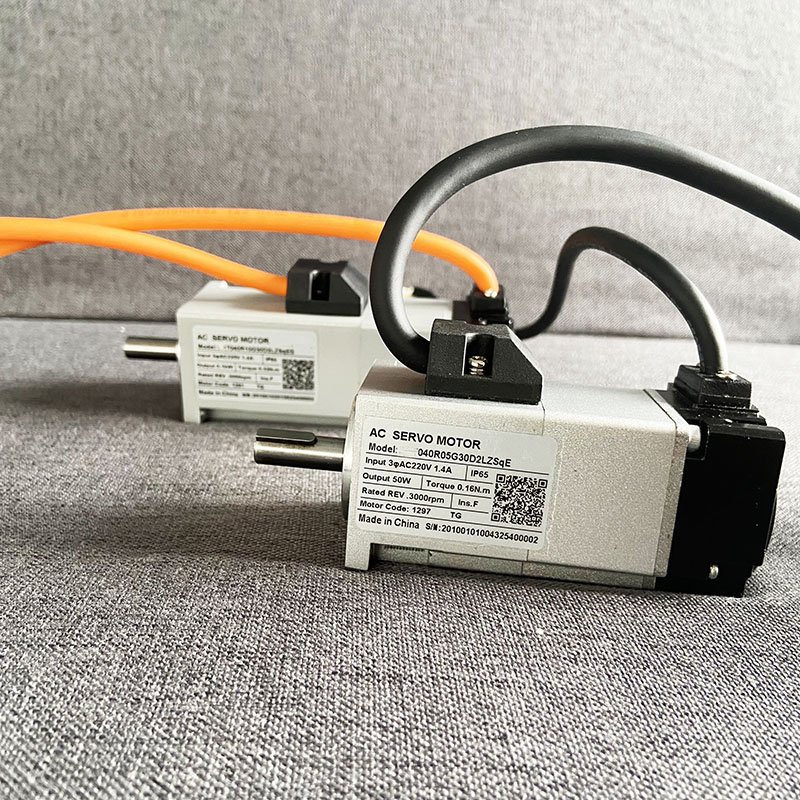

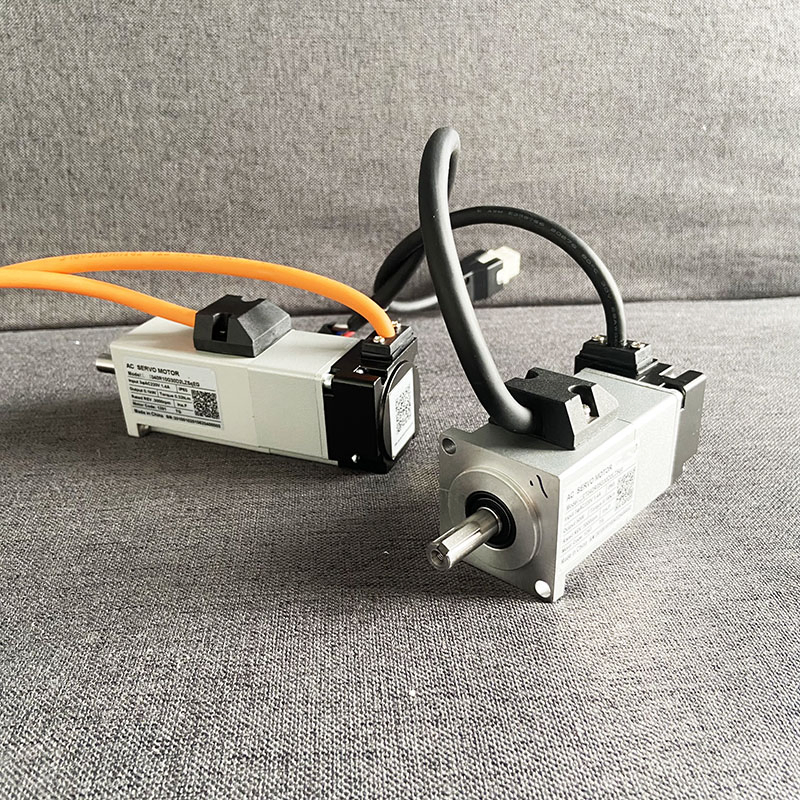

Immerse yourself in the ingenuity of the 40# 50W 220DC servo motor without brake, a true embodiment of precision and innovation. This motor is a marvel of adaptability, crafted to meet your unique demands with ease. Seamlessly customizable with a range of encoders, it provides the ultimate blend of advanced functionality and flexibility. Perfectly suited to elevate your automation and robotics projects, this motor propels your applications to new pinnacles of excellence.
Our superior motor solutions are the powerhouse driving a spectrum of groundbreaking applications. From energizing cutting-edge industrial robots and propelling AGVs, to refining intelligent manufacturing environments, optimizing CNC machinery, and advancing 3C electronics, our motors stand as the epitome of unmatched performance, infused with innovative brilliance.
| Parameter Item | Value | Unit |
|---|---|---|
| Rated Output Power | 50 | W |
| Number of Poles | 10 | P |
| Rated Voltage | 220 | VAC |
| Rated Speed | 3000 | r/min |
| Maximum Speed | 6000 | r/min |
| Rated Torque | 0.16 | N.m |
| Instantaneous Max Torque | 0.48 | N.m |
| Rated Current | 1.4 | A(rms) |
| Line back EMF | 8.39 | V/krpm |
| Torque Coefficient | 0.139 | N.m/A |
| Line Resistance | 8.4 | ohm |
| Line Inductance | 7.5 | mH |
| Heat Resistance | Class F | - |
| Cooling Method | Natural cooling | - |
