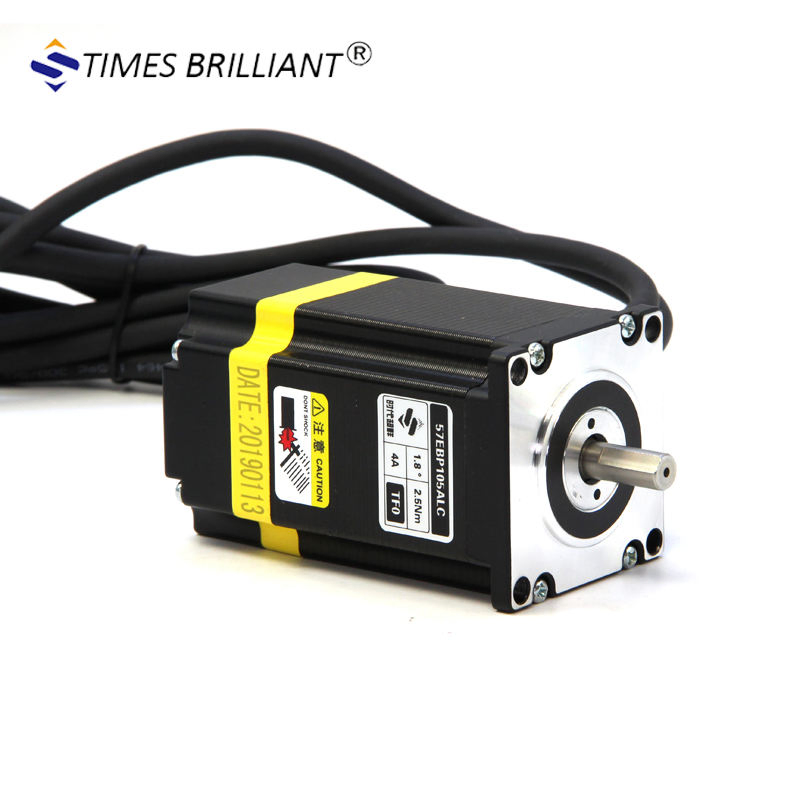

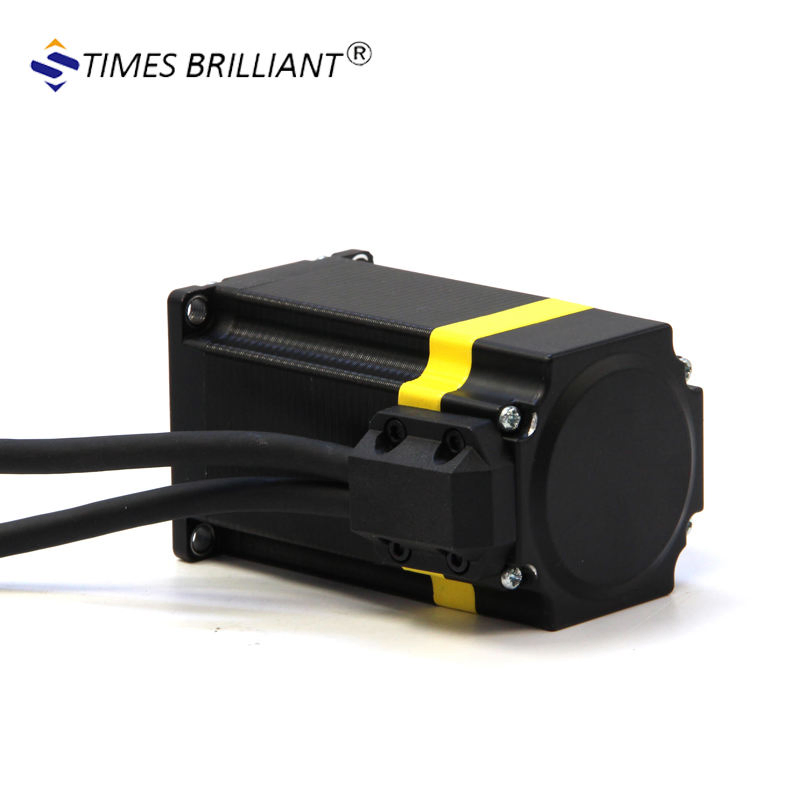

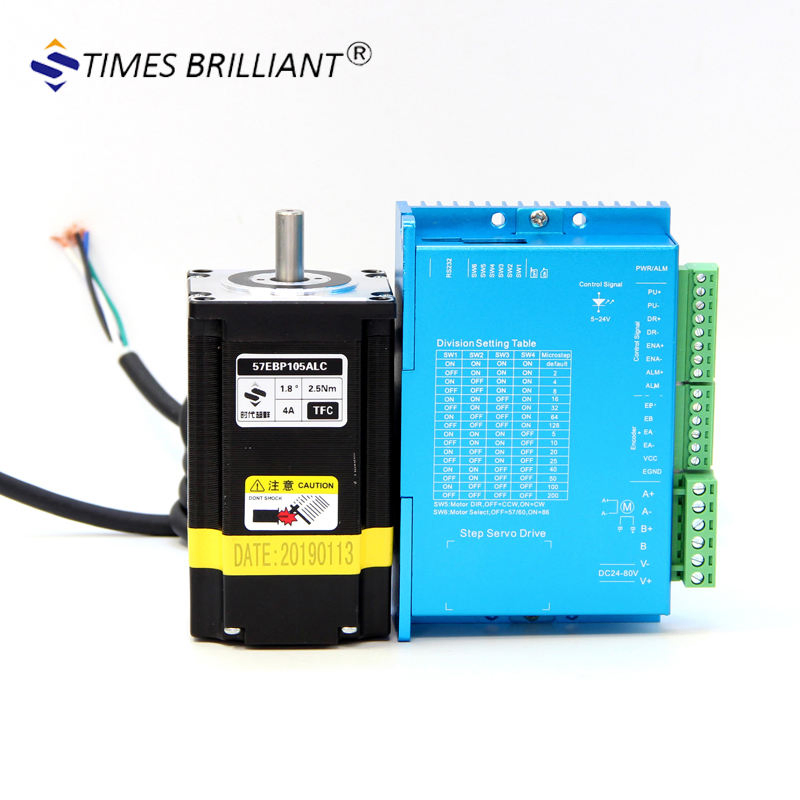

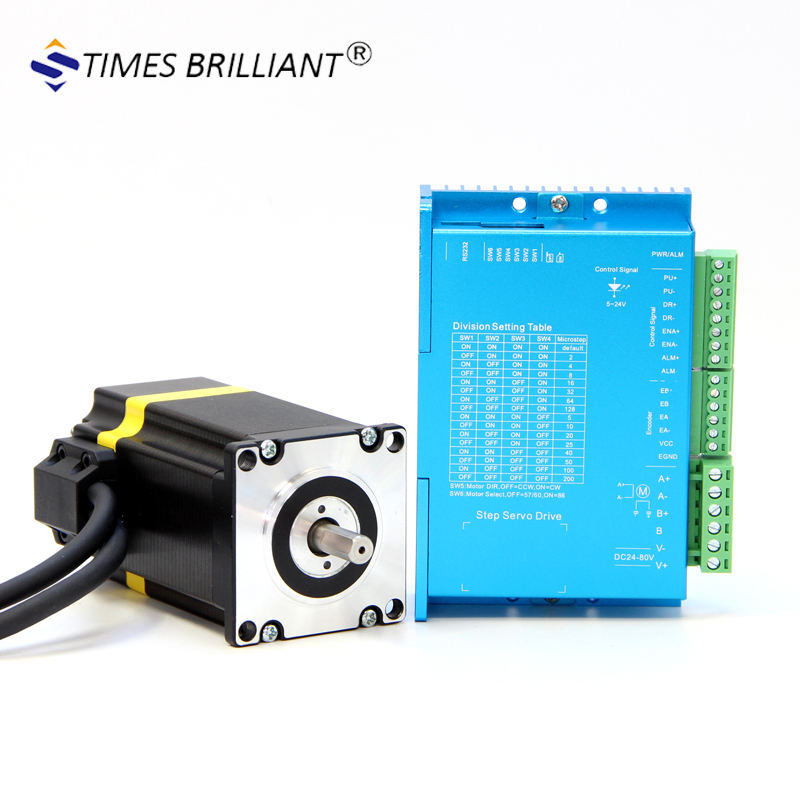

China Low Price 57ebp105alc+Hbs57 2phase NEMA23 Closed Loop Stepper Motor with High Quality Driver Kit 2.5nm

Customization: Available
Application: Printing Equipment
Speed: Constant Speed

Product Description

i

Technical Specifications

Model NO.
57EBP105ALC+HBS57
Number of Stator
Four-Phase
Excitation Mode
PM-Permanent Magnet
Number of Poles
2
Operate Mode
Three Phase Double Beat
Type
Permanent Magnet
Phase
2
Current / Phase
4.2A
Dielectric Strength
AC 500V/ 1min / 5mA Max.
Phase Inductance
1.8mh±20%(1kHz 1V RMS)
Step Angle
1.8°
Rated Current
4.2A Peak Value
Phase Resistance
0.5 ω±0.1(20℃)
Weight
1.4kg
Holding Torque
2.5N.m
Package Size
11.00cm * 11.00cm * 11.00cm
P

Product Description

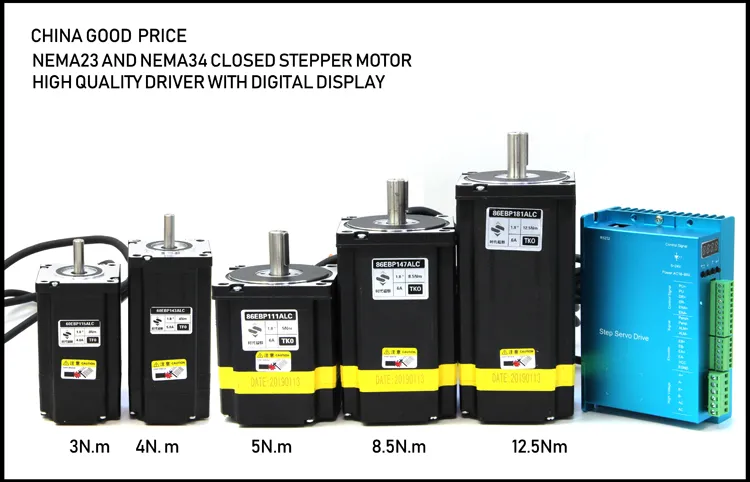

NEMA23 Closed Loop Stepper Motor

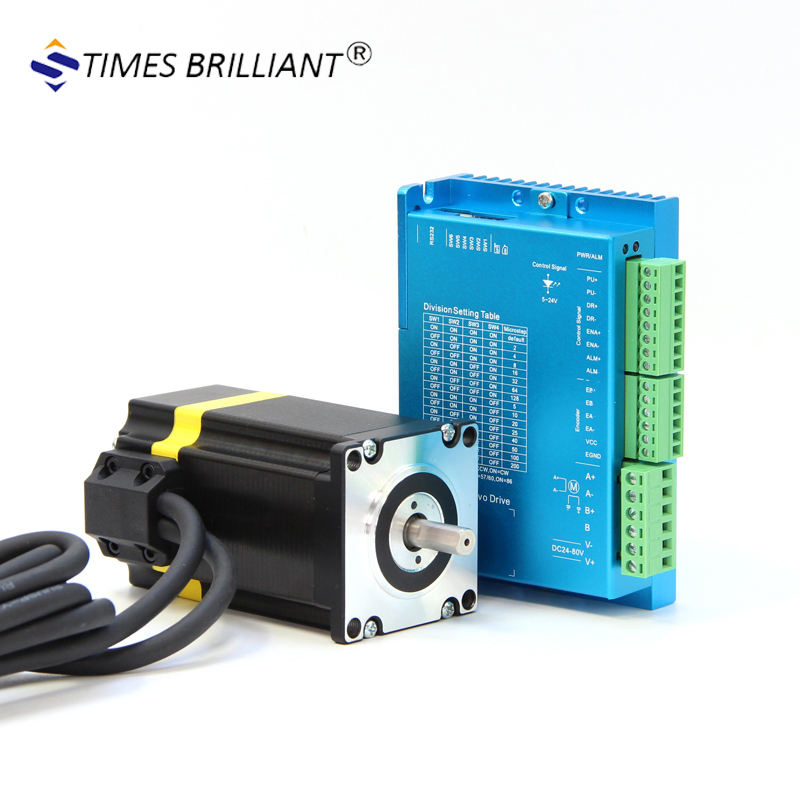

2-Phase Nema23 Closed Loop Stepper Motor with High Quality Driver Kit (2.5Nm)

Driver Kit Banner

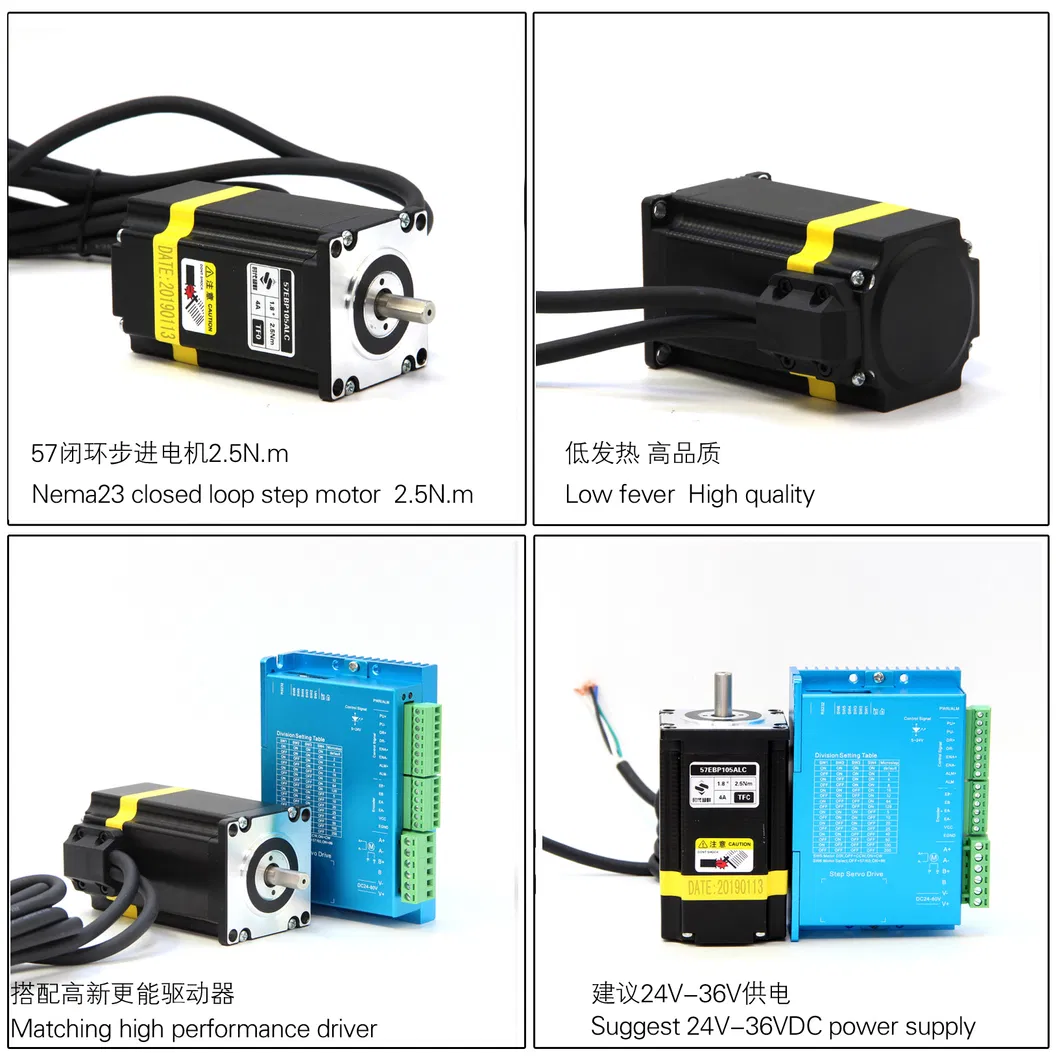

Motor Details
Note: The motor contains magnetic components; magnetic inspection fees may apply during international transportation. Large quantities may be exempt.
Driver Features

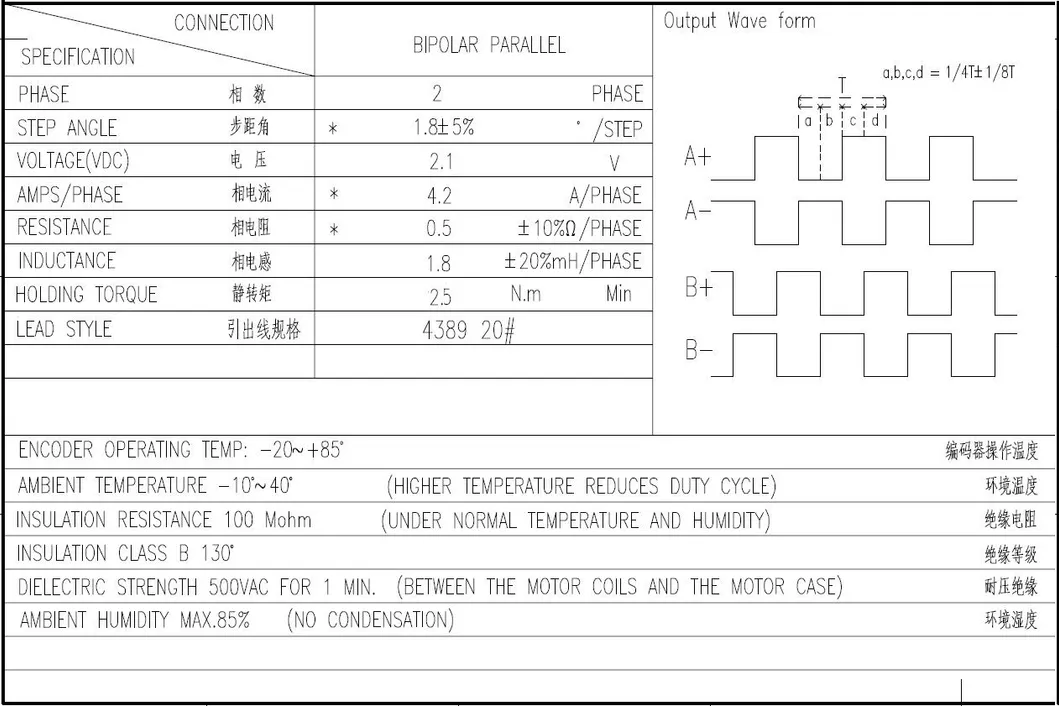

Closed Loop System

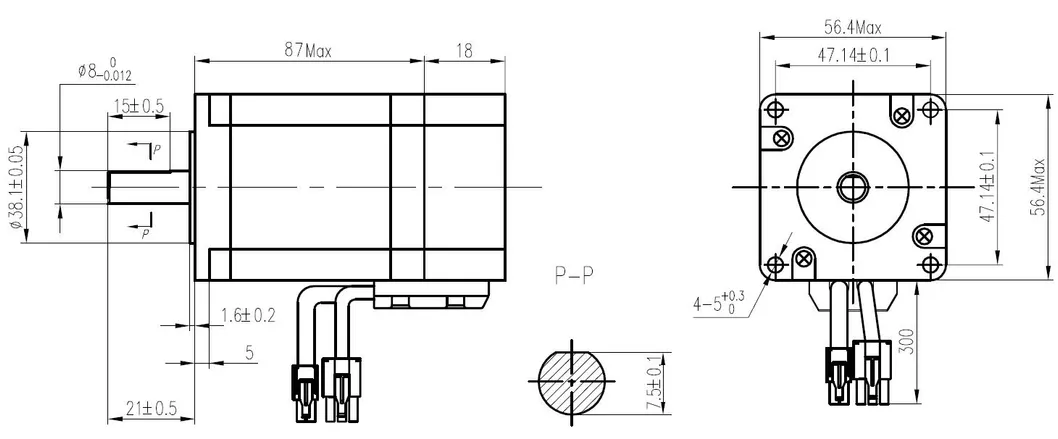

Dimension Info
Torque Curve

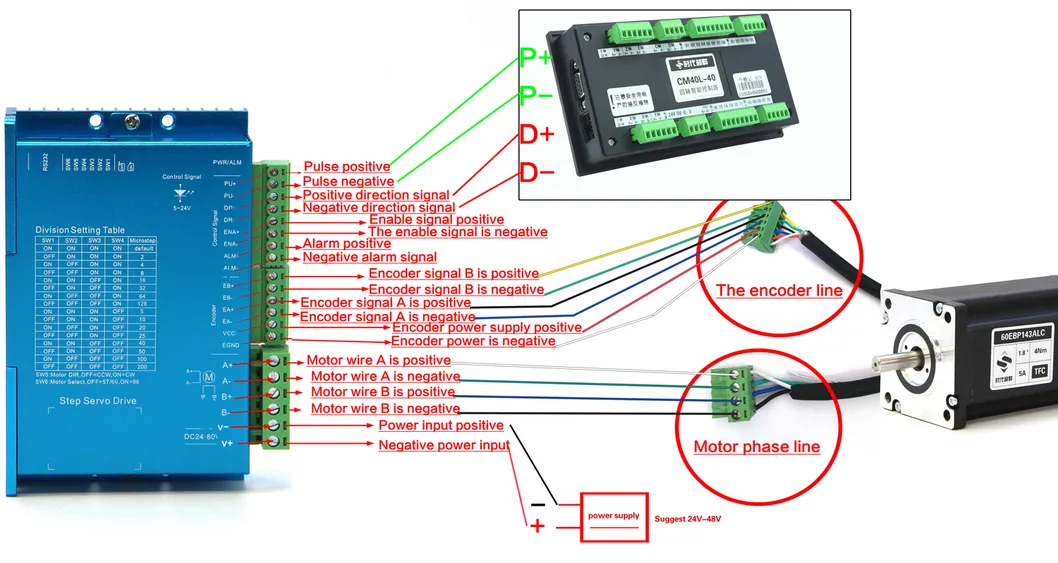

HBS57AJ Driver

Driver HBS57AJ Features:

  • New 32-bit DSP digital technology
  • Designed for NEMA23 closed-loop stepper motors
  • Suitable for engraving machines and CNC equipment
  • PWM current control for extremely low noise
  • High-speed torque increased by 40% compared to ordinary drivers
  • Voltage: DC 16-70V (DC 24V recommended for 57 motors)
  • Subdivision: Up to 256 subdivided
S

Related Products & Services

Related Product 1 Certificate
Our Services
?

Frequently Asked Questions

What is the advantage of a closed-loop stepper motor system?
Closed-loop systems prevent lost steps by using feedback from an encoder. This ensures higher precision, eliminates positioning errors, and allows the motor to run cooler and more efficiently.
What is the recommended voltage for the HBS57AJ driver?
The driver supports DC 16V to 70V. For optimal performance with NEMA23 (57mm) motors, a DC 24V power supply is highly recommended.
Can this motor be used for CNC engraving machines?
Yes, the 57EBP105ALC motor combined with the HBS57AJ driver is specifically designed for high-precision applications like CNC machines, 3D printers, and automated equipment.
How much holding torque does this motor provide?
This NEMA23 closed-loop motor provides a holding torque of 2.5N.m, making it suitable for medium-duty industrial tasks.
Does the driver support micro-stepping?
Yes, the HBS57AJ driver supports high-resolution subdivision up to 256, allowing for very smooth motion and fine control.
What is the significance of the 32-bit DSP?
The 32-bit DSP (Digital Signal Processor) allows for faster calculations and more advanced algorithms, resulting in 40% more high-speed torque and significantly lower noise levels compared to standard drivers.
