Manufacturer Customization 1: 64 Reduction Ratio DC 5V/12V/24V Mini Stepper Motor 28byj

1 / 5

Manufacturer Customization 1: 64 Reduction Ratio DC 5V/12V/24V Mini Stepper Motor 28byj

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

📊

Basic Information

Model NO.

28BYJ

Number of Stator

Four-Phase

Excitation Mode

PM-Permanent Magnet

Function

Control, Driving

Type

Stepper Motor

Step Angle

7.5 Degree

Voltage

5V/12V

Reduction Ratio

1:85 / 1:64

Certification

ISO9001, CCC, RoHS, Reach

HS Code

8501109990

⚙️

Product Features

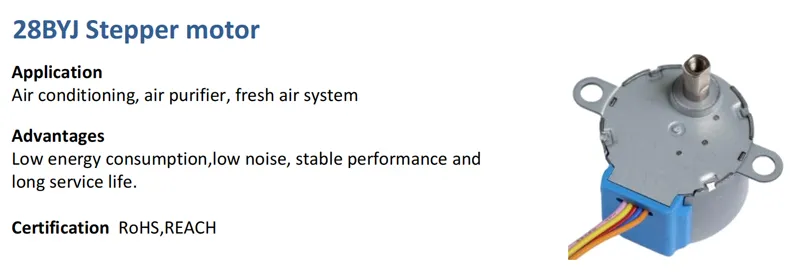

Manufacturer Customization 1:64 Reduction Ratio DC 5V/12V/24V Mini Stepper Motor 28BYJ

Safe and low energy consumption
Low noise operation with stable performance
Good starting characteristics and long service life
Strong power output
Rated voltage DC 5V/12V/24V optional with customization support

Main Applications:

Monitor systems, air purifiers, automatic door locks, integrated ceilings, refrigerators, air conditioners, dehumidifiers, electric toothbrushes, medical beauty equipment, and more.

📋

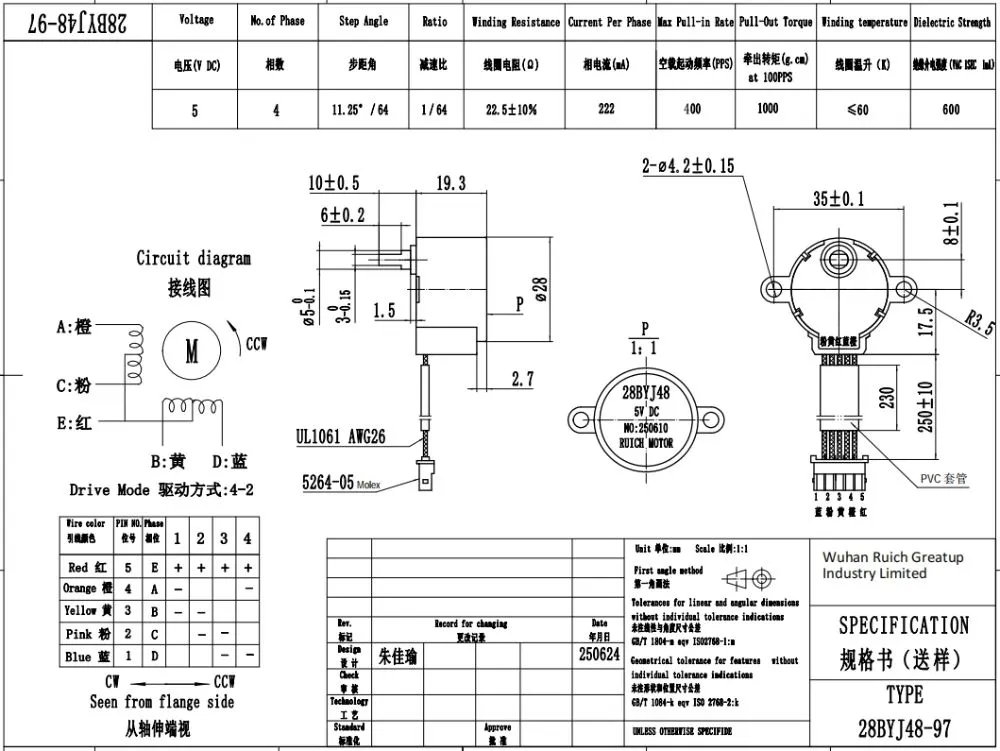

Technical Specifications

Model	28BYJ	Pull-in Torque	≥34.2mN.m(120Hz)
Rated Voltage	DC12V	Detent Torque	≥34.3mN.m
Phases	4	Insulation Resistance	>10Ω(500V)
Gear Ratio	1:64	Dielectric Strength	AC600V/1mA/1S
Step Angle	5.625°/64	Insulation Class	A
Drive Pattern	4 phase 8 beat	Noise Level	<40dB(A)
Resistance	200Ω±7%(25ºC)	Weight	About 40g

🖼️

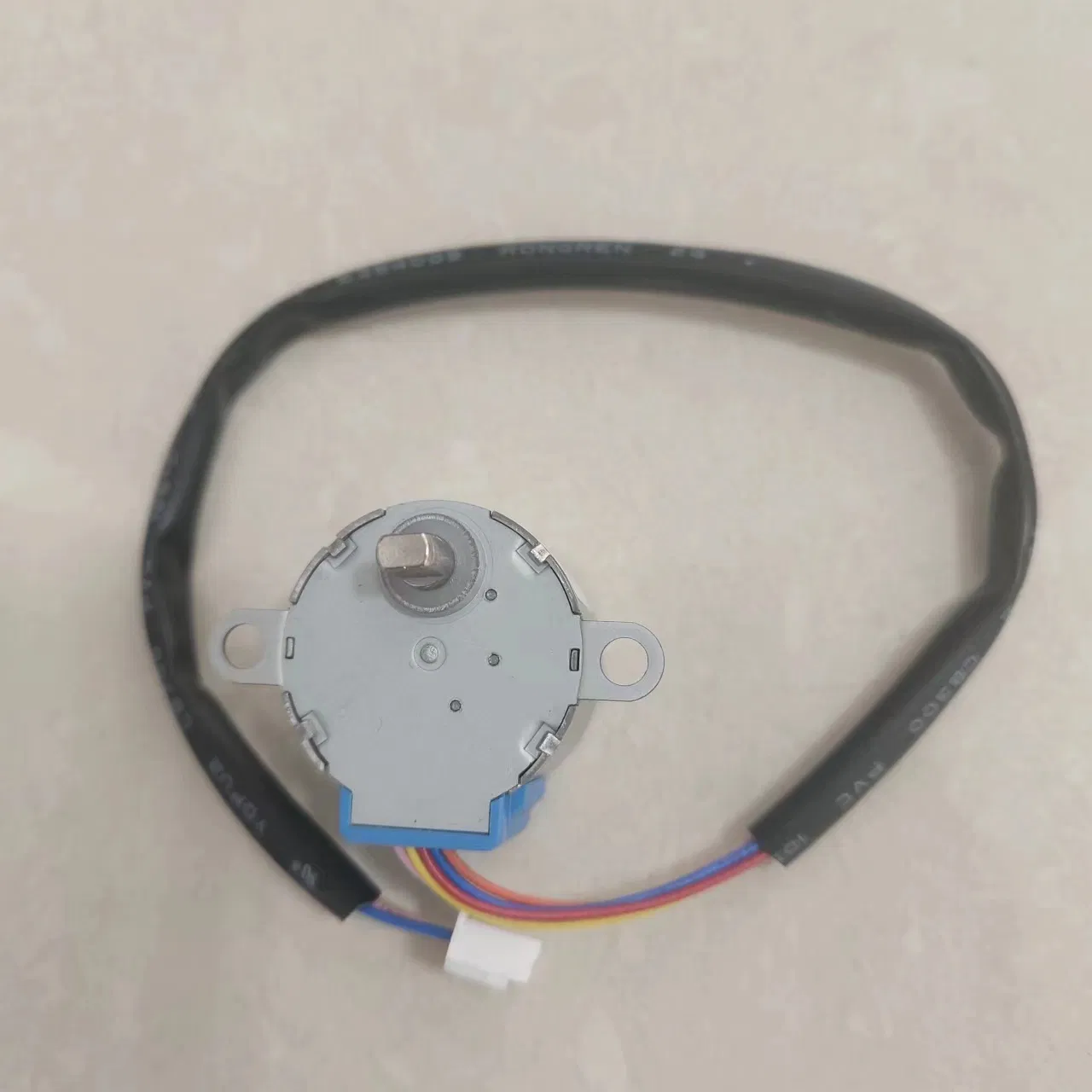

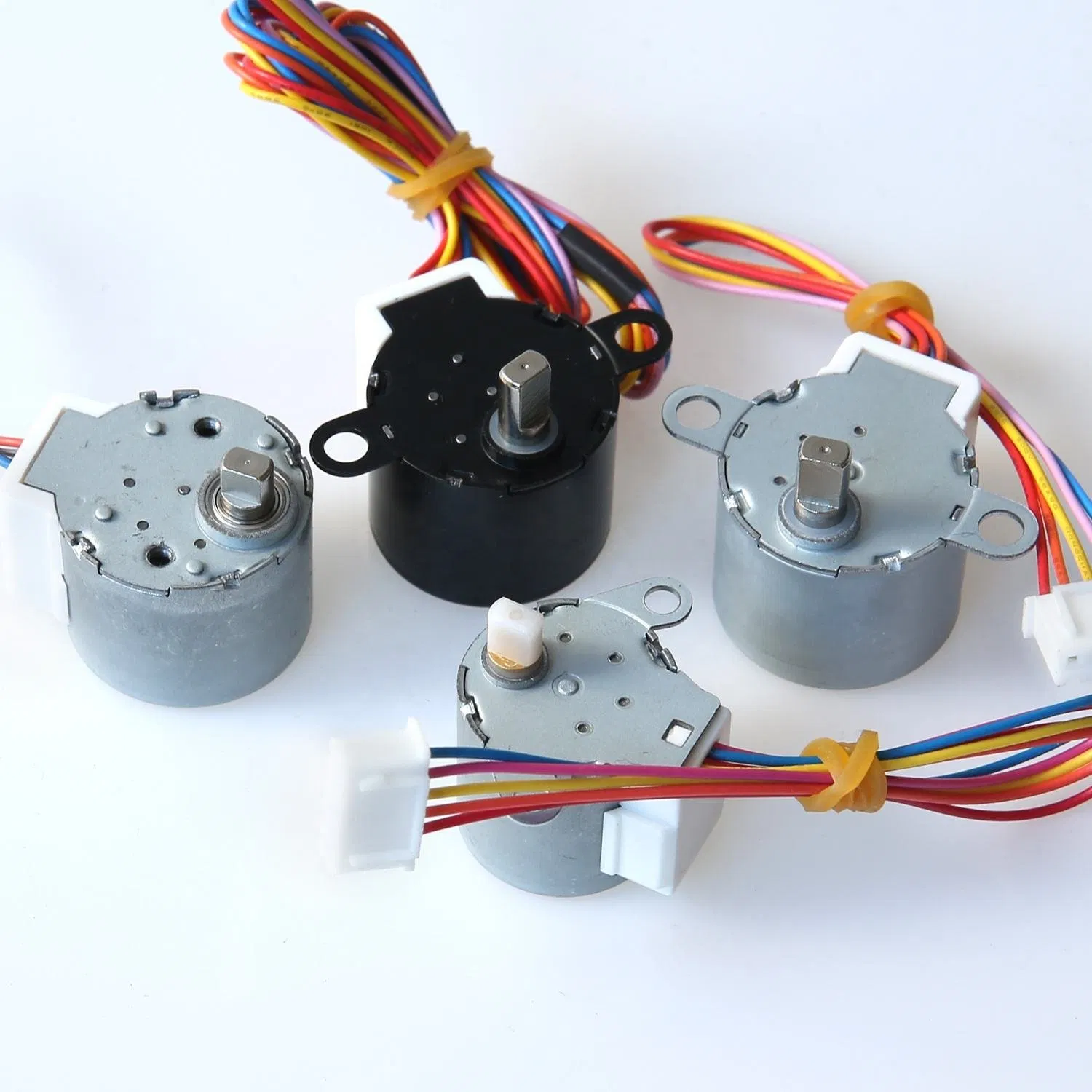

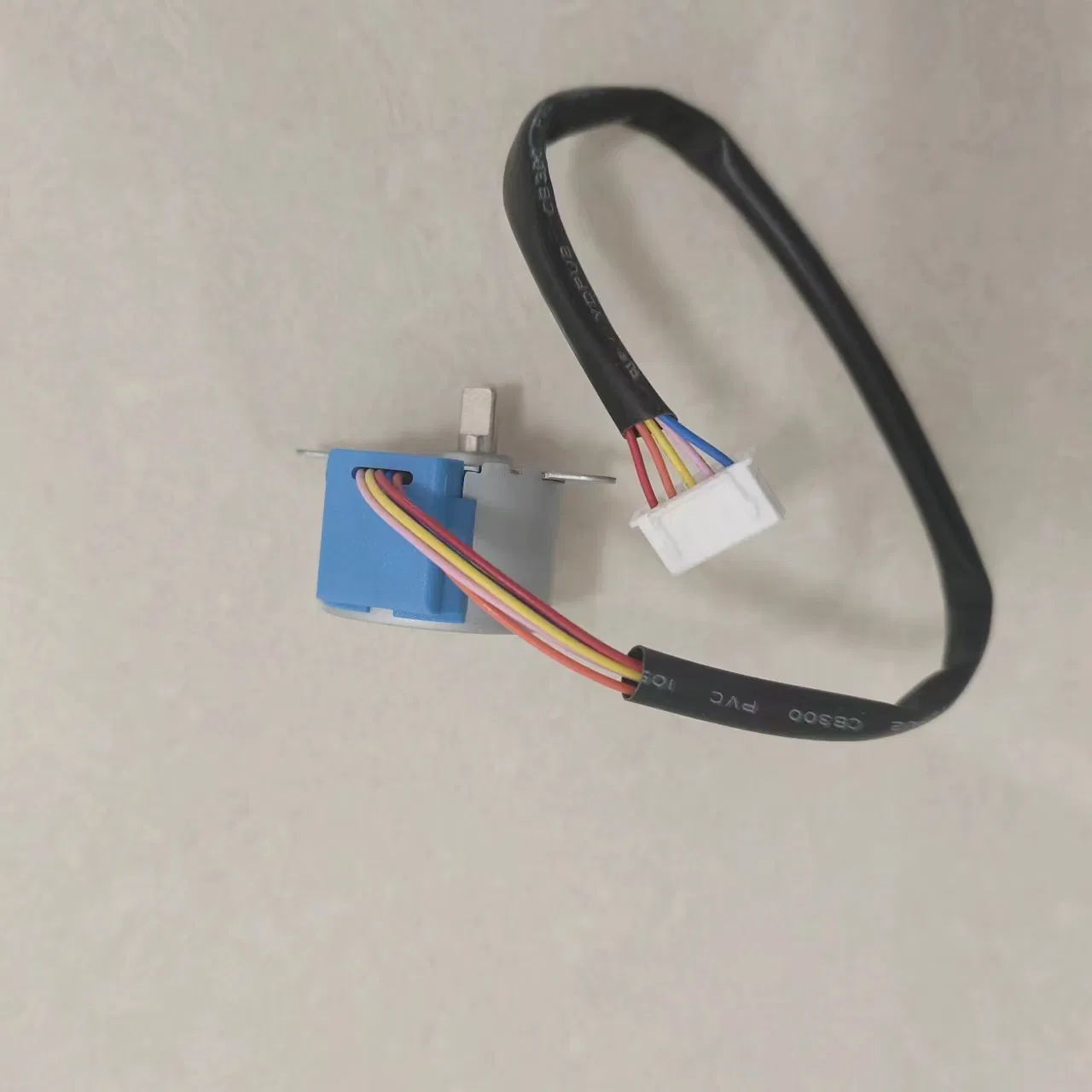

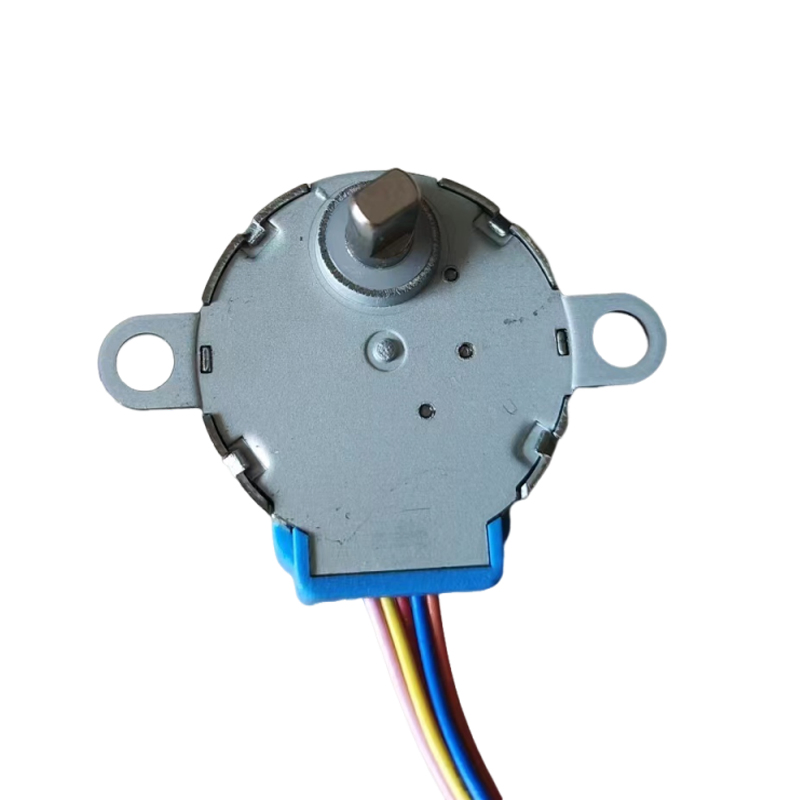

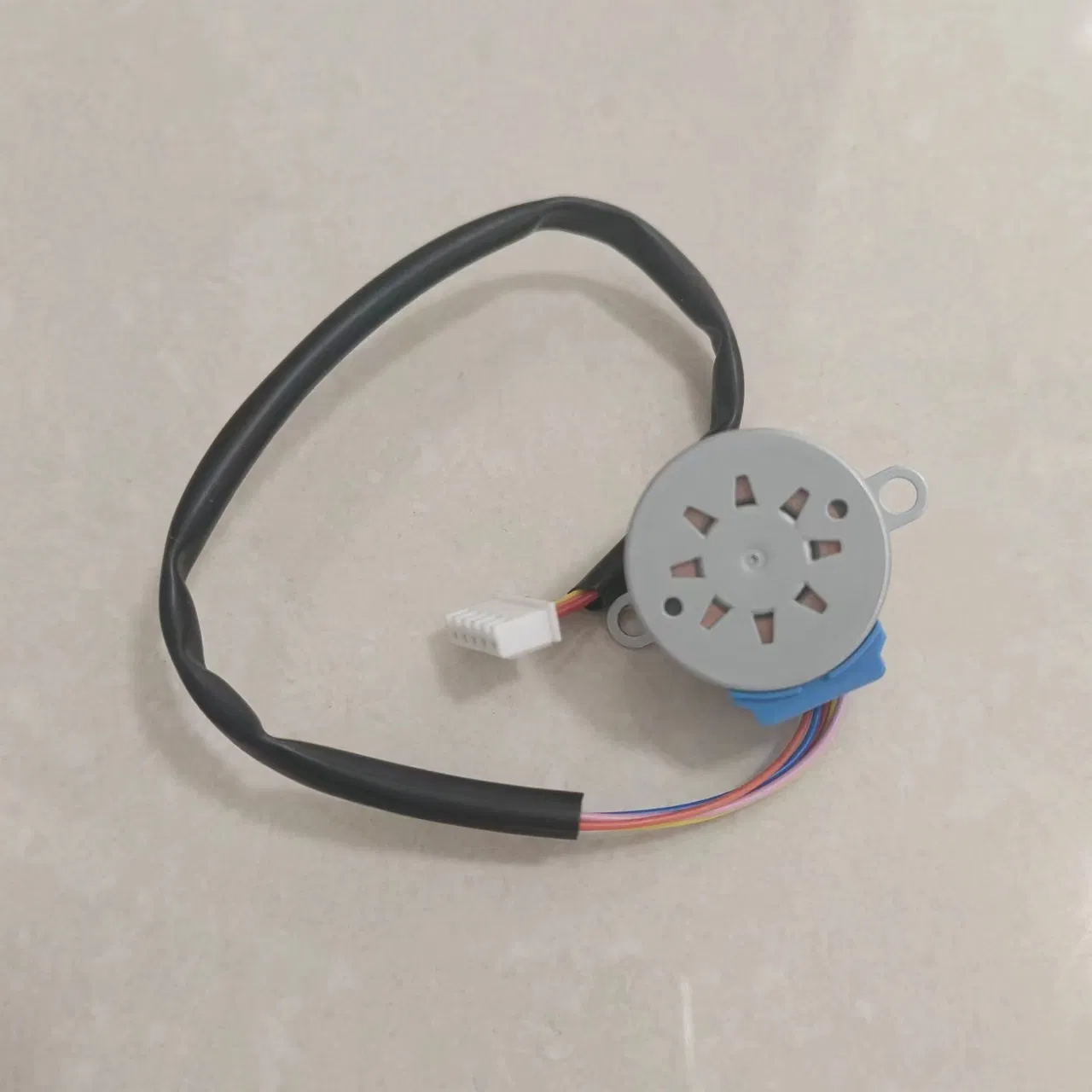

Product Showcase

📜

Quality Certifications

🏭

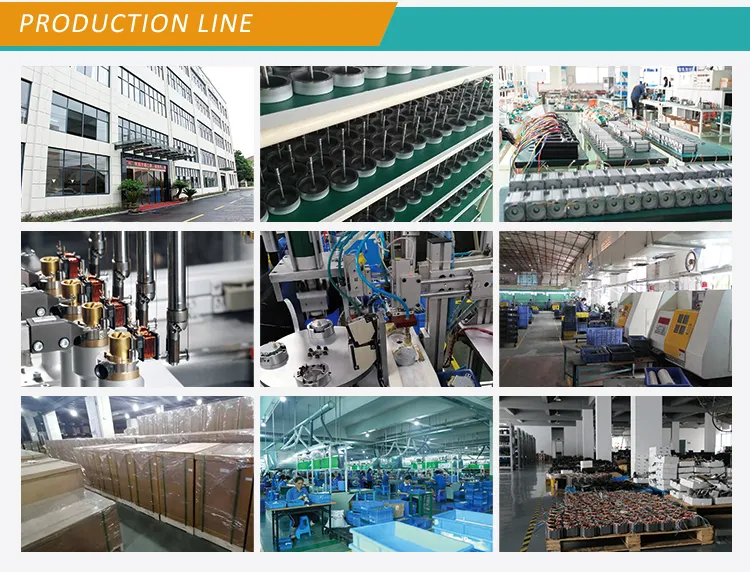

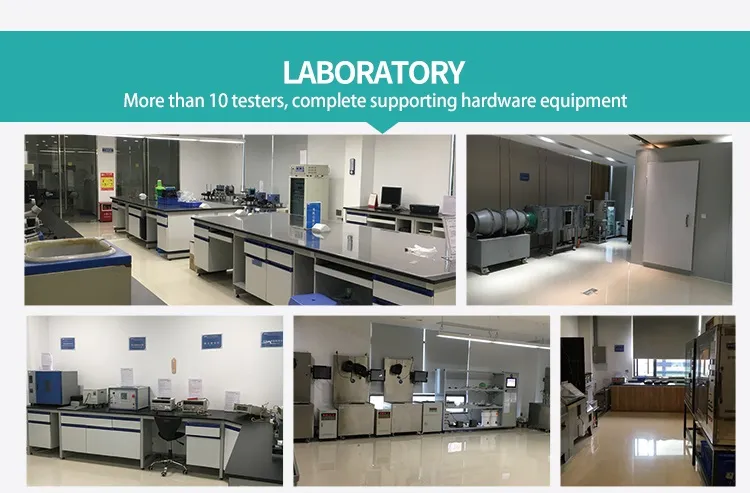

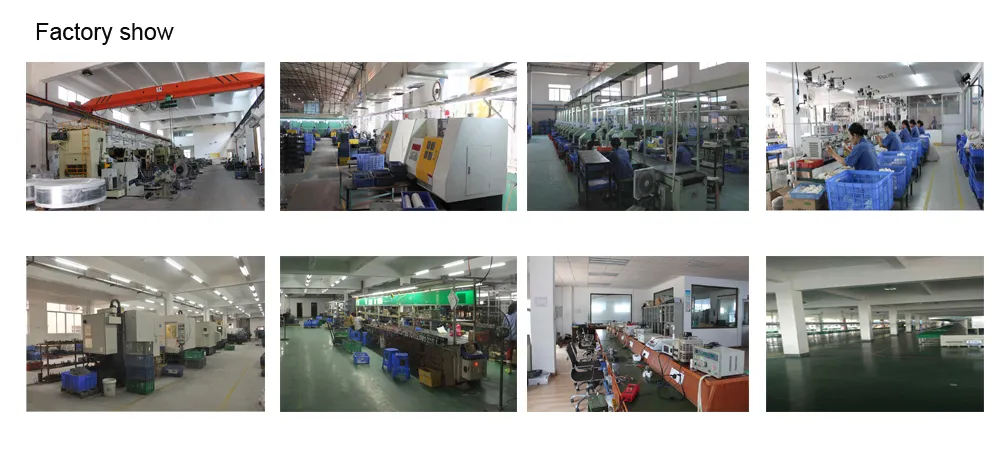

Manufacturing Facility

Focusing on micro-motors for household and industrial electrical appliances since 2006, our professional manufacturing facilities span 50,000 square meters with an annual production capacity of 10 million units. We specialize in BLDC motors, capacitor motors, synchronous motors, and stepping motors.

🔗

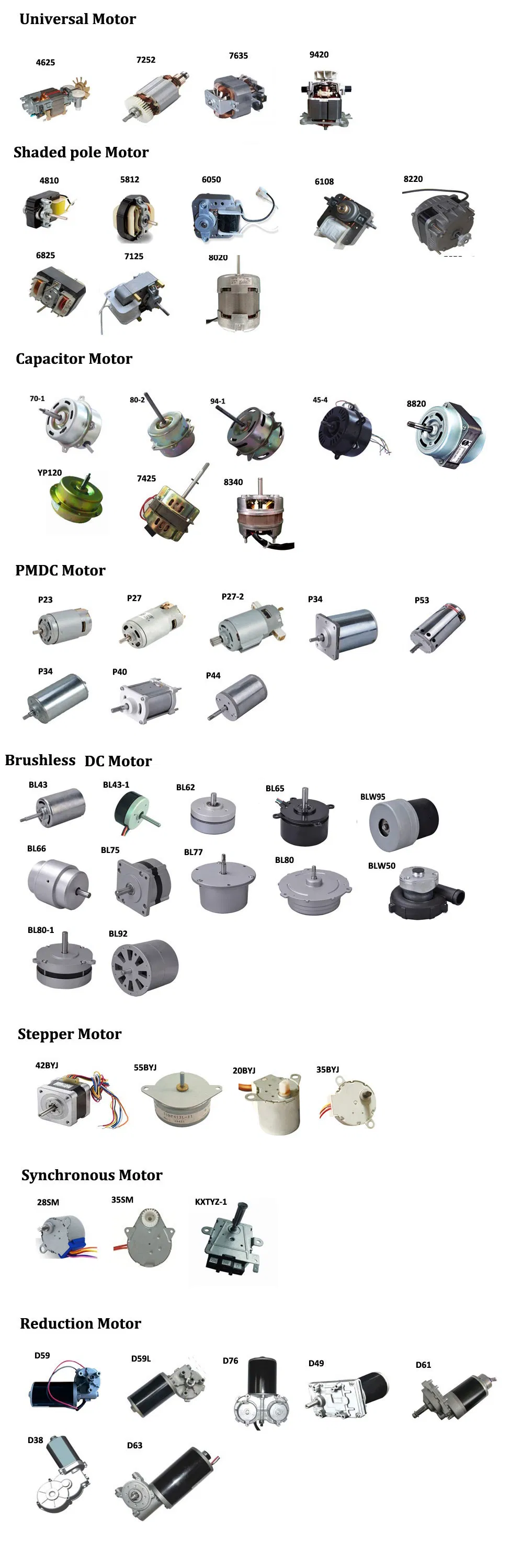

Related Products Range

❓

Frequently Asked Questions

Q1: What are the available voltage options for the 28BYJ motor? A: We offer standard DC 5V, 12V, and 24V options, and we can also support custom voltage requirements.

Q2: What is the noise level of this stepper motor during operation? A: The motor is designed for low noise operation, typically maintaining a noise level of less than 40dB(A).

Q3: What are the typical applications for this mini stepper motor? A: It is widely used in household appliances like air purifiers, air conditioners, refrigerators, and medical equipment or automatic door locks.

Q4: Does the motor support OEM or customized production? A: Yes, we provide full customization services to meet specific torque, voltage, and gear ratio requirements.

Q5: What certifications does the product hold? A: Our products are certified with ISO9001, CCC, RoHS, Reach, and CE to ensure international quality standards.

Q6: What is the reduction ratio of the 28BYJ model? A: The standard model mentioned features a 1:64 reduction ratio for precise control and high torque.
