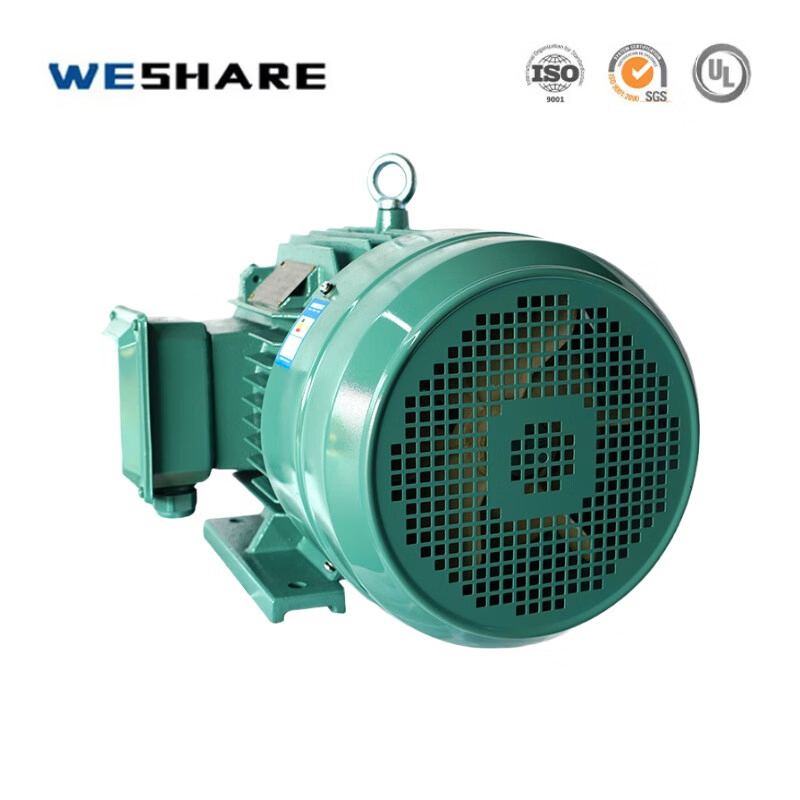

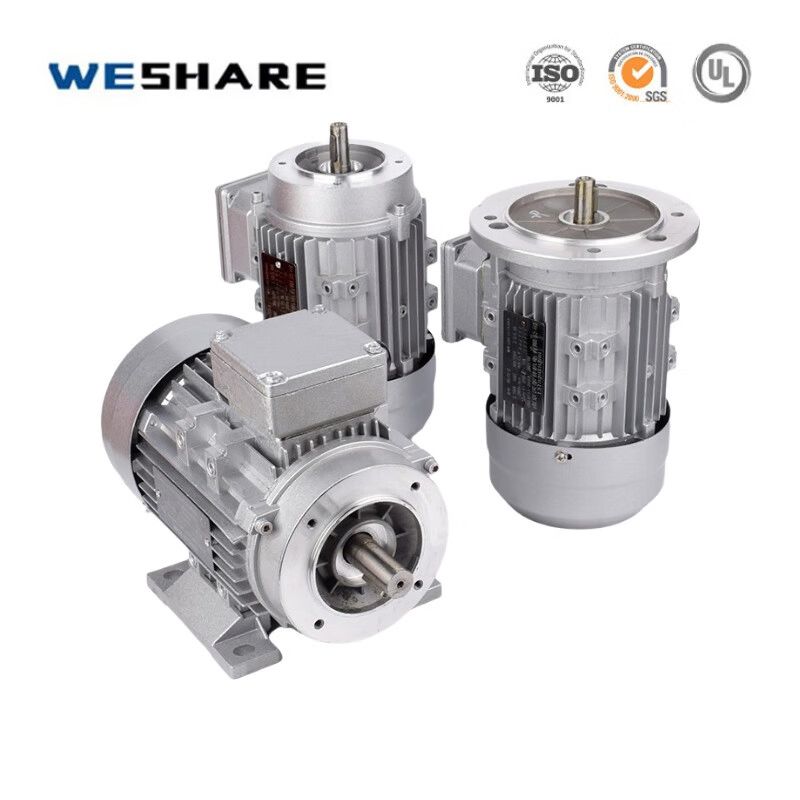

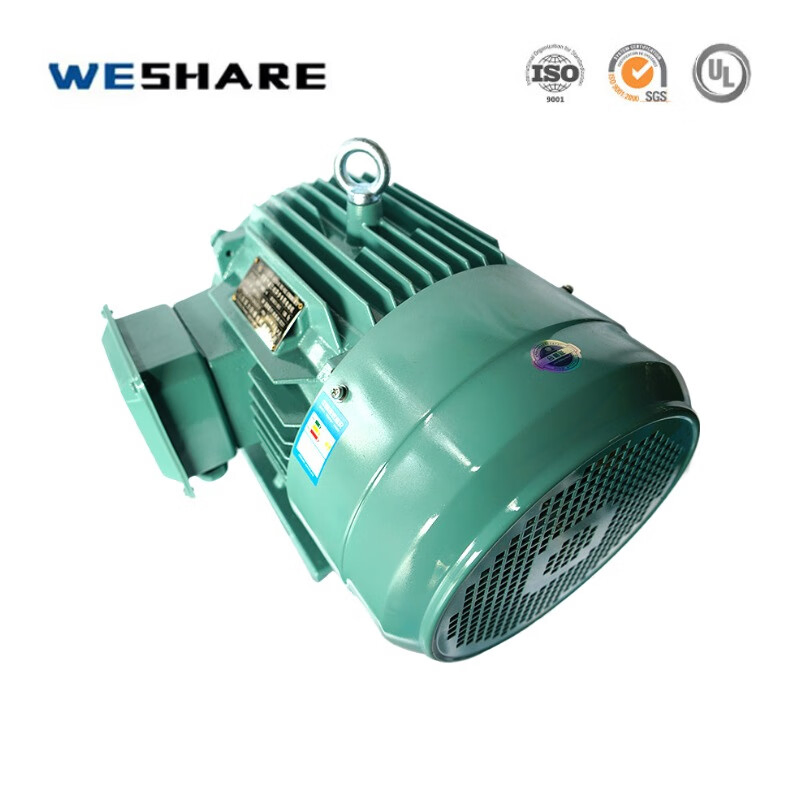

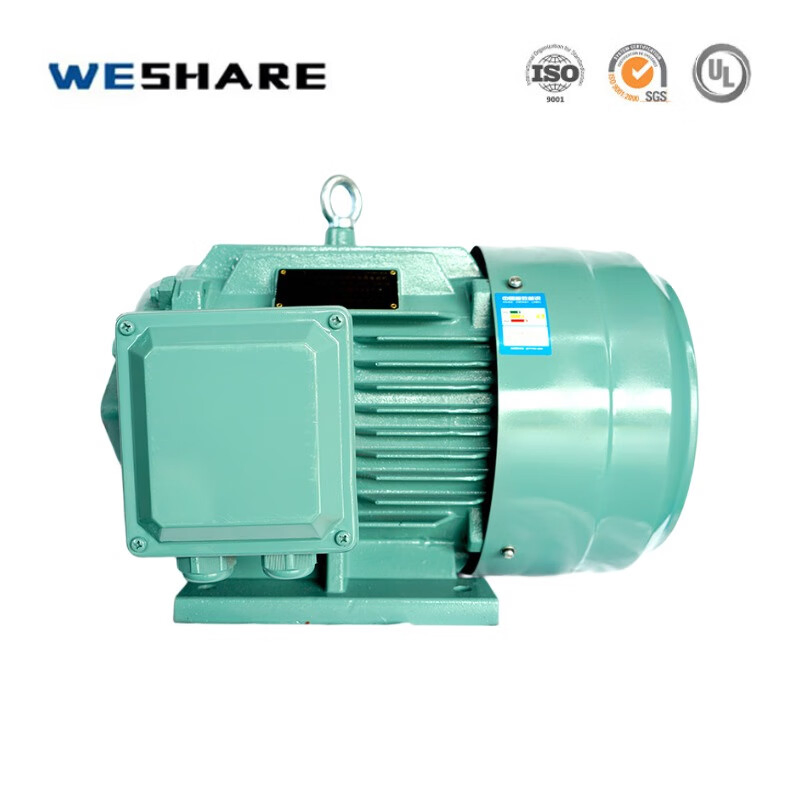

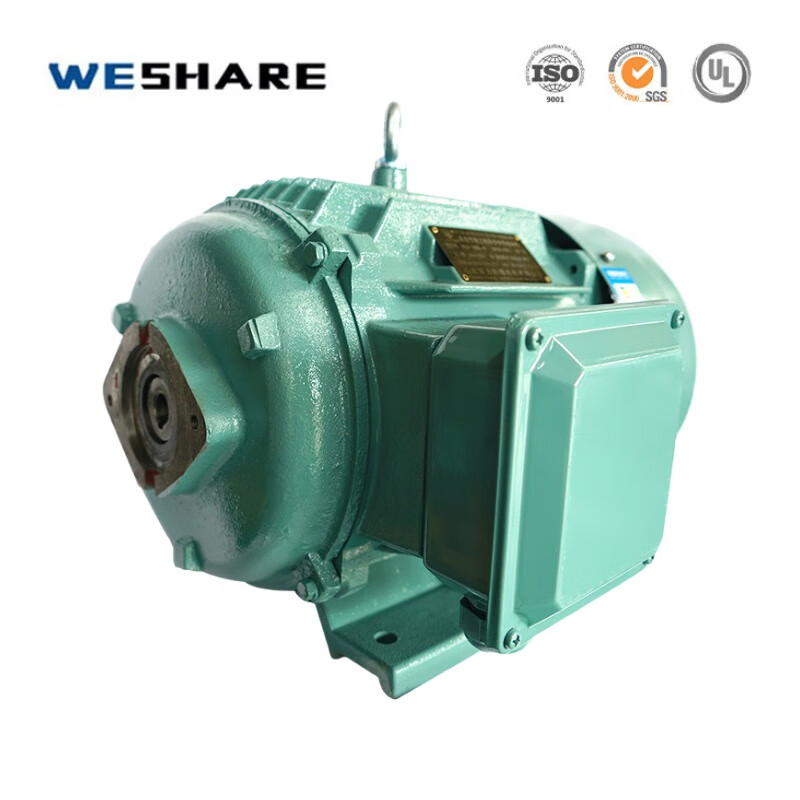

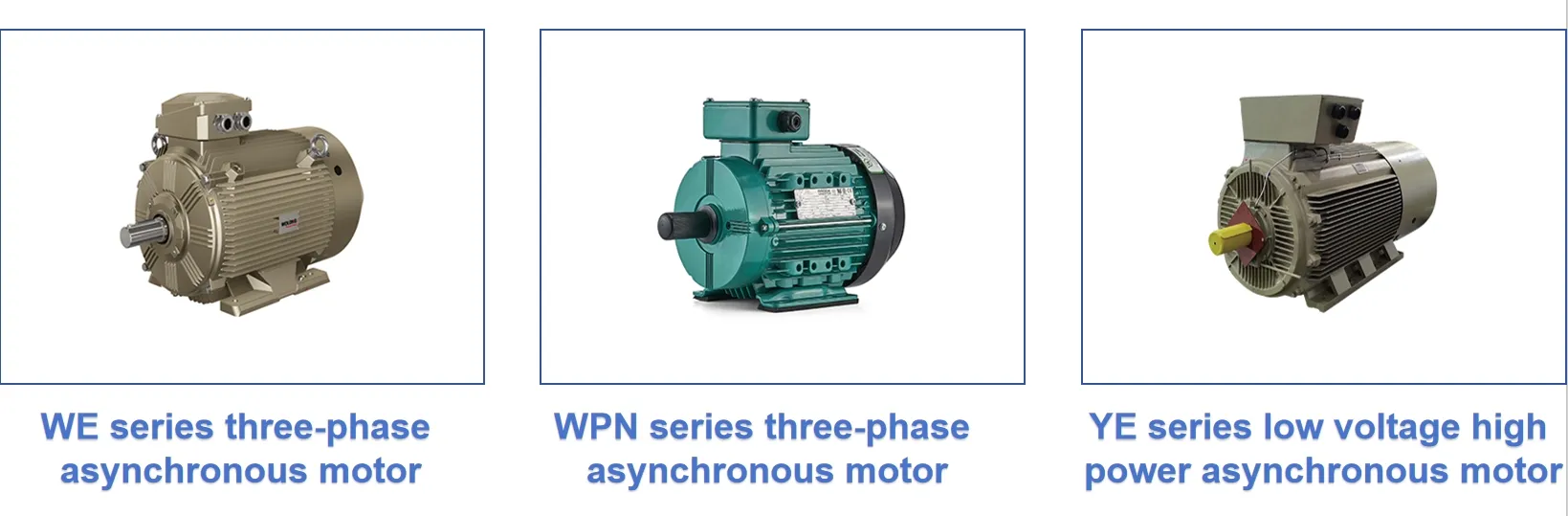

This Three Phase Asynchronous Motor is built with full copper windings and high-precision bearings. It features high efficiency, low noise, and long service life. Suitable for use in industrial automation, pump systems, air compressors, fans, and more.
The series follows GB/T755 and GB18613 standards for energy efficiency, meeting international IEC60034-30-1 efficiency grading for single-speed three-phase caged induction motors.
| Item | Specification Details |
|---|---|

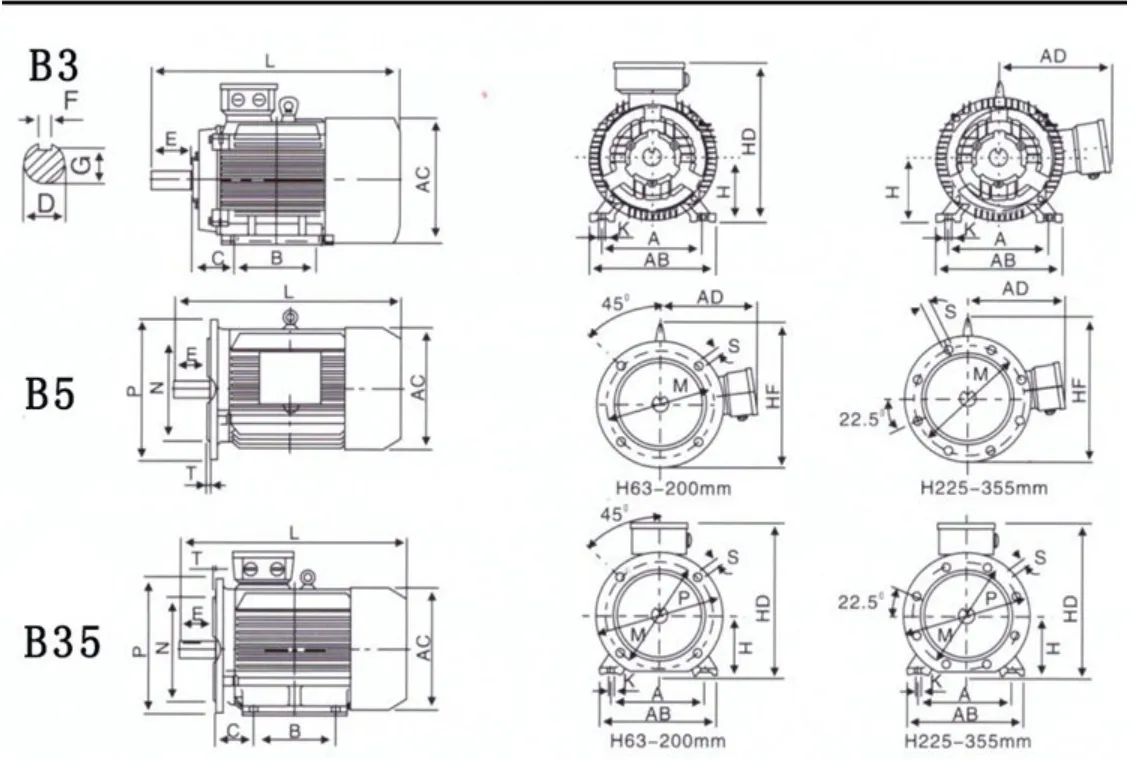

| Machinery Base Size | Aluminum: NEMA56~280/IEC63~180 | Iron: NEMA140~440/IEC90~315 |
| Rated Power | 0.18kW(0.25HP) ~ 150kW(200HP) |
| Rated Voltage | 60Hz: 230V/460V; 50Hz: 200V/400V |
| Pole Number | 2P, 4P, 6P, 8P |
| Efficiency Class | IE3 |
| Duty Type | S1 (Continuous) |
| Insulation Class | Class F (B, ΔT 80K) |
| Protection Class | IP55 |
| Cooling Method | IC411 |
| Type | kW | HP | Eff (%) | Power Factor | RPM | Torque (Nm) |
|---|---|---|---|---|---|---|
| YE2-80M1-2 | 0.75 | 1 | 77.4 | 0.82 | 2870 | 2.50 |
| YE2-90S-2 | 1.5 | 2 | 81.3 | 0.84 | 2880 | 4.97 |
| YE2-112M-2 | 4 | 5.5 | 85.8 | 0.88 | 2915 | 13.1 |
| YE2-132S2-2 | 7.5 | 10 | 88.1 | 0.89 | 2930 | 24.4 |
| YE2-160L-2 | 18.5 | 25 | 90.9 | 0.89 | 2945 | 60.0 |
| YE2-280S-2 | 75 | 100 | 93.8 | 0.89 | 2975 | 241 |
