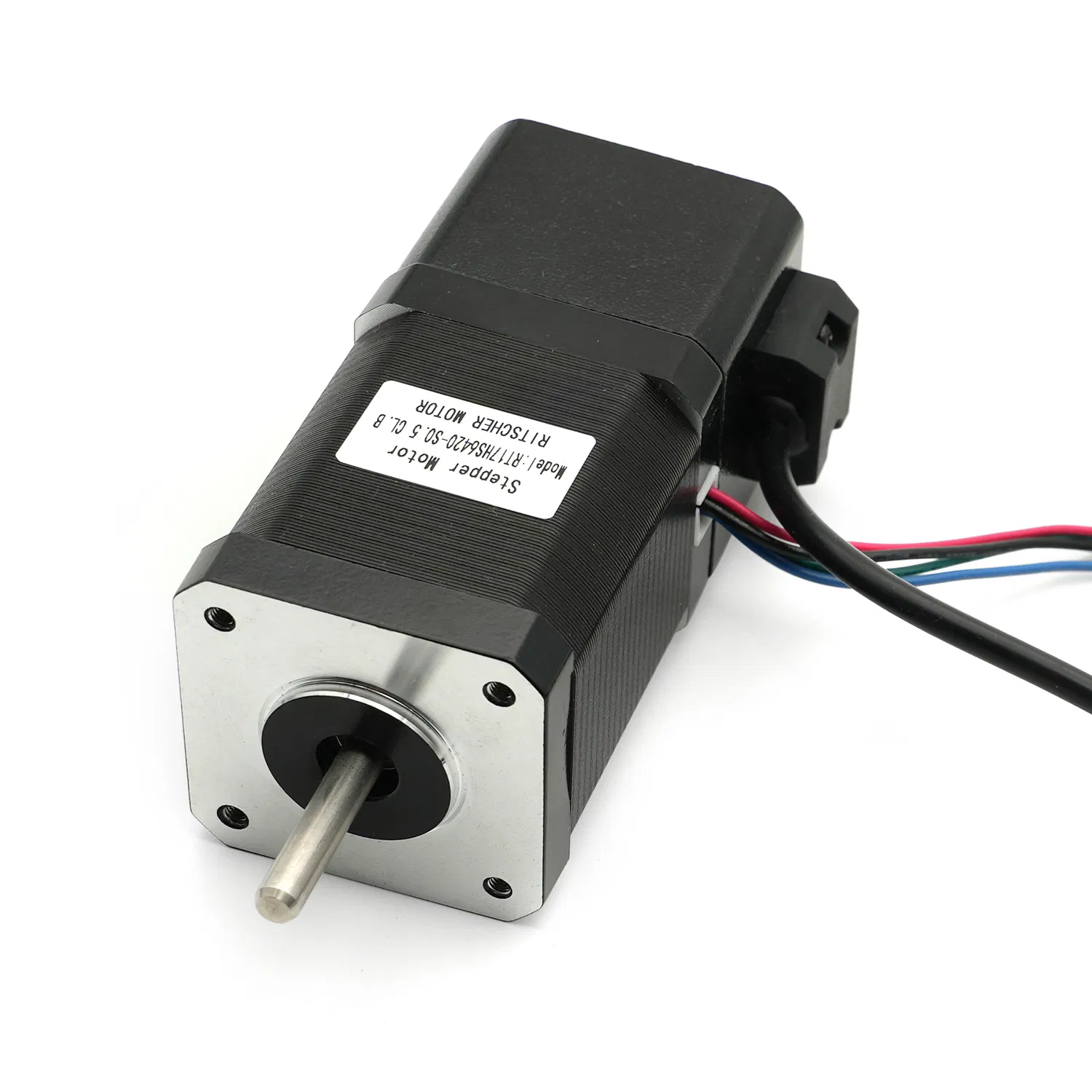

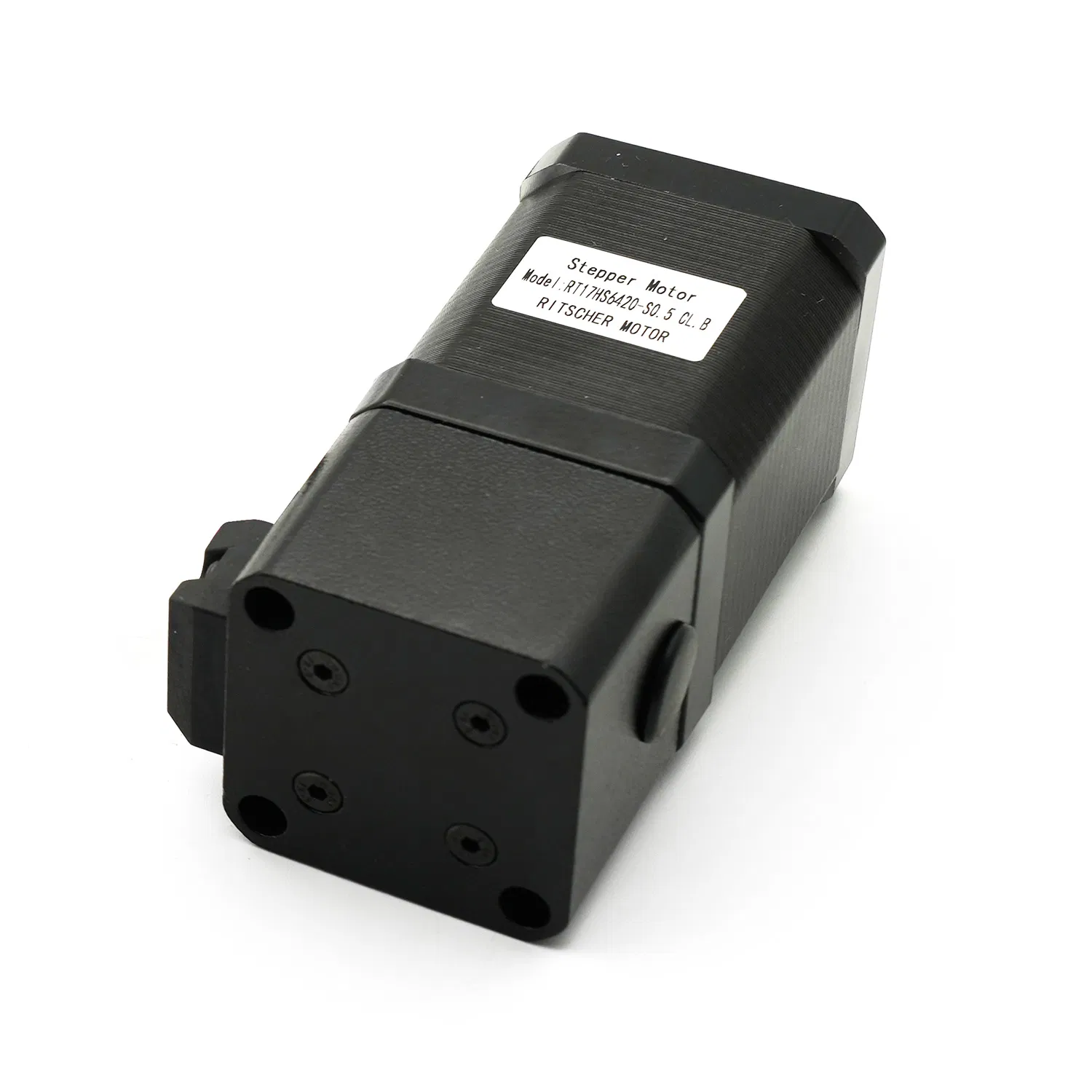

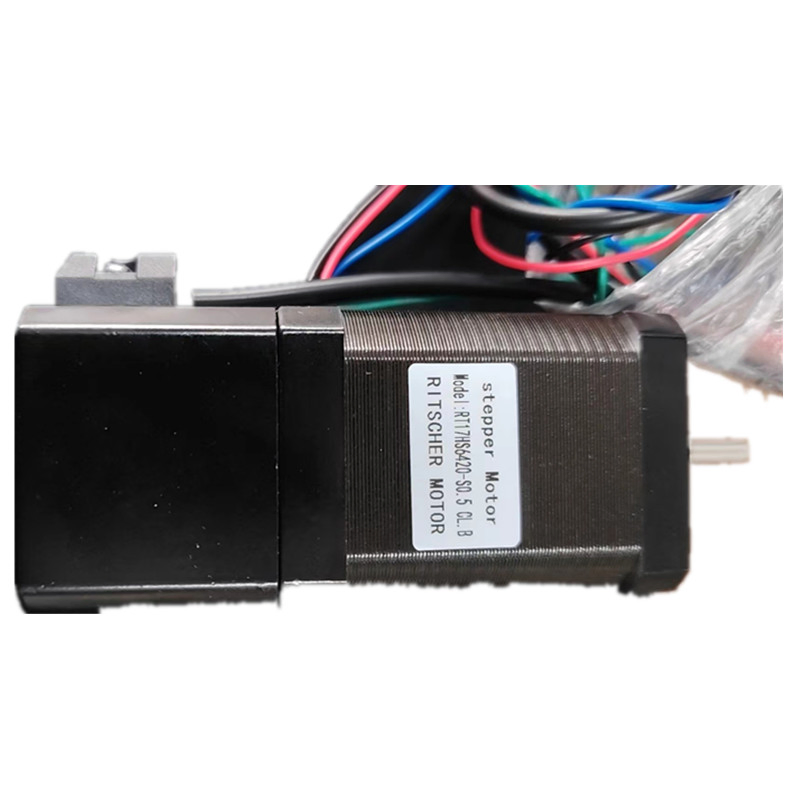

High-Quality 3V 5V 2-Phase Hybrid Stepper Motor 42*42*60mm with Brake 24V for ATM

1 / 5

High-Quality 3V 5V 2-Phase Hybrid Stepper Motor 424260mm with Brake 24V for ATM

Send Inquiry

Product Description

Product Application

Our high-performance stepper motors are versatile and engineered for precision in various industrial and medical environments:

Medical Machine Textile Instrument Water Pump ATM 3D Printer

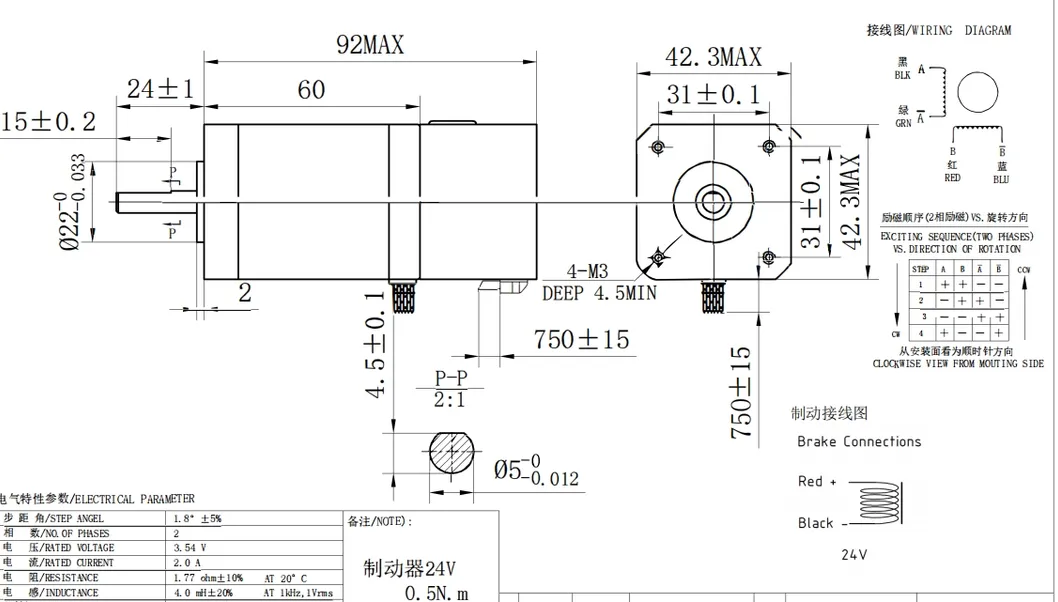

Technical Parameters

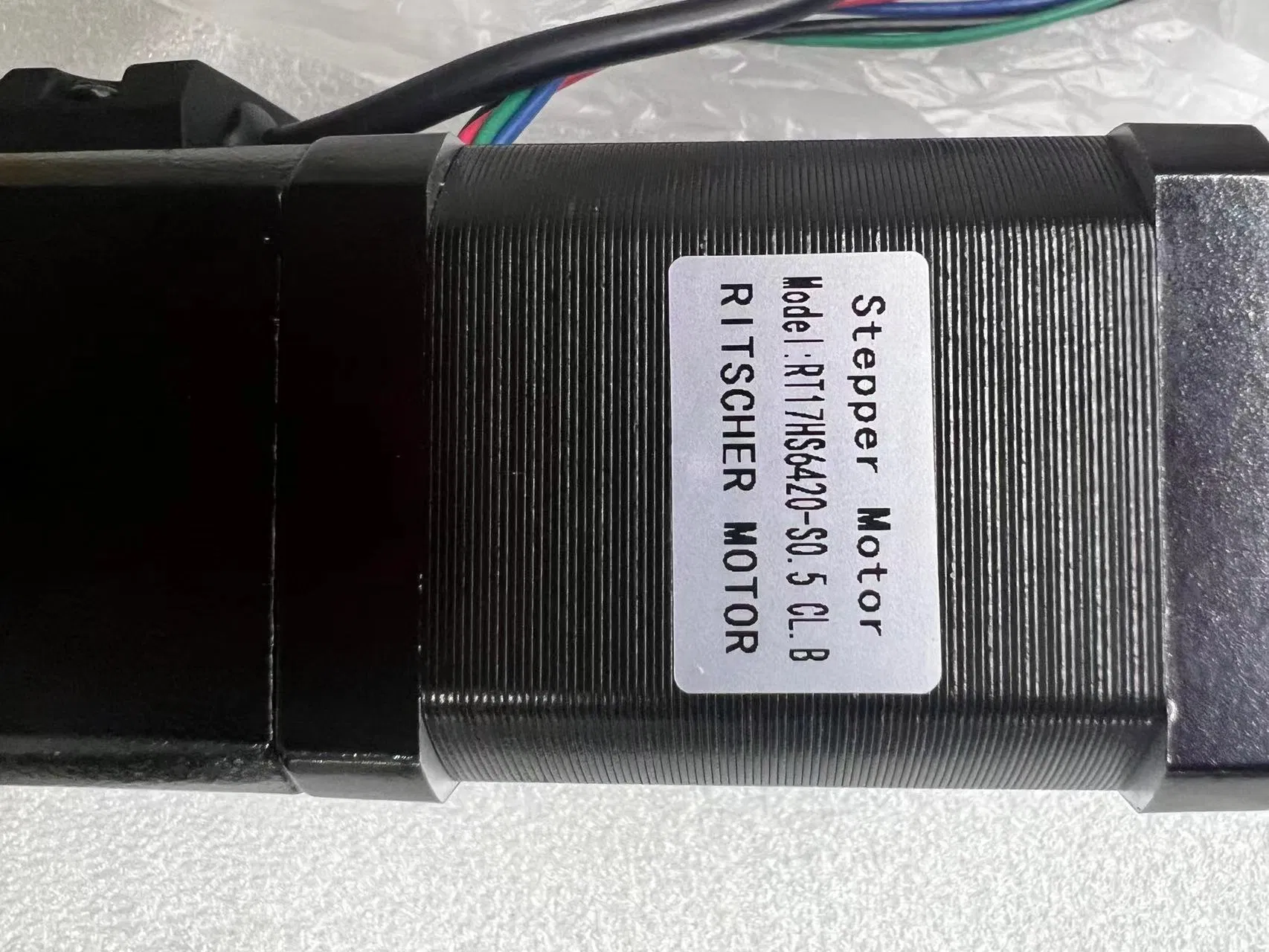

Model	RT17HS 6420-S0.5
Step Angle	1.8° +/- 5%
No. of Phases	2
Rated Voltage	3.54V
Rated Current	2.0A
Resistance	1.77 ohm +/- 10% AT 20°C
Inductance	4.0 mH + 20% AT 1kHz, 1Vrms
Holding Torque	0.8 N.m Min.
Detent Torque	3.2 N.cm Max.
Rotor Inertia	102 g.cm²
Lead Style	AWG26 UL1007
Insulation Class	Class B
Dielectric Strength	500V A.C 1/Minute
Insulation Resistance	100 MΩ Min.
Allow Axial Load	10 N
Allow Radial Load	21 N (On the shaft end)

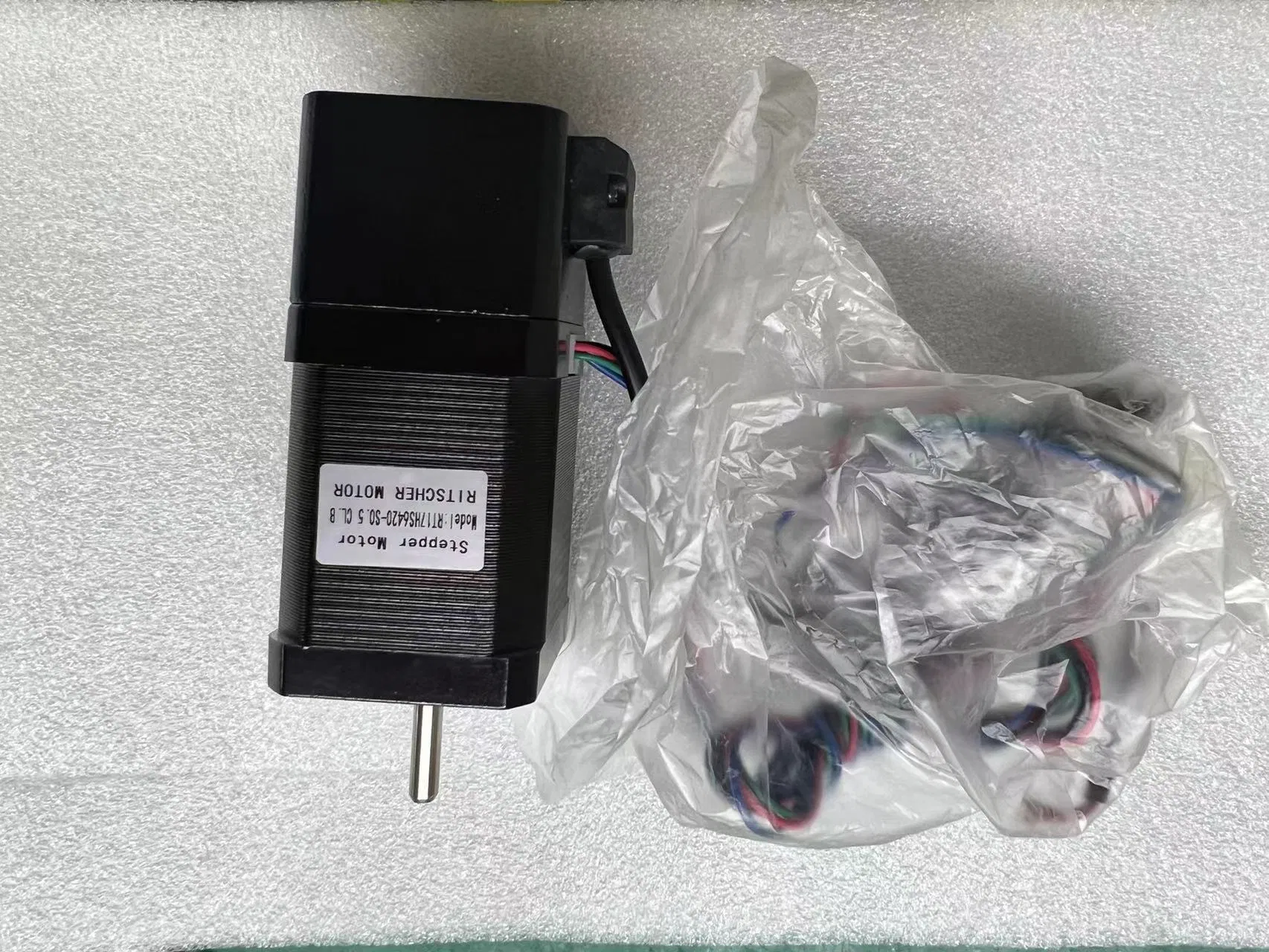

Product Detailed Display

About Our Manufacturing

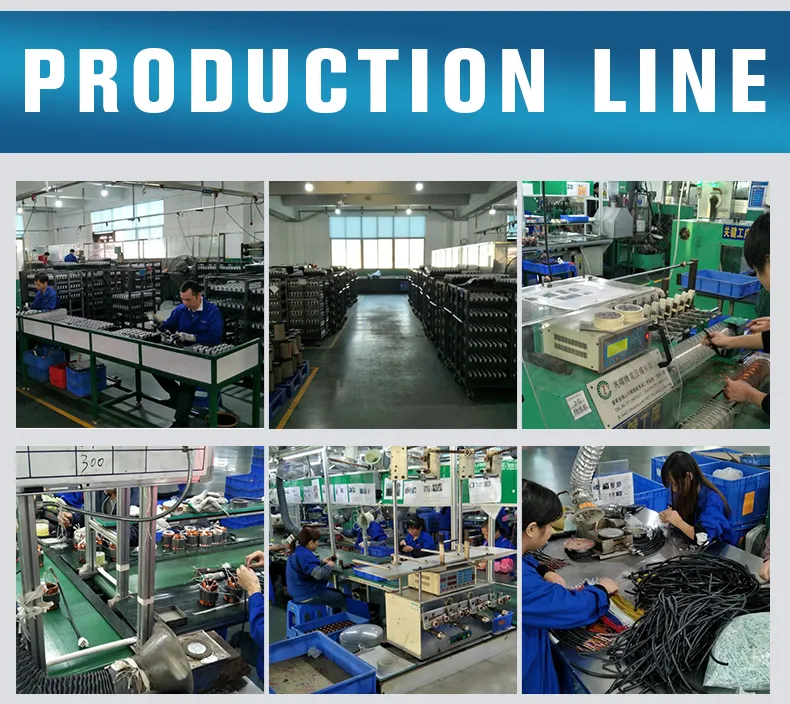

Established in 2006, our group focuses on the development and production of micro-motors for household and industrial appliances. With professional factories equipped with 25,000 square meters of production space and over 300 skilled employees, we maintain an annual capacity of 5 million units.

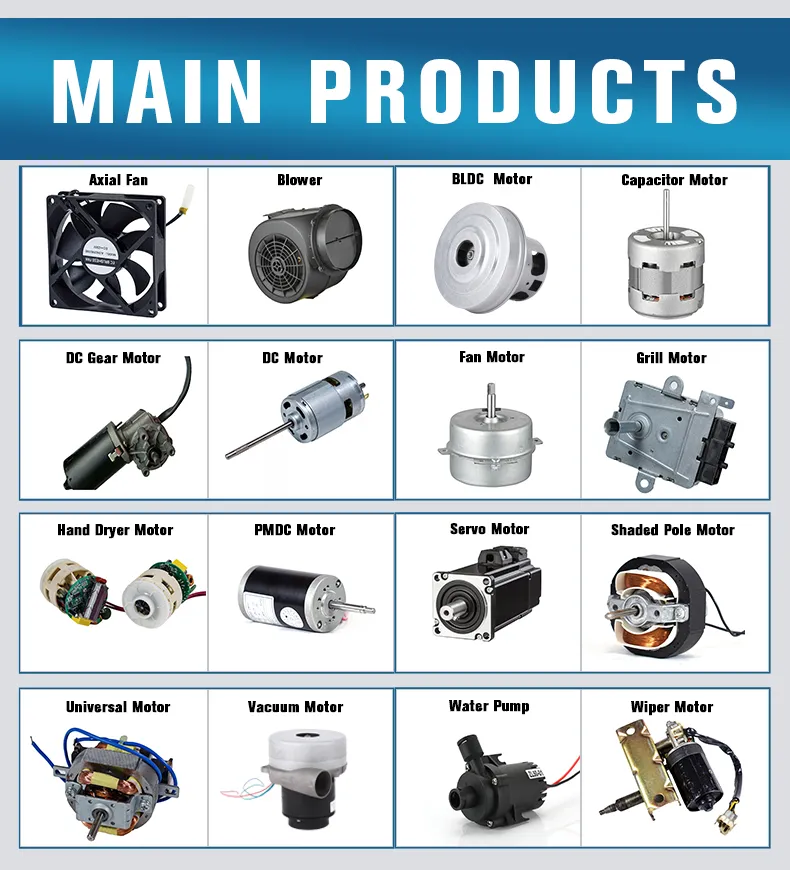

Our diverse product range includes shaded pole motors, synchronous motors, stepping motors, capacitor motors, BLDC motors, and compressors. These components are essential for refrigerators, HVAC systems, medical equipment, and automation tools. We utilize advanced manufacturing processes such as Aluminum and Zinc die-casting, sheet metal stamping, and plastic injection molding to ensure the highest quality standards.

Frequently Asked Questions

Q1: What types of motors do you specialize in? A: We provide a comprehensive range of motors including Stepping Motors, BLDC Motors, Synchronous Motors, Gear Motors, Fan Motors, and Shaded Pole Motors for various industrial applications.

Q2: Can I request samples for testing before placing a bulk order? A: Yes. If the technical specifications, MOQ, and price terms are acceptable, we provide samples for performance testing to ensure the product meets your requirements.

Q3: Is there a Minimum Order Quantity (MOQ) for these motors? A: Typically, the MOQ ranges from 1,000 to 10,000 pieces depending on the model. However, we may accept smaller initial lots for the first few orders following sample approval.

Q4: Are your motors customizable for specific applications? A: Yes, most of our motors are custom-made to suit specific technical needs, ensuring optimal performance for your unique machinery or device.

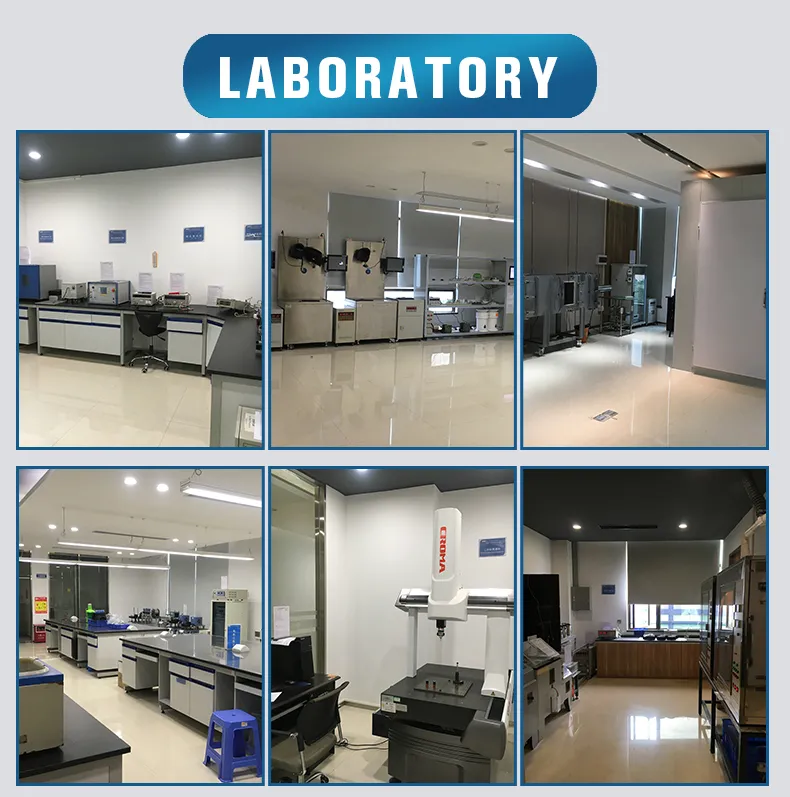

Q5: How do you ensure product quality and reliability? A: We maintain a complete R&D and QC department equipped with multiplex temperature measuring devices, performance parameter inspection tools, and anechoic rooms for rigorous testing.

Q6: What are the typical applications for your hybrid stepper motors? A: Our hybrid stepper motors are widely used in high-precision equipment such as 3D printers, medical diagnostic machines, ATMs, textile instruments, and industrial pumps.
