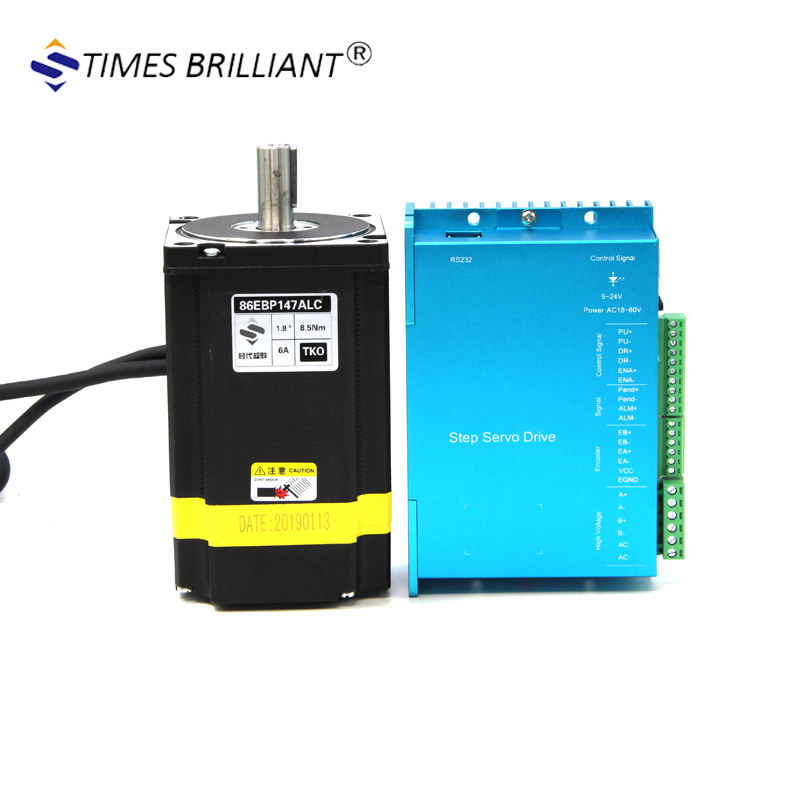

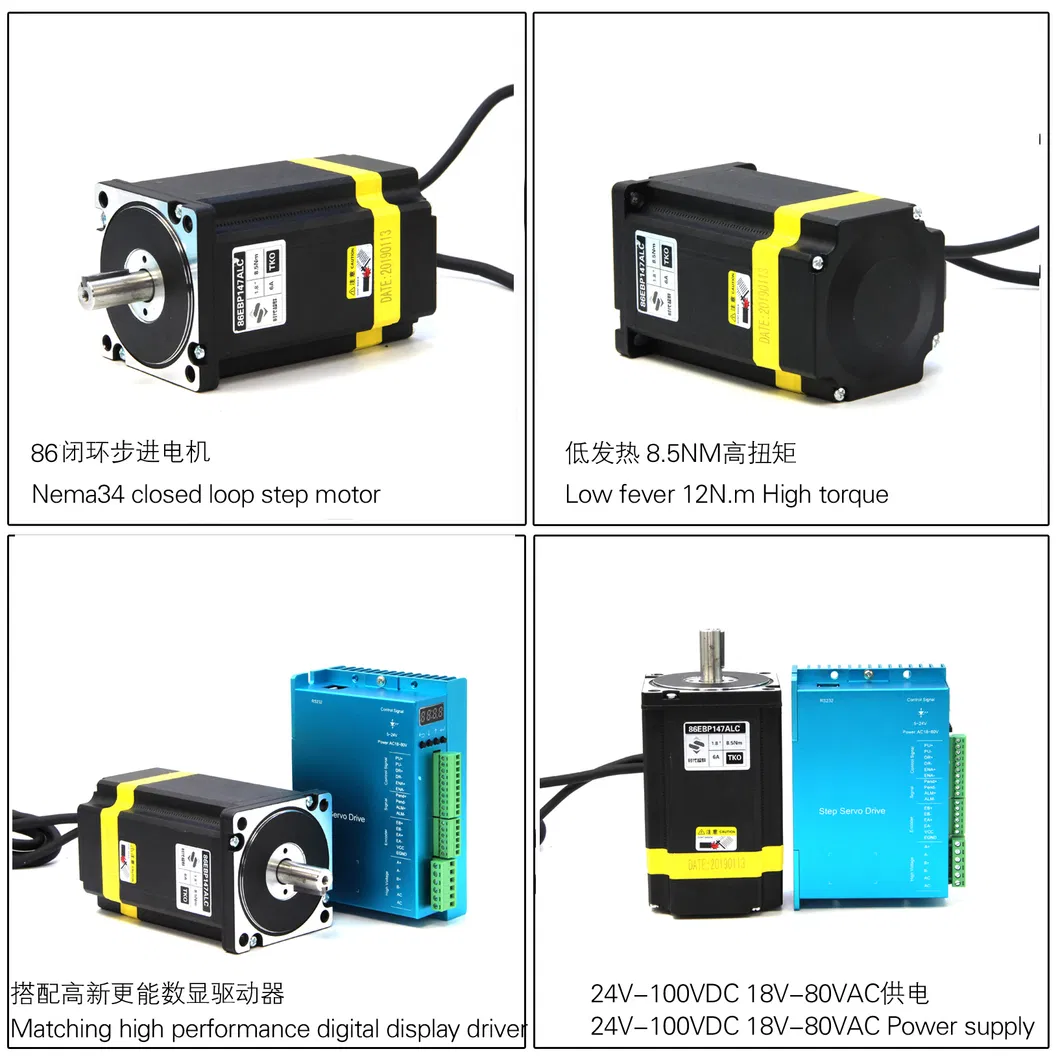

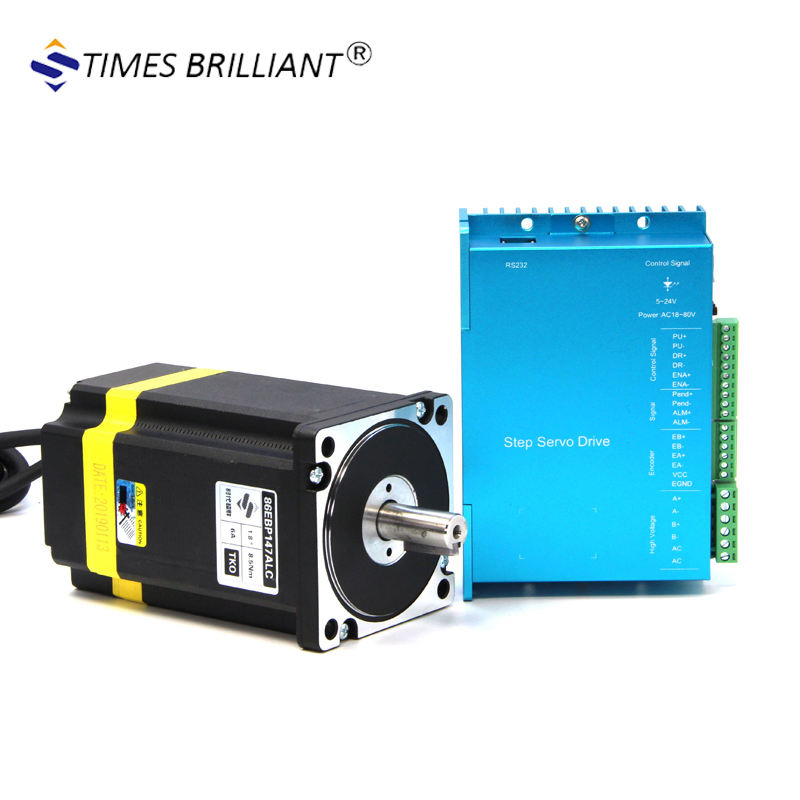

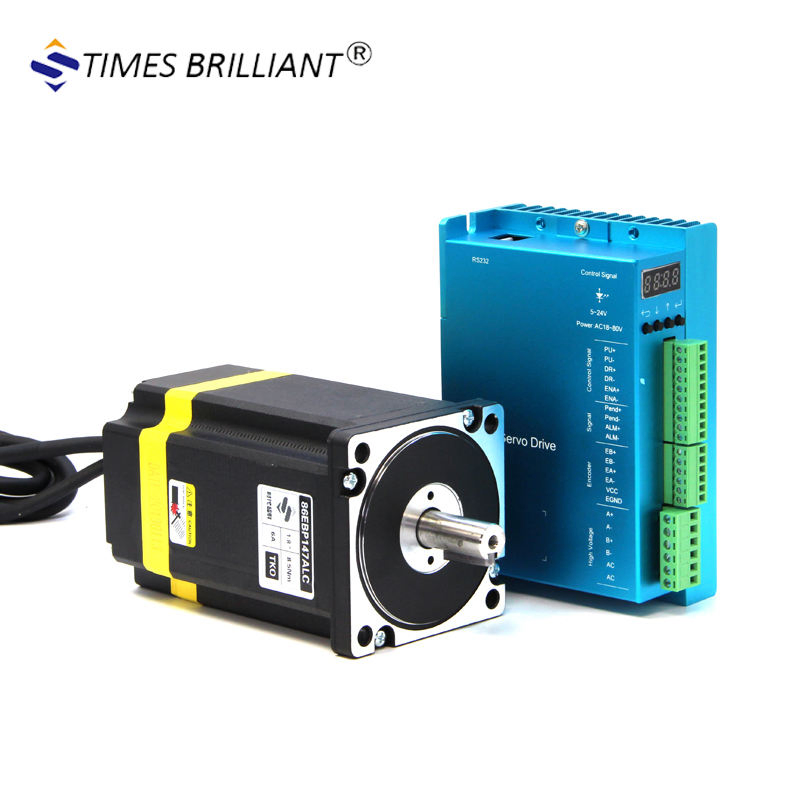

8.5Nm Nema34 Closed Loop Stepper Motor Kit
High-torque 2-phase closed loop stepper motor with driver kit specifically designed for CNC machines.
Note: the motor with magnetic, so magnetic inspection fee will be incurred during transportation. Large quantities can dispense with it.
ZDM-2HA865 Stepper Driver Brief Introduction:
ZDM-2HA865 is a new generation DSP digital step closed-loop driver. Using advanced vector closed loop control technology, the traditional open loop stepper motor problems of step loss are completely overcome.
- Significantly improves high-speed performance and reduces motor heating.
- Reduces vibration and improves equipment speed and precision.
- Outputs alarm signal during continuous overload for high reliability.
- Compatible with 57/60 and 86 series stepper motors.

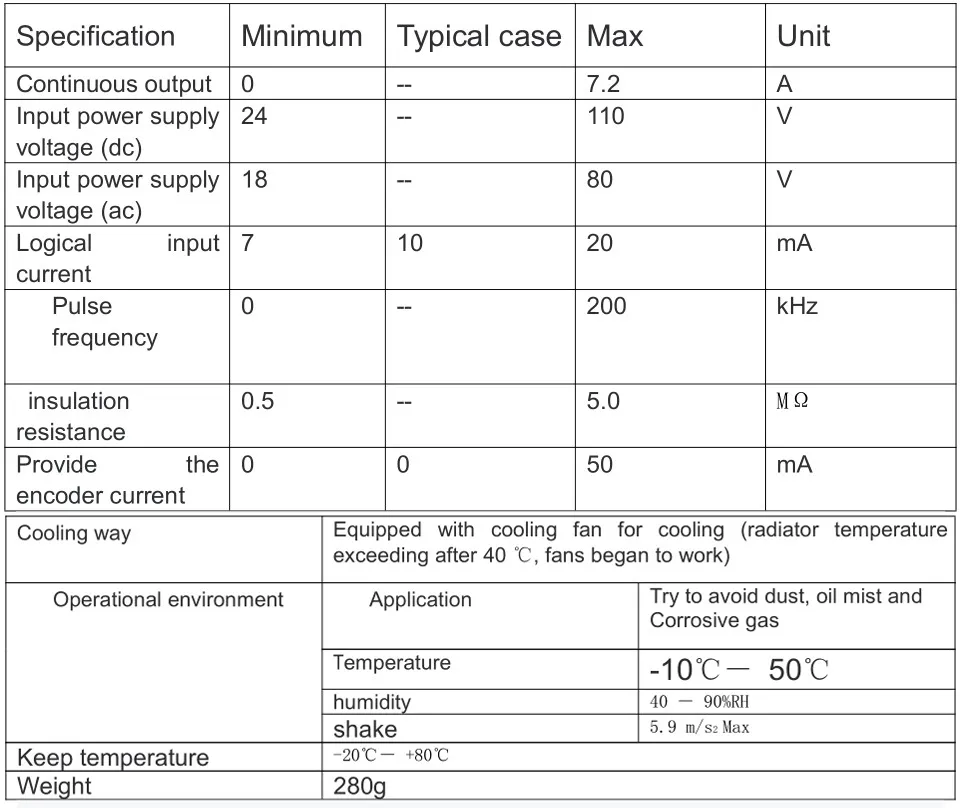

⚙️ Technical Characteristics
- New DSP chip for 32-bit motor control.
- Advanced vector closed loop control technology.
- LED digital tube display button operation for easy use.
- Static and dynamic current can be set arbitrarily (0--7.2A range).
- Adaptive drive for 57/60 and 86 series hybrid closed loop motors.
- Input/output of photoelectric isolation signal.
- Pulse response frequency up to 200KHz.
- 16 subdivision options with maximum 256 subdivisions (51200 pulses/rotations).
- Protection for over-current, over-heat, over-voltage and tracking error.
🛠️ Service & Support
❓ Frequently Asked Questions

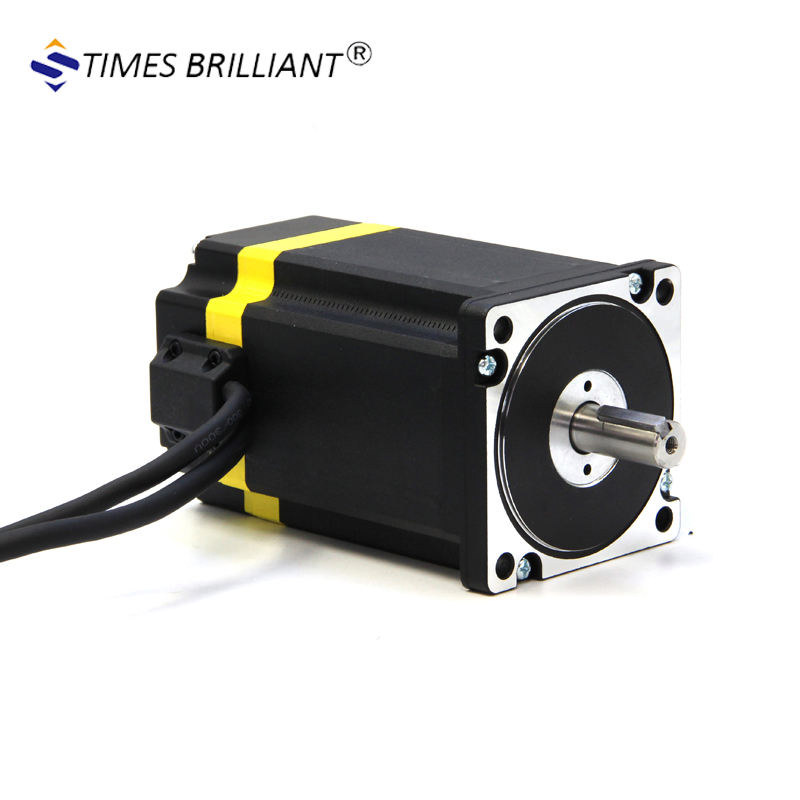

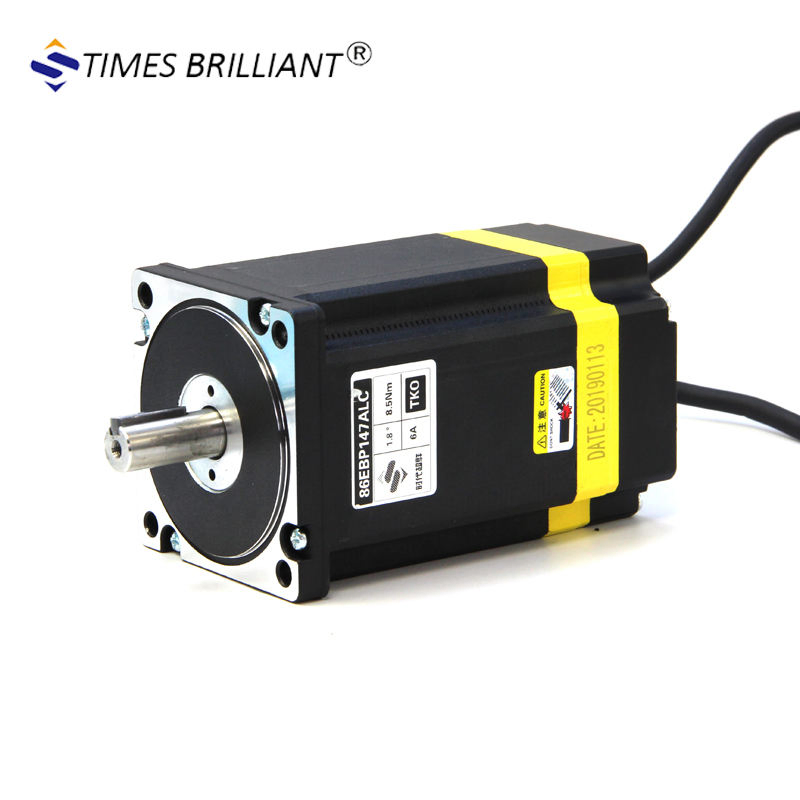

What is the holding torque of the 86EBP147ALC-TK0 motor?
The motor features a high holding torque of 8.5N.m, making it suitable for heavy-duty CNC applications.
Does this system lose steps like traditional stepper motors?
No, the ZDM-2HA865 driver uses advanced vector closed-loop control technology to completely eliminate step loss.
What is the current range for the driver?
The driver supports an adjustable dynamic and static current range from 0 to 7.2A.
Is the driver compatible with other motor sizes?
Yes, the driver is adaptive and compatible with both 57/60 series and 86 series hybrid closed-loop stepper motors.
What kind of protection does the driver offer?
It includes comprehensive protection against over-current, over-heating, over-voltage, and tracking errors.

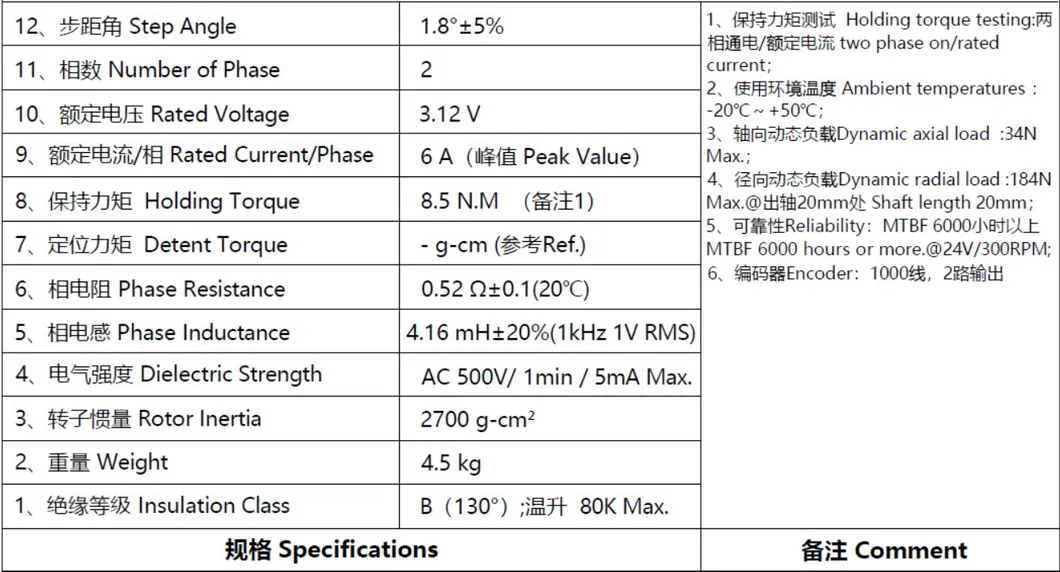

What is the step angle and subdivision capability?
The motor has a 1.8-degree step angle, and the driver supports up to 256 subdivisions (51200 pulses/rotation).
