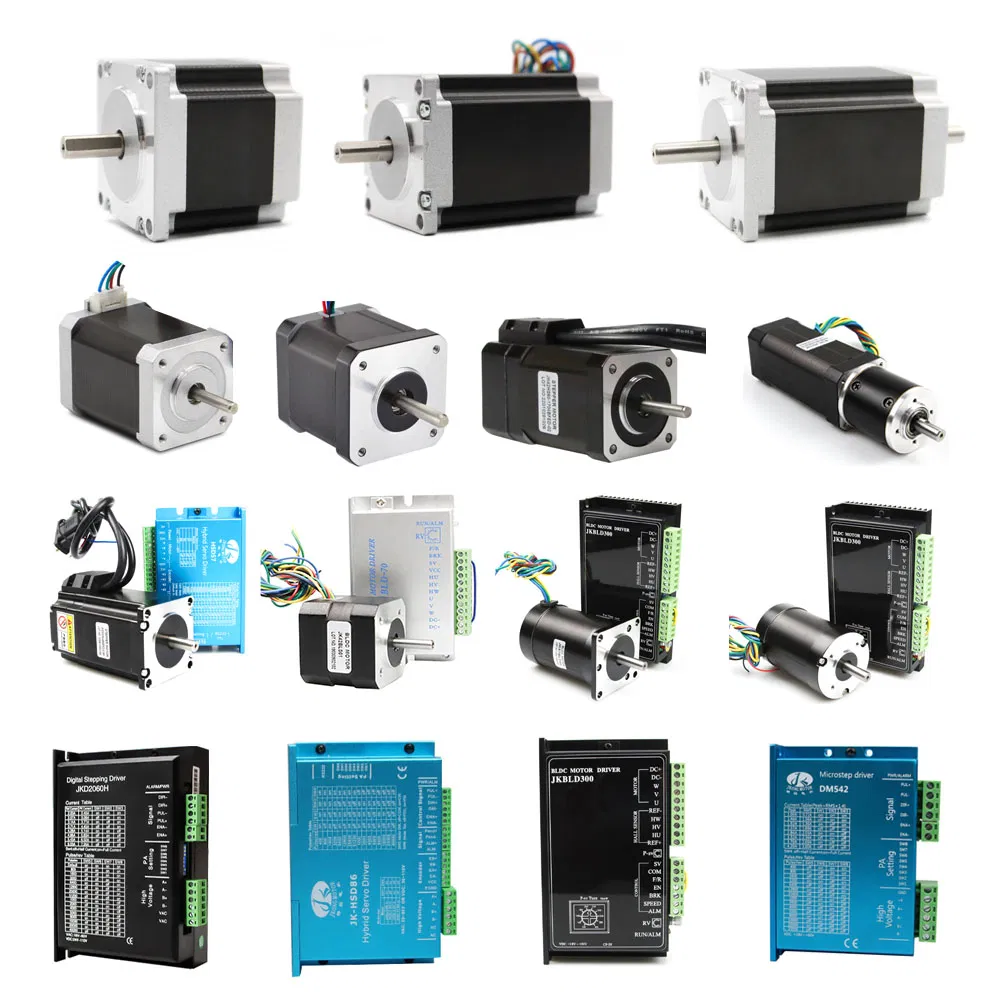

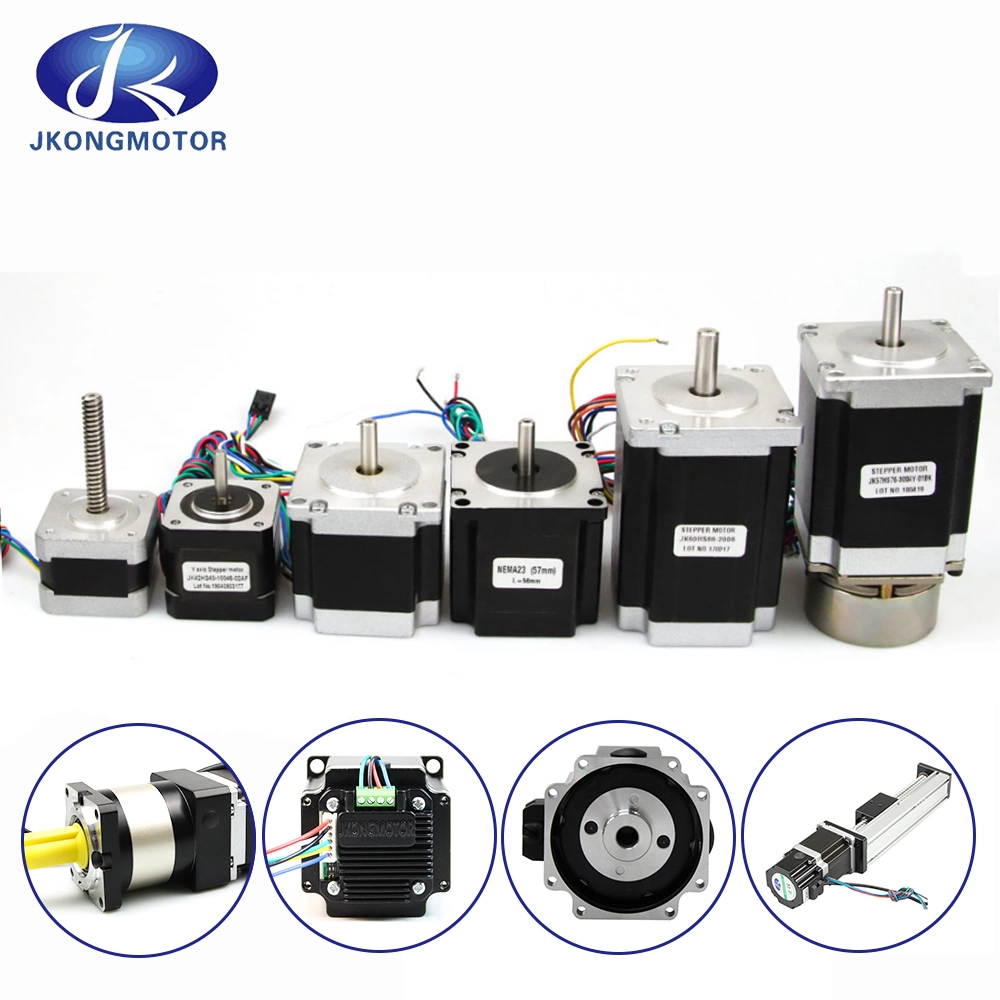

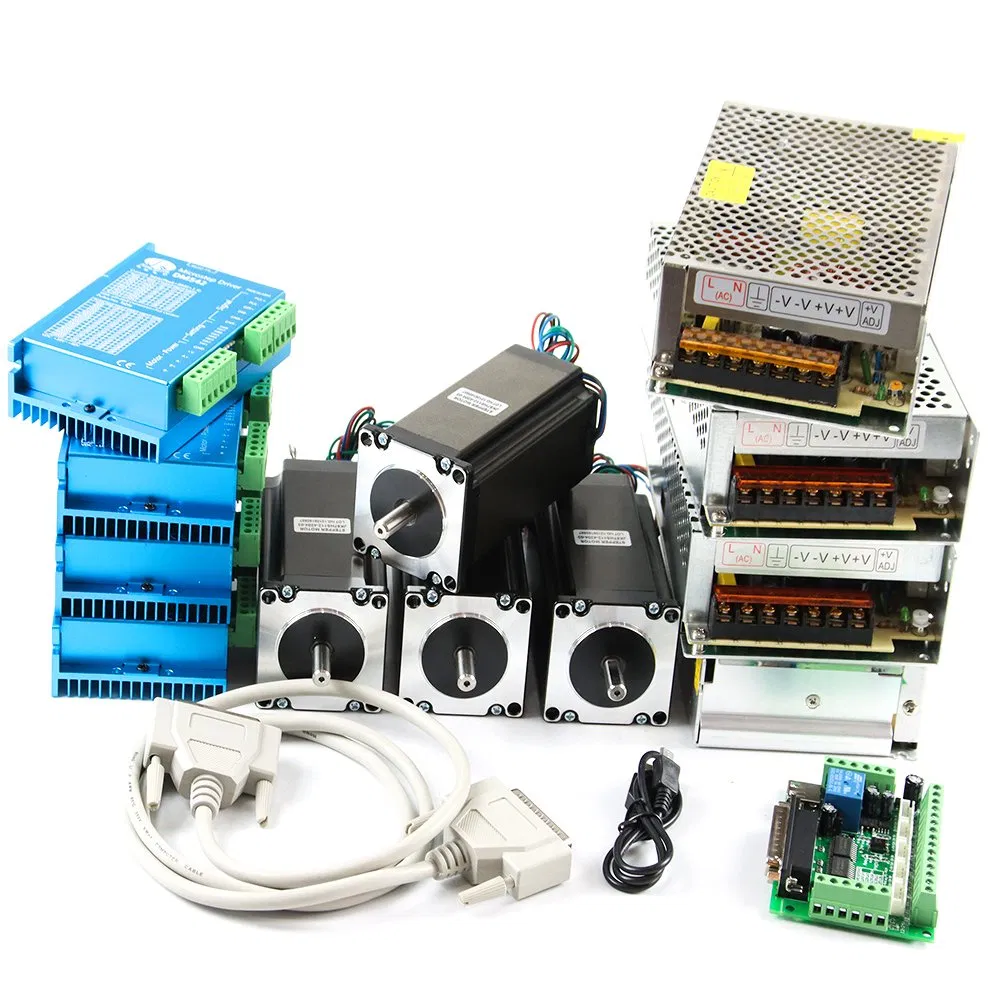

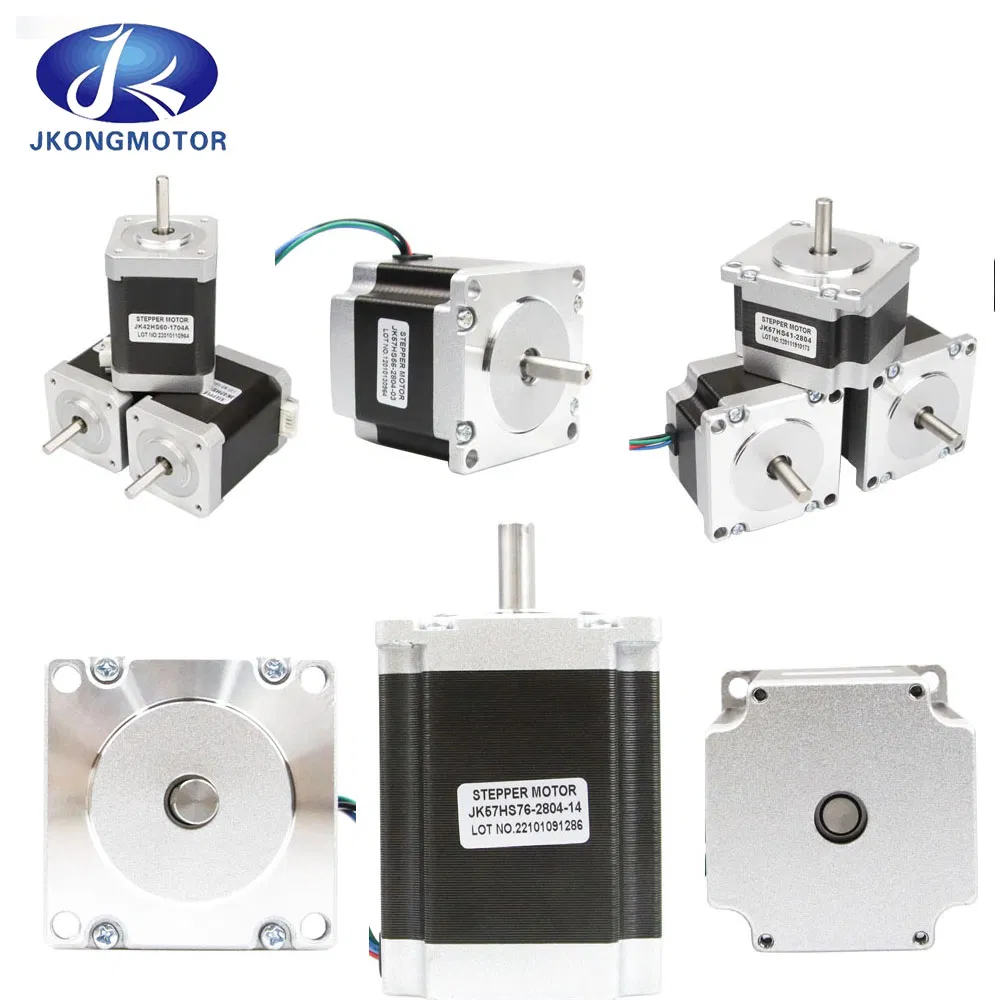

1.8 or 0.9 Degree 2 Phase NEMA 23 Electric Hybrid Stepper Motor
This motor converts electrical pulse signals into corresponding angular displacements or linear displacements. It is widely used in various automation fields such as 3D printers, CNC milling machines, medical equipment, and textile machinery.
| General Specifications | |
|---|---|
| Step Angle | 1.8° or 0.9° |
| Temperature Rise | 80ºC max |
| Ambient Temperature | -20ºC ~ +50ºC |
| Insulation Resistance | 100 MΩ Min., 500VDC |
| Dielectric Strength | 500VAC for 1 minute |
| Shaft Radial Play | 0.02 Max. (450g-load) |
| Model No. | Motor Length (mm) | Current (A) | Resistance (Ω) | Holding Torque (N.m) | Leads | Mass (Kg) |
|---|---|---|---|---|---|---|
| JK57HS41-2804 | 41 | 2.8 | 0.7 | 0.55 | 4 | 0.47 |
| JK57HS51-2804 | 51 | 2.8 | 0.83 | 1.01 | 4 | 0.59 |
| JK57HS56-2804 | 56 | 2.8 | 0.9 | 1.2 | 4 | 0.68 |
| JK57HS76-2804 | 76 | 2.8 | 1.1 | 1.89 | 4 | 1.1 |
| JK57HS82-4204 | 82 | 4.2 | 0.7 | 2.2 | 4 | 1.2 |
| JK57HS112-4204 | 112 | 4.2 | 0.9 | 3.1 | 4 | 1.4 |
Brushless DC Motor Kit

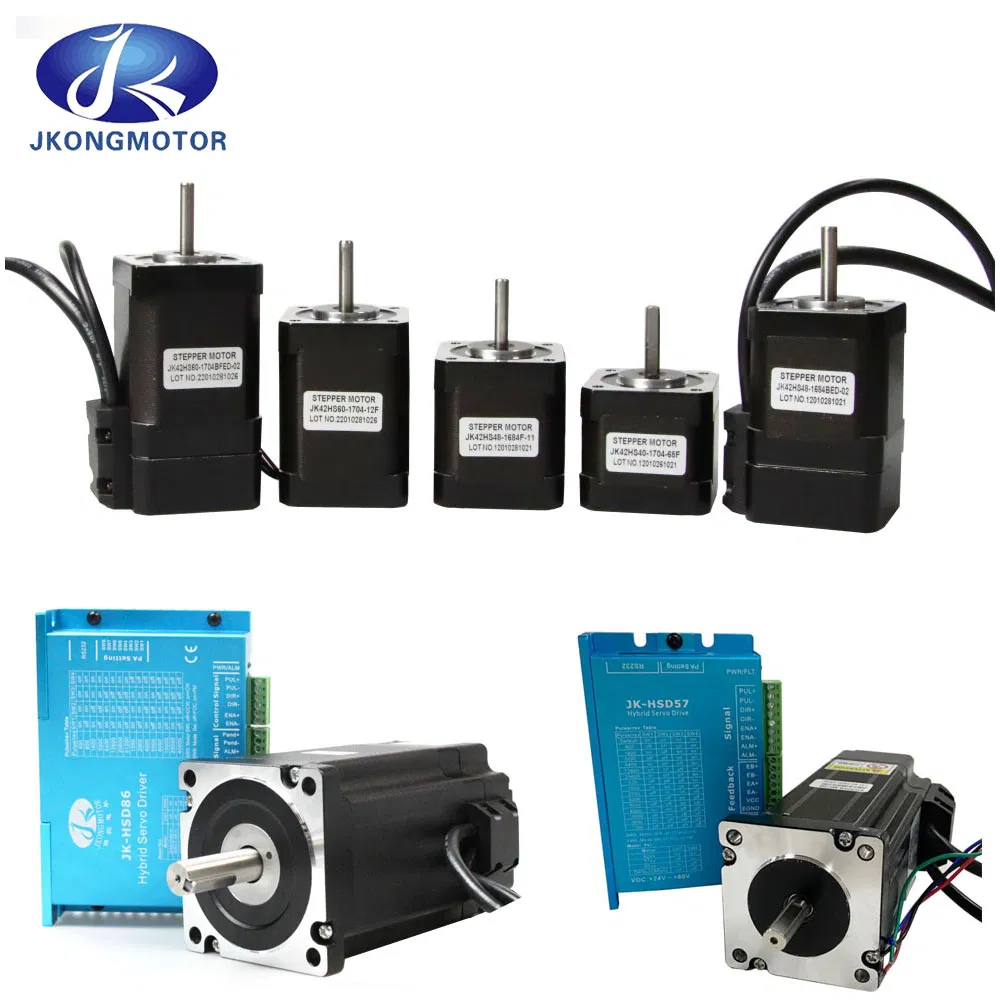

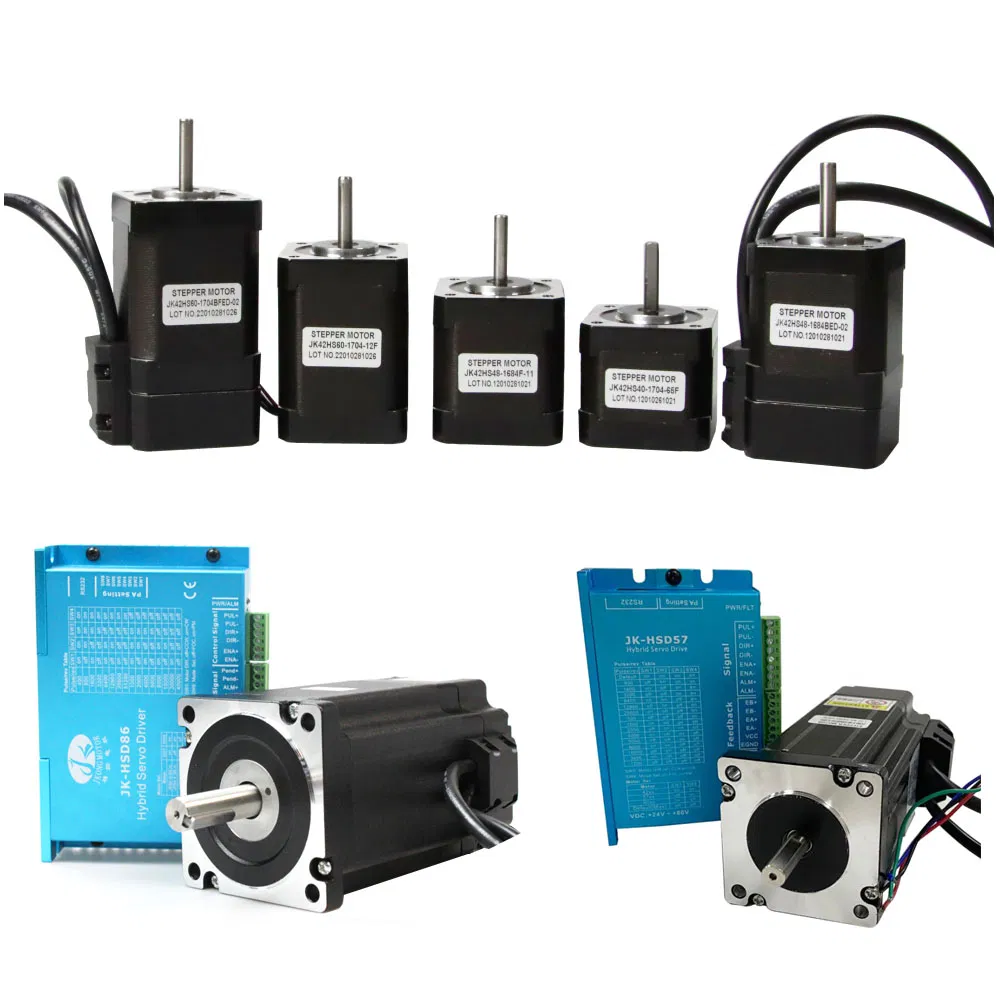

Stepper Motor with Encoder

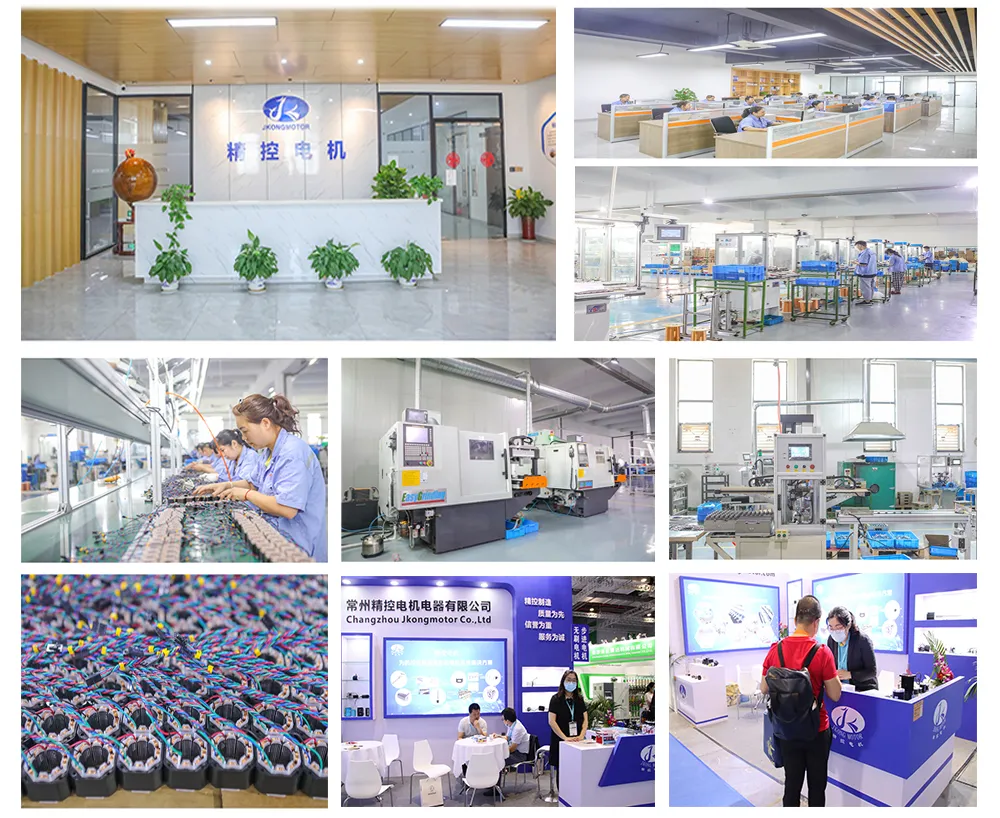

Equipped with advanced manufacturing technology, we provide high-performance motors used in CNC machinery, 3D printing, and automated industrial equipment. We welcome OEM and ODM collaborations to meet specific strategic goals and sustainable development needs.

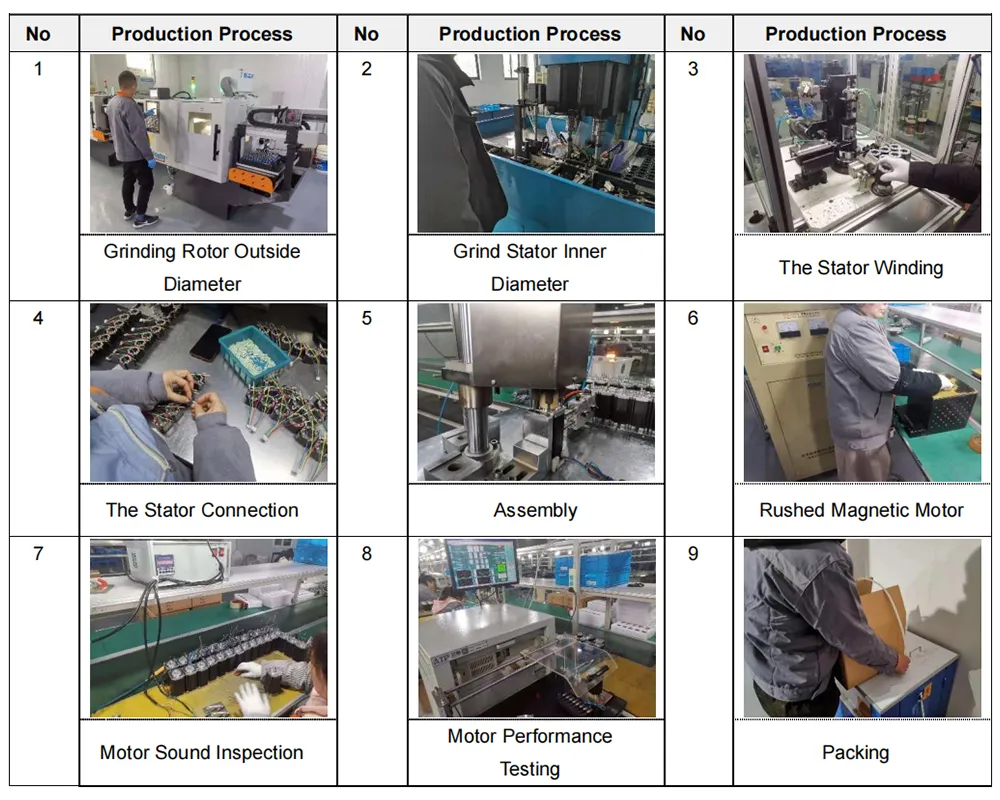

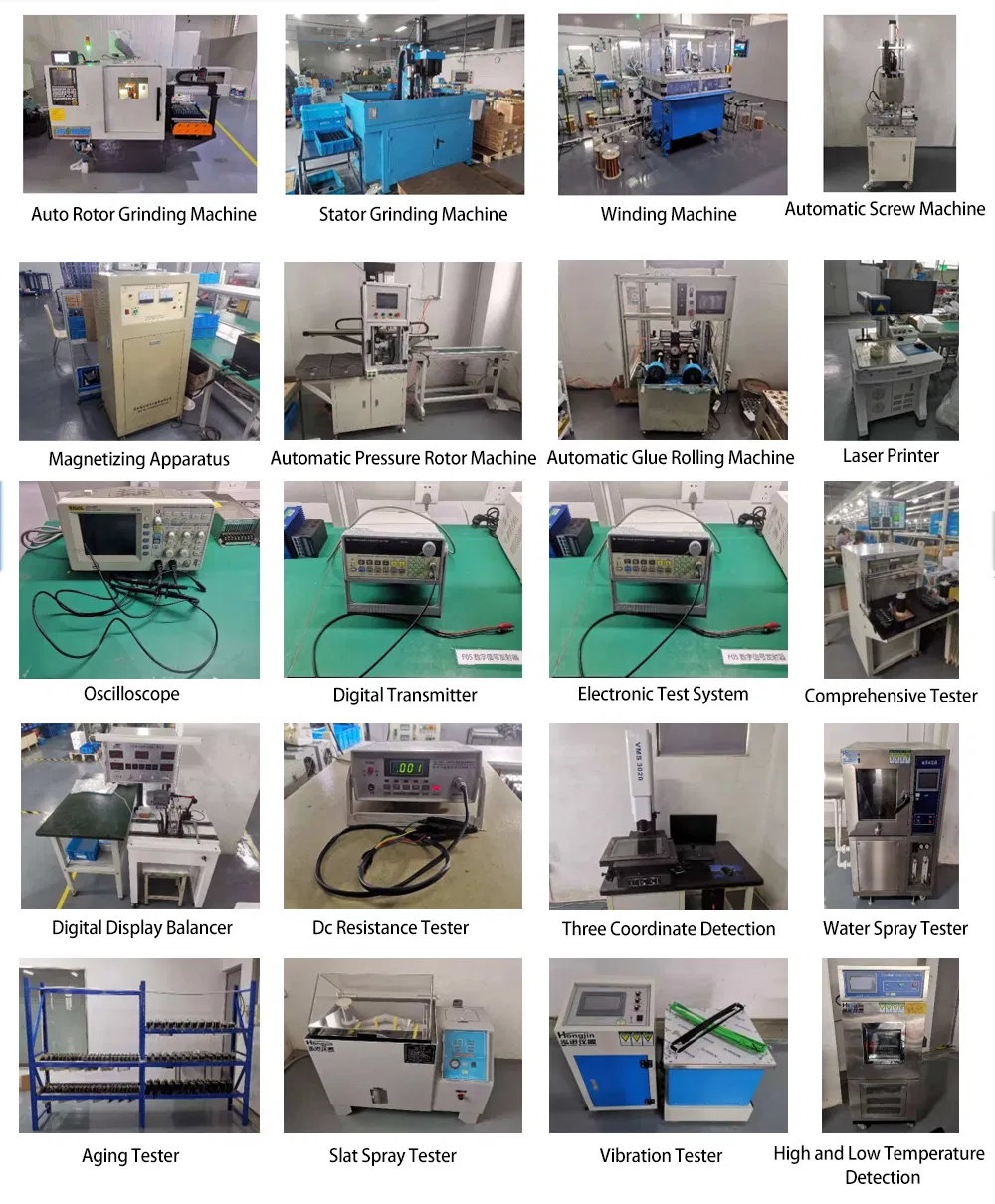

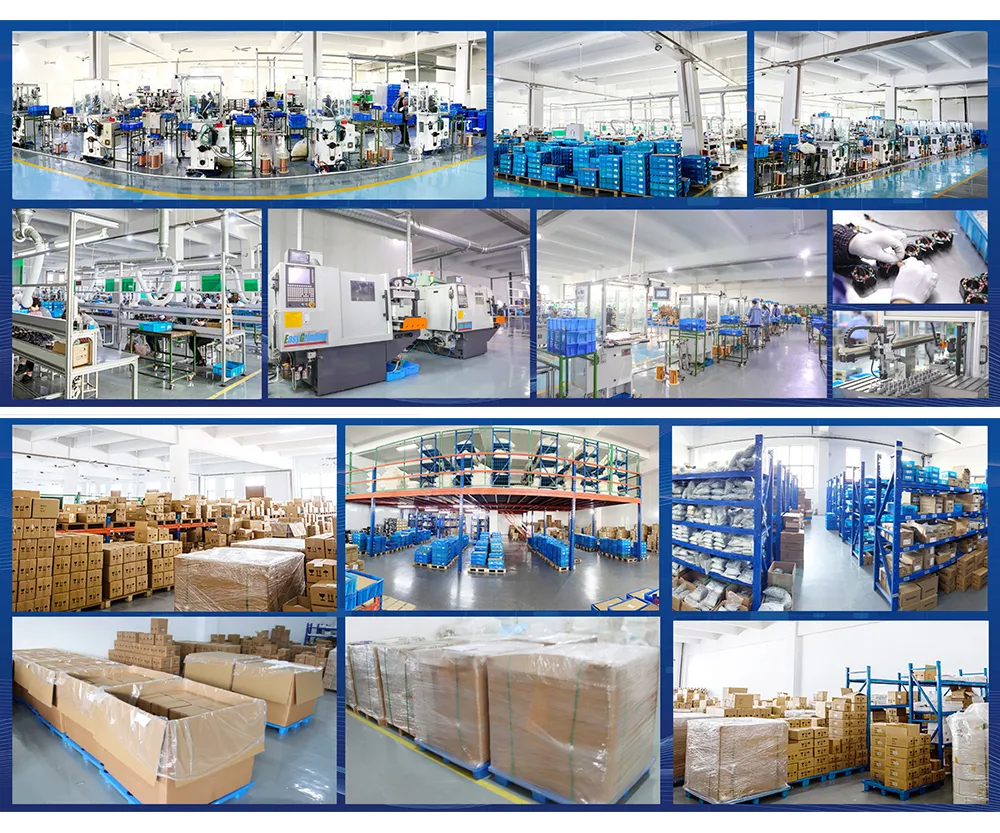

Production Flow & Certification
