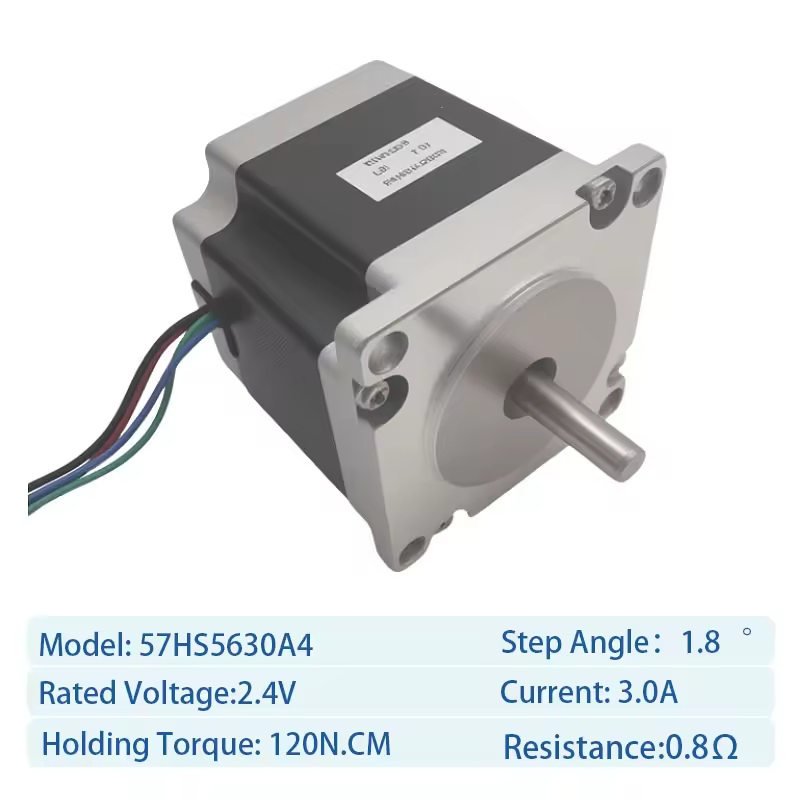

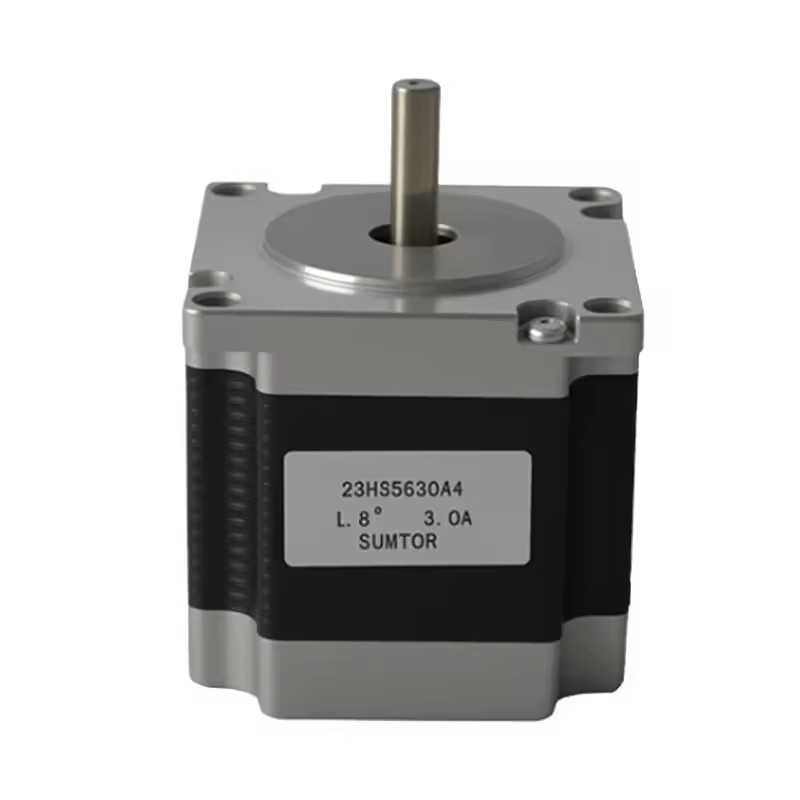

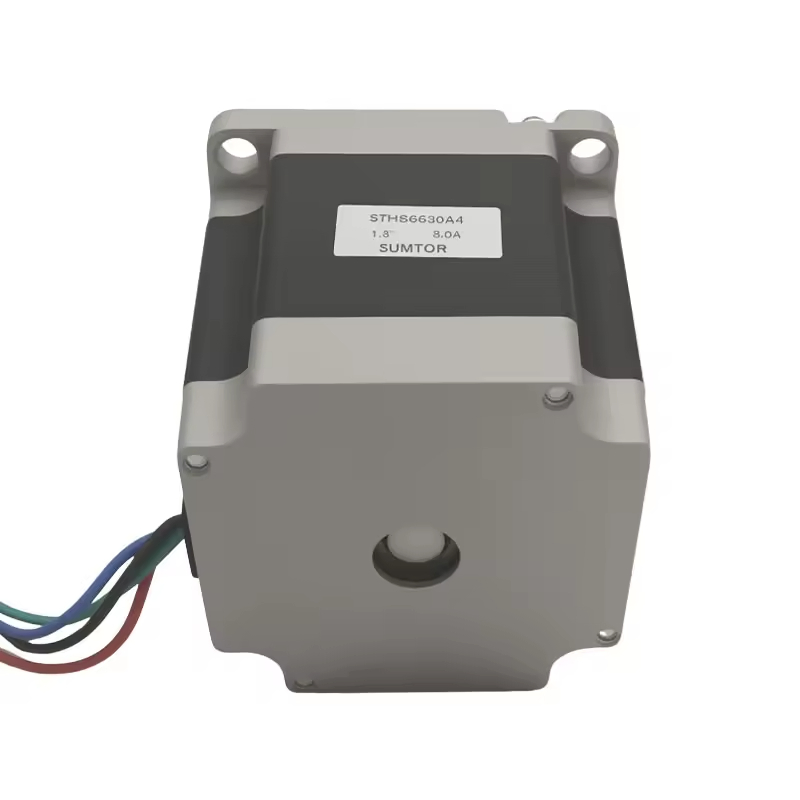

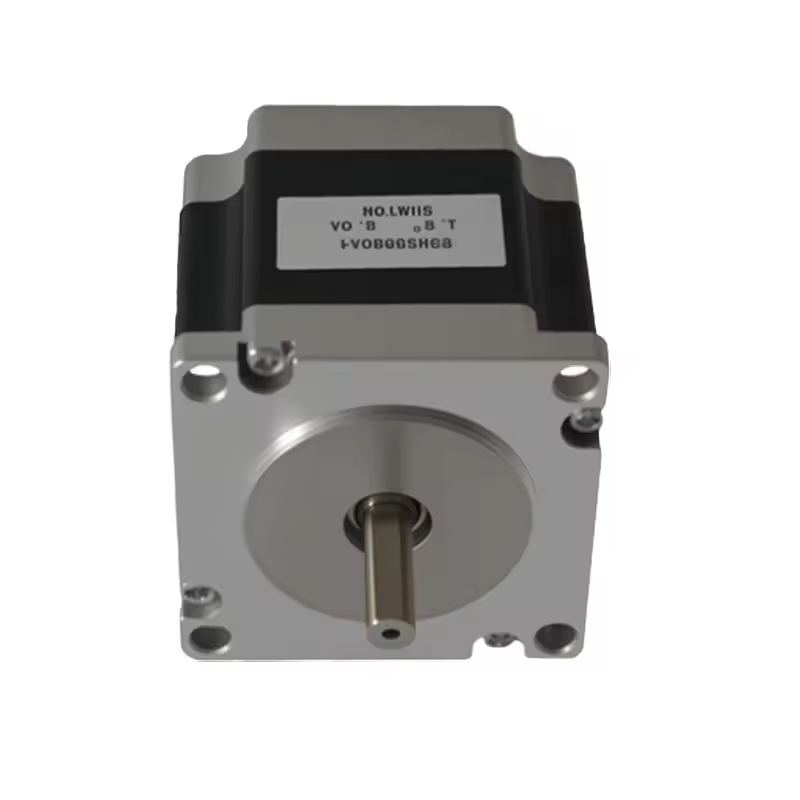

2 Phase NEMA 23 Stepper Motor 57bygh CNC Stepping Engine with CE 3A 4-Wire 1.2nm

1 / 5

2 Phase NEMA 23 Stepper Motor 57bygh CNC Stepping Engine with CE 3A 4-Wire 1.2nm

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

Product Overview

Model NO.:57HS5630A4

Operate Mode:2 Phase

Type:Hybrid

Certification:CE

Current/Phase:3A

Holding Torque:1.2N.m

Frame Size:NEMA23, 57mm

Motor Length:56mm

Shaft Diameter:6.35mm

Lead Wire:4-Lead

Product Description

2 Phase Nema 23 Stepper Motor 57Bygh CNC Stepping Engine

Package include: 1pc*Nema 23 stepper motor

STEP

1.8 Degree 1.2N.m NEMA 23 Motor

Low noise operation
Speed adjustable performance
Long lifetime characteristics
High step angle accuracy

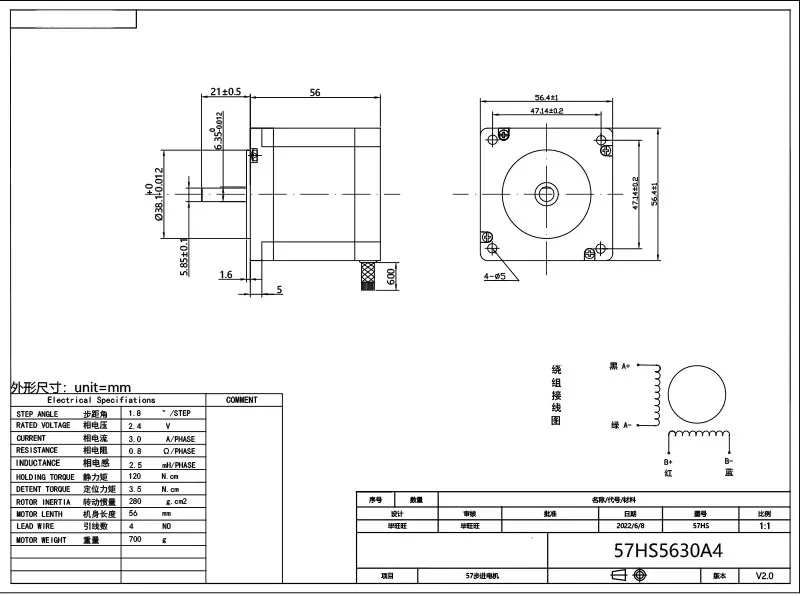

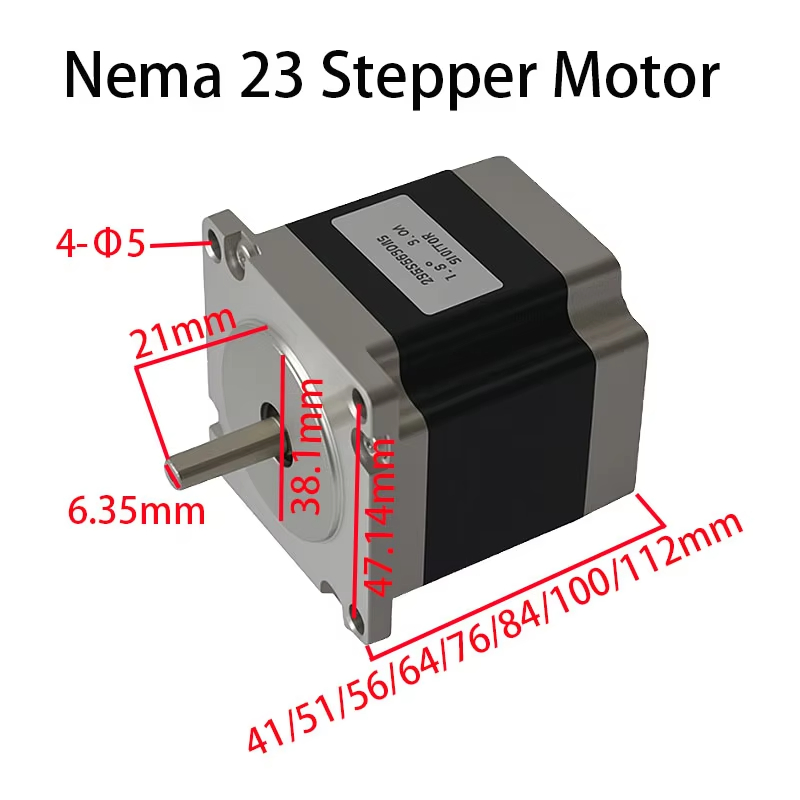

Technical Data and Size Drawing

Model	Step Angle (°)	Rated Current (A)	Resistance (Ω)	Inductance (mH)	Holding Torque (N.m)	Rotor Inertia (g.cm²)	Length (mm)	Lead Wire
57HS5630A4	1.8	3	0.8	2.4	1.2	280	56	4

Application & Customization

About Customization:

If you need customized shaft or lead wire or other specifications, feel free to contact us.

Application Areas:

Stepper motors are widely used in: Industrial transmission control, powder packaging machines, CD-ROM readers, winding machines, printing machines, cutting machines, engraving machines, printers, plotters, robotics, and medical/textile machinery.

Packaging & Delivery

Package Size:22.00cm * 8.00cm * 8.00cm

Gross Weight:1.000kg

Lead Time:15 days (1 - 100 Pieces)

Transport:Carton Filled with Foam

Frequently Asked Questions

Q1: What is the holding torque of the 57HS5630A4 stepper motor? A1: This NEMA 23 stepper motor provides a holding torque of 1.2 N.m, making it suitable for high-precision CNC and robotics applications.

Q2: What are the electrical specifications for this motor? A2: The motor operates with a rated current of 3A per phase, with a phase resistance of 0.8Ω and a phase inductance of 2.4mH.

Q3: Does the motor come with a lead wire? A3: Yes, this model is a 4-lead wire configuration, which is standard for most 2-phase hybrid stepper motor drivers.

Q4: What is the frame size and shaft diameter? A4: It is a NEMA 23 frame size (57mm x 57mm) with a motor length of 56mm and a standard shaft diameter of 6.35mm.

Q5: Can I use this motor for textile or medical machinery? A5: Absolutely. This motor is designed for industrial transmission control, including medical equipment, textile machines, and engraving systems.

Q6: Is the motor CE certified? A6: Yes, the 57HS5630A4 stepper motor carries CE certification, ensuring compliance with safety and quality standards.
