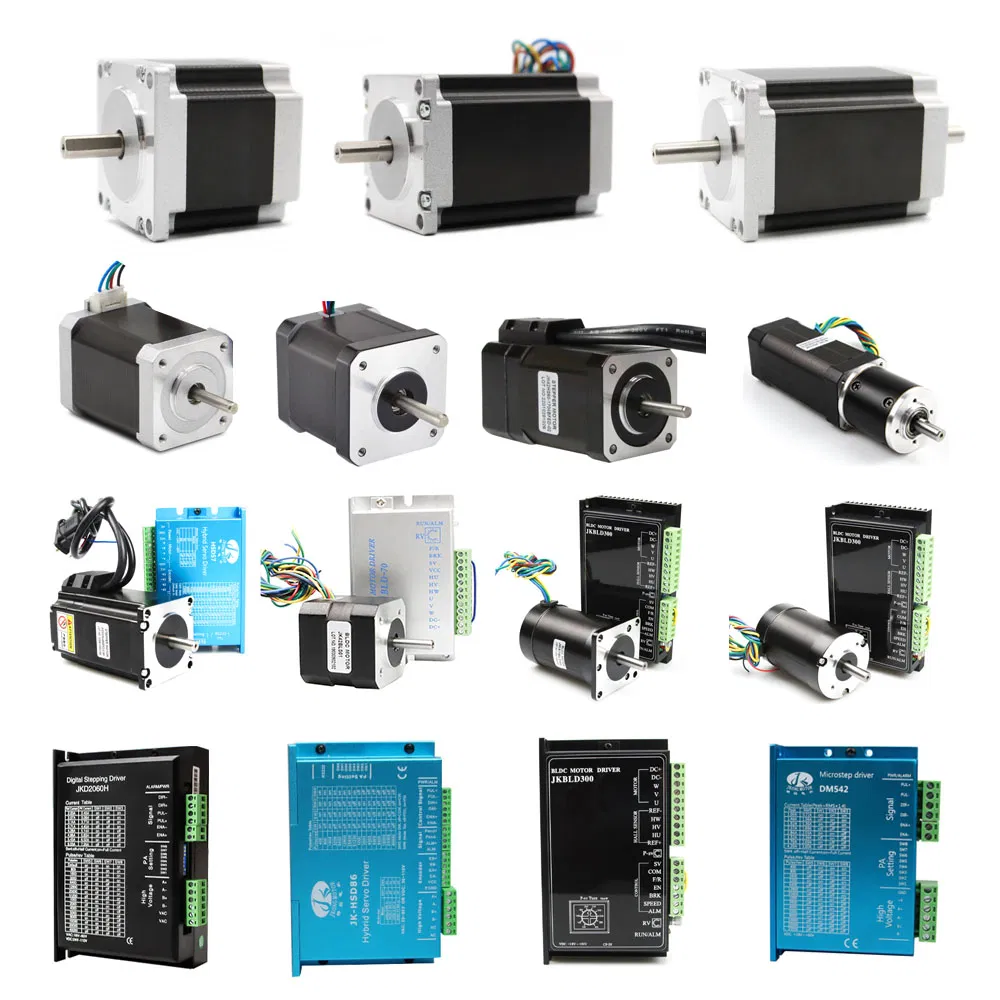

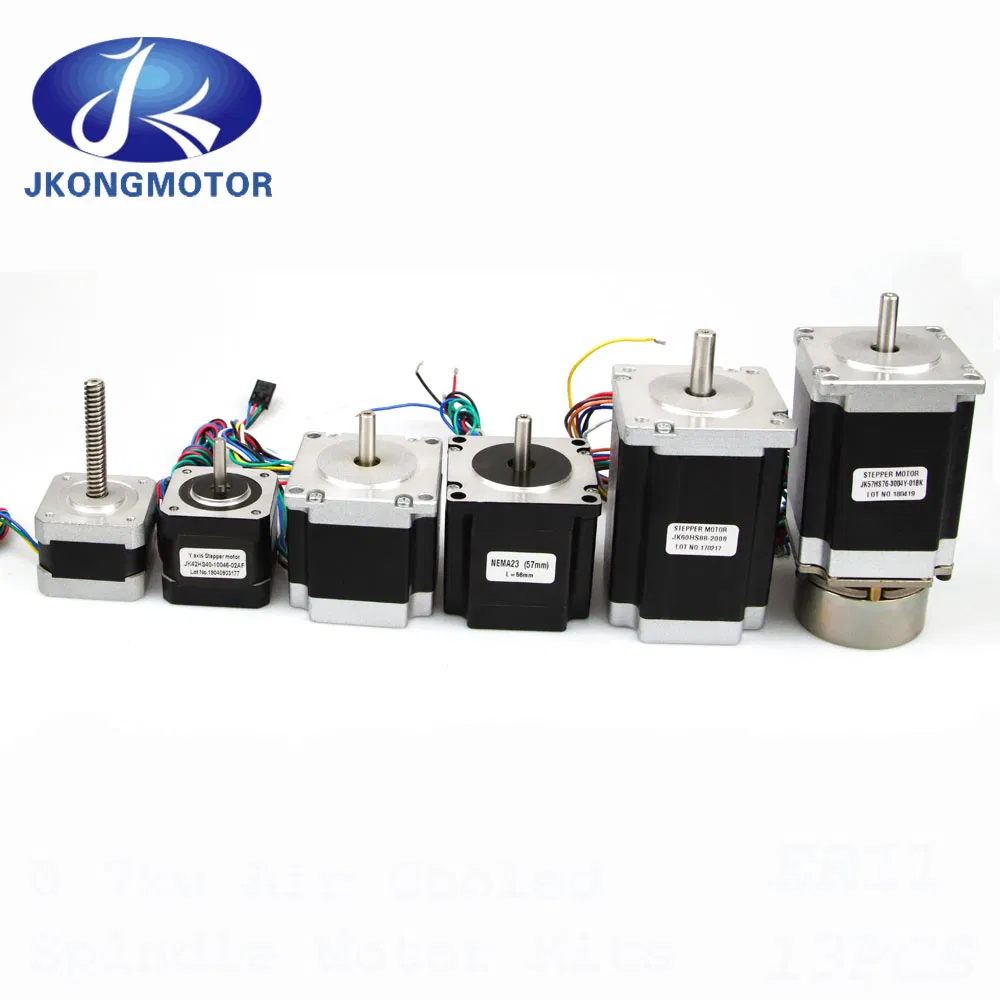

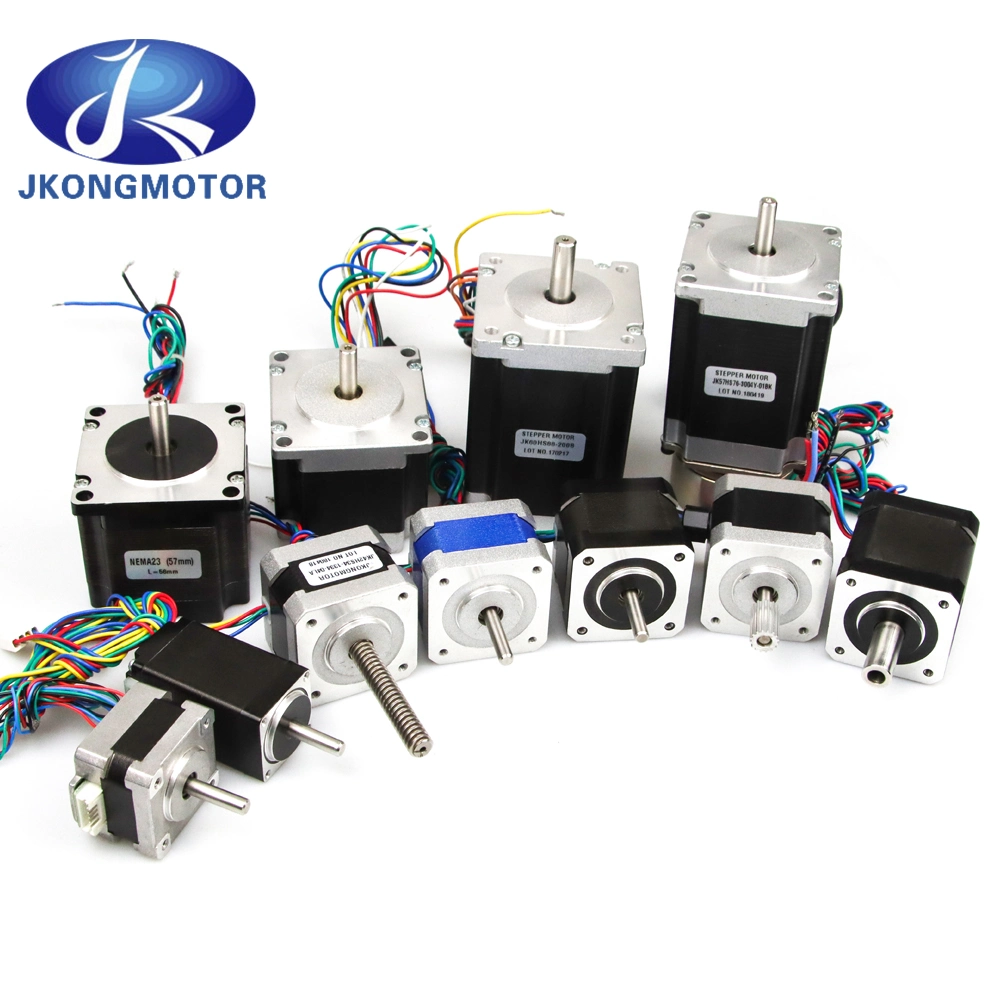

NEMA 8, 11, 14, 17, 23, 24, 34, 42, 52 Hybrid Linear Stepping Step Motor Double Shaft Stepper Motor for CNC Medical Machine
NEMA 8, 11, 14, 17, 23, 24, 34, 42, 52 Hybrid Linear Stepping Step Motor Double Shaft Stepper Motor for CNC Medical Machine
NEMA 8, 11, 14, 17, 23, 24, 34, 42, 52 Hybrid Linear Stepping Step Motor Double Shaft Stepper Motor for CNC Medical Machine
NEMA 8, 11, 14, 17, 23, 24, 34, 42, 52 Hybrid Linear Stepping Step Motor Double Shaft Stepper Motor for CNC Medical Machine
NEMA 8, 11, 14, 17, 23, 24, 34, 42, 52 Hybrid Linear Stepping Step Motor Double Shaft Stepper Motor for CNC Medical Machine
1 / 5
NEMA 8, 11, 14, 17, 23, 24, 34, 42, 52 Hybrid Linear Stepping Step Motor Double Shaft Stepper Motor for CNC Medical Machine
NEMA 8, 11, 14, 17, 23, 24, 34, 42, 52 Hybrid Linear Stepping Step Motor Double Shaft Stepper Motor for CNC Medical Machine
NEMA 8, 11, 14, 17, 23, 24, 34, 42, 52 Hybrid Linear Stepping Step Motor Double Shaft Stepper Motor for CNC Medical Machine
NEMA 8, 11, 14, 17, 23, 24, 34, 42, 52 Hybrid Linear Stepping Step Motor Double Shaft Stepper Motor for CNC Medical Machine
NEMA 8, 11, 14, 17, 23, 24, 34, 42, 52 Hybrid Linear Stepping Step Motor Double Shaft Stepper Motor for CNC Medical Machine

NEMA 8, 11, 14, 17, 23, 24, 34, 42, 52 Hybrid Linear Stepping Step Motor Double Shaft Stepper Motor for CNC Medical Machine

Customization: Available
Application: CNC Machine
Speed: Variable Speed
Send Inquiry

Product Description

Basic Information Overview
Model Series:
NEMA 8, 11, 14, 17, 23, 24, 34, 42, 52
Excitation Mode:
HB-Hybrid
Phase:
Two-Phase / Three-Phase
Certification:
ISO9001, CE, RoHS, SGS, Reach
Step Angle:
1.8 or 0.9 or 1.2 Degree
Usage:
Industrial, 3D Printer, CNC Machine, Medical Equipment
Lead Count:
4 / 6 / 8 Leads
Frame Size:
20mm - 130mm
Hybrid Linear Stepping Motor Highlights

Our hybrid linear stepping motors convert electrical pulse signals into precise angular or linear displacements. Designed for high performance and durability, these motors are widely integrated into CNC machines, medical equipment, and automation systems.

  • High-Grade Magnetic Steel: We utilize SH level high-grade magnetic steel for superior performance.
  • Optimized Rotor: Coated rotor surfaces reduce burrs, ensuring smooth operation and minimal noise.
  • Rigorous Testing: Every stator and rotor undergoes strict individual testing before final assembly.
  • Quality Assurance: A comprehensive final test is performed post-assembly to guarantee reliable quality.
Motor Series Specifications
Motor Series Phase No. Step Angle Motor Length Frame Size Leads No. Holding Torque
Nema 82 phase1.8°30~42mm20x20mm4180~300g.cm
Nema 112 phase1.8°32~51mm28x28mm4 or 6430~1200g.cm
Nema 142 phase0.9/1.8°27~42mm35x35mm41000~2000g.cm
Nema 172 phase0.9/1.8°25~60mm42x42mm4 or 61.5~7.3kg.cm
Nema 232/3 phase1.8/1.2°41~112mm57x57mm4/6/80.39~3.1N.m
Nema 342/3 phase1.8/1.2°67~155mm86x86mm4 or 82.0~12.2N.m
Nema 422/3 phase1.8/1.2°99~201mm110x110mm48.0~28.0N.m
Nema 522/3 phase1.8/1.2°173~285mm130x130mm413.3~22.5N.m
Customized Solutions & Detailed Photos

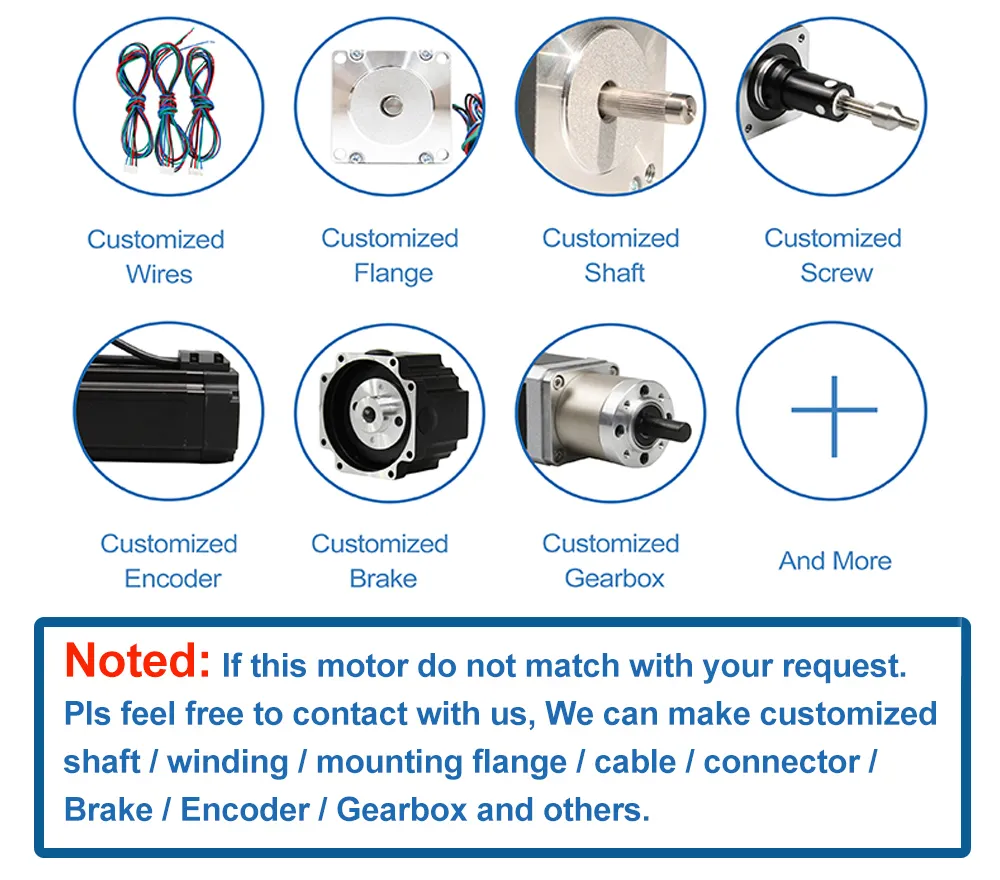

Custom Stepping Motor Overview

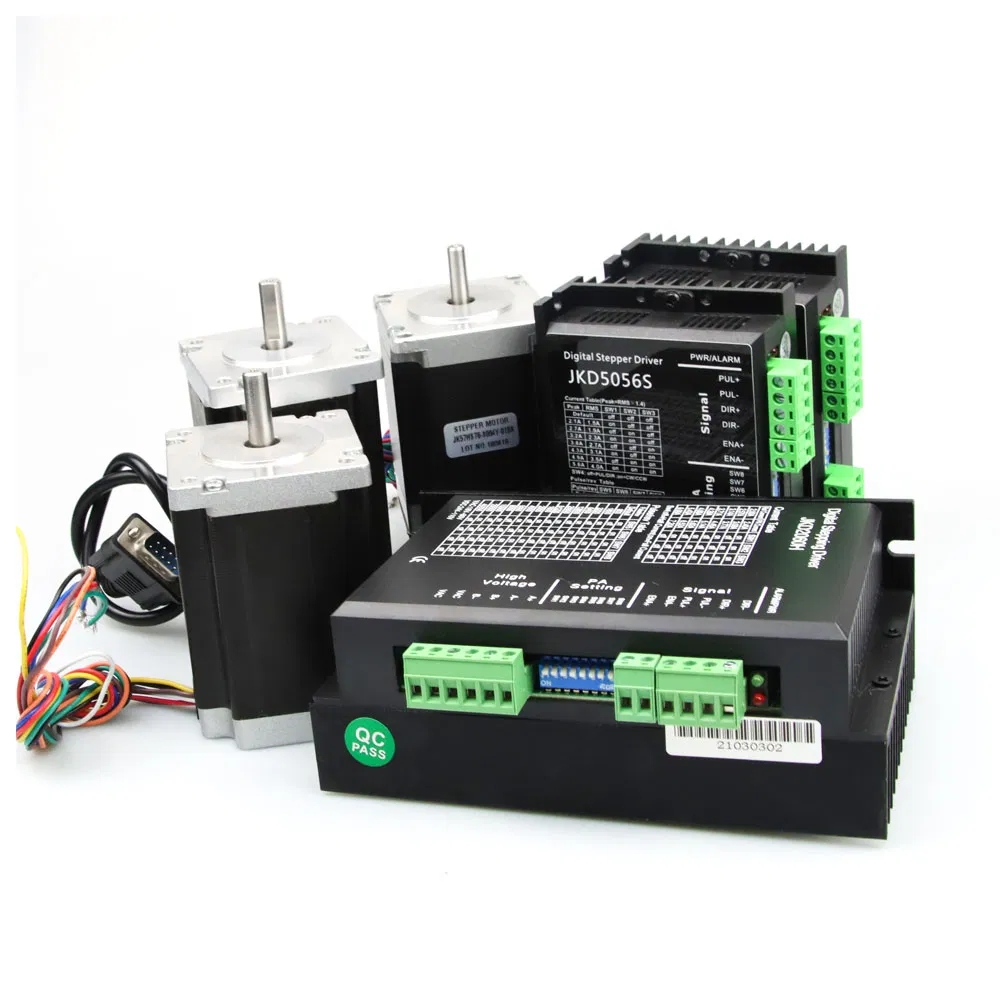

Motor with Driver Side View

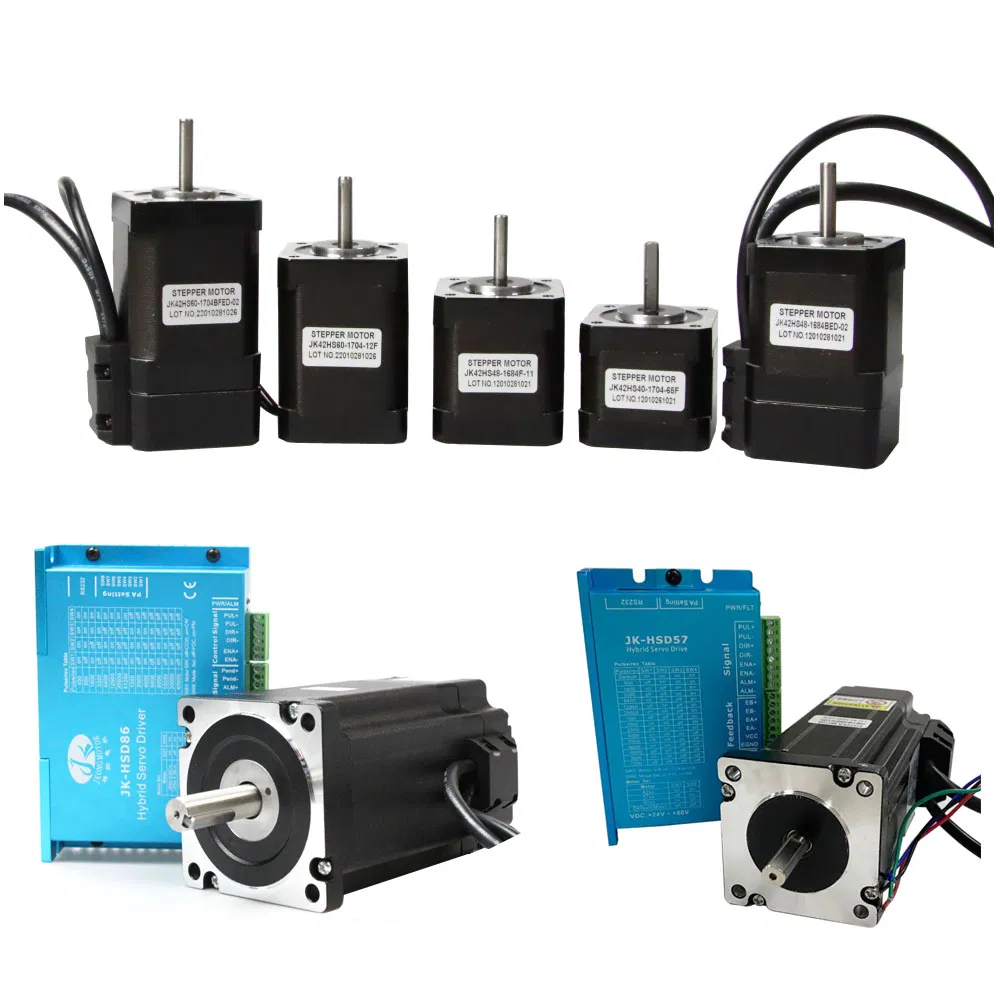

Closed Loop Stepper Motor

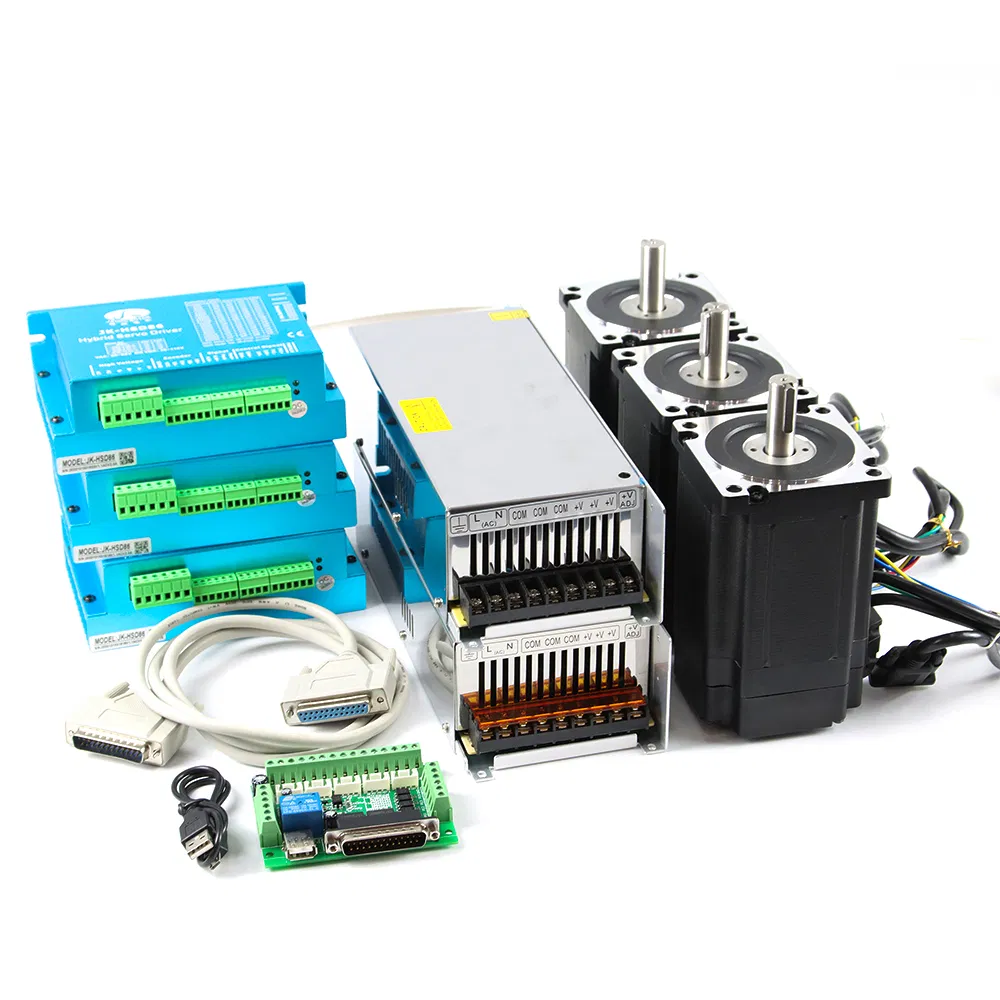

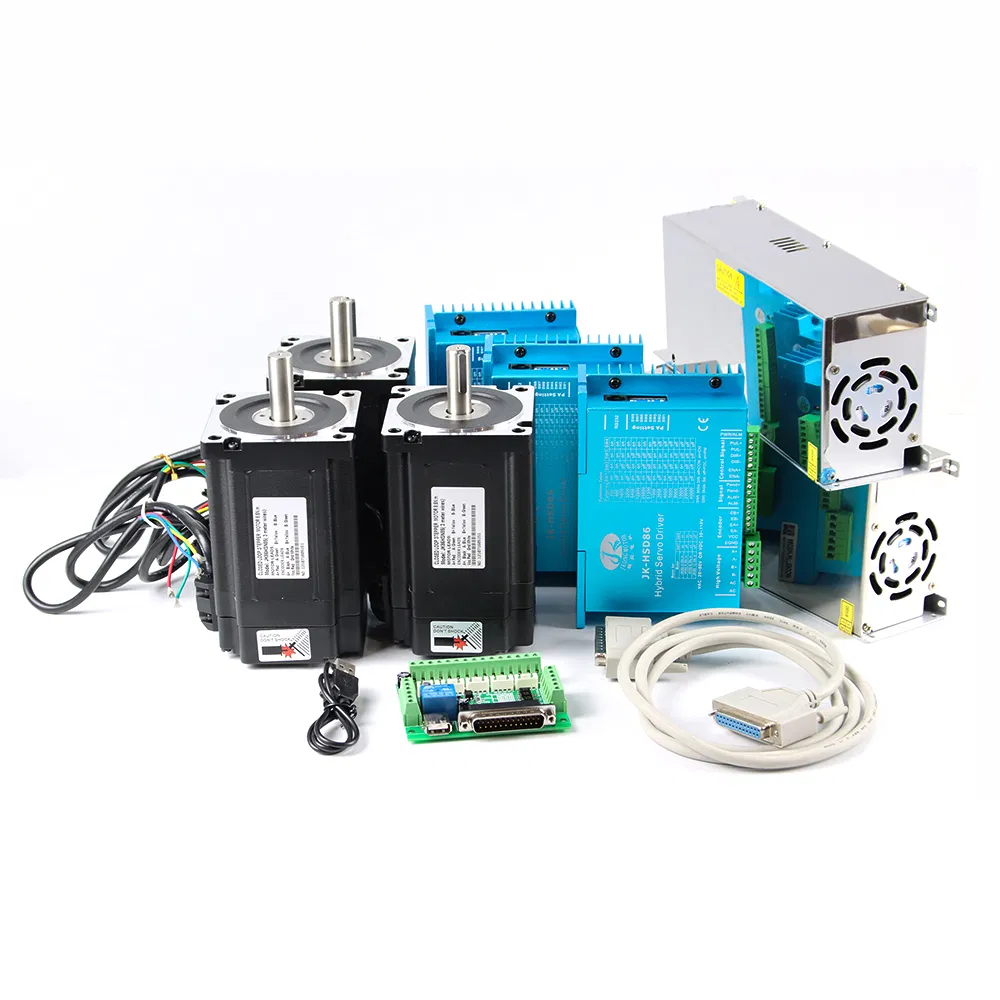

Easy Servo Stepper Motor Kit

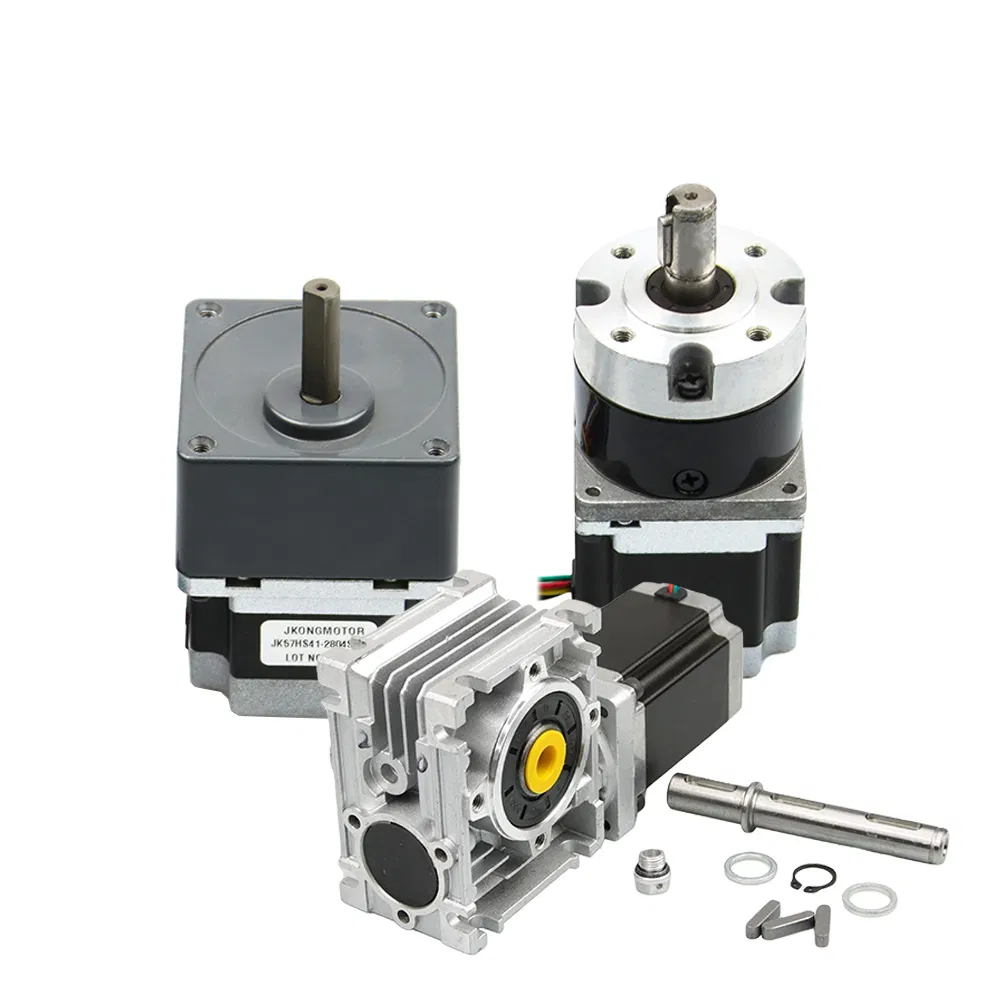

Geared Stepper Motor

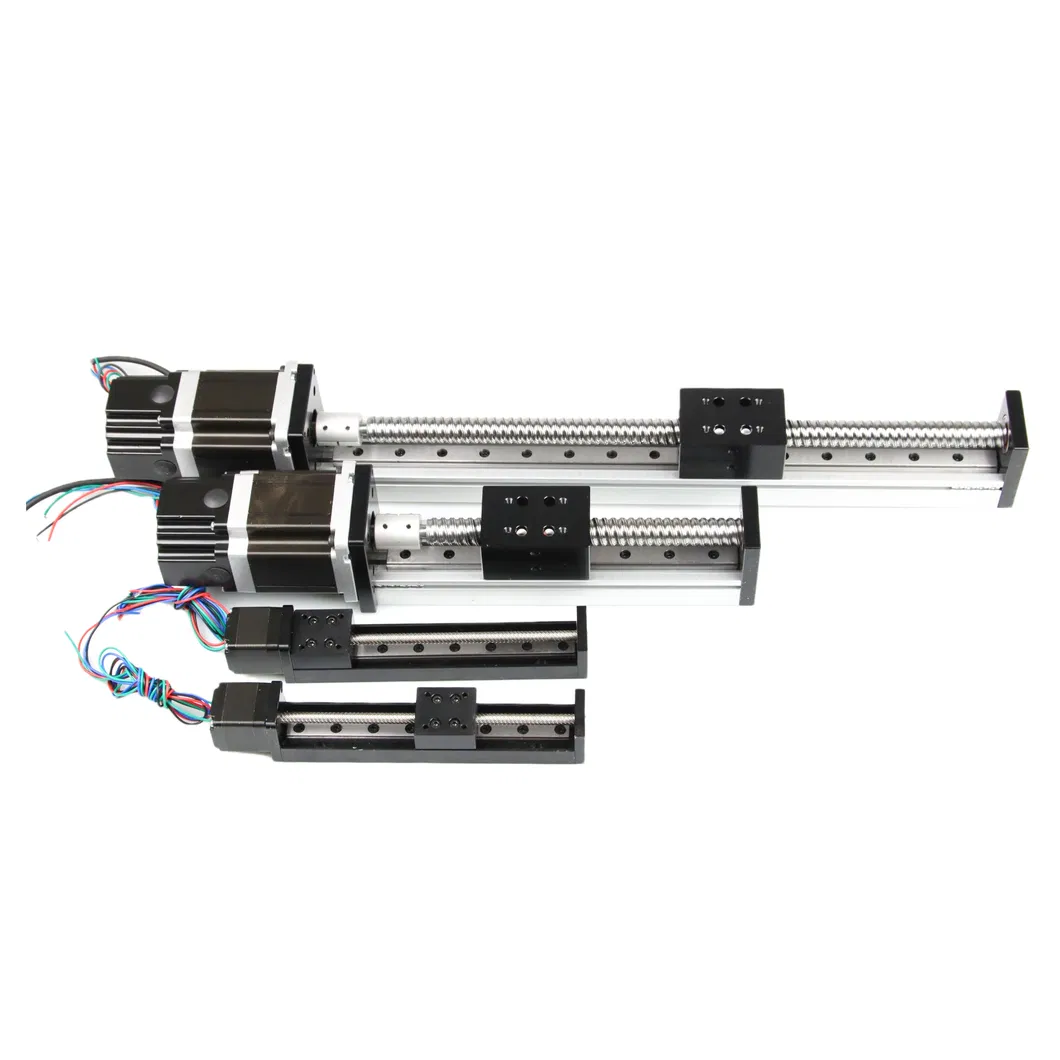

Linear Actuator Stepper
Manufacturing & Quality Control

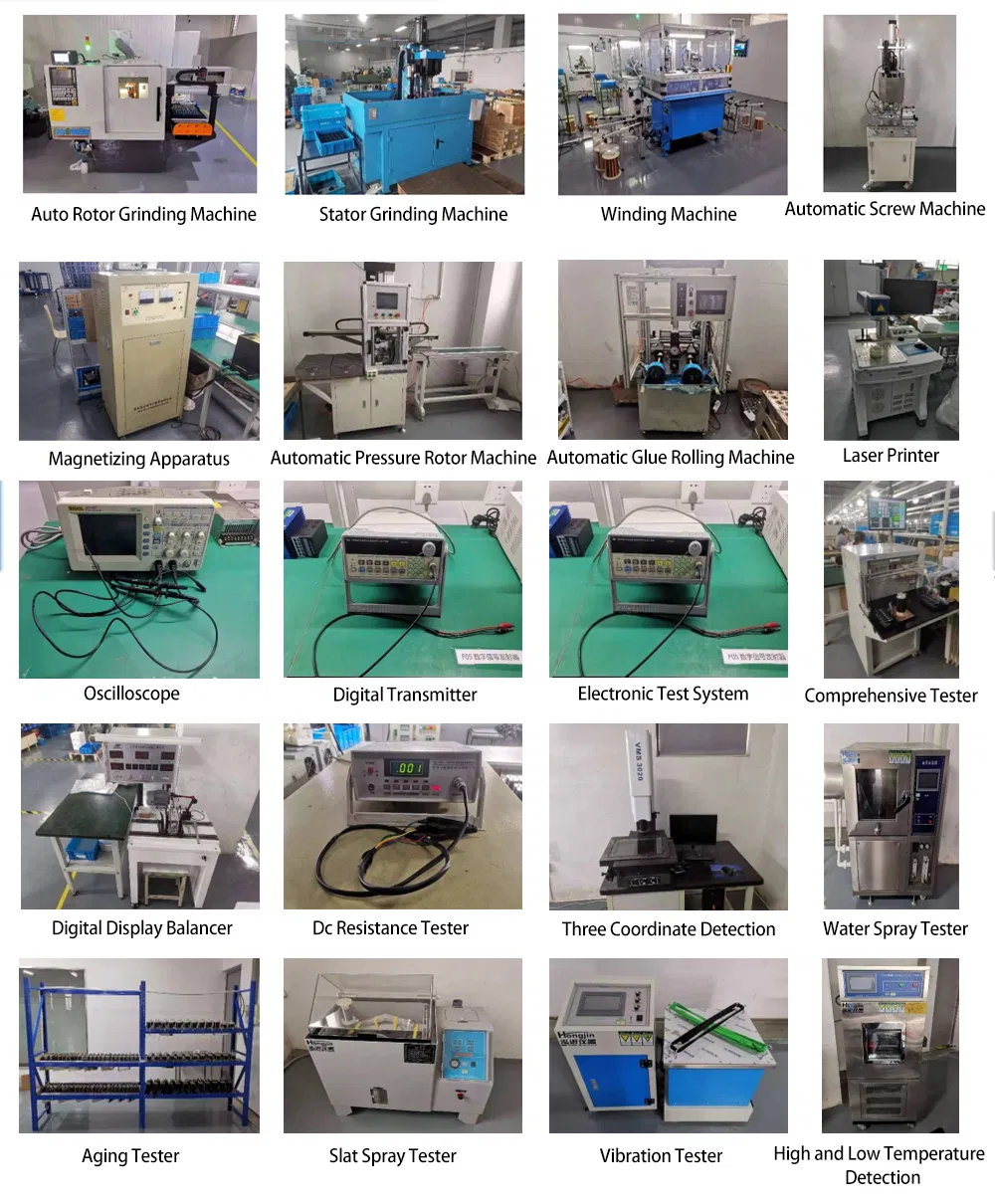

Equipment Show

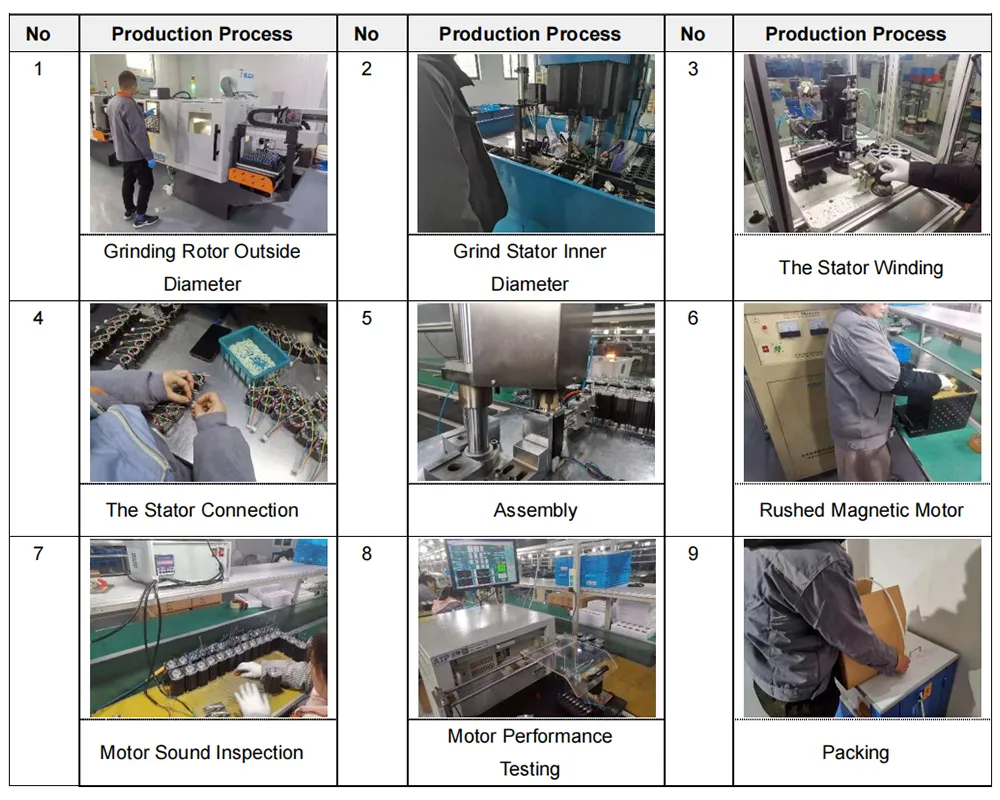

Production Flow
Packing and Delivery
Certifications
Frequently Asked Questions
What are the primary applications for these stepper motors?
Our motors are widely used in 3D printers, CNC machines, medical equipment, textile machinery, stage lighting, and various automation systems.
Do you support OEM and ODM customization?
Yes, we warmly welcome OEM and ODM cooperation. We can customize motor parameters, lengths, and shaft configurations according to specific customer requirements.
What certifications do your products hold?
Our manufacturing processes and products are certified by ISO9001, CE, RoHS, SGS, and Reach, ensuring international quality standards.
How is the quality of the motors guaranteed?
We use high-grade SH level magnetic steel and perform step-by-step testing on stators and rotors. Every assembled motor undergoes a final performance test before packaging.
What NEMA sizes are available in your product line?
We offer a full range of sizes including NEMA 8, 11, 14, 16, 17, 23, 24, 34, 42, and 52 to suit different torque and space requirements.
What are the typical lead wire options?
Depending on the model, we provide 4, 6, or 8 lead wire configurations to support various wiring schemes such as unipolar, bipolar parallel, or bipolar series.
