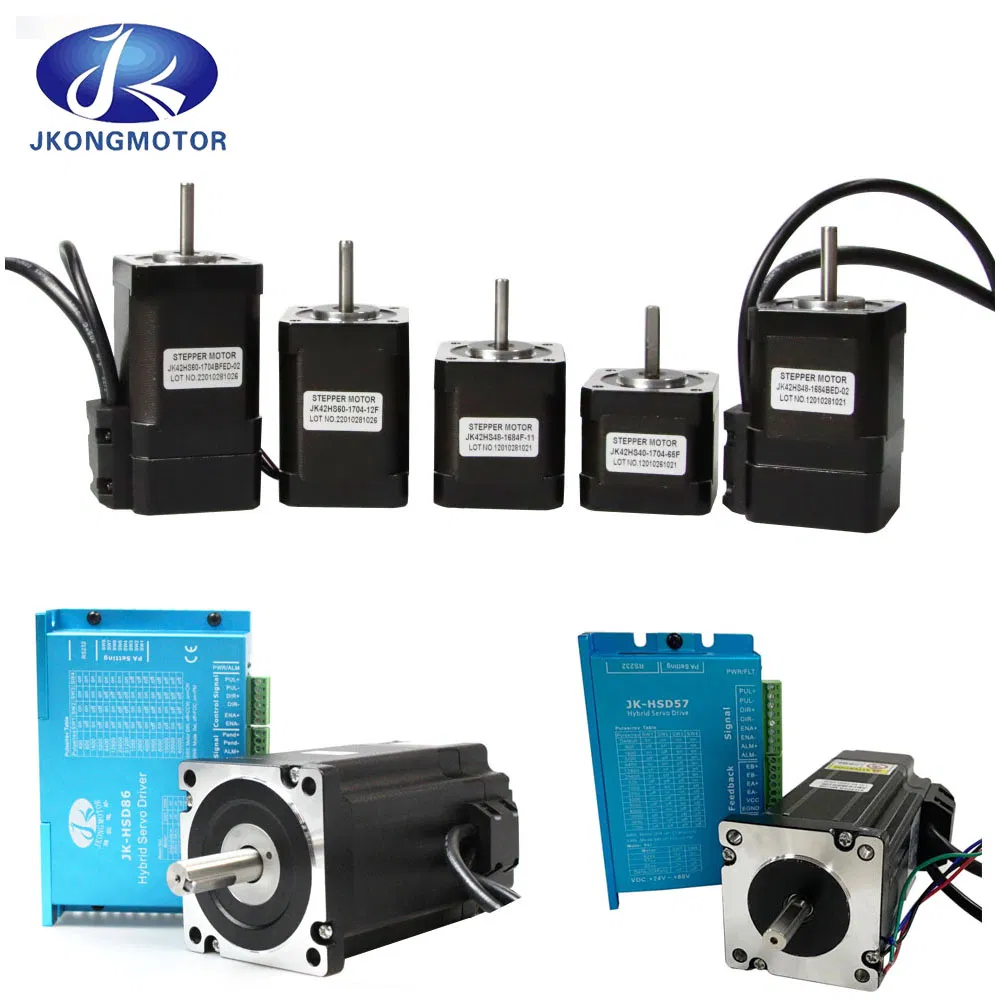

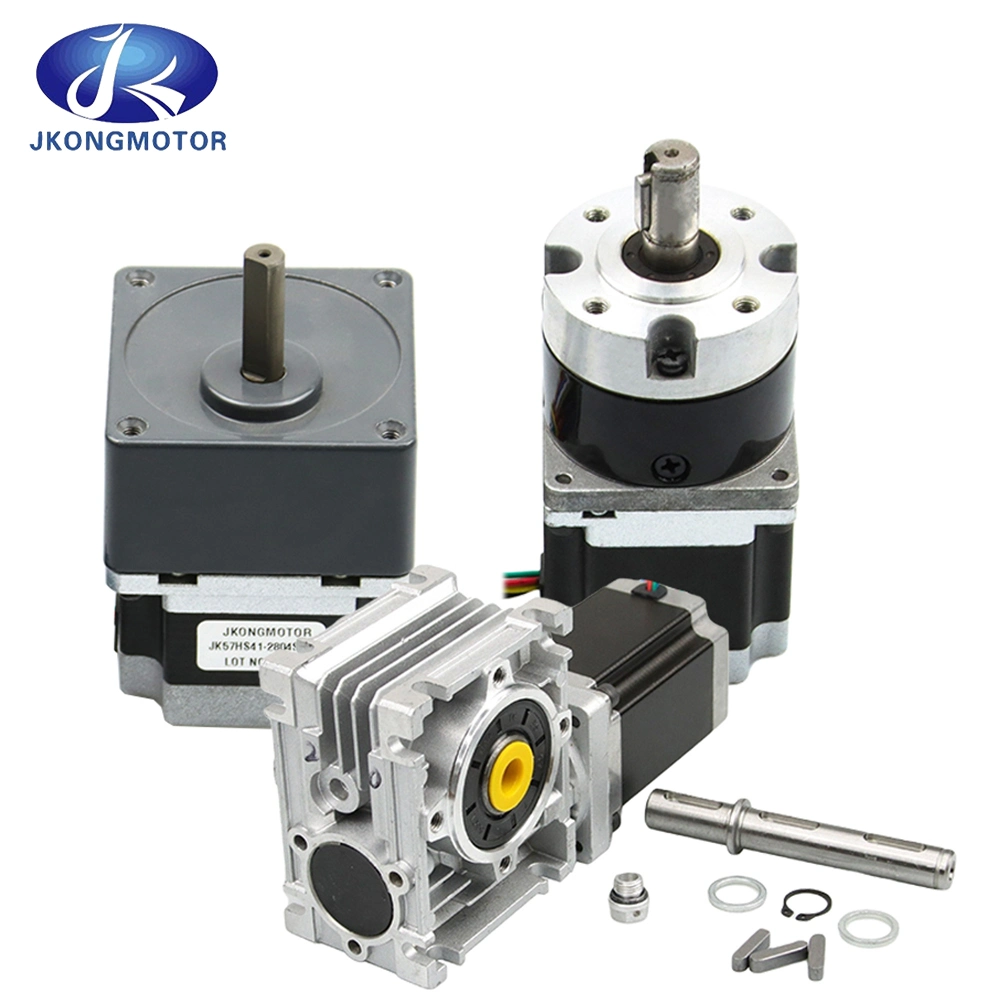

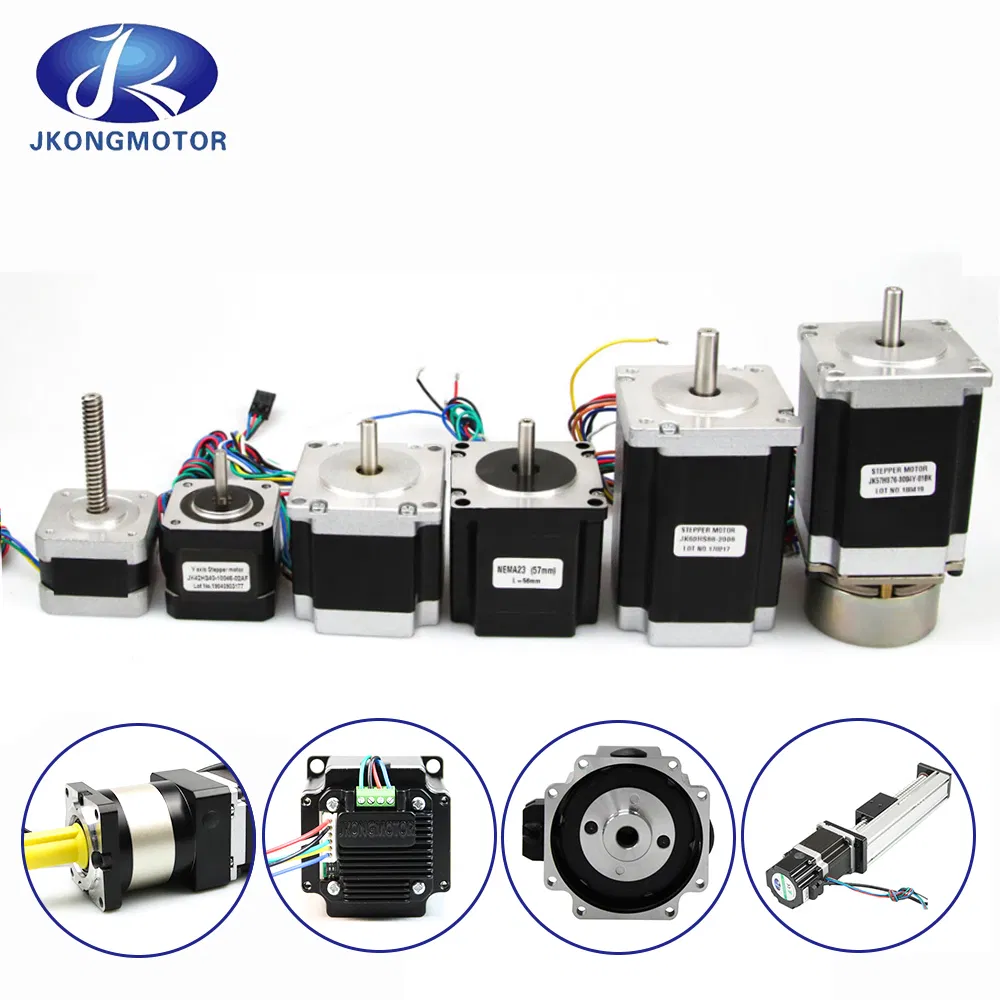

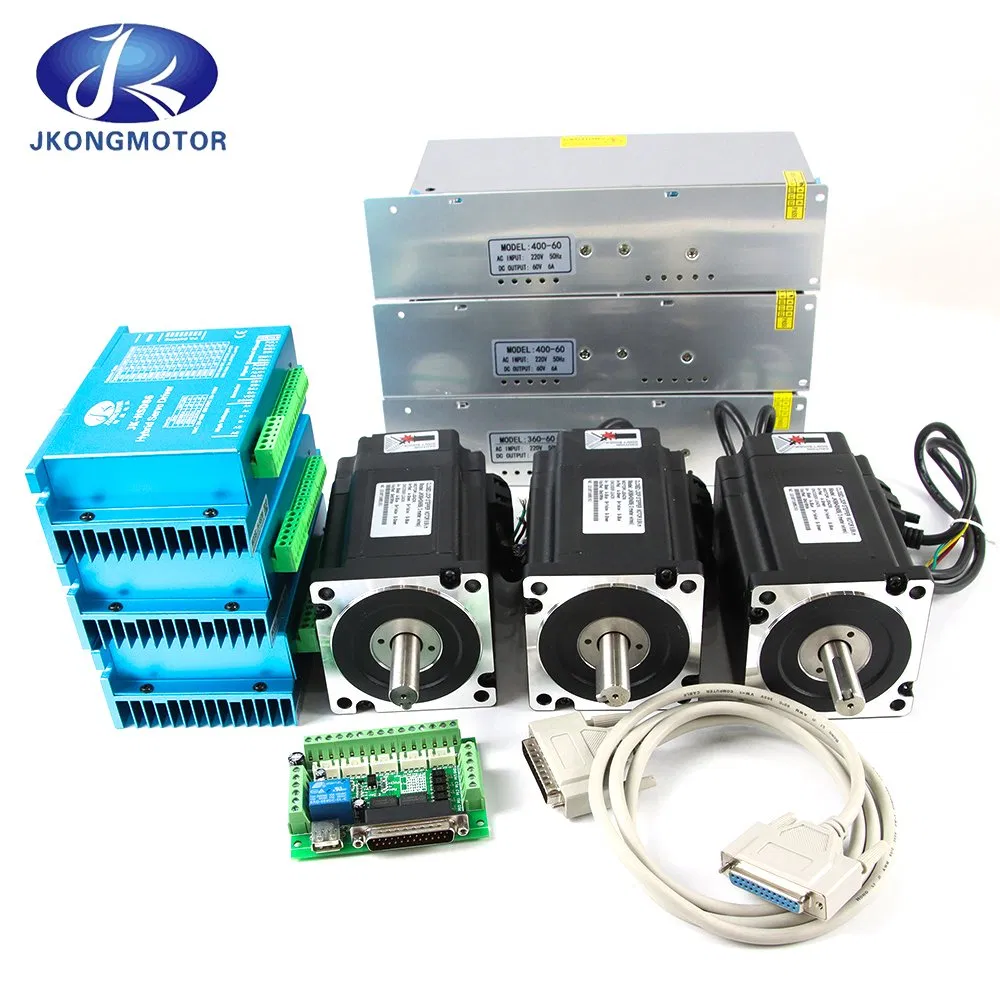

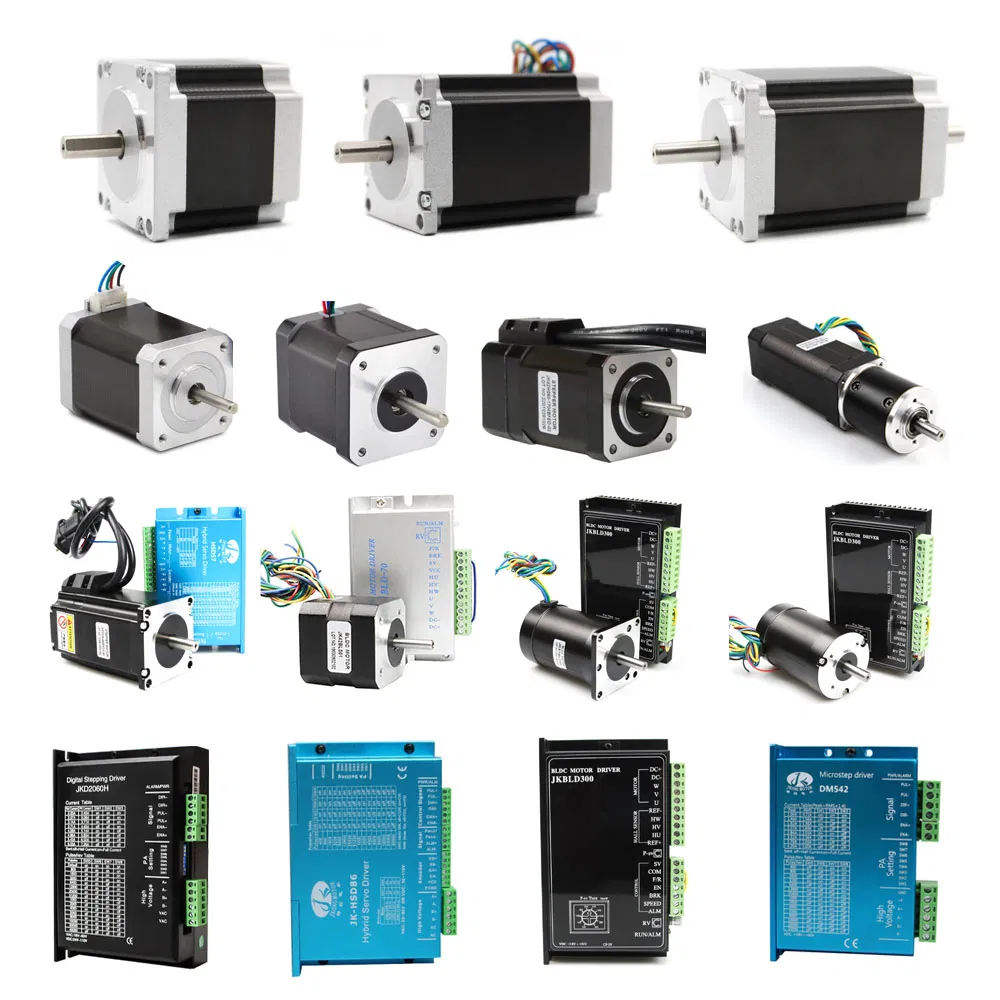

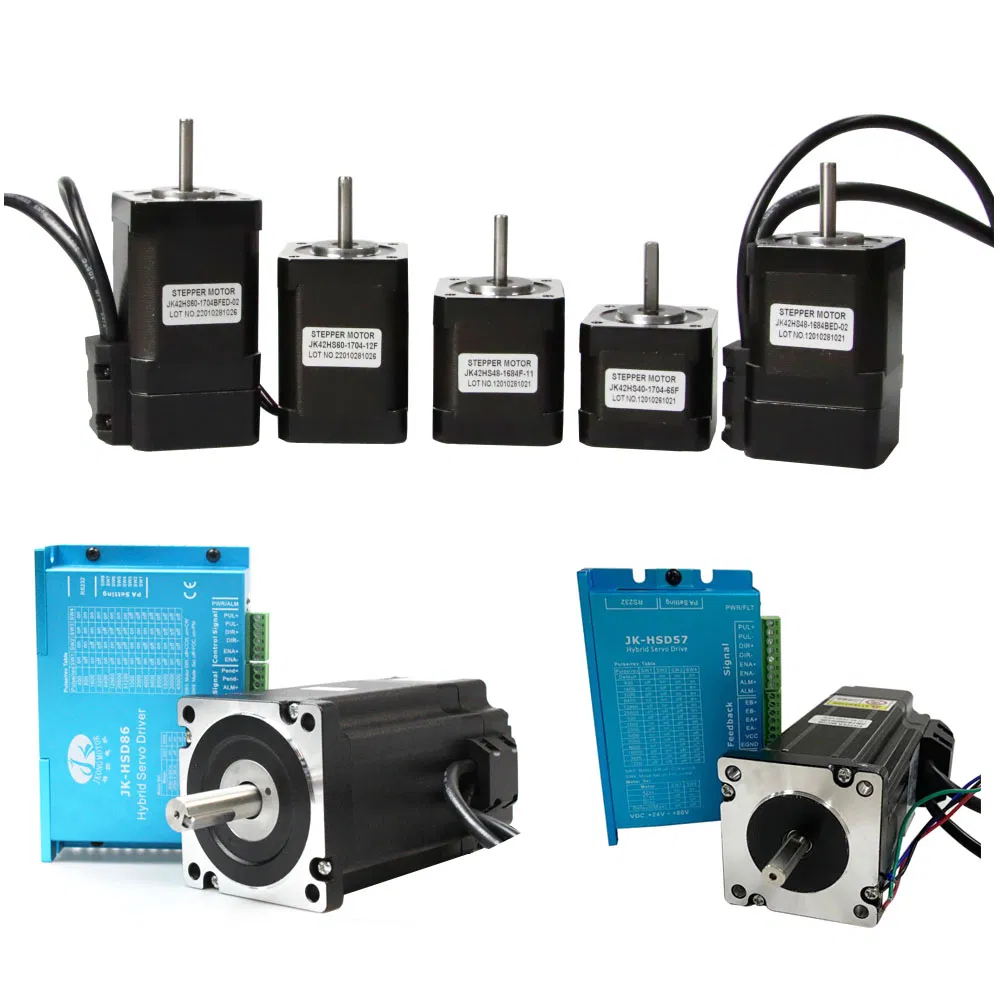

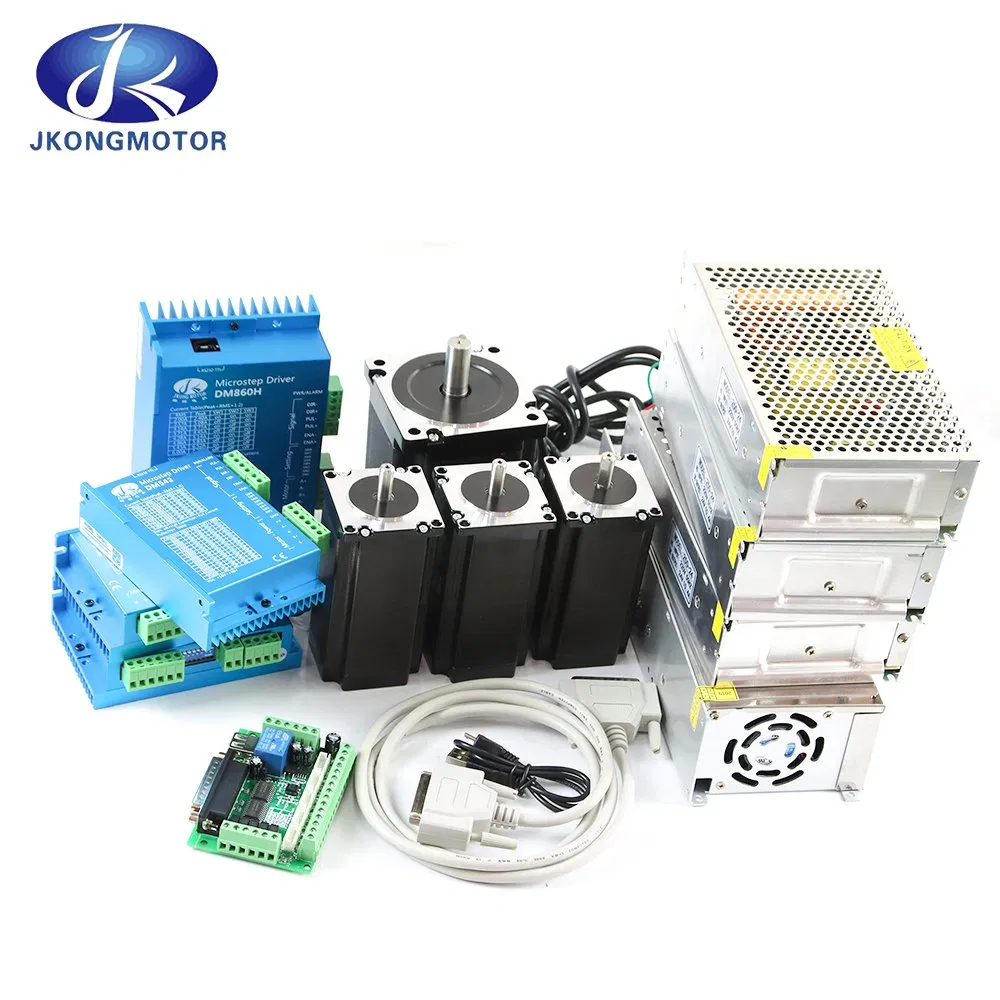

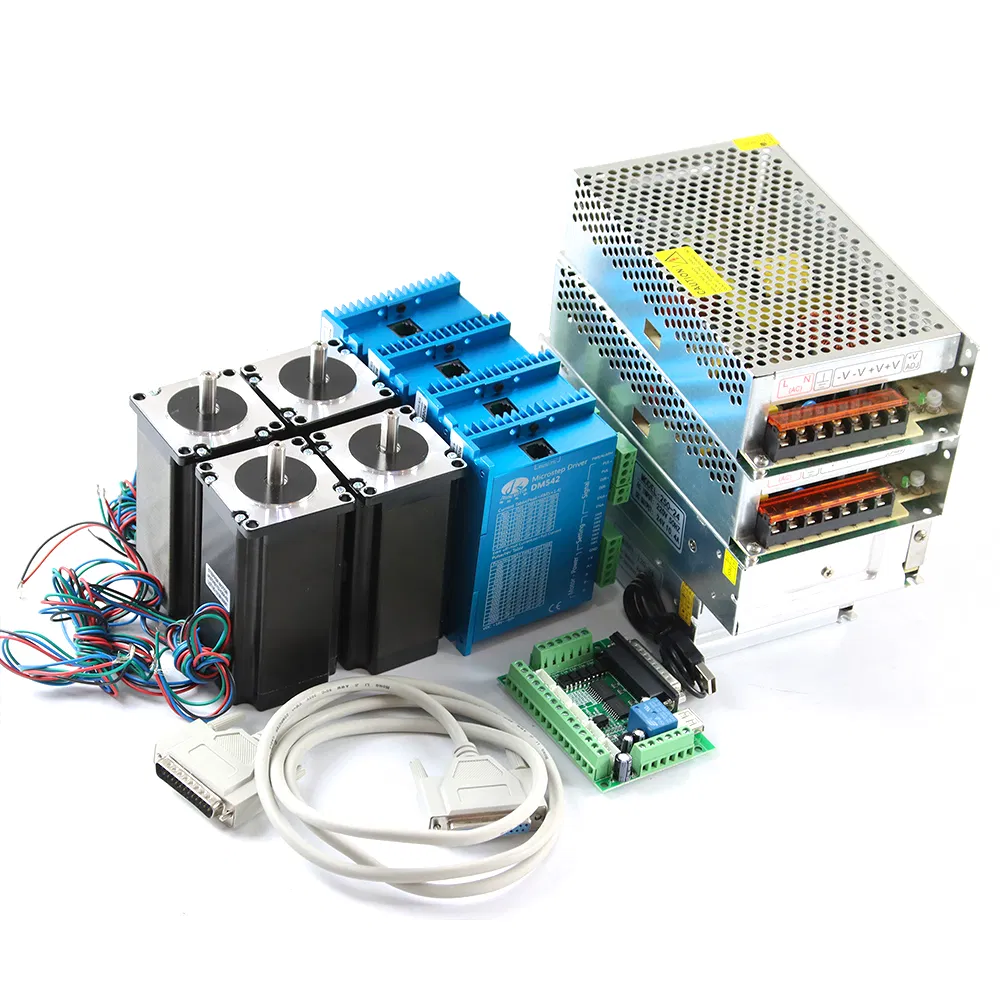

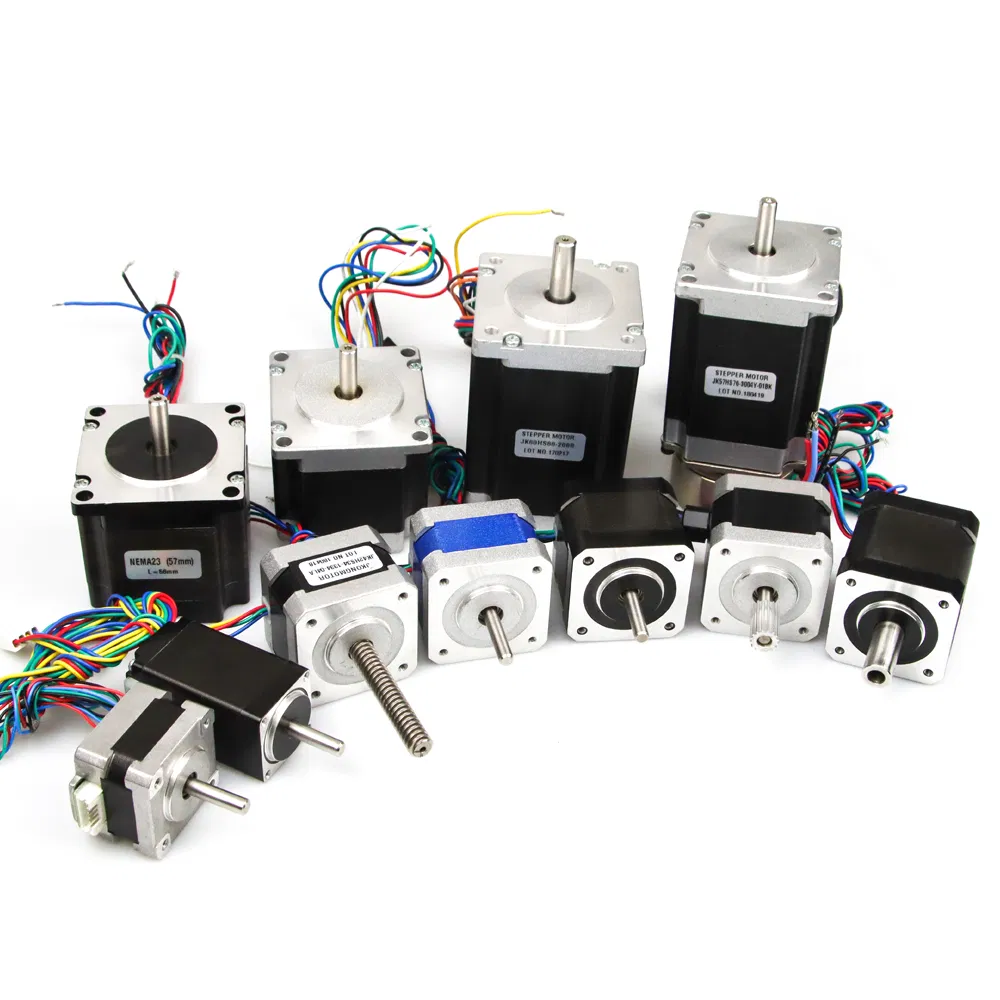

2 Phase NEMA23 Electric Stepping Motor - Hybrid geared stepper motor options available with planetary gearbox, brake, encoder, or controller. This precision motor converts electrical pulse signals into accurate angular or linear displacements.
| General Specifications | |
|---|---|
| Step Angle | 1.8° or 0.9° |
| Temperature Rise | 80ºC Max |
| Ambient Temperature | -20ºC ~ +50ºC |
| Insulation Resistance | 100 MΩ Min., 500VDC |
| Dielectric Strength | 500VAC for 1 minute |
| Shaft Radial Play | 0.02 Max. (450g-load) |
| Shaft Axial Play | 0.08 Max. (450g-load) |
| Model No. | Step Angle (°) | Length (mm) | Current (A) | Resist (Ω) | Induct (mH) | Torque (N.m) | Leads | Detent (g.cm) | Inertia (g.cm²) | Mass (Kg) |
|---|---|---|---|---|---|---|---|---|---|---|
| JK57HS41-1006 | 1.8 | 41 | 1 | 7.1 | 8 | 0.48 | 6 | 250 | 150 | 0.47 |
| JK57HS51-2804 | 1.8 | 51 | 2.8 | 0.83 | 2.2 | 1.01 | 4 | 300 | 230 | 0.59 |
| JK57HS76-2804 | 1.8 | 76 | 2.8 | 1.1 | 3.6 | 1.89 | 4 | 600 | 440 | 1.1 |
| JK57HS112-4204 | 1.8 | 112 | 4.2 | 0.9 | 3.8 | 3.1 | 4 | 1200 | 800 | 1.4 |

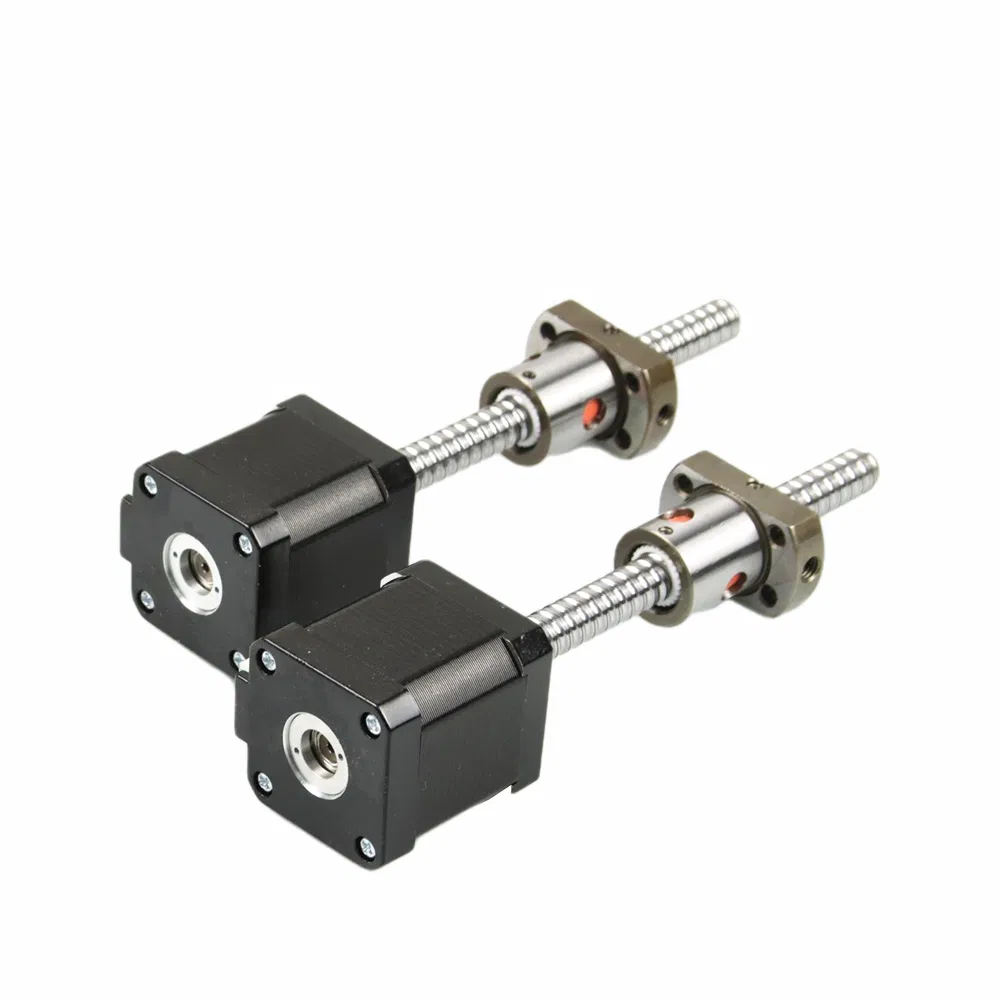

Brushless DC Motor Kit
Stepper Motor with Encoder

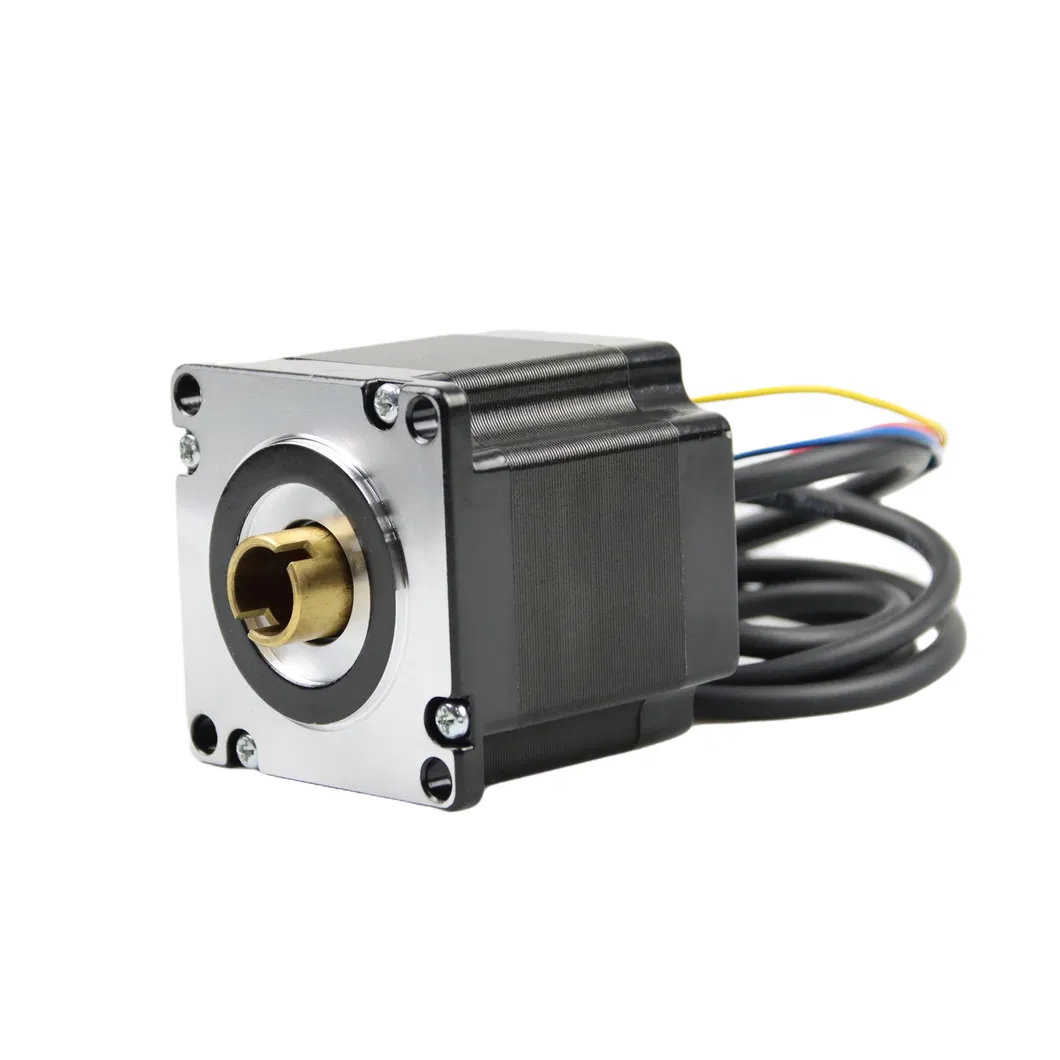

Linear Stepper Motor
Specializing in high-technology manufacturing, our products serve a wide range of industries including CNC machinery, medical devices, and printing equipment. We support both OEM and ODM collaborations to meet specific customer requirements.

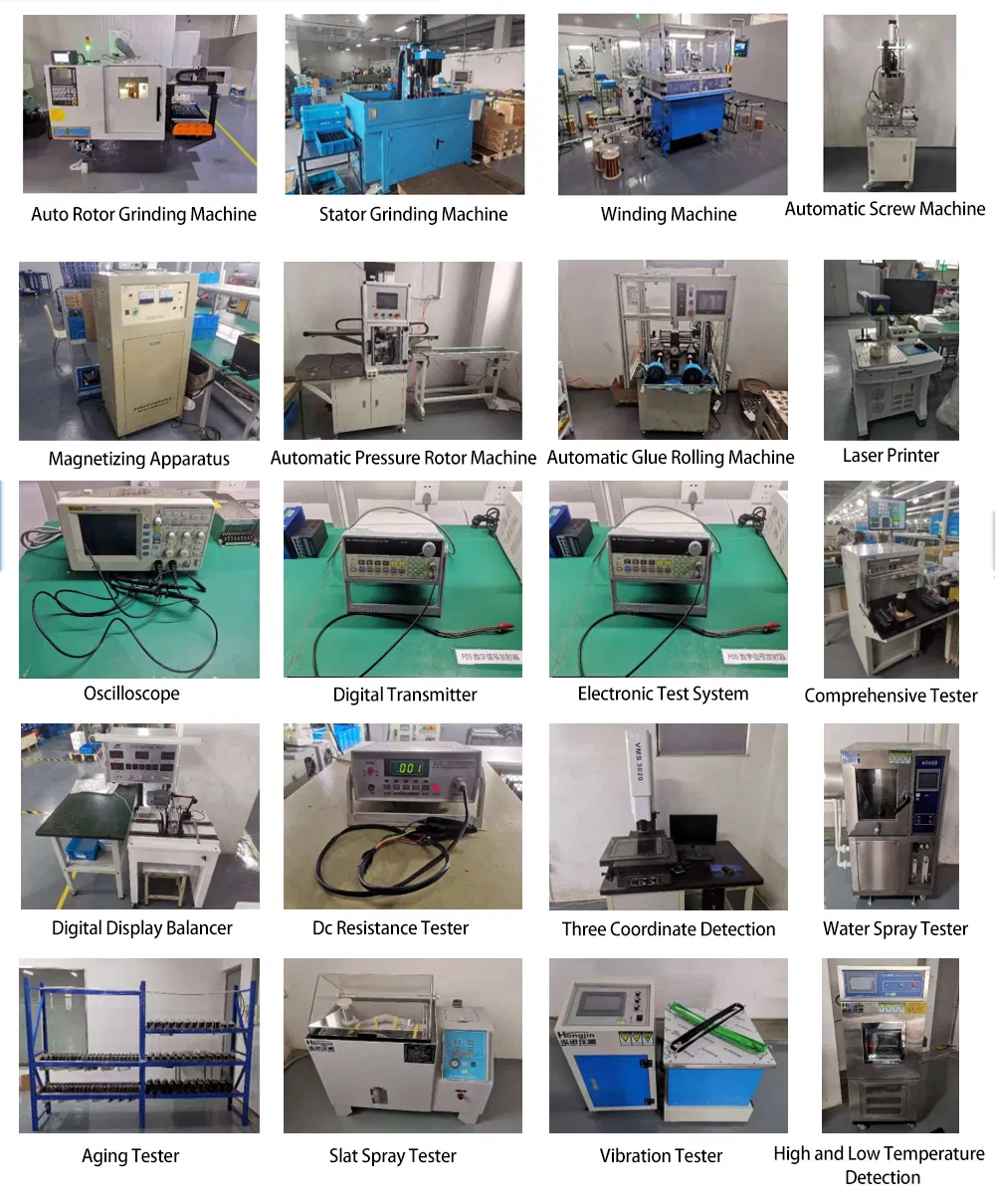

Equipment Show

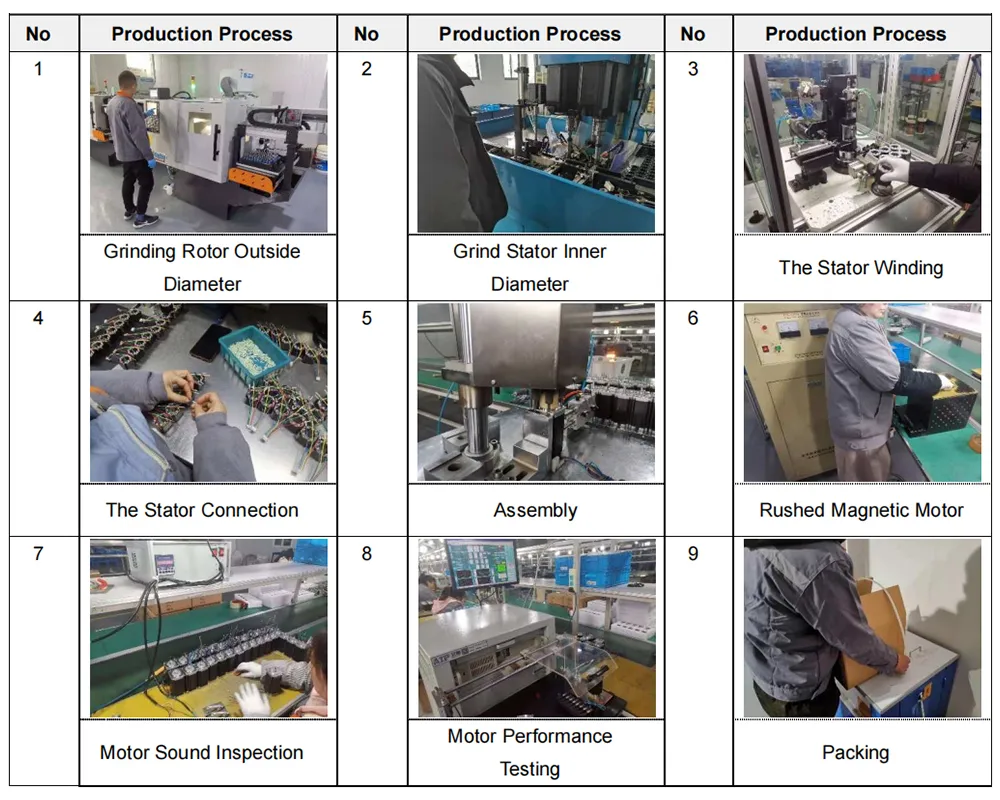

Production Flow
