RedCat Motors
1 / 5
| Model NO. | CH284002123 | Installation | Horizontal Type |
|---|---|---|---|
| Layout | Coaxial | Gear Shape | Bevel Gear |
| Step | Three-Step | Type | Gear Reducer |
| Brake | Manual Release/DC24V Brake | Insulation Level | F |
| Environment | -10℃~+40℃, Humidity<90% | Certificate | 3C, CE... |

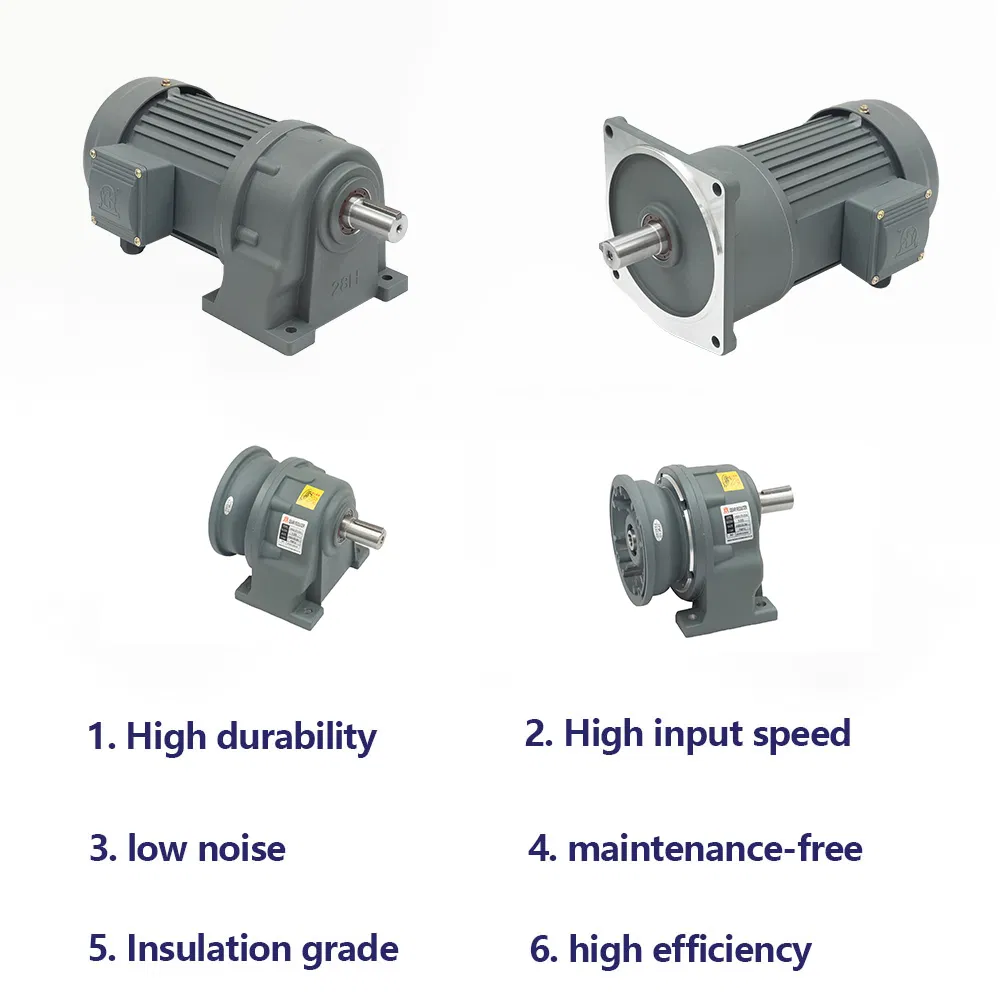

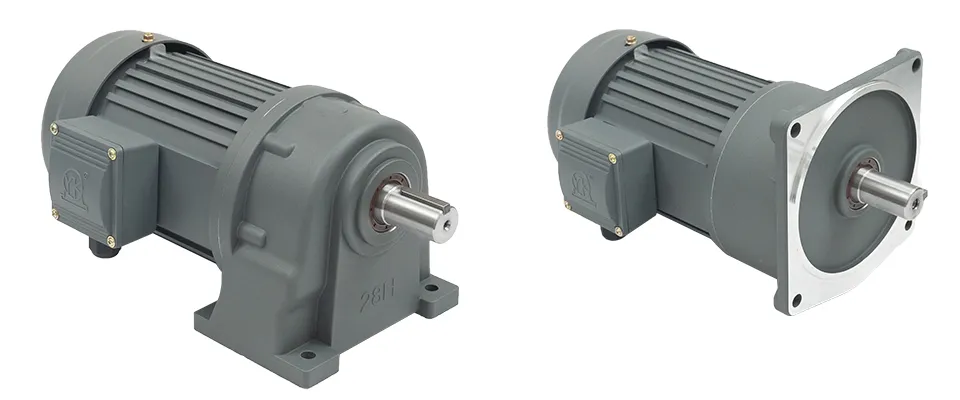

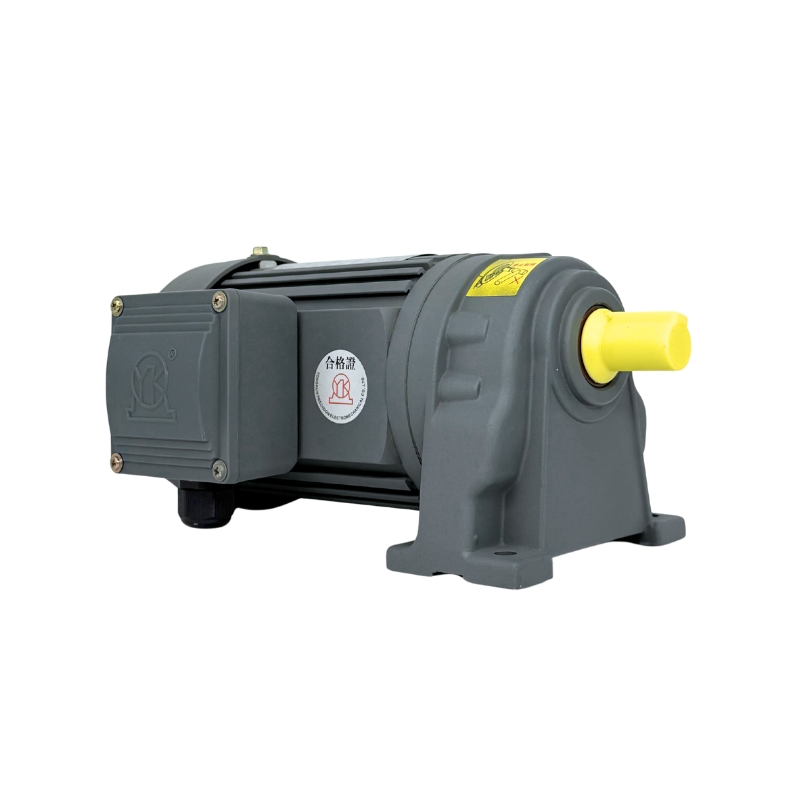

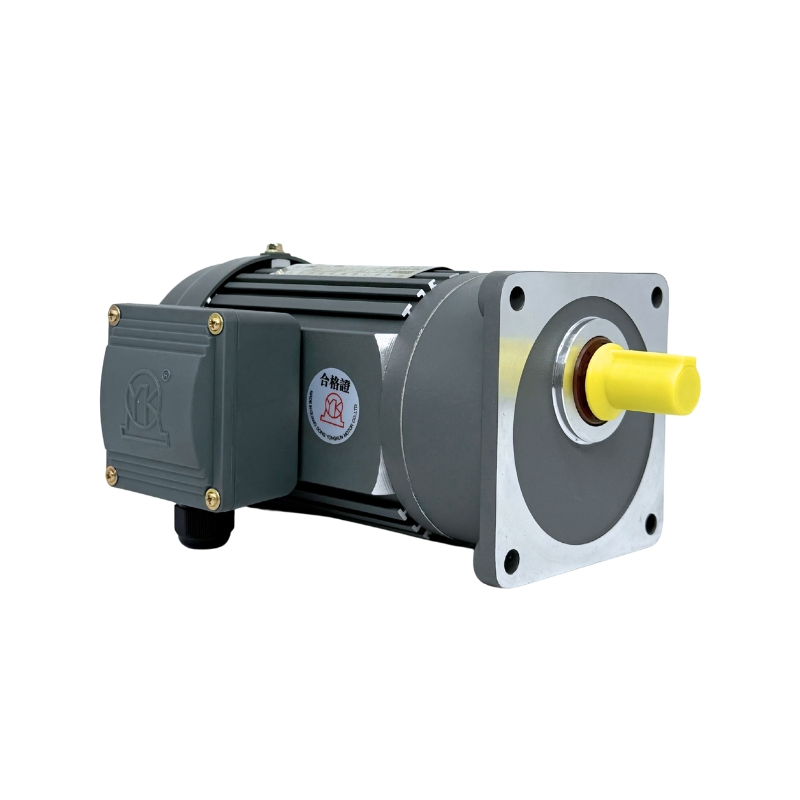

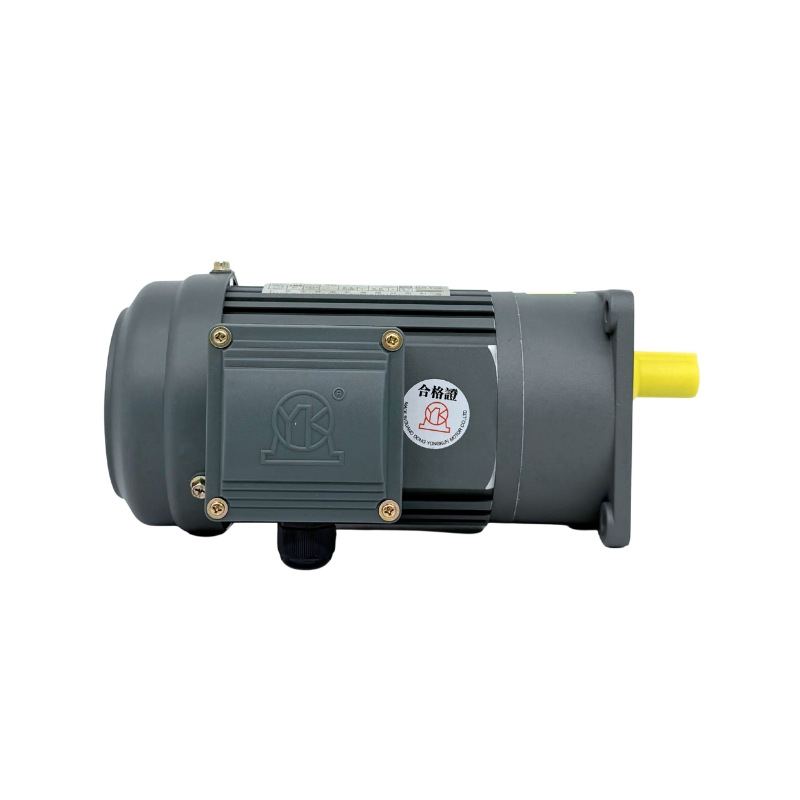

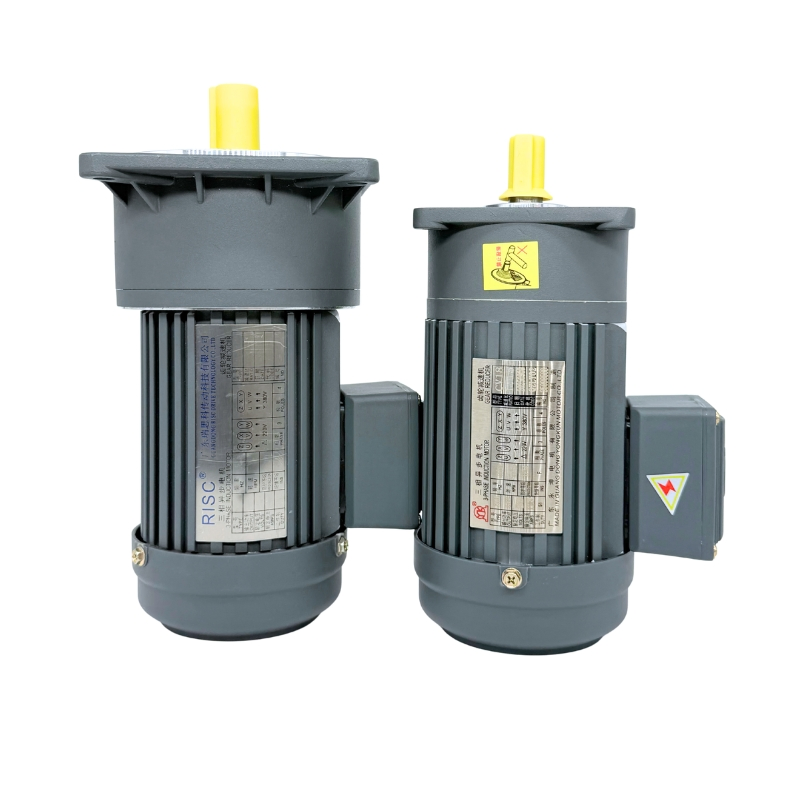

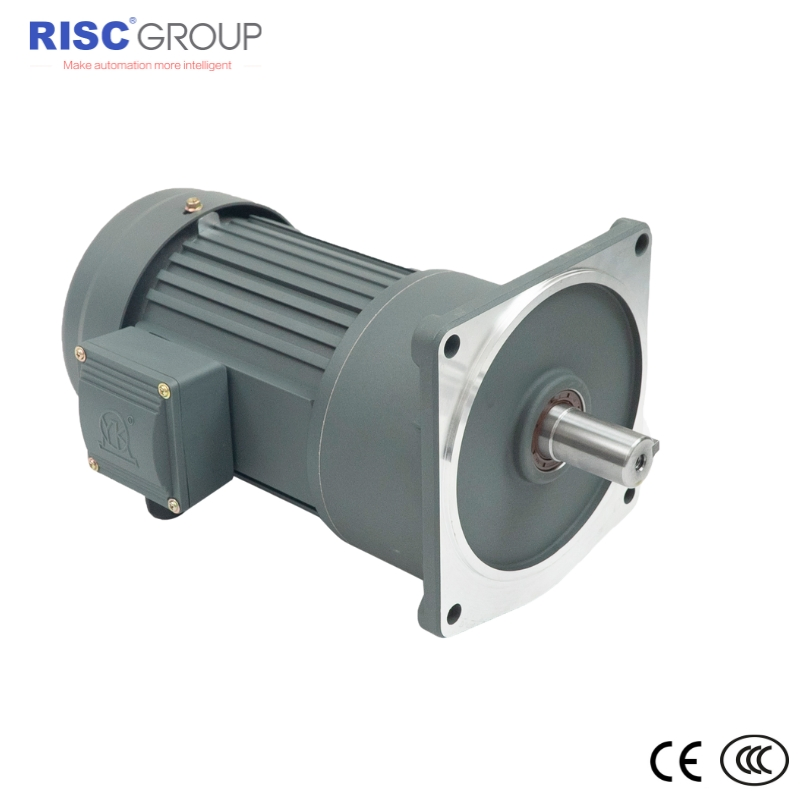

AC Medium Gear Motor Features:
The reducer mechanism adopts a helical tooth design, ensuring superior part meshing with a tooth shape meshing rate more than twice that of ordinary spur gears. Constructed from low-carbon alloy steel, the base material balances rigidity and toughness. The gear surface hardness reaches HRC50~65 after carburizing and quenching for optimal wear resistance and impact toughness.
The bevel gear section utilizes a hypoid spiral and spiral bevel gear structure. The tooth surface is processed through precision grinding, resulting in low noise, high efficiency, and a compact design. The motor is equipped with high-temperature resistant F-grade copper wire and undergoes rigorous testing using professional automated equipment.
| AC Voltage | 3 phase 380V | Phase | Three-Phase |
|---|---|---|---|
| Rated Power | 100W-7500W | Rated Speed | 1450 RPM |
| Model Number | RCH3240060S | Mounting Type | Foot Mount |
| Efficiency | IE2, IE3 | Frequency | 50 Hz / 60 Hz |
| Output Speed | 0~1450 RPM | Ratio | 3-10000 |
| Material | Aluminum Alloy | Protect Feature | Waterproof |

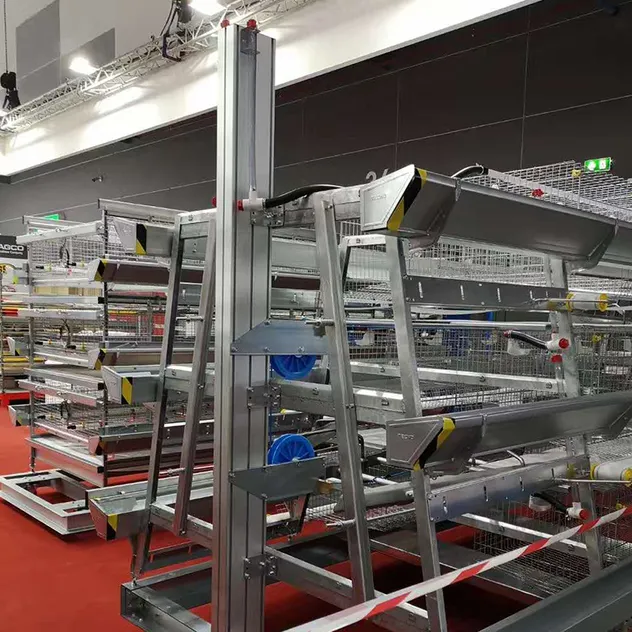

Poultry Equipment

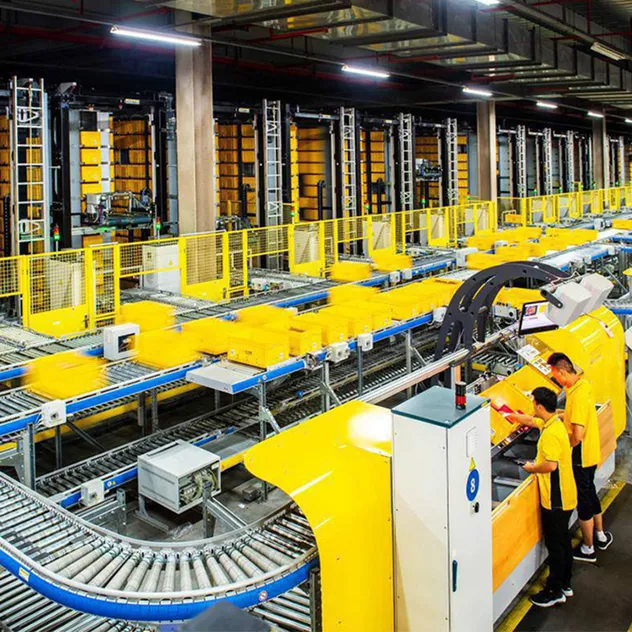

Transmission Systems

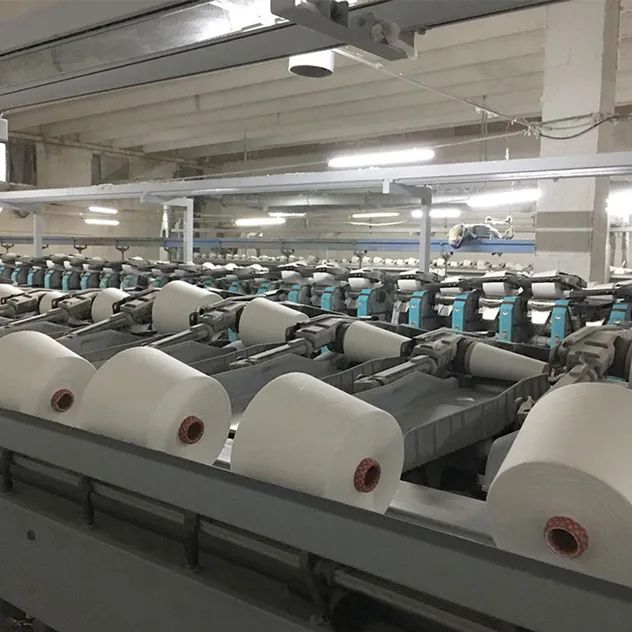

Printing Equipment

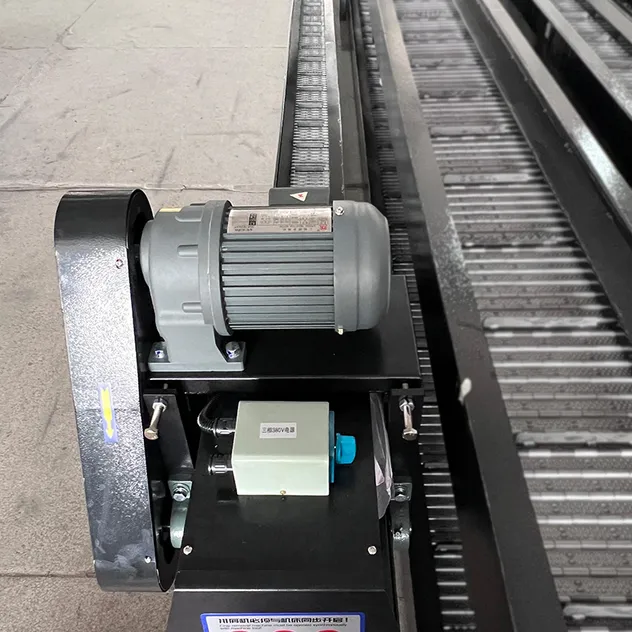

Chip Conveyor Motor

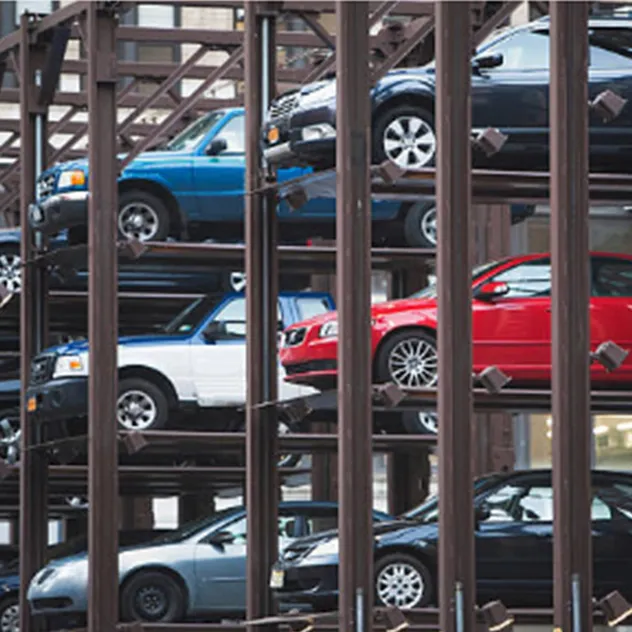

3D Parking Systems

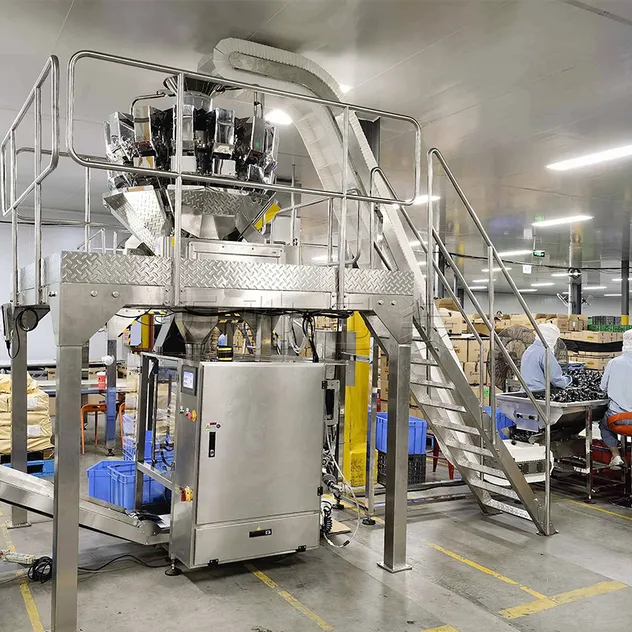

Packaging Machinery

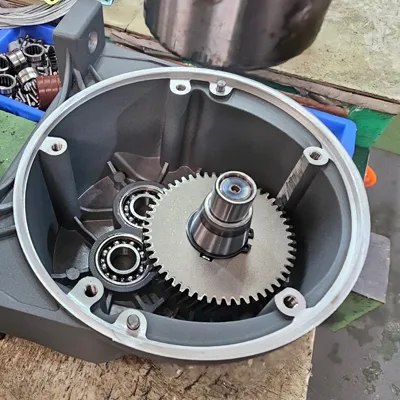

HRC50~65 Hardened Gear

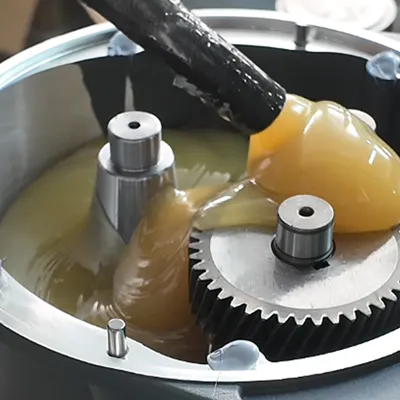

Maintenance-Free Grease
High-Quality Bearings
