Reliable Asda-A2 Industrial Drive Motor for Automation Solutions

1 / 5

Reliable Asda-A2 Industrial Drive Motor for Automation Solutions

Customization:	Available
Application:	Industrial
Speed:	Low Speed

Send Inquiry

Product Description

Basic Specifications

Model NO.

ECMA-G11306SS

Phase

Single-Phase

Function

Driving, Control

Protection

Casing Protection Type

Number of Poles

Starting Mode

Variable Frequency

Certification

ISO9001

Brand

Delta

Product Overview

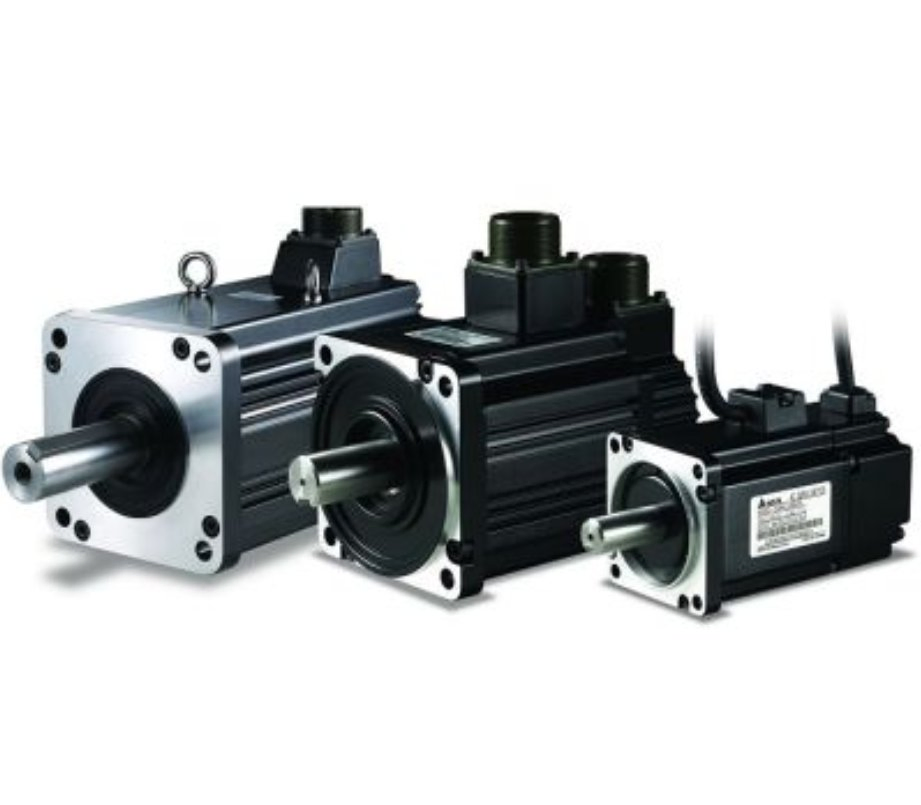

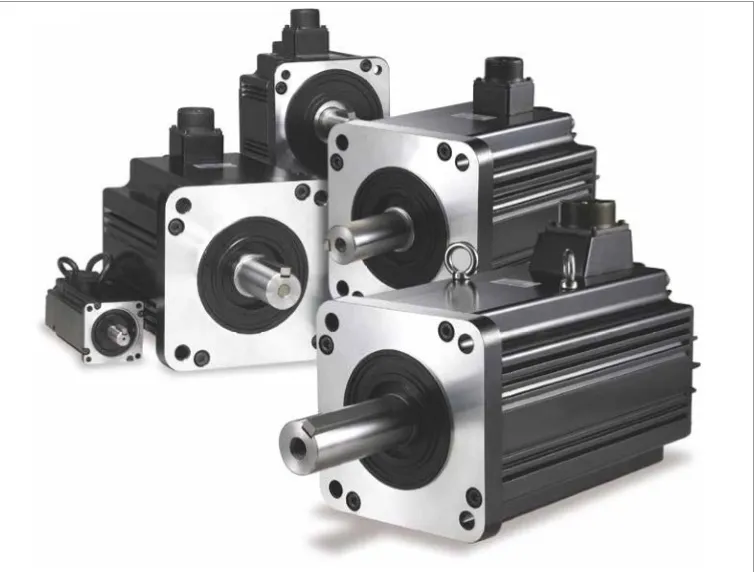

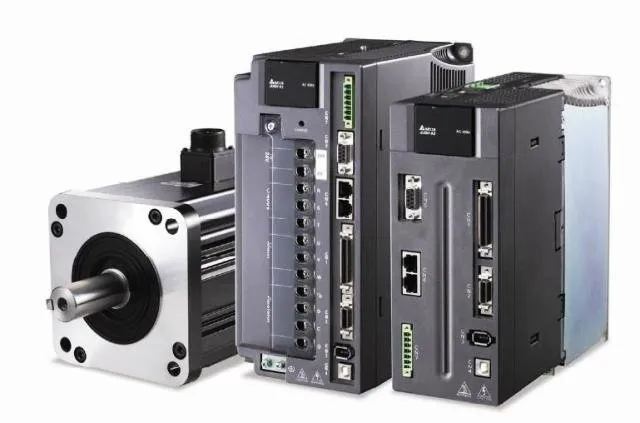

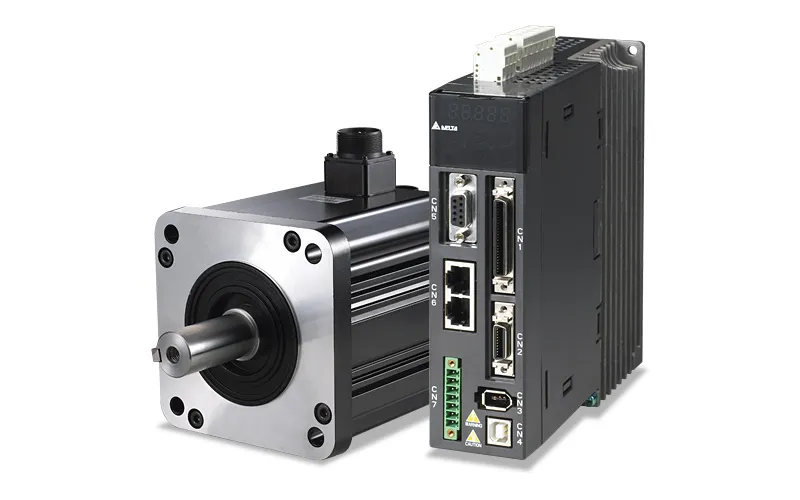

To meet the demanding requirements of motion control applications in industrial automation and satisfy the needs of high-precision positioning control requested by machine designers and system integrators, Delta launched the high-performance motion control ASDA-A2 series servo motors and servo drives.

Key Features

High Precision Control ECMA series servo motors feature an incremental encoder with 20-bit resolution (1,280,000 pulses/revolution). This enhances delicate process requirements and achieves stable rotation at low speeds.

Superlative Vibration Suppression Equipped with built-in automatic low-frequency vibration suppression (ideal for crane control). Two vibration suppression filters minimize machine edge vibration automatically.

Flexible Internal Position Mode (Pr Mode) ASDA-A2-Soft configuration software provides internal parameter editing functions for defining the path of each axis freely.

Unique Built-in Electronic Cam (E-CAM) Supports up to 720 E-CAM points. Smooth interpolation between points is completed automatically to yield flexible programming.

Technical Parameters

Parameter	Specification
Model	ECMA-G11306SS
Product Name	Electronic Commutation AC Servo Motor
Servo Type	AC Servo Motors (ECMA-B2 Series)
Output Power	0.6 KW
Torque	5.73 N-m
Voltage	220 VAC
Phase	1/3 PH
Continuous Output Current	4.80 Arms
Instant Max Output Current	14.40 Arms
Technical Support	Yes

Product Gallery

Frequently Asked Questions

What is the encoder resolution of the ECMA-G11306SS?

The ECMA series servo motors feature a high-resolution 20-bit incremental encoder, providing 1,280,000 pulses per revolution for high-precision positioning.

How does the vibration suppression feature work?

It includes built-in automatic low-frequency vibration suppression with two filters specifically designed to minimize vibration at machine edges during operation.

Can I program motion paths without an external controller?

Yes, the ASDA-A2 series features a flexible Internal Position Mode (Pr Mode) and built-in E-CAM, allowing for path definition and interpolation directly via configuration software.

What is the power output and torque of this model?

The ECMA-G11306SS model provides a rated output power of 0.6 KW and a torque of 5.73 N-m.

Is the motor compatible with both single and three-phase power?

Yes, the technical specifications indicate a phase requirement of 1/3 PH at a voltage of 220 VAC.

What is the advantage of the E-CAM feature?

The built-in Electronic Cam supports up to 720 points with automatic smooth interpolation, making it ideal for complex rotary cut and shear applications.
